Description
Using the same outstanding speaker system as the Reference Monitor range, the confidence monitors offer a superb sound with a cut-down feature set. The confidence monitors have been designed to give the best possible performance at a reduced price.Features: Anti-vibration steel case. Sealed lid w... Read MoreOur Price: $1,933.00
Free Shipping (Continental US)
Suggested Accessories
Description
Using the same outstanding speaker system as the Reference Monitor range, the confidence monitors offer a superb sound with a cut-down feature set. The confidence monitors have been designed to give the best possible performance at a reduced price.
Features:

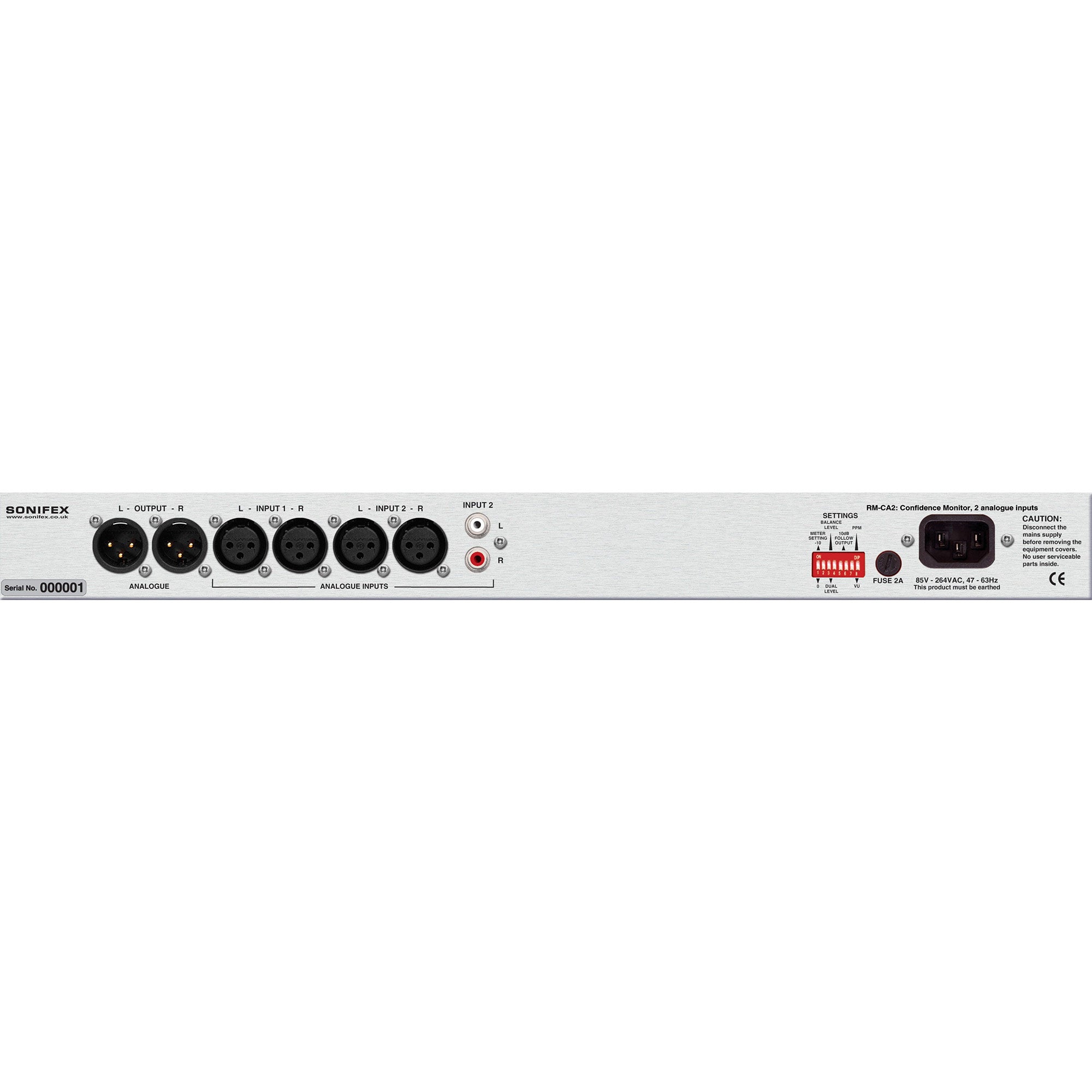

The RM-CA2 is a 1U rack-mount unit offering quality loudspeaker monitoring and 2 channel metering of two stereo analogue audio sources. Input 1 has stereo balanced Neutrik™ XLRs and Input 2 has both stereo balanced Neutrik™ XLRs and stereo unbalanced RCA phono connectors. The balanced analogue inputs can be wired unbalanced if required.

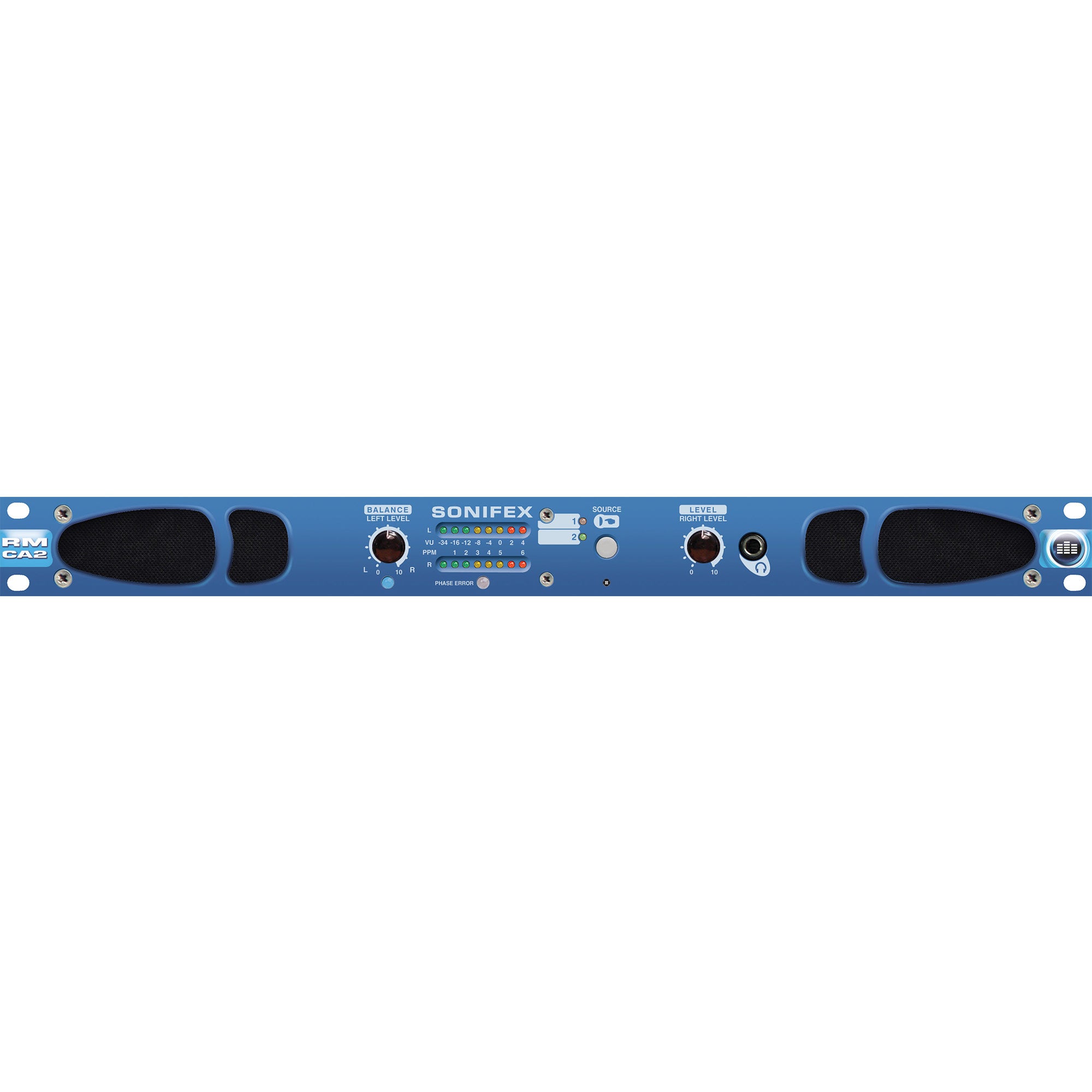

Sources are selected via a front panel push-button switch, with clear LED indication of the current source.
A rear panel DIP switch setting allows the unit to monitor either:
There is a front panel headphone socket which responds to the volume controls and the headphone socket automatically mutes the internal loudspeakers when a plug is inserted.
A pair of line-level analogue audio outputs follow the selected source at the selected level, or optionally at 10dB lower (if using the unbalanced input), set via rear-panel DIP switch.
The level of the chosen source is shown on an 8 segment LED bar-graph display with PPM and VU scales indicated. The bar-graph can optionally be lowered by 10dB (if using the unbalanced input), set via rear-panel DIP switch.
A single phase meter LED indicates channel correlation or phase error conditions.
The three-way loudspeaker system is fed via a DSP-based active crossover and a trio of highly efficient Class-D amplifiers. Careful attention to driver selection, materials and case design, plus active DSP equalisation, has ensured a flat response and outstanding reproduction from such a shallow unit. A protective limiter prevents damage to the loudspeakers under overload conditions.
The RM-CA2 operates from global mains voltages (85-264V AC, 47-63Hz) without adjustment and can optionally be ordered with a DC 9V to 36V input instead of the AC input.
More +
Product Specs
Inputs | |
Audio Inputs | 2 x stereo analogue (1 x XLR balanced, 1 x XLR balanced or RCA phono unbal) |
Max level (0dB input gain) | +18dBu (analogue)/0dBFS (digital) |
CMRR | >60dB typical |
Analogue input impedances | |
XLR | >20k? balanced bridging |
RCA | >10? unbalanced |
Input Gain | +10dB on unbalanced input |
Selection | Front panel push button with indicator LEDs |
Audio Outputs | 1 x stereo analogue |
Gain re Selected Input | Unity or - 10dB (switchable) |
Maximum Output Level | +18dB |
Output Impedance | <50? |
Distortion | <0.02% (1kHz, +8dBu output) |
Noise | -95dB RMS, unity gain ref +8dBu output |
Frequency Response | 20Hz-20kHz +0/-0.5dB |
Crosstalk | Analogue I/O, ref 0dBu |
1kHz input | <-90dB |
10kHz input | <-85dB |
Amplifier/Loudspeakers | |
Configuration | Three-way with stereo mid/ high-frequency drivers & mono low-frequency driver |
Power Output | 2 x 7W (HF) + 15W (LF) with protective limiter |
Crossover | 250Hz (24dB/octave, Linkwitz-Riley) |
Distortion (HF Outputs) | < 0.1% (1kHz, 3W output) |
Distortion (LF Output) | < 0.01% (100Hz, 6W output) |
Noise | More than 102dB below full output |
Volume | Mute to full volume via front panel rotary control |
Balance Trim | ±6dB via front panel rotary control |
Peak Acoustic Level | 98dB SPL @ 2ft |
Level & Phase Metering | |
Number | 2 x 8-segment LED bargraphs |
Line-Up Level | 0dB on scale can be set to 0dB or -10dB via rear panel DIP switch |
Phase Meter | Single LED indication showing average |
Connectors | |
Audio Inputs | 4 x XLR 3-pin female balanced 2 x RCA female phono unbalanced |
Audio Outputs | 2 x XLR 3-pin male (balanced, may be unbalanced) |
Headphones | 1/4” (6.35mm) A-gauge 3-pole stereo jack socket |
Mains Input | Filtered 3-pin IEC male, continuously rated 85 - 264VAC, 47 - 63Hz, fused, 60W peak, 30W average |
Fuse Rating | Anti-surge fuse 2A 20 x 5mm |
Physical Specification | |
Dimensions (Raw) | 48cm (W) x 27cm (D) x 4.4cm (H) (1U) 19” (W) x 12” (D) x 1.73” (H) (1U) |
Dimensions (Boxed) | 57cm (W) x 52cm (D) x15cm (H) 22.4” (W) x 20.5” (D) x 5.9” (H) |
Weight | Nett: 4.5kg Gross: 6kg Nett: 10lb Gross: 13.2lb |
