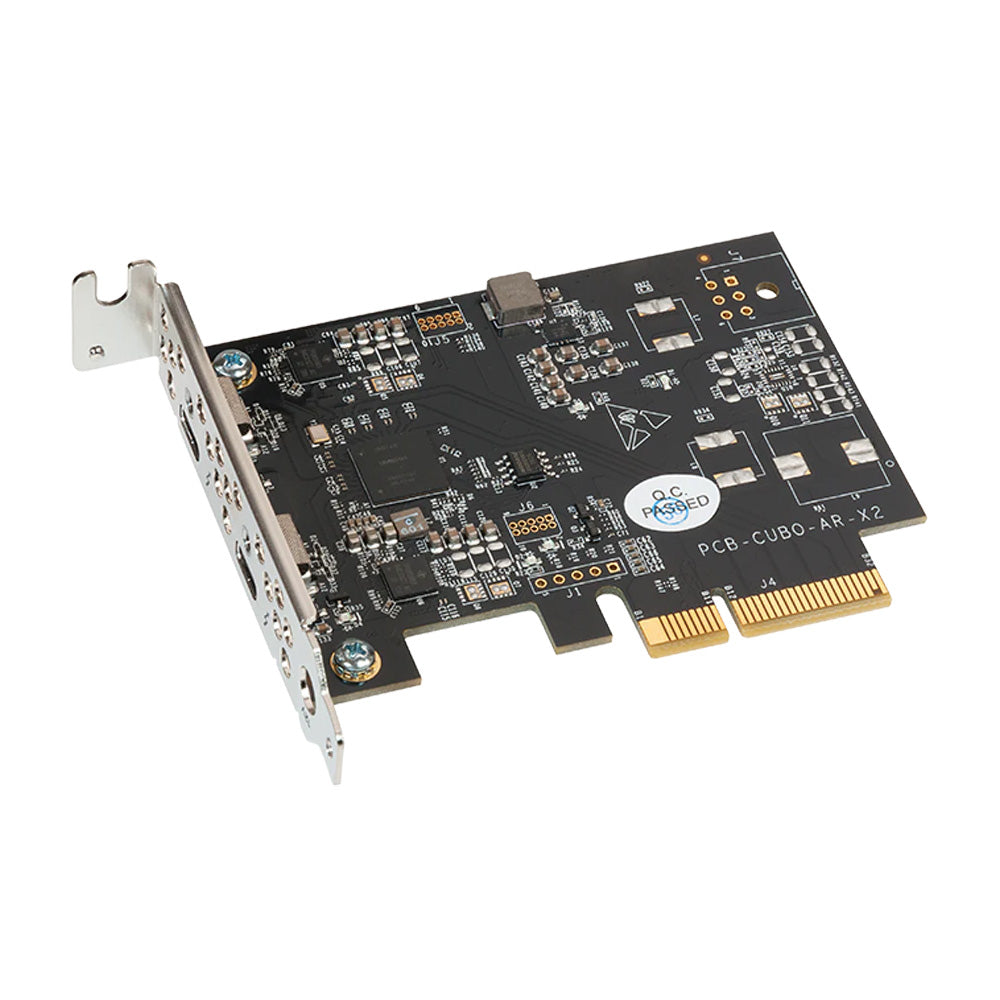

Sonnet BRD-UPGRTB3-SEL - Thunderbolt 3 Upgrade Card for Echo Express SEL



  • Dale #:

    SONN-BRDUPGRTB3SEL

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Step Up to 40Gbps Thunderbolt 3! Sonnet designed the Echo™ Express SEL Thunderbolt™ 2 to PCIe card expansion system to be easily upgraded to 40Gbps Thunderbolt 3. Simply replace the existing Thunderbolt interface board with the upgrade board, and then your chassis will instantly support higher pe... Read More

Our Price: $199.99

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Step Up to 40Gbps Thunderbolt 3! Sonnet designed the Echo™ Express SEL Thunderbolt™ 2 to PCIe card expansion system to be easily upgraded to 40Gbps Thunderbolt 3. Simply replace the existing Thunderbolt interface board with the upgrade board, and then your chassis will instantly support higher performance, and connect to your Thunderbolt computer without the need for an adapter.

Upgrade Instead of Adapting
Why adapt when upgrading offers more? With the Thunderbolt 3 upgrade card installed you get:

  • Easy to Install 40Gbps Thunderbolt 3 Upgrade Card – Replaces Existing 20Gbps Thunderbolt 2 Interface Board
  • Improves Performance with High-Bandwidth PCIe Cards – Provides 30% More Bandwidth (Up to 1750 MB/s)
  • Two Thunderbolt 3 Ports
  • Compatible with Thunderbolt 3, Thunderbolt 4, and Thunderbolt/USB4 computers
  • ThunderLok™ 3-compatible
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed in the USA

More +

Product Specs

Hardware
Warranty 2-year
External Connectors Two Thunderbolt 3 ports
Operating Temperature 0?C to 35?C (32?F to 95?F)
RoHS Compliant Yes
Package Contents Thunderbolt 3 upgrade card
Documentation
Sonnet Hardware Compatibility Echo Express SEL (Thunderbolt 2 Edition)
Echo Express SEL 10GbE
Twin 10G SFP+
Sonnet Thunderbolt 2 to mini-SAS adapter (included with Fusion DX800RAID Thunderbolt 2 Edition)
Mac Compatibility Mac with Thunderbolt/USB4,Thunderbolt 4, or Thunderbolt 3 ports
Macs with Thunderbolt 2 or Thunderbolt ports with the Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter
macOS¨ 10.12.6+
macOS Ventura compatible
PC Compatibility PC with Thunderbolt 4 or Thunderbolt 3 port
Windows¨ 11 or 10

More +
