Sonnet BRD-UPGRTB3-XM - Thunderbolt 3 Upgrade Kit for xMac Mini Server TB2 Edition
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

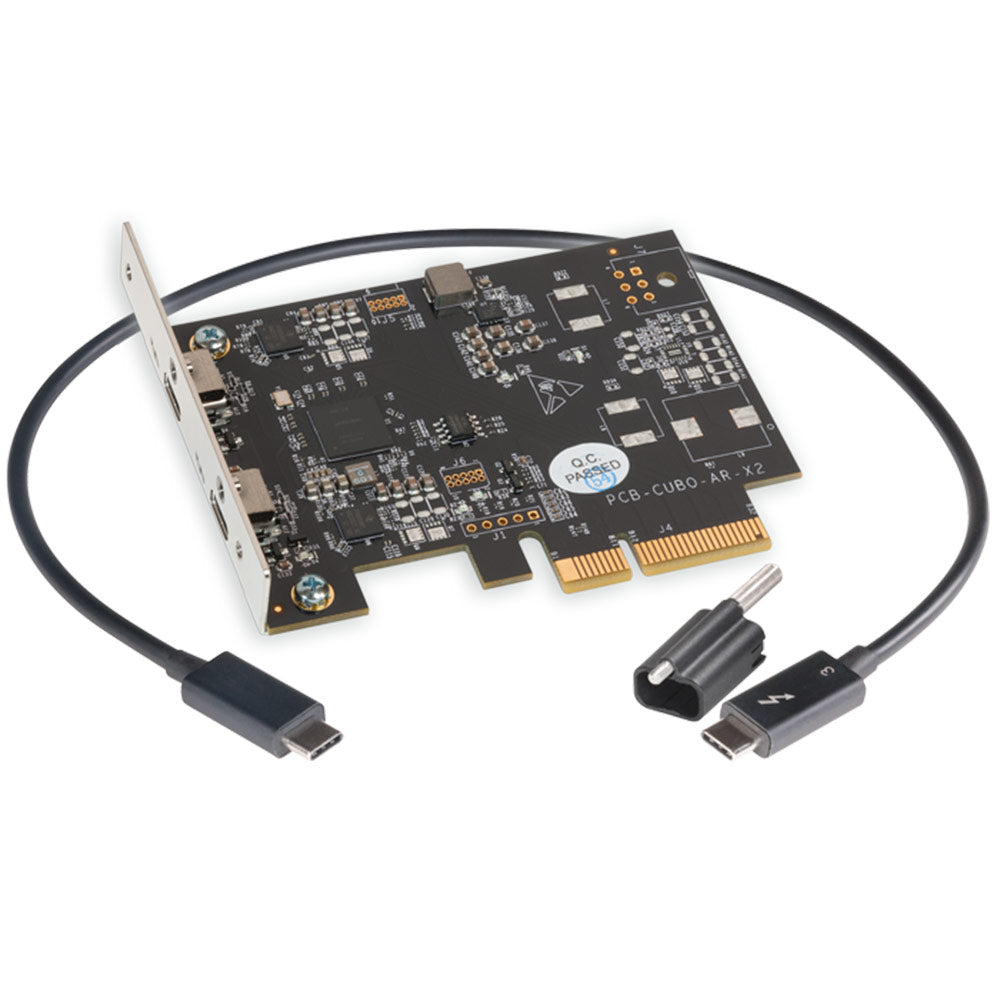

Step Up to 40Gbps Thunderbolt 3! Sonnet designed the xMac mini Server (XMAC-MS-A) Thunderbolt 2 to PCIe card expansion system to be easily upgraded to 40Gbps Thunderbolt 3. Simply replace the existing Thunderbolt interface board with the upgrade board, and then your chassis will instantly support higher performance, and connect to your Thunderbolt computer without the need for an adapter.
Upgrade Instead of Adapting
Why adapt when upgrading offers more? With the Thunderbolt 3 upgrade kit installed you get:
- Easy to Install 40Gbps Thunderbolt 3 Upgrade Card – Replaces Existing 20Gbps Thunderbolt 2 Interface Board
- Improves Performance with High-Bandwidth PCIe Cards – Provides 30% More Bandwidth (Up to 1750 MB/s)
- Two Thunderbolt 3 Ports
- Compatible with Thunderbolt 3, Thunderbolt 4, and Thunderbolt/USB4 computers
- 0.5-meter Thunderbolt 3 (40Gbps) cable
- ThunderLok 3 Thunderbolt Connector Retainer Clip
- 2-Year Warranty
| Hardware | |
| Warranty | 2-year |
| External Connectors | Two Thunderbolt 3 ports |
| Operating Temperature | 0?C to 35?C (32?F to 95?F) |
| RoHS Compliant | Yes |
| Package Contents | Thunderbolt 3 upgrade card 0.5-meter Thunderbolt 3 (40Gbps) cable Thunderbolt 3 cable lock Documentation |
| Sonnet Hardware Compatibility | xMac mini Server (Thunderbolt 2 Edition) (Part No. XMAC-MS-A) |
| Mac Compatibility | Mac with Thunderbolt/USB4,Thunderbolt 4, or Thunderbolt 3 ports Macs with Thunderbolt 2 or Thunderbolt ports with the Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter macOS¨ 10.12.6+ macOS Ventura compatible |
| PC Compatibility | PC with Thunderbolt 4 or Thunderbolt 3 port Windows 11 (Future Release 23H1+required), or 10 |
Step Up to 40Gbps Thunderbolt 3! Sonnet designed the xMac mini Server (XMAC-MS-A) Thunderbolt 2 to PCIe card expansion system to be easily upgraded to 40Gbps Thunderbolt 3. Simply replace the existing Thunderbolt interface board with the upgrade board, and then your chassis will instantly support higher performance, and connect to your Thunderbolt computer without the need for an adapter.
Upgrade Instead of Adapting
Why adapt when upgrading offers more? With the Thunderbolt 3 upgrade kit installed you get:
- Easy to Install 40Gbps Thunderbolt 3 Upgrade Card – Replaces Existing 20Gbps Thunderbolt 2 Interface Board
- Improves Performance with High-Bandwidth PCIe Cards – Provides 30% More Bandwidth (Up to 1750 MB/s)
- Two Thunderbolt 3 Ports
- Compatible with Thunderbolt 3, Thunderbolt 4, and Thunderbolt/USB4 computers
- 0.5-meter Thunderbolt 3 (40Gbps) cable
- ThunderLok 3 Thunderbolt Connector Retainer Clip
- 2-Year Warranty
| Hardware | |
| Warranty | 2-year |
| External Connectors | Two Thunderbolt 3 ports |
| Operating Temperature | 0?C to 35?C (32?F to 95?F) |
| RoHS Compliant | Yes |
| Package Contents | Thunderbolt 3 upgrade card 0.5-meter Thunderbolt 3 (40Gbps) cable Thunderbolt 3 cable lock Documentation |
| Sonnet Hardware Compatibility | xMac mini Server (Thunderbolt 2 Edition) (Part No. XMAC-MS-A) |
| Mac Compatibility | Mac with Thunderbolt/USB4,Thunderbolt 4, or Thunderbolt 3 ports Macs with Thunderbolt 2 or Thunderbolt ports with the Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter macOS¨ 10.12.6+ macOS Ventura compatible |
| PC Compatibility | PC with Thunderbolt 4 or Thunderbolt 3 port Windows 11 (Future Release 23H1+required), or 10 |
