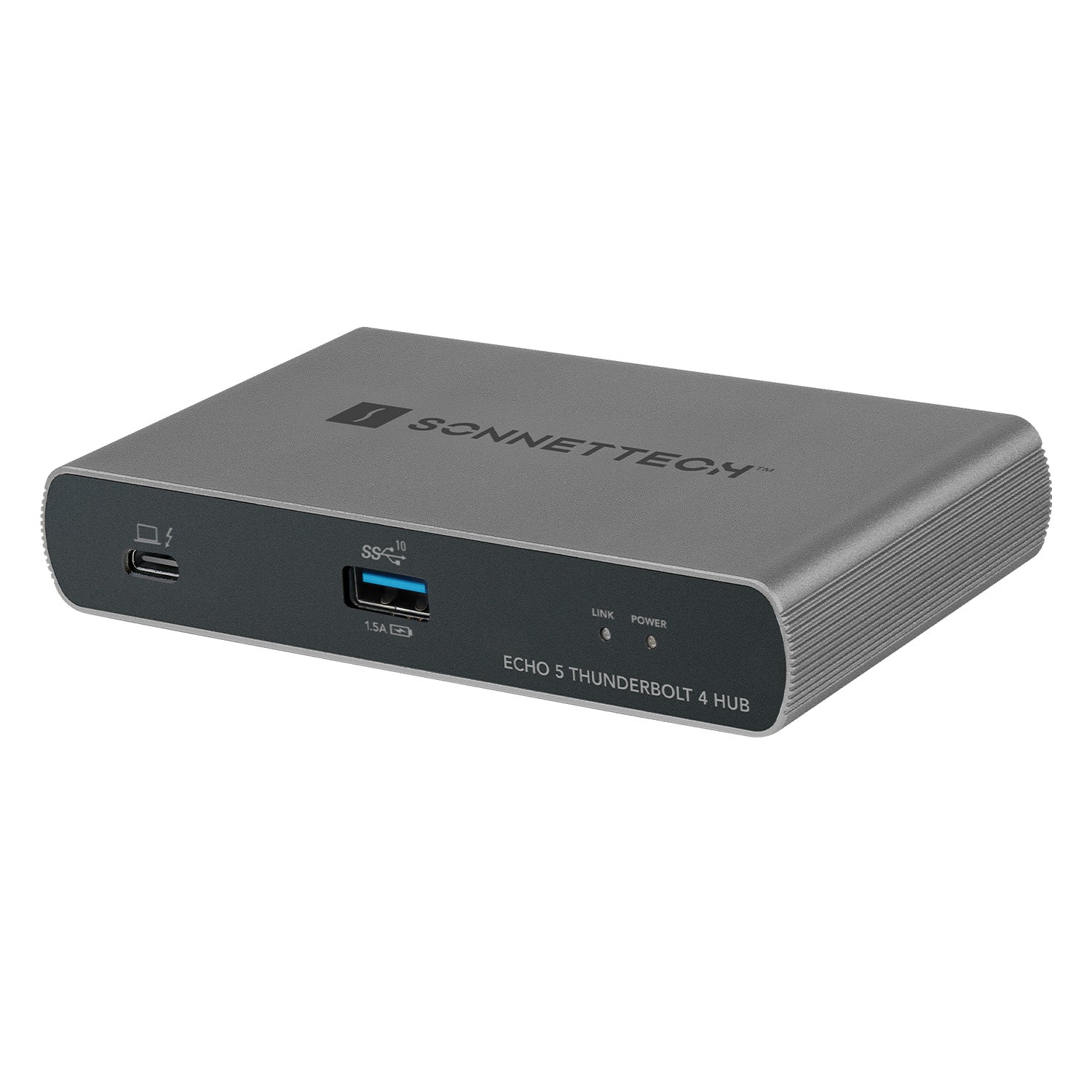

Sonnet ECHO-HB5-T4 - Echo 5 Thunderbolt 4 Hub
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Thunderbolt™ hub you've always wanted, without paying for the extra features you don't need. A single cable powers your laptop and connects to multiple Thunderbolt and USB peripheral devices. Sonnet's Echo™ 5 Thunderbolt 4 Hub – the compact universal hub for today and tomorrow. Compatible with Thunderbolt 4 computers; Apple® M1/M2 series Macs; Thunderbolt 3 Intel® Macs; and M1/M2 iPad Pro.
85W Charging Power – Small Package. Big Charge.
Plug in your Thunderbolt devices, monitor(s), and USB peripherals, and then connect them all to your computer from the hub with the included Thunderbolt cable. The Echo 5 Thunderbolt 4 Hub will even power your laptop with up to 85W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your laptop, and go.
Flexible Device Connectivity for Work and Play
Based on the Intel Goshen Ridge controller, the Echo 5 Thunderbolt Hub features four Thunderbolt 4 ports; one for connection/power to your computer, plus three to directly connect Thunderbolt peripheral devices (and daisy chain up to a total of 5 devices). The Thunderbolt ports also support USB4 and USB 3 peripherals. For bus-powered devices, the Hub's Thunderbolt peripheral ports provide 15W per port, supporting the most demanding bus-powered Thunderbolt and USB peripherals — they can even charge your iPhone® or iPad® twice as fast as using the USB Type A port.
Features:
- One Cable Peripheral Connection
- Three Thunderbolt 4 Ports for Peripherals
- Powerful 10Gbps Front Panel USB Type A Charging Port
- Support for 4K, 5K, 6K, and 8K @60Hz Displays
- Many Display Interfaces Supported – Connect Thunderbolt and USB-C Displays Directly; Supports HDMI and DisplayPort Displays with a Thunderbolt-compatible Adapter (sold separately)
- Travel-Sized Thunderbolt Port Expander
- Charge Your Laptop – Provides Up to 85W
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed in the USA
Mac Compatibility
- Mac (M1 or M2) Supports Only One Display
- Mac (M1/M2 Pro, M1/M2 Max, or M1 Ultra) Supports Two Displays
- Mac (Intel) with Thunderbolt 3 Ports Supports Two Displays
- macOS 13 (Ventura), 12 (Monterey), or 11 (Big Sur) Required
iPad Pro Compatibility
- M1/M2 Series iPad Pro Supports Only One Mirrored Display
Windows Compatibility
- Windows® Computer with Thunderbolt 4 Ports Supports Two Displays
- Windows Computer with USB4 Port
- Windows Computer with Thunderbolt 3 Port and an Intel 8th Gen (2018) or Newer CPU
| Compatibility | |
| Mac Compatibility | Mac (M1/M2) supports only one display Mac (M1/M2 Pro, M1/M2 Max, or M1/M2 Ultra) supports two displays, including two Apple Pro Display XDRs Mac (Intel) with Thunderbolt 3 ports supports two displays, up to two 5K macOS 13 (Ventura), 12 (Monterey), and 11 (Big Sur) |
| Windows Compatibility | Windows computer with Thunderbolt 4 ports (supports two displays) Windows computer with a Thunderbolt 3 port and an Intel 8th Gen (2018) or newer CPU Windows computer with a USB4 port(4) Windows 11 and 10 |
| Chromebook Compatibility | Chromebook with a Thunderbolt 4 port or USB 4(4) |
| iPad Pro Compatibility | M1/M2 iPad Pro supports only one mirrored display |
| Displays Compatibility | For computers and displays compatibility information, see Sonnet's website for the most up to date list. |
| HDR Compatibility | See Sonnet's Apple Support Notes for Mac HDR information If your Windows computer supports HDR, see Sonnet's Microsoft Support Notes for Windows HDR information. |
| Hardware | |
| Part Number | ECHO-HB5-T4 |
| Warranty | 2-year |
| Form Factor | Thunderbolt hub |

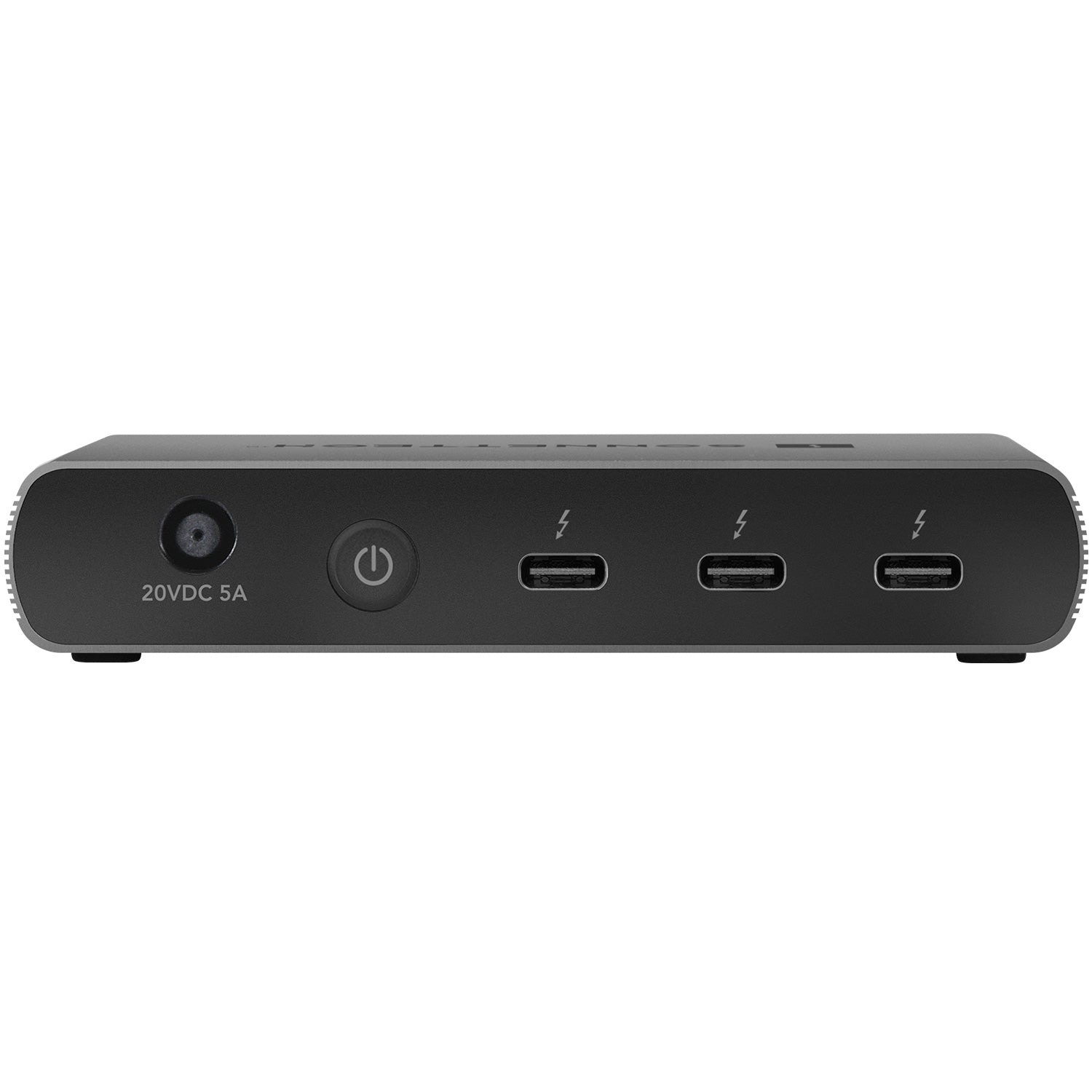

| External Connectors | Four Thunderbolt 4 ports One USB 3.2 Gen 2 (10Gbps) Type A charging port One power connector |
| Thunderbolt 4 Computer Port | |
| Power Delivery | Provides laptop charging up to 85W(1) |
| Cables Supported | Any Thunderbolt 4 cable (0.7-meter cable included) 100W ? 0.8-meter 40Gbps Thunderbolt cables |
| Cables Not Supported | 60W 40Gbps Thunderbolt cables ? 1.0-meter 40Gbps Thunderbolt cables |
| Thunderbolt 4 Peripherals Ports | |
| Connectivity | With USB-C connector |
| Peripherals Supported | Thunderbolt 4 Thunderbolt 3 Thunderbolt 2 (macOS[2]) USB4 USB 3, 2.0, and 1.1 devices Thunderbolt 3 and USB-C monitors DisplayPort and HDMI monitors(3) |
| Charging | 15W capacity to charge iPad, iPhone, or other device supporting PD charging Supports simultaneous charging and syncing |
| USB 3.2 Gen 2 Type A Port | |
| Connectivity | With USB Type A connector |
| Peripherals Supported | USB 3, 2.0 and 1.1 devices |
| Data Transfer Rate | USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps |
| Charging | 7.5W capacity to charge iPad, iPhone, or other device USB Battery Charging 1.2Ðcompliant Supports simultaneous charging and syncing |
| Power Adapter | Universal 100W, 100-240V AC, 50-60 Hz |
| Power Delivery | Provides laptop charging up to 85W(1) |
| Operating Temperatures | 0?C to 35?C (32?F to 95?F) |
| Dimensions (WxDxH) | Hub: 5.1 x 2.8 x 0.9 in. (12.9 x 7.2 x 2.16 cm) Power Supply: 2.2 x 5.8 x 1.3 in. (5.6 x 14.8 x 3.2 cm) |
| Weight | Hub and Power Supply: 1.35 lbs (0.61 kg) Complete Package: 2.30 lbs (1.04 kg) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety FCC Part 15, Subpart B CISPR 32 / EN 55032 UKCA Power Supply (PSE certified; UL certified; VCCI certified) |
| Package Contents | Echo 5 Thunderbolt 4 Hub Power adapter Power cord 0.7-meter Thunderbolt 4 cable Documentation |
