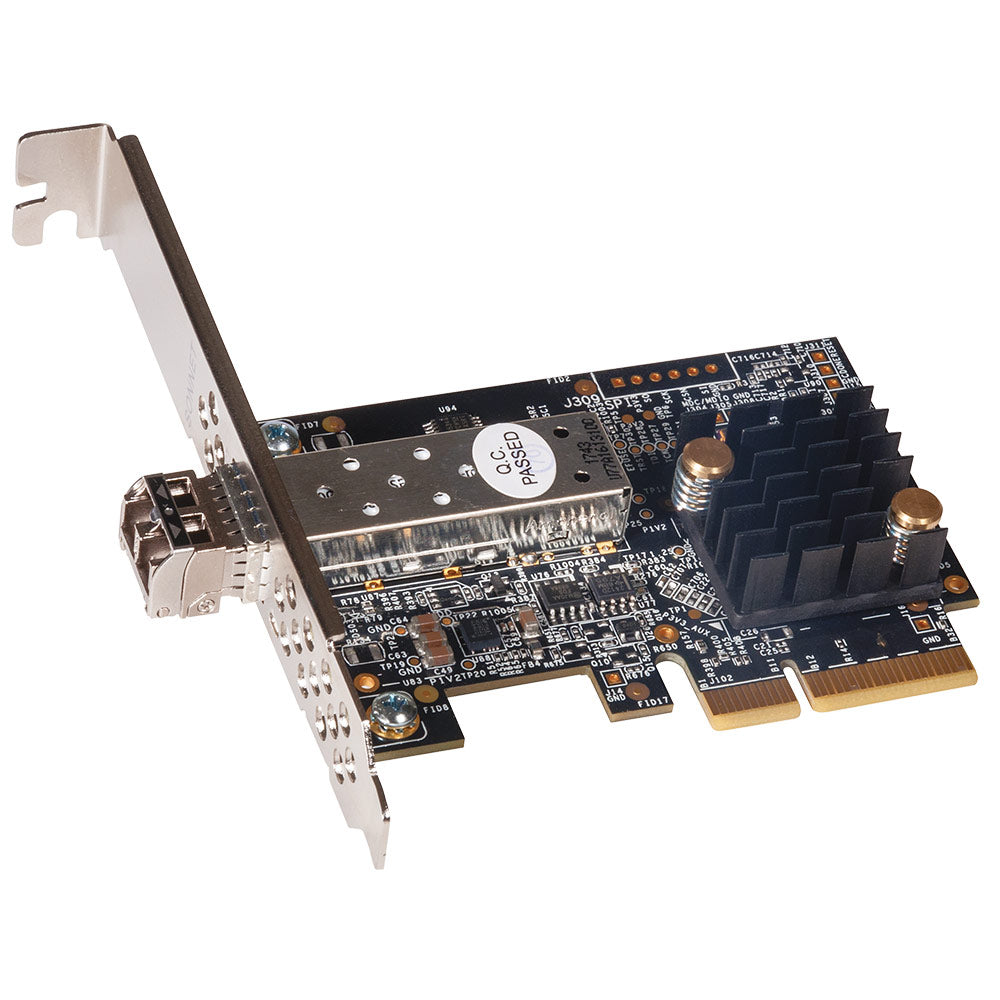

Sonnet G10E-SFP-1X-E3 - Solo10G SFP+ 10GbE Gigabit Ethernet PCIe Card with SFP+ Module
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Made possible by advances in technology—plus cheaper gear—more content than ever is captured and outputted at 4K and higher resolutions. The resulting files are larger than ever. For post-production shared storage workgroups and other bandwidth-intensive workflows, 10 Gigabit Ethernet (10GbE) has become the new data transfer standard.
While very affordable 10GbE switches have helped to significantly reduce the expense of setting up 10GbE infrastructure, the price of adding client connectivity—especially fiber optic connections—has remained a barrier for some. Now, there is an equally affordable 10GbE interface for your desktop and workstation computers—Sonnet's Solo10G™ SFP+ PCIe® Card, a powerfully simple solution for adding blazing-fast fiber optic 10GbE network connectivity to Mac®, Windows®, and Linux® computers at a price that's sure to please
The Solo10G SFP+ PCIe Card includes a 10GBASE-SR (short-range) SFP+ transceiver (the most commonly-used optical transceiver), enabling you to connect your computer to 10GbE infrastructure via LC optical cable (optical cables sold separately) at distances up to 300 meters.
Features:
- Compatible with 2019 Mac Pro
- Adds 10GbE Connectivity
- Cost-Effective—Includes 10GBASE-SR (short-range) SFP+ transceiver
- Easy Setup
- Optimized for Thunderbolt
- Compatible with Mac, Windows, and Linux
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed in the USA
| Compatibility | |
| Computer Compatibility | Mac Pro¨ 5,1, 7,1 (2019), or 8,1 (2023) PC desktop or server |
| OS Compatibility | macOS¨ 10.13.6+ macOS Ventura compatible Windows¨ 11, 10, 8, 7; Server 2019, 2016, 2012 Linux¨ VMware ESXi 8,7 |
| Thunderbolt Compatibility | Mac (Intel¨ or M1) via a Thunderbolt to PCIe Card Expansion System Windows computer running Windows 10 Build 1809 or newer (64-bit edition) via a Thunderbolt to PCIe Card Expansion System |
| Hardware | |
| Part No. | G10E-SFP-1X-E3 |
| Warranty | 2-year |
| Form Factor | Low-profile PCIe computer card |
| Transceiver Interface | Type One SFP+ socket with 10GBASE-SR (300m) SFP+ Optical Transceiver |
| Bus Interface | PCI Express v3.0, x4 |
| Controller | Aquantia AQC-100S |
| Packets | Maximum packet size: 16352 bytes (jumbo frames) 9000 bytes under macOS |
| Data Rate Supported Per Port | 10 Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s |
| Advanced Features | Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Interrupt coalescing Multicast filtering Energy-Efficient Ethernet (IEEE 802.3az) 64-bit address support for systems using more than 4GB of physical memory |
| Stateless Offloads | TCP, UDP and IPv4 checksum offloading TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 |
| Package Contents | Solo10G SFP+ PCIe Card 10GBASE-SR (short-range) SFP+ transceiver Two mounting brackets (full-height and low-profile) Documentation |
Made possible by advances in technology—plus cheaper gear—more content than ever is captured and outputted at 4K and higher resolutions. The resulting files are larger than ever. For post-production shared storage workgroups and other bandwidth-intensive workflows, 10 Gigabit Ethernet (10GbE) has become the new data transfer standard.
While very affordable 10GbE switches have helped to significantly reduce the expense of setting up 10GbE infrastructure, the price of adding client connectivity—especially fiber optic connections—has remained a barrier for some. Now, there is an equally affordable 10GbE interface for your desktop and workstation computers—Sonnet's Solo10G™ SFP+ PCIe® Card, a powerfully simple solution for adding blazing-fast fiber optic 10GbE network connectivity to Mac®, Windows®, and Linux® computers at a price that's sure to please
The Solo10G SFP+ PCIe Card includes a 10GBASE-SR (short-range) SFP+ transceiver (the most commonly-used optical transceiver), enabling you to connect your computer to 10GbE infrastructure via LC optical cable (optical cables sold separately) at distances up to 300 meters.
Features:
- Compatible with 2019 Mac Pro
- Adds 10GbE Connectivity
- Cost-Effective—Includes 10GBASE-SR (short-range) SFP+ transceiver
- Easy Setup
- Optimized for Thunderbolt
- Compatible with Mac, Windows, and Linux
- 2-year Product Warranty
- Free Lifetime Customer Technical Support
- Designed in the USA
| Compatibility | |
| Computer Compatibility | Mac Pro¨ 5,1, 7,1 (2019), or 8,1 (2023) PC desktop or server |
| OS Compatibility | macOS¨ 10.13.6+ macOS Ventura compatible Windows¨ 11, 10, 8, 7; Server 2019, 2016, 2012 Linux¨ VMware ESXi 8,7 |
| Thunderbolt Compatibility | Mac (Intel¨ or M1) via a Thunderbolt to PCIe Card Expansion System Windows computer running Windows 10 Build 1809 or newer (64-bit edition) via a Thunderbolt to PCIe Card Expansion System |
| Hardware | |
| Part No. | G10E-SFP-1X-E3 |
| Warranty | 2-year |
| Form Factor | Low-profile PCIe computer card |
| Transceiver Interface | Type One SFP+ socket with 10GBASE-SR (300m) SFP+ Optical Transceiver |
| Bus Interface | PCI Express v3.0, x4 |
| Controller | Aquantia AQC-100S |
| Packets | Maximum packet size: 16352 bytes (jumbo frames) 9000 bytes under macOS |
| Data Rate Supported Per Port | 10 Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s |
| Advanced Features | Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Interrupt coalescing Multicast filtering Energy-Efficient Ethernet (IEEE 802.3az) 64-bit address support for systems using more than 4GB of physical memory |
| Stateless Offloads | TCP, UDP and IPv4 checksum offloading TSO (TCP Segmentation Offload, AKA Large Send Offload) LRO (Large Receive Offload) |
| Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 |
| Package Contents | Solo10G SFP+ PCIe Card 10GBASE-SR (short-range) SFP+ transceiver Two mounting brackets (full-height and low-profile) Documentation |
