Description
Many post-production shared storage workgroups and other bandwidth-intensive workflows have reached a point where 10Gb Ethernet (10GbE) does not provide enough bandwidth and speed for optimum performance. Stepping up to 25Gb Ethernet (25GbE) makes a lot of sense — it offers greater performance an... Read MoreOur Price: $899.99
Free Shipping (Continental US)
Suggested Accessories
Description

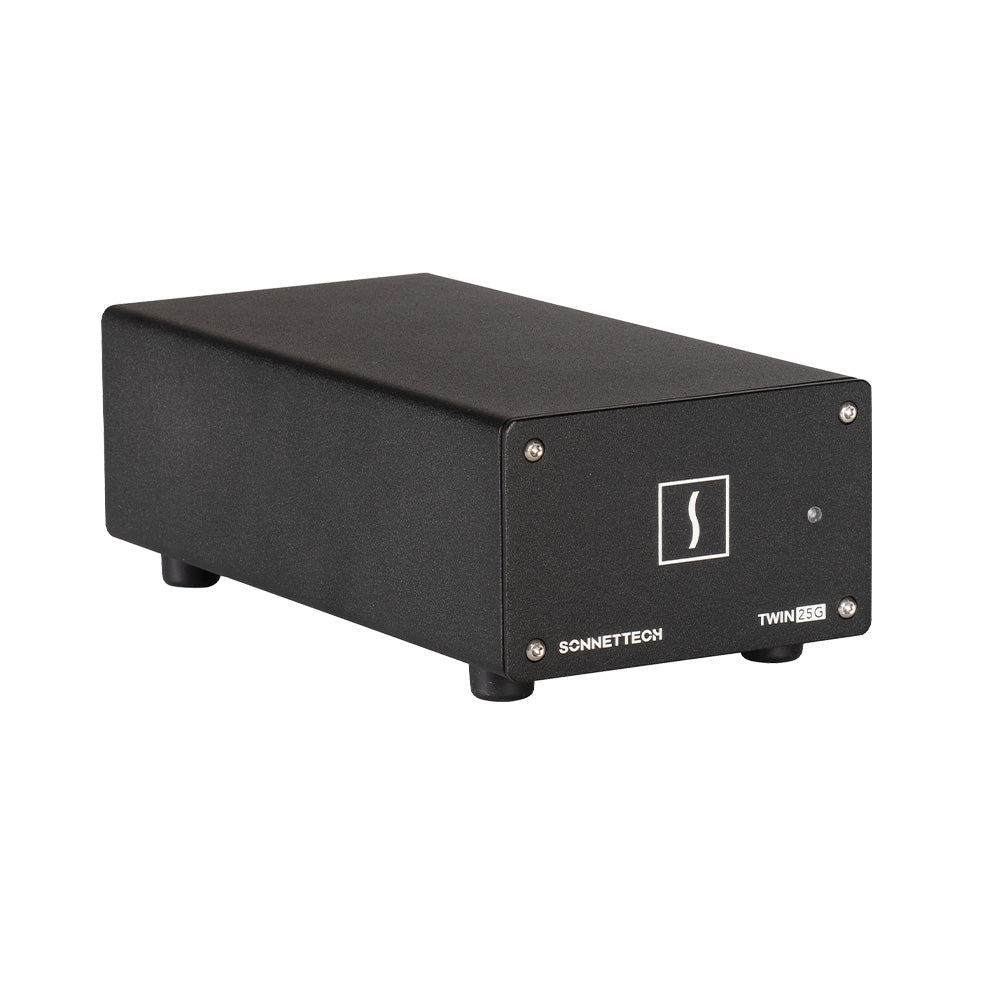

Many post-production shared storage workgroups and other bandwidth-intensive workflows have reached a point where 10Gb Ethernet (10GbE) does not provide enough bandwidth and speed for optimum performance. Stepping up to 25Gb Ethernet (25GbE) makes a lot of sense — it offers greater performance and often works with the same optical network infrastructure as 10GbE. For these workgroups, there is now a cost-effective 25GbE interface for your Mac®, Windows®, or Linux® computer with Thunderbolt™ 4 or Thunderbolt 3 ports — Sonnet's Twin25G™, an affordable yet powerful solution for adding incredibly-fast fiber optic 25GbE network connectivity.
Features:
Affordable 25GbE Networking – Make the Switch
Postproduction workflows' needs for speed and increased network bandwidth beyond the current 10Gb standard have increased more quickly than the availability of affordable higher speed network components. Recently, extremely affordable 25Gb Ethernet switches have become available, but connecting a computer with Thunderbolt ports — such as a Mac Studio® — to a 25GbE infrastructure has remained expensive. Until now. Sonnet's Twin25G Thunderbolt adapter is the most cost-effective and powerfully simple solution for adding incredible 25GbE network connectivity to your computer without PCIe card slots.
Compact and Nearly Noiseless – Cool Running
Small enough to easily fit in most workspaces, the Twin25G adapter is still large enough to support proper airflow inside its case to enable the adapter's temperature-controlled, variable-speed fan to keep the adapter always running cool and quiet.
Intelligent Operation – Efficient Performance
The Twin25G adapter attains high throughput performance with minimal host CPU load. The adapter's smart controller has its own internal processing system with onboard memory to process TX/RX data while using few CPU resources. Once data appears in queues, TX checksums are computed on the fly as data is transmitted; RX checksums are quickly verified, and data is immediately passed directly to main memory. This independent controller action minimizes latency and avoids packet drops. The CPU is freed for other tasks.
All the Right Connections – 40Gbps Thunderbolt Cable and ThunderLok Included
Sonnet includes a Thunderbolt cable that supports Thunderbolt's full 40Gbps bandwidth, and is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections — just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won't get lost when not in use.
More +
Product Specs
Compatibility | |
Mac Compatibility | Mac (M series) Mac (Intel®) with Thunderbolt 3 ports macOS 13 (Ventura) |
Windows Compatibility | Windows computer with Thunderbolt 4 or Thunderbolt 3 ports Windows 11 and 10 |
Linux Compatibility | Linux computer with Thunderbolt 4 or Thunderbolt 3 ports Linux Kernel 5.0+ |
Hardware | |
Part Number | TWIN25G-TB |
Warranty | 2-year |
Form Factor | Thunderbolt 25GbE adapter |

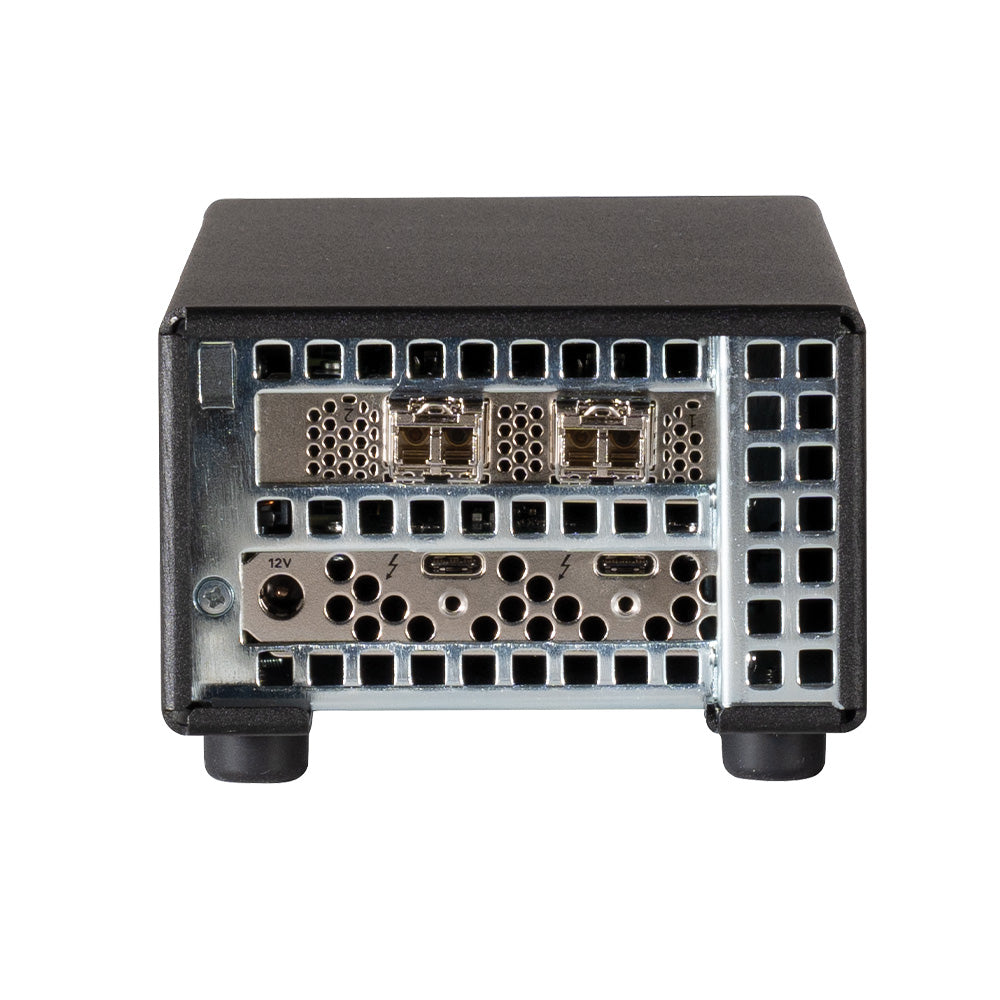

External Connectors | Two Thunderbolt ports (second prot supports a Thunderbolt peripheral, USB device, or a display) Two SFP28 sockets with two 25GBASE-SR optical transceivers 12V power port |
25GbE Controller | Mellanox ConnectX |
Network Support | 25Gb/s 10Gb/s |
Teaming (Link Aggregation) | Not Supported |
Packets | Maximum packet size: 9000 bytes (jumbo frames) |
Data Rates Supported per Port | 25Gb/s 10Gb/s |
Advanced Features | Flow control support MSI (Message Signaled Interrupts) RSS (Receive-Side Scaling) Multicast filtering 64-bit address support for systems using more than 4GB of physical memory Wake-on-LAN not supported |
Stateless Offloads | TCP, UDP, and IPv4 checksum offloading TRO (TCP Receive Offload) |
Power Adapter | Universal 60W, 100-240V, 50-60 Hz NRTL Certified |
Operating Temperature | 0ºC to 35ºC (32ºF to 95ºF) |
Dimensions (WxDxH) | 4 x 8.25 x 2.75 in. (10.3 x 21 x 7.3 cm) |
Weight | Thunderbolt Adapter and Power Adapter: 2.3 lbs. (1.04 kg) Complete Package: 4.1 lbs. (1.86 kg) |
Compliance | RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2 Safety |
Package Contents | Twin10G 25GbE Thunderbolt Adapter Thunderbolt 3 cable(1) ThunderLok 3 Thunderbolt connector retainer clip(2) Universal power adapter Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK Documentation |
