Description

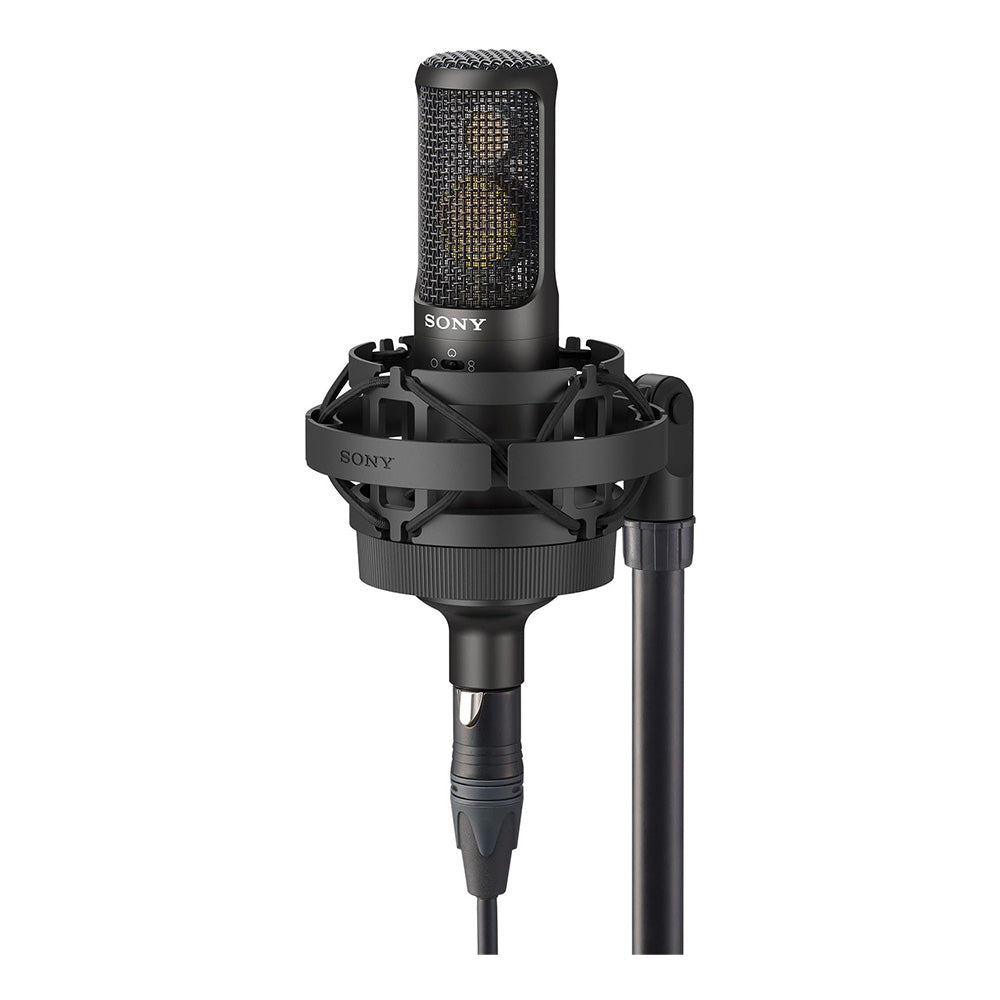

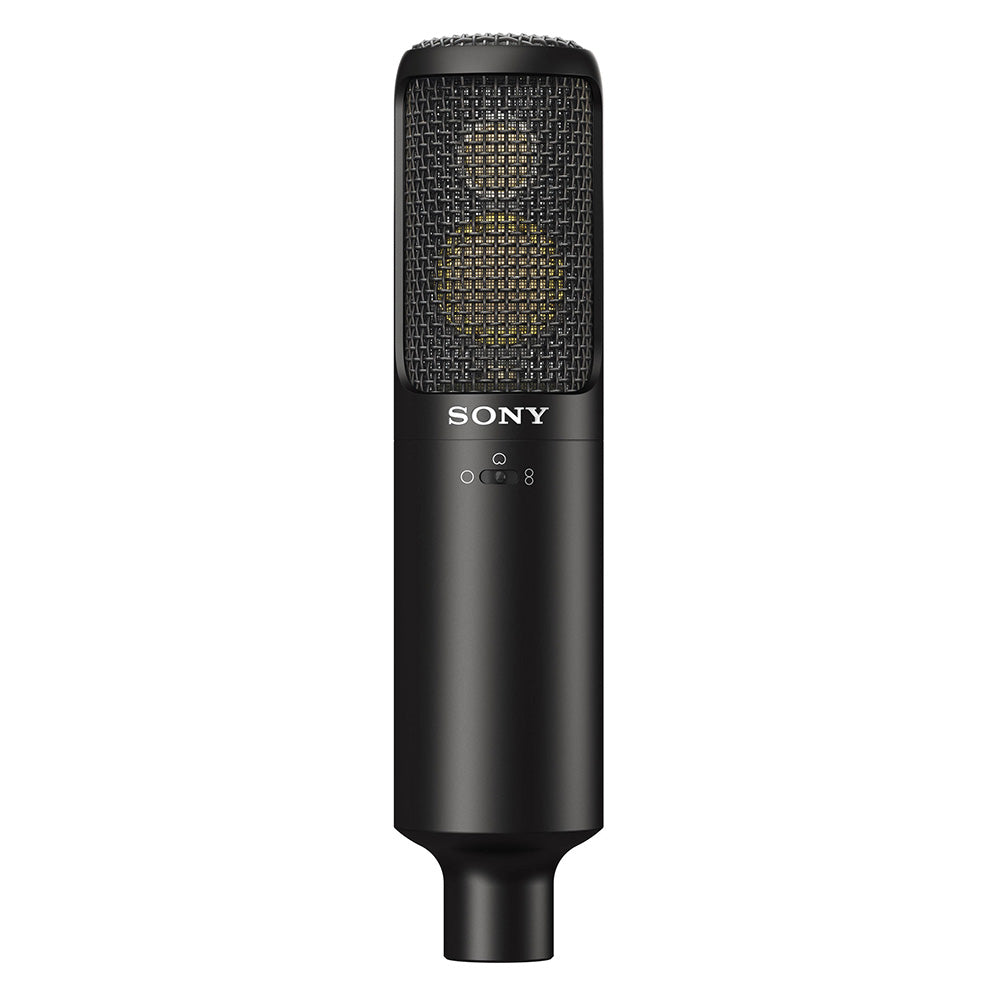

The Sony C-100 is a two way condenser microphone compatible with High-Resolution Audio, and suitable for vocal and critical instrument recording in the studio. Incorporating newly developed double microphone capsules and noise elimination structure (originally employed in the C-800G microphone), the C-100 delivers a broad frequency range of 20 to 50,000 Hz and excellent reproduction of vocal and musical qualities. The condenser element of the C-100 microphone provides a selectable pick-up pattern (Omni/Uni/Bi) for various recording applications.
Features:
-
Excellent Sound Quality
Two-way microphone capsule structure realizes both broad high range and resonant mid-low range and gives great vocal presence. -
Wide Frequency Response
The C-100 microphone has a broad frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio. -
Noise Elimination Construction
Two-part metallic body structure succeeded from C-800G microphone prevents acoustic vibration resulting in low noise and clear sound. -
Switchable Polar Patterns
The C-100 microphone features switchable uni-directional, omni-directional and Figure-8 ploar patterns for various recording applications. -
Low-Cut Filter
Low-Cut filter switch helps eliminate low-frequency noise and proximity effect. -
Pad Switch
An -10dB pad switch on C-100 microphone provides added headroom and minimizes distortion caused by transient peaks.
Audio Section | |
Capsule Type | 2 Way Microphone (Condenser + Back electret condenser) |
Frequency Response | 20 Hz to 50 kHz |
Directivity | Uni-directional/Omni-directional/Bi-directional |
Sensitivity | (Uni-directional) -31 dB (Omni-directional) -37 dB (Bi-directional) -35 dB |
Output Impedance | 90½±15%, Balanced |
Dynamic Range | (Uni-directional) 113 dB or more (Omni-directional) 114 dB or more (Bi-directional) 114 dB or more |
Signal-to-Noise Ratio | (Uni-directional) 75 dB or more (Omni-directional) 70 dB or more (Bi-directional) 72 dB or more |
Inherent Noise | (Uni-directional) 19 dB SPL or less (Omni-directional) 24 dB SPL or less (Bi-directional) 22 dB SPL or less |
Maximum Input Sound Pressure Level | (Uni-directional) 132 dB SPL (Omni-directional) 138 dB SPL (Bi-directional) 136 dB or SPL |
General Section | |
Connector | XLR-3-12C (male) |
Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
Power Requirements | DC 44 to 52 V |
Dimensions | 40dia._175mm (1.57dia._6.89in.) |
Mass | Approx. 290g (10.2oz.) |
Supplied Accessories | Cradle suspention (1) Wind screen (1) Stand screw adaptor (W3/8 to NS5/8) (1) Operating instructions (1) Carrying case (1) |
The Sony C-100 is a two way condenser microphone compatible with High-Resolution Audio, and suitable for vocal and critical instrument recording in the studio. Incorporating newly developed double microphone capsules and noise elimination structure (originally employed in the C-800G microphone), the C-100 delivers a broad frequency range of 20 to 50,000 Hz and excellent reproduction of vocal and musical qualities. The condenser element of the C-100 microphone provides a selectable pick-up pattern (Omni/Uni/Bi) for various recording applications.
Features:
-
Excellent Sound Quality
Two-way microphone capsule structure realizes both broad high range and resonant mid-low range and gives great vocal presence. -
Wide Frequency Response
The C-100 microphone has a broad frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio. -
Noise Elimination Construction
Two-part metallic body structure succeeded from C-800G microphone prevents acoustic vibration resulting in low noise and clear sound. -
Switchable Polar Patterns
The C-100 microphone features switchable uni-directional, omni-directional and Figure-8 ploar patterns for various recording applications. -
Low-Cut Filter
Low-Cut filter switch helps eliminate low-frequency noise and proximity effect. -
Pad Switch
An -10dB pad switch on C-100 microphone provides added headroom and minimizes distortion caused by transient peaks.
Audio Section | |
Capsule Type | 2 Way Microphone (Condenser + Back electret condenser) |
Frequency Response | 20 Hz to 50 kHz |
Directivity | Uni-directional/Omni-directional/Bi-directional |
Sensitivity | (Uni-directional) -31 dB (Omni-directional) -37 dB (Bi-directional) -35 dB |
Output Impedance | 90½±15%, Balanced |
Dynamic Range | (Uni-directional) 113 dB or more (Omni-directional) 114 dB or more (Bi-directional) 114 dB or more |
Signal-to-Noise Ratio | (Uni-directional) 75 dB or more (Omni-directional) 70 dB or more (Bi-directional) 72 dB or more |
Inherent Noise | (Uni-directional) 19 dB SPL or less (Omni-directional) 24 dB SPL or less (Bi-directional) 22 dB SPL or less |
Maximum Input Sound Pressure Level | (Uni-directional) 132 dB SPL (Omni-directional) 138 dB SPL (Bi-directional) 136 dB or SPL |
General Section | |
Connector | XLR-3-12C (male) |
Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
Power Requirements | DC 44 to 52 V |
Dimensions | 40dia._175mm (1.57dia._6.89in.) |
Mass | Approx. 290g (10.2oz.) |
Supplied Accessories | Cradle suspention (1) Wind screen (1) Stand screw adaptor (W3/8 to NS5/8) (1) Operating instructions (1) Carrying case (1) |
