Description

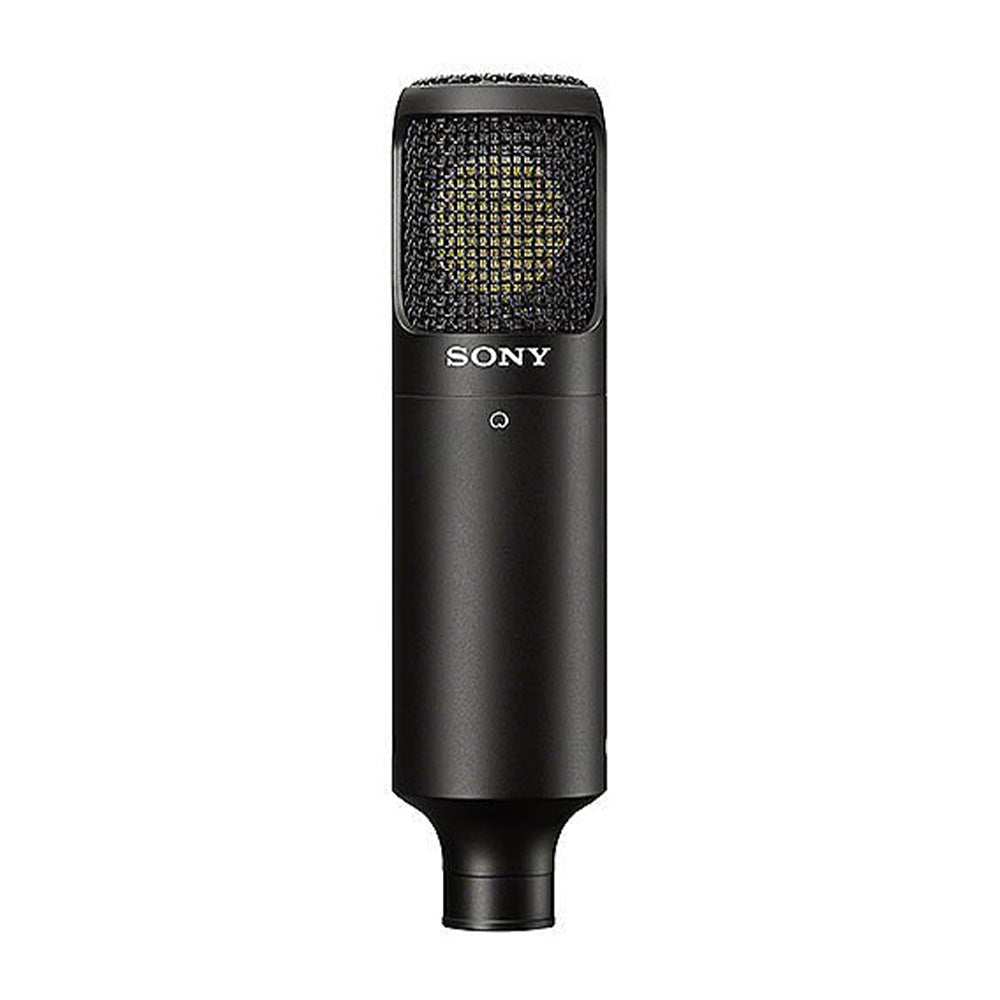

The C80 is a uni-directional condenser microphone suitable for vocal/voice recording. Inheriting the microphone capsule used in the C-100 and using the same material as the C-800G for the diaphragm, this microphone inherits the essence of the predecessors. The dual diaphragm configuration suppresses sound characteristics changes with distance (proximity effect), enabling stable recording/distribution. "Noise Elimination Construction" succeeded from C-800G/C-100 prevents acoustic vibration resulting in low noise and clear sound.
Features:
-
Excellent Sound Quality
A powerful and rich mid-low frequency range provides vocals and voice recordings with a core sound and presence. -
Dual Diaphragm Configuration
The dual diaphragm configuration realizes stable recording/distribution by suppressing sound characteristic changes with distance (proximity effect). -
Noise Elimination Construction
The two-part metallic body structure succeeded from the C-800G/C-100 microphone prevents acoustic vibration, resulting in low noise and clear sound. -
Low-Cut Filter
The low-Cut filter switch helps eliminate the low-frequency noise and proximity effect. -
Pad Switch
A -10dB pad switch on the microphone provides added headroom and minimizes distortion caused by transient peaks.
Audio Section | |
Capsule Type | Condenser Microphone |
Frequency Response | 20Hz_20kHz |
Directivity | Uni-directional |
Sensitivity | -30 dB (deviation ±3 dB) (0 dB=1 V/Pa, 1 kHz) |
Output Impedance | 90½±15%, Balanced |
Dynamic Range | More than 125.5 dB |
Signal-to-Noise Ratio | 81.5dB |
Inherent Noise | Less than 12.5 dB SPL (0 dB=2 _ 10-5 Pa) (IEC* 61672-1 A-Weighted, 1 kHz, 1 Pa) |
Maximum Input Sound Pressure Level | More than 138 dB SPL (output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 _ 10-5 Pa) |
General Section | |
Connector | XLR-3-12C (male) |
Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
Power Requirements | DC 44 to 52 V Phantom Power |
Dimensions | Approx. 40 mm (1.57 in.) dia. _ 158 mm (6.22 in.) |
Mass | Approx. 215 g (7.6 oz) |

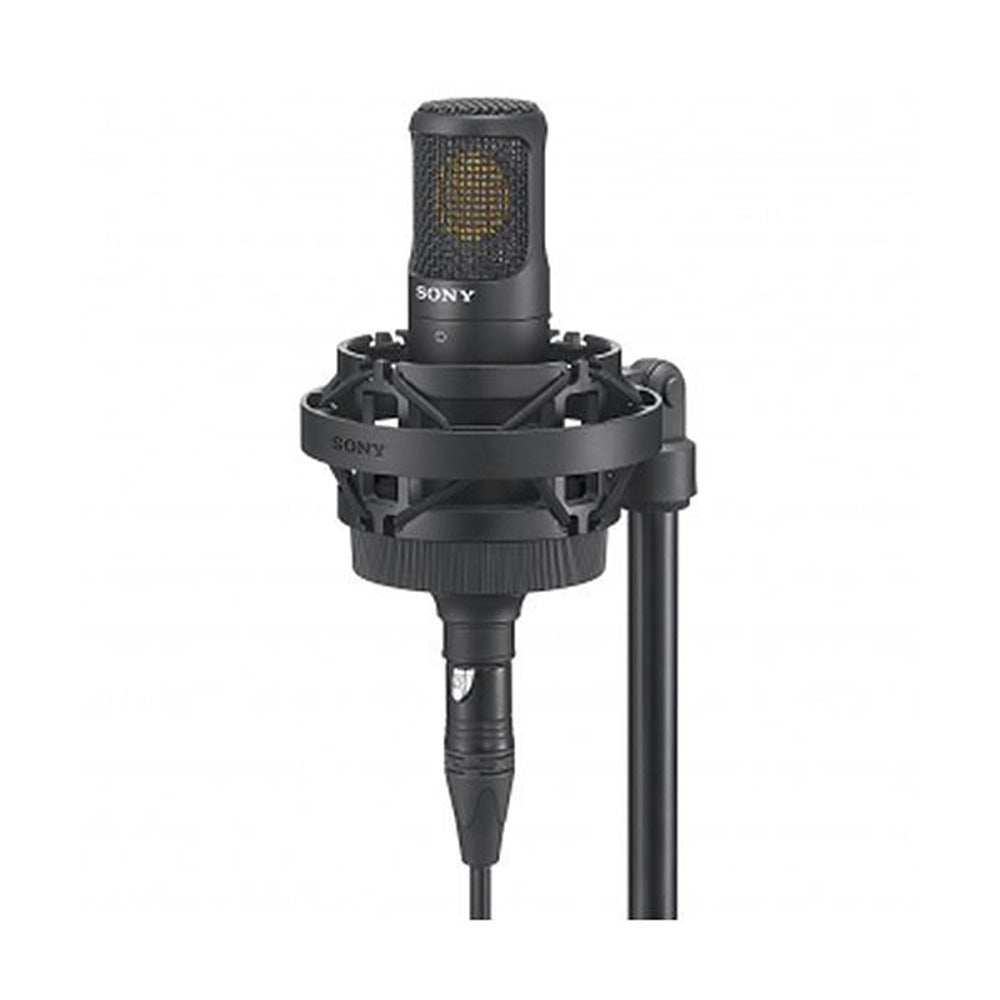

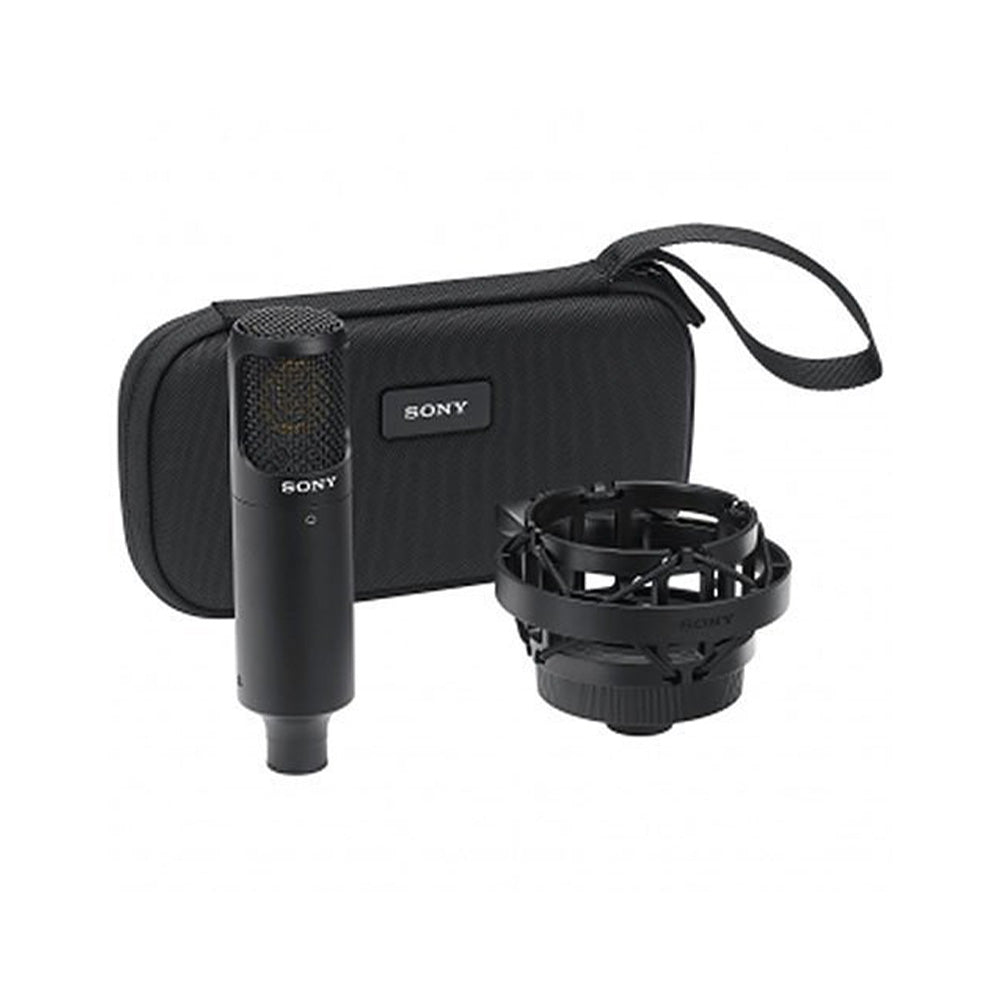

Supplied Accessories | Cradle suspension (1) Operating instructions (1) Carrying case (1) |
The C80 is a uni-directional condenser microphone suitable for vocal/voice recording. Inheriting the microphone capsule used in the C-100 and using the same material as the C-800G for the diaphragm, this microphone inherits the essence of the predecessors. The dual diaphragm configuration suppresses sound characteristics changes with distance (proximity effect), enabling stable recording/distribution. "Noise Elimination Construction" succeeded from C-800G/C-100 prevents acoustic vibration resulting in low noise and clear sound.
Features:
-
Excellent Sound Quality
A powerful and rich mid-low frequency range provides vocals and voice recordings with a core sound and presence. -
Dual Diaphragm Configuration
The dual diaphragm configuration realizes stable recording/distribution by suppressing sound characteristic changes with distance (proximity effect). -
Noise Elimination Construction
The two-part metallic body structure succeeded from the C-800G/C-100 microphone prevents acoustic vibration, resulting in low noise and clear sound. -
Low-Cut Filter
The low-Cut filter switch helps eliminate the low-frequency noise and proximity effect. -
Pad Switch
A -10dB pad switch on the microphone provides added headroom and minimizes distortion caused by transient peaks.
Audio Section | |
Capsule Type | Condenser Microphone |
Frequency Response | 20Hz_20kHz |
Directivity | Uni-directional |
Sensitivity | -30 dB (deviation ±3 dB) (0 dB=1 V/Pa, 1 kHz) |
Output Impedance | 90½±15%, Balanced |
Dynamic Range | More than 125.5 dB |
Signal-to-Noise Ratio | 81.5dB |
Inherent Noise | Less than 12.5 dB SPL (0 dB=2 _ 10-5 Pa) (IEC* 61672-1 A-Weighted, 1 kHz, 1 Pa) |
Maximum Input Sound Pressure Level | More than 138 dB SPL (output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 _ 10-5 Pa) |
General Section | |
Connector | XLR-3-12C (male) |
Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
Power Requirements | DC 44 to 52 V Phantom Power |
Dimensions | Approx. 40 mm (1.57 in.) dia. _ 158 mm (6.22 in.) |
Mass | Approx. 215 g (7.6 oz) |
Supplied Accessories | Cradle suspension (1) Operating instructions (1) Carrying case (1) |
