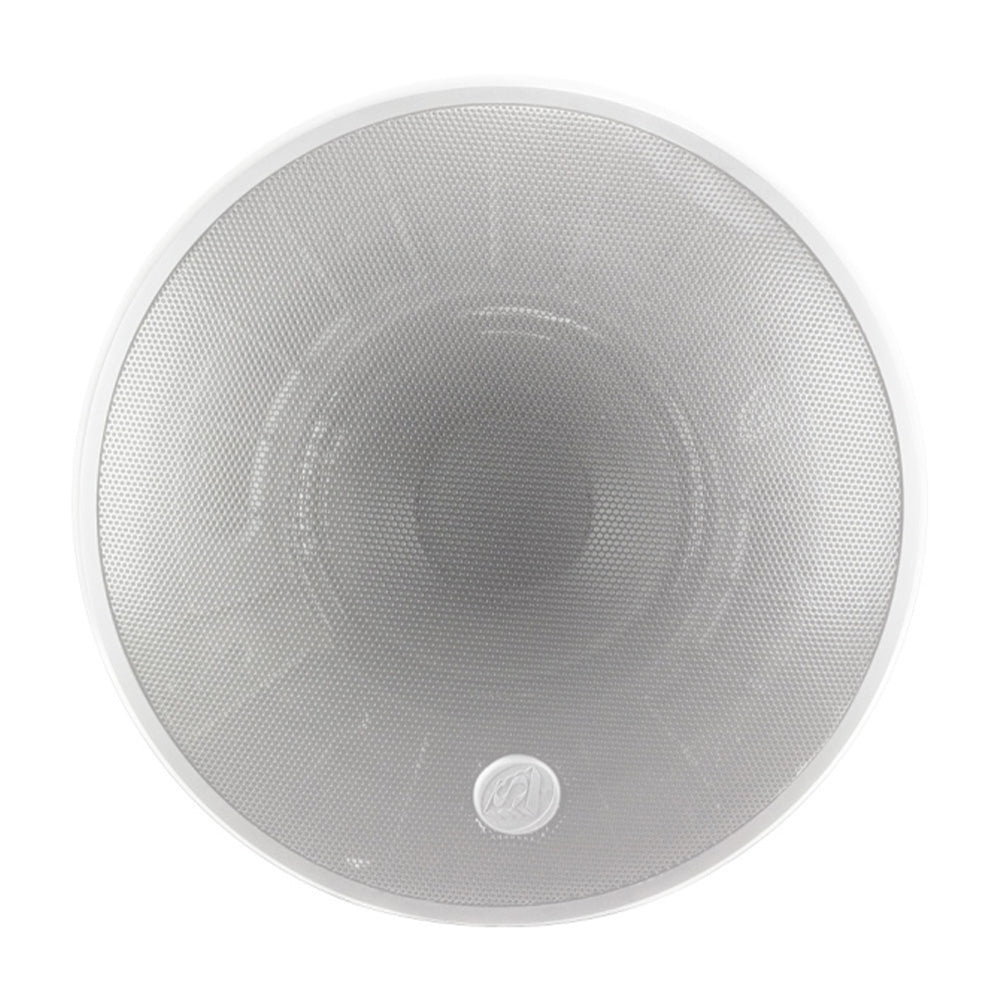

Soundtube HP129A-WH - Two-Way 12-Inch Hanging Loudspeaker with Transformer (White)
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The HP129a is a 12Ó, coaxial, hanging speaker with a surface-mount option and a proprietary BroadBeamHP¨ waveguide. Engineered to deliver true high SPL performance, the HP129a incorporates a 12Ó treated fiber cone and one 35 mm (1.38Ó) Mylar compression driver with a professional-grade electroacoustic sub-assembly. The result is a pendant-mount speaker with maximum efficiency (97 dB 1 W / 1 M) and an extended frequency response from 73 Hz - 19 kHz (±10 dB). For lasting performance, the enclosure is made from injection-molded, glass-filled ABS.
Mounting hardware is included and features hanging and safety cables, Euroblock connector and terminal weather boot. For easy ordering, stocking and installation, every speaker is equipped with a five-position tap switch for 25, 70.7, and 100 V applications with a transformer bypass setting. For surface-mount applications, SoundTube offers a surface-mount adapter (AC-HP-SM129).
Features:
- Patented BroadBeamHP¨ coverage pattern providing smooth response and maximum SPL across the audio spectrum
- One 12Ó (305 mm) treated fiber cone with a treated cloth surround and one 1.375Ó (35 mm) Mylar compression driver with waveguide
- Weatherized components for indoor/outdoor applications and a ported enclosure for added bass response (down to 73 Hz, ±10 dB)
- High SPL, high-efficiency system for the sound reinforcement and PA markets
- Easy-access, five-position tap switch for 25, 70.7, and 100 V applications with transformer bypass position
- Reduced amplification costs and maximum efficiency (97 dB sensitivity), with 8 ½ impedance
- UL1480A approved
- High quality black or white painted finish. Custom colors available
- Included accessories: hanging hardware, Euroblock connector, terminal weather boot
- Optional accessory: surface-mount bracket (ACHP-SM129)
| Color | White |
| UPC | 752830442184 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 17.8 in / 452.1 mm |
| Width/Diameter | 18 in / 457.2 mm |
| Shipping Weight | 40.15 lbs / 18.21 kg |
| Carton Height | 22.25 in / 565.15 mm |
| Carton Length | 21 in / 533.4 mm |
| Carton Width | 21 in / 533.4 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1700 cu in / 27858.01 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-HP129-BK)|Black Surface Mount Bracket (AC-HP-SM129-BK)|Beam Clamp (AC-BC-1)|Forged Eyebolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|10' Hanging Kit (AC-HP-HD10)|20' Hanging Kit (AC-HP-HD20)|50' Hanging Kit (AC-HP-HD50)|Large Weather Resistant Black Terminal Boot (WEATHERBOOT-L-BK)|Snap Link (AC-SL1)|Connector (EUROBLOCK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 90Á |
| Crossover Frequency | 2.2 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.1 and 10.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.6dB and 10.0dB |
| Frequency Response (± 10 dB) | 73 Hz - 19 kHz |
| Frequency Response (± 3 dB) | 118 Hz - 16 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 2 in / 50.8 mm |
| Low Pass Crossover | 24dB per octave 4th order |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (_ Ohms) | 7 _ |
| Network Type: High Pass | 24dB per octave 4th order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1.375" Mylar Compression Driver w/ Waveguide |
| Woofer Driver | 12" Treated Fiber Cone w/ Treated Cloth Surround |
| Sensitivity dB @ 1W/1M | 97 dB |
| Sensitivity dB @ 2.83V/1M | 97 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
The HP129a is a 12Ó, coaxial, hanging speaker with a surface-mount option and a proprietary BroadBeamHP¨ waveguide. Engineered to deliver true high SPL performance, the HP129a incorporates a 12Ó treated fiber cone and one 35 mm (1.38Ó) Mylar compression driver with a professional-grade electroacoustic sub-assembly. The result is a pendant-mount speaker with maximum efficiency (97 dB 1 W / 1 M) and an extended frequency response from 73 Hz - 19 kHz (±10 dB). For lasting performance, the enclosure is made from injection-molded, glass-filled ABS.
Mounting hardware is included and features hanging and safety cables, Euroblock connector and terminal weather boot. For easy ordering, stocking and installation, every speaker is equipped with a five-position tap switch for 25, 70.7, and 100 V applications with a transformer bypass setting. For surface-mount applications, SoundTube offers a surface-mount adapter (AC-HP-SM129).
Features:
- Patented BroadBeamHP¨ coverage pattern providing smooth response and maximum SPL across the audio spectrum
- One 12Ó (305 mm) treated fiber cone with a treated cloth surround and one 1.375Ó (35 mm) Mylar compression driver with waveguide
- Weatherized components for indoor/outdoor applications and a ported enclosure for added bass response (down to 73 Hz, ±10 dB)
- High SPL, high-efficiency system for the sound reinforcement and PA markets
- Easy-access, five-position tap switch for 25, 70.7, and 100 V applications with transformer bypass position
- Reduced amplification costs and maximum efficiency (97 dB sensitivity), with 8 ½ impedance
- UL1480A approved
- High quality black or white painted finish. Custom colors available
- Included accessories: hanging hardware, Euroblock connector, terminal weather boot
- Optional accessory: surface-mount bracket (ACHP-SM129)
| Color | White |
| UPC | 752830442184 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 17.8 in / 452.1 mm |
| Width/Diameter | 18 in / 457.2 mm |
| Shipping Weight | 40.15 lbs / 18.21 kg |
| Carton Height | 22.25 in / 565.15 mm |
| Carton Length | 21 in / 533.4 mm |
| Carton Width | 21 in / 533.4 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1700 cu in / 27858.01 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |
| Optional Accessories | Black Grille (GRL-HP129-BK)|Black Surface Mount Bracket (AC-HP-SM129-BK)|Beam Clamp (AC-BC-1)|Forged Eyebolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|10' Hanging Kit (AC-HP-HD10)|20' Hanging Kit (AC-HP-HD20)|50' Hanging Kit (AC-HP-HD50)|Large Weather Resistant Black Terminal Boot (WEATHERBOOT-L-BK)|Snap Link (AC-SL1)|Connector (EUROBLOCK) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 90Á |
| Crossover Frequency | 2.2 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.1 and 10.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 6.6dB and 10.0dB |
| Frequency Response (± 10 dB) | 73 Hz - 19 kHz |
| Frequency Response (± 3 dB) | 118 Hz - 16 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 2 in / 50.8 mm |
| Low Pass Crossover | 24dB per octave 4th order |
| Max. Continuous Power RMS | 150W |
| Max. Program Power | 300 W |
| Minimum Impedance (_ Ohms) | 7 _ |
| Network Type: High Pass | 24dB per octave 4th order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1.375" Mylar Compression Driver w/ Waveguide |
| Woofer Driver | 12" Treated Fiber Cone w/ Treated Cloth Surround |
| Sensitivity dB @ 1W/1M | 97 dB |
| Sensitivity dB @ 2.83V/1M | 97 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 19W/150W/150W |
