Soundtube IW500B-WH - Two-Way 5.25-Inch In-Wall Loudspeaker (White)
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

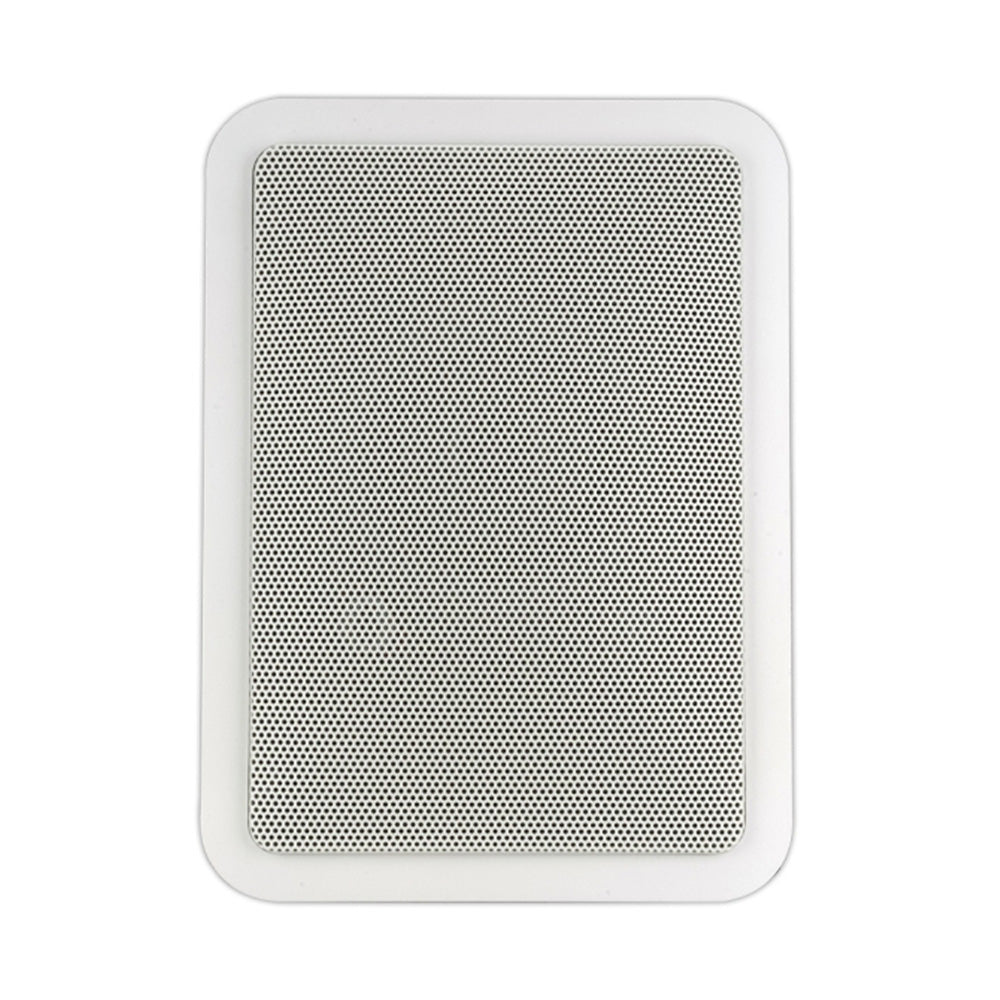

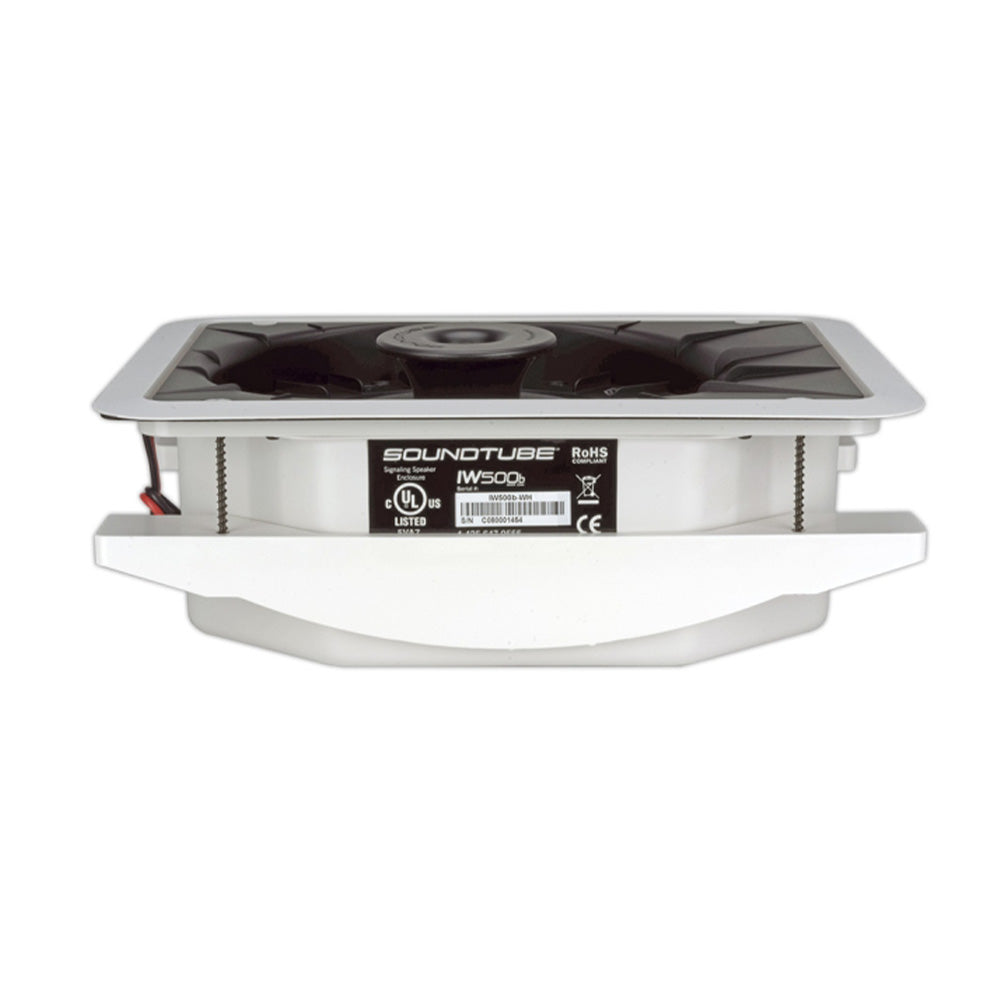

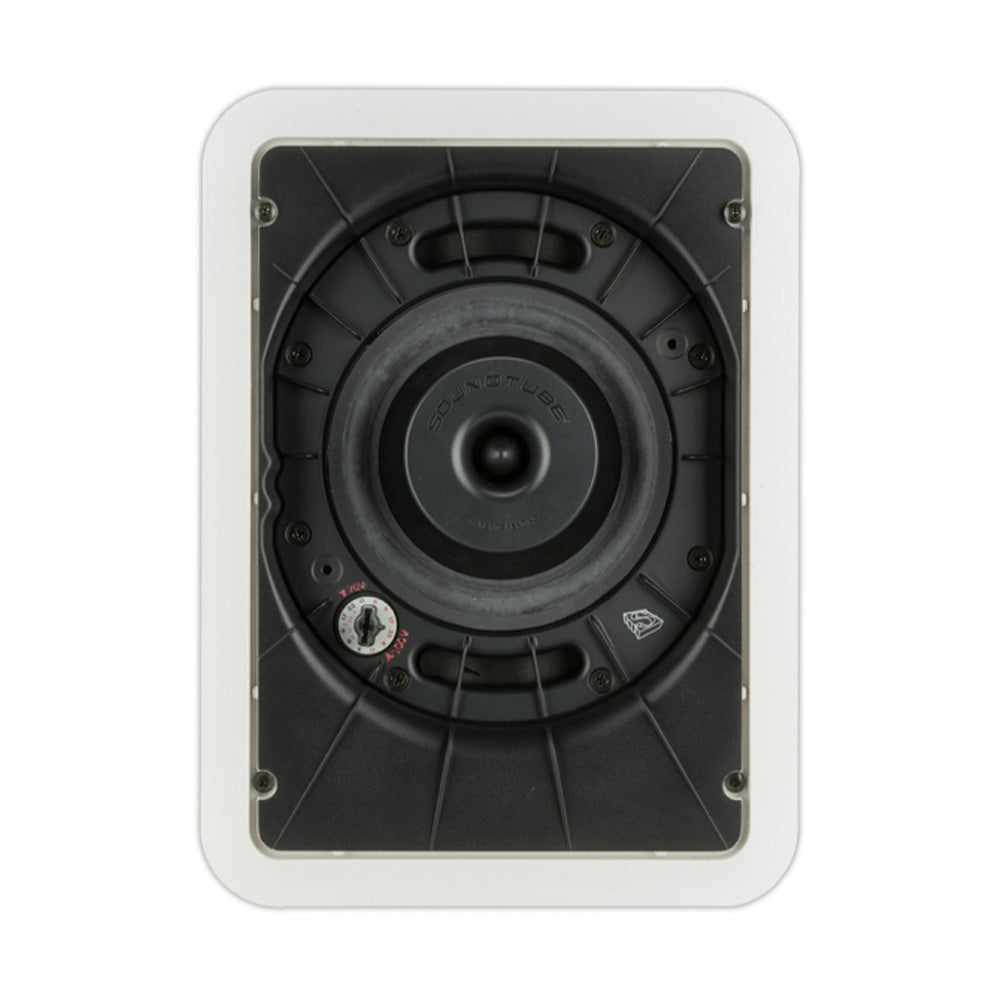

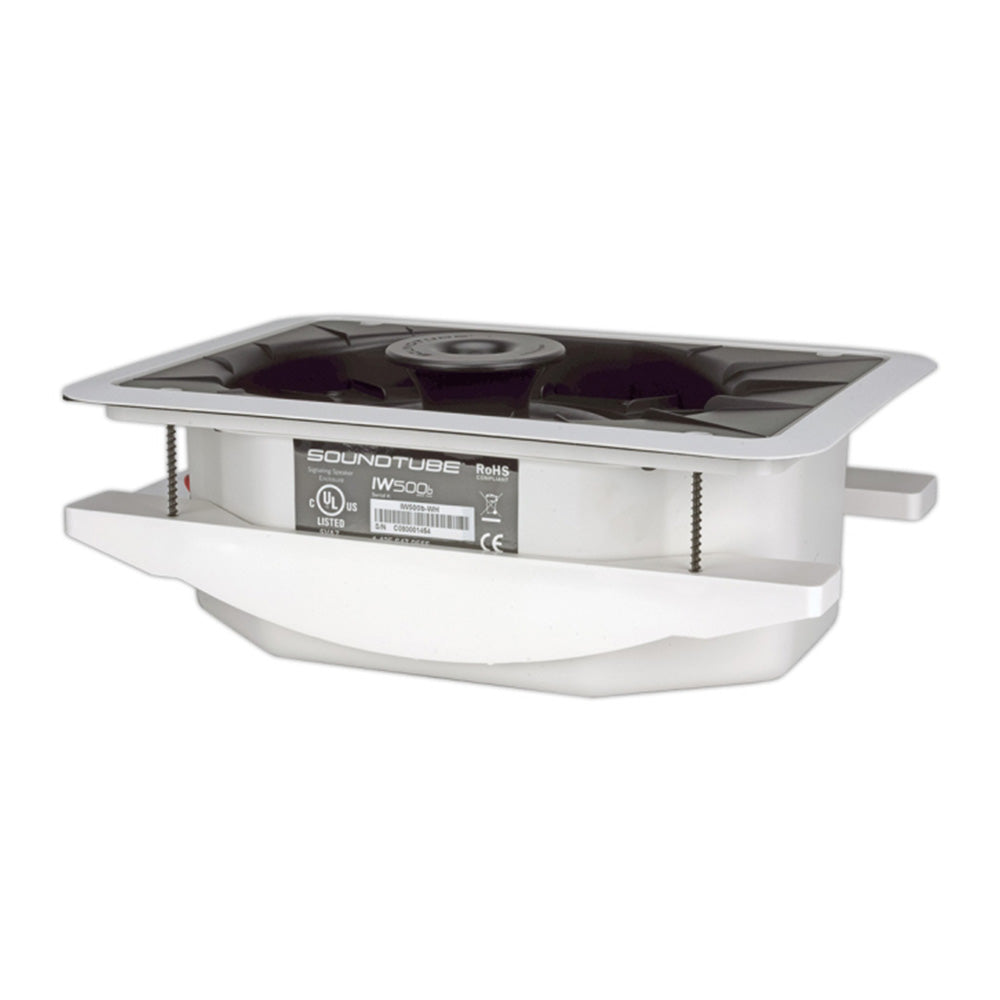

The IW500b has a 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to an aluminum motorboard. The speaker is a coaxial, in-wall loudspeaker that delivers effective low-end response (69 Hz, -10 dB) and optimal off-axis performance (2 to 10 kHz, independently verified). SoundTube's proprietary BroadBeam¨Êwaveguide tweeter system delivers consistant high performance audio across the operating bandwidth. The IW500b speaker design incorporates a low profile grille and six-position tap switch with transformer bypass position. Mounting hardware is included and features a fast and secure optimally engineered constant-tension mounting system and an integrated backcan for maximun efficency and applications where UL approval is required. Mounting hardware, paint mask, hole template and conduit connector are included.
Features:
- BroadBeam waveguide technology delivers a consistent dispersion pattern (2 to 10KHz, independently verified) for maximum coverage per speaker.
- One 5.25 inch (133 mm) polypropylene woofer and one 1-inch (25mm) convex titanium tweeter with FerroFluid cooling mounted to an aluminum motorboard.
- 106.5 dB max SPL offers high output capabilities and reduced amplification costs.
- Rapid installation blind-mount system for quick and secure installation.
- Easy-access six-position tap switch for 25, 70.7, and 100 volt applications with a transformer bypass position.
- Integrated UL listed steel enclosure with conduit connections.
- High-quality white paint finish. Custom paint colors optional.
- Included Accessories: mounting hardware paint mask, hole template, and conduit connector.
- Optional accessory: pre-construction bracket (AC-IW5-PCB).
| Color | White |
| UPC | 748252172365 |
| Manufacturer | SoundTube |
| Manufacturer's Category | IW In-Wall Series |
| Height | 11.84 in / 300.7 mm |
| Width/Diameter | 8.64 in / 219.5 mm |
| Shipping Weight | 10.05 lbs / 4.56 kg |
| Carton Height | 7.5 in / 190.5 mm |
| Carton Length | 14.25 in / 361.95 mm |
| Carton Width | 11 in / 279.4 mm |
| Certifications | CE |
| Enclosure Properties | ABS, Infinite Baffle |
| Included Accessories | Grille, Hole Template, Paint Mask |
| Optional Accessories | Pre-Construction Bracket (AC-IW5-PCB) |
| Source Inputs | Metal Push Binding Posts |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.2 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB |
| Frequency Response (± 10 dB) | 69 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 71 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 75w |
| Max. Program Power | 150 W |
| Minimum Impedance (_ Ohms) | 5.1 _ |
| Mounting Depth | 3.9 in / 99.1 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (_ Ohms) | 8 _ |
| Tweeter Driver | 1" Convex Titanium w/ BroadBeam¬ Waveguide |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 88 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
| Tap Selector | Rotary Switch |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
