Soundtube RS31-EZ-BK - Full-Range 3-Inch Hanging Loudspeaker (Black)
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

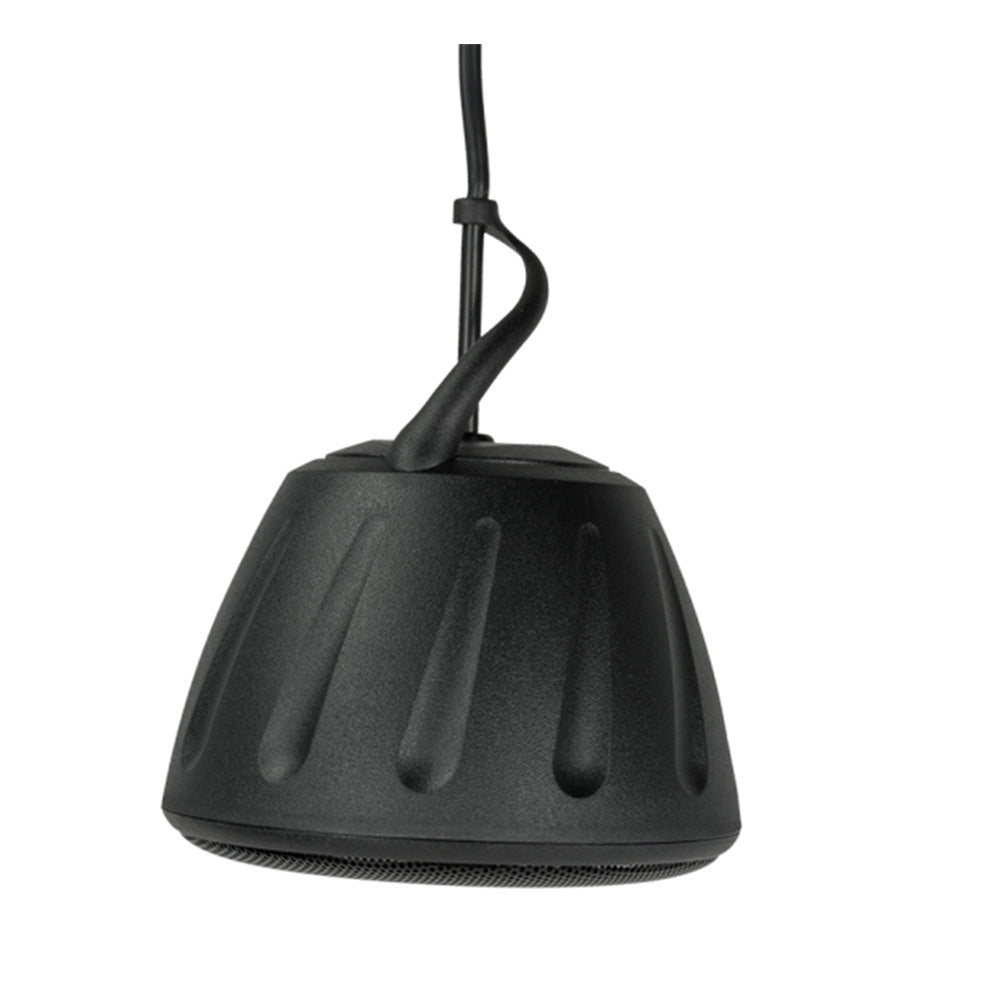

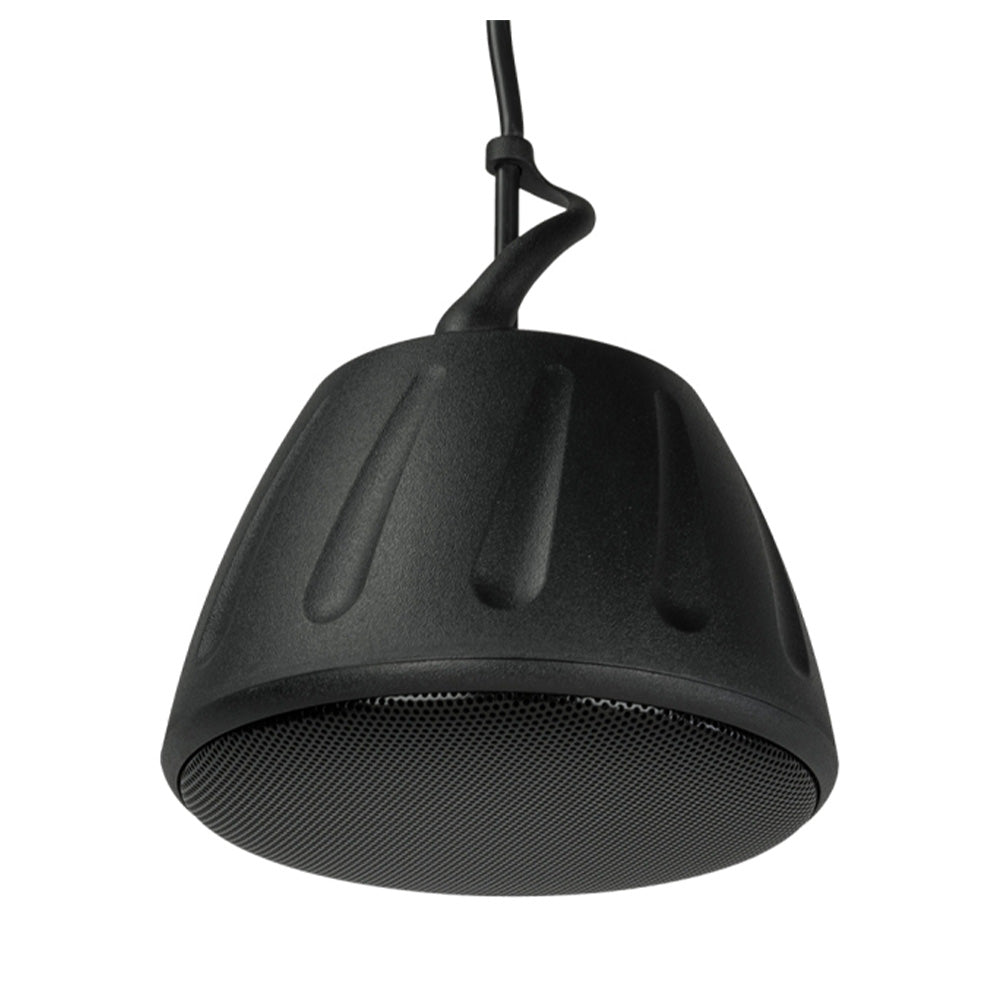

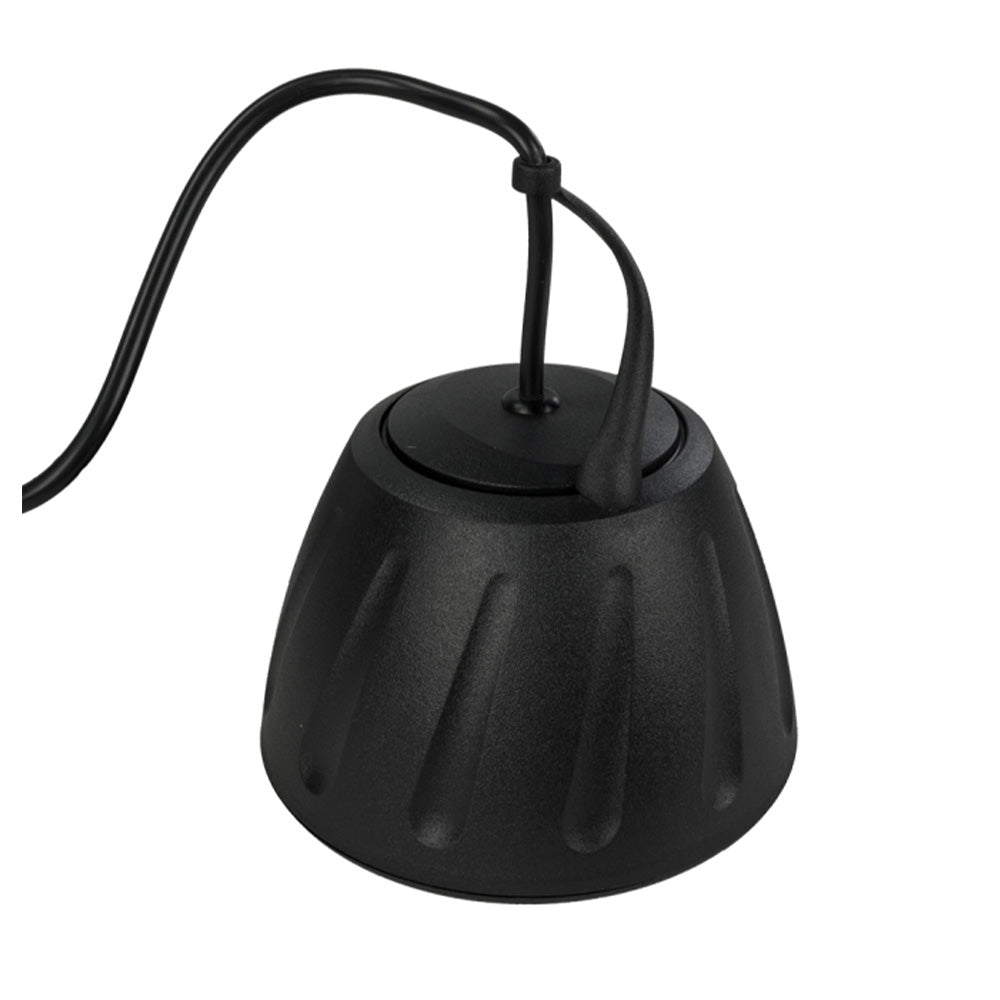

The RS31-EZ is a premium full-range 3Ó pendant mount speaker, with overall dimensions smaller than a 4Ó sphere. The RS31-EZ incorporates a 10Õ length of speaker signal/hanging cable for on-ceiling applications. Components have been weatherized for indoor/outdoor applications. The RS31-EZ is an 8 ½ speaker without a transformer. The speaker utilizes the all-in-one ceiling mount system designed to retrofit in most j-boxes. Cover plate is included to hide mounting element and hold excess signal/hanging cable.
Features:
- One 3Ó (76.1 mm) polypropylene driver with butyl rubber surround.
- Weatherized components for indoor/outdoor applications.
- Ultra low profile ZeroReflectionª ABS enclosure (4.35Ó in diameter by 4.35Ó in height without stabilizing arm).
- Corrosion-resistant, powder-coated aluminum grille.
- UL 1480A approved.
- High-quality black or white paint finish.

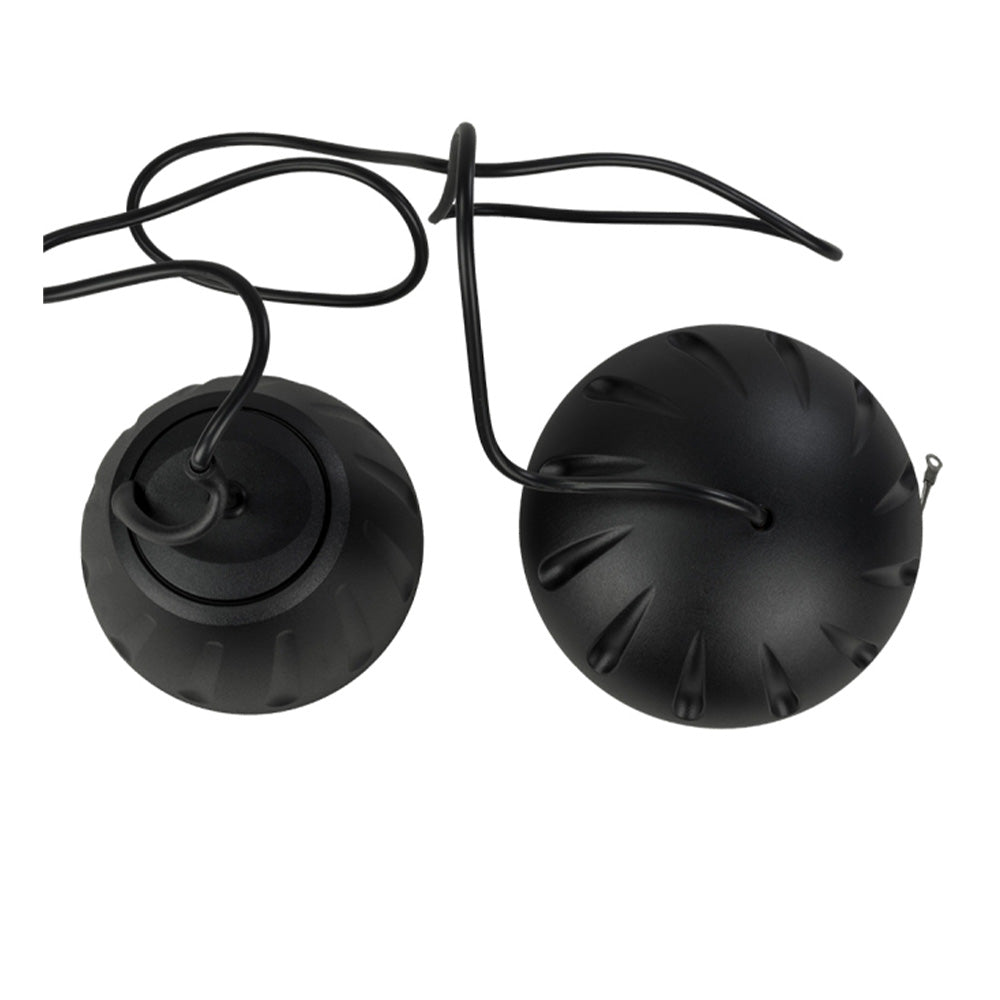

- Included accessories: mounting element, cover plate, 10Õ speaker signal/hanging cable.
| Color | Black |
| UPC | 644216201303 |
| Manufacturer | SoundTube |
| Manufacturer's Category | RS-EZ Economical Pendant |
| Height | 4.94 in / 125.4 mm |
| Width/Diameter | 4.35 in / 110.5 mm |
| Shipping Weight | 2.4 lbs / 1.08 kg |
| Carton Height | 6.75 in / 171.45 mm |
| Carton Length | 10 in / 254 mm |
| Carton Width | 6.75 in / 171.45 mm |
| Certifications | CE, RoHS, UL1480A |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
| Enclosure Volume | 60 cu in / 983.22 cu cm |
| Included Accessories | Cover Plate, Hanging Hardware, Wire Nuts |

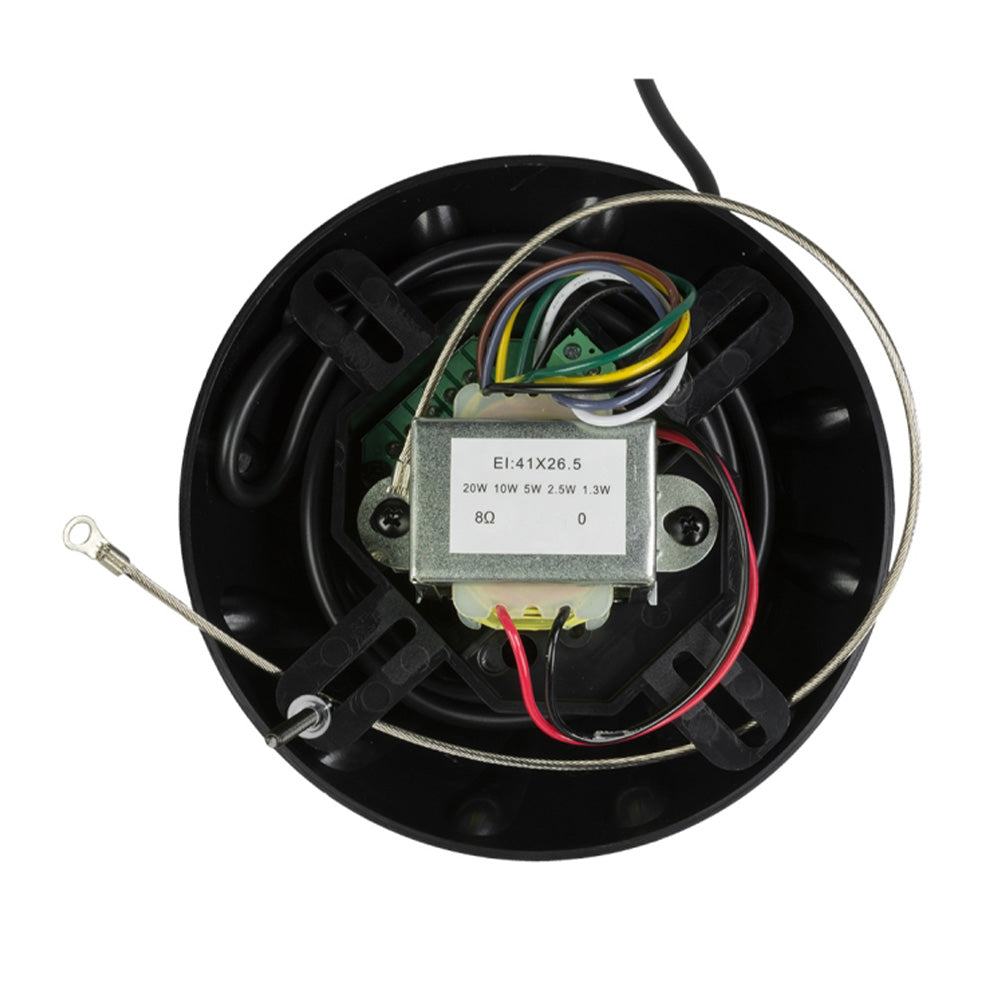

| Optional Accessories | Black Grille (GRL-RS31-BK)|Black Split Loom Tubing (AC-SLT-10-BK)|Transformer (AC-RS31-XFMR) |
| Source Inputs | Terminal Strip |
| IP Rating | IP64 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 45Á |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1dB and 8.5dB |
| Frequency Response (± 10 dB) | 120 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 170 Hz - 14 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 0.75 in / 19 mm |
| Max. Continuous Power RMS | 20W |
| Max. Program Power | 40 W |
| Mounting Depth | 3.81 in / 96.8 mm |
| Nominal Impedance (_ Ohms) | 8 _ |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 85 dB |
| Tap Selector | Terminal Block |
| Transformer Options | 25 / 70.7 / 100 V |
