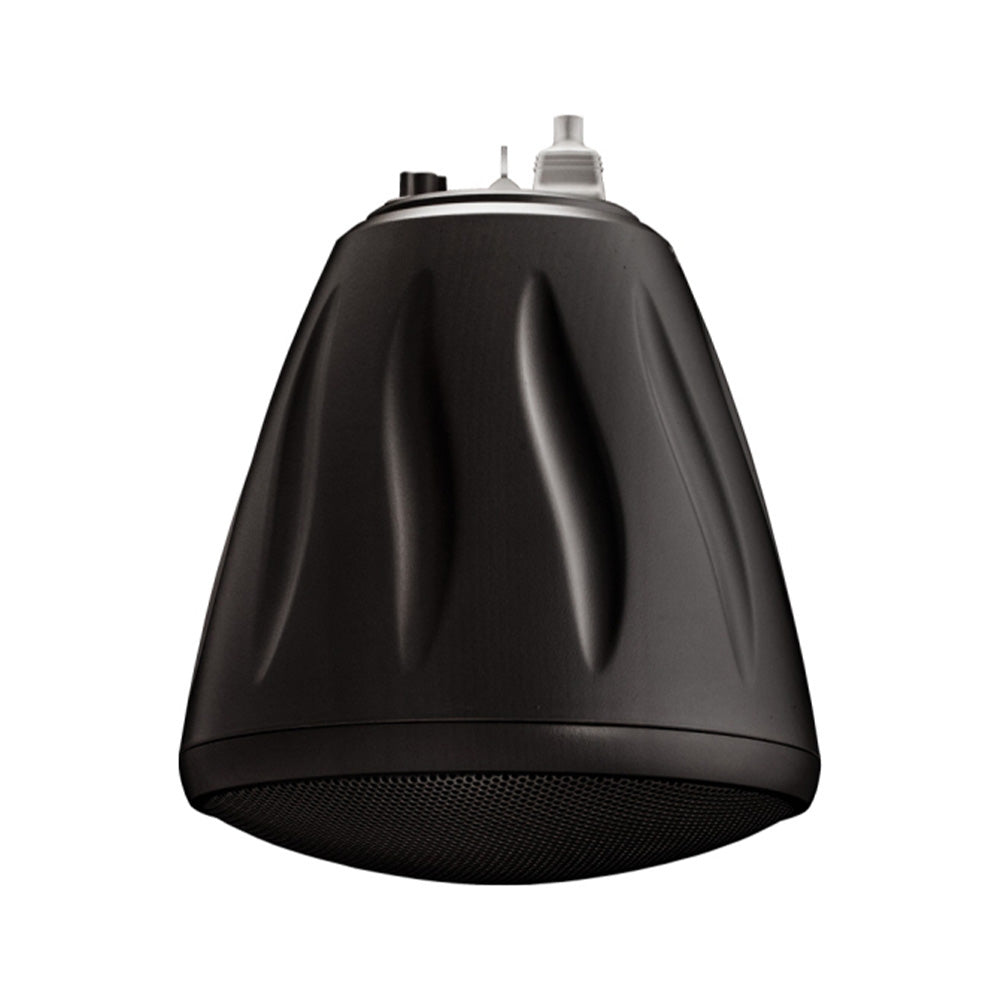

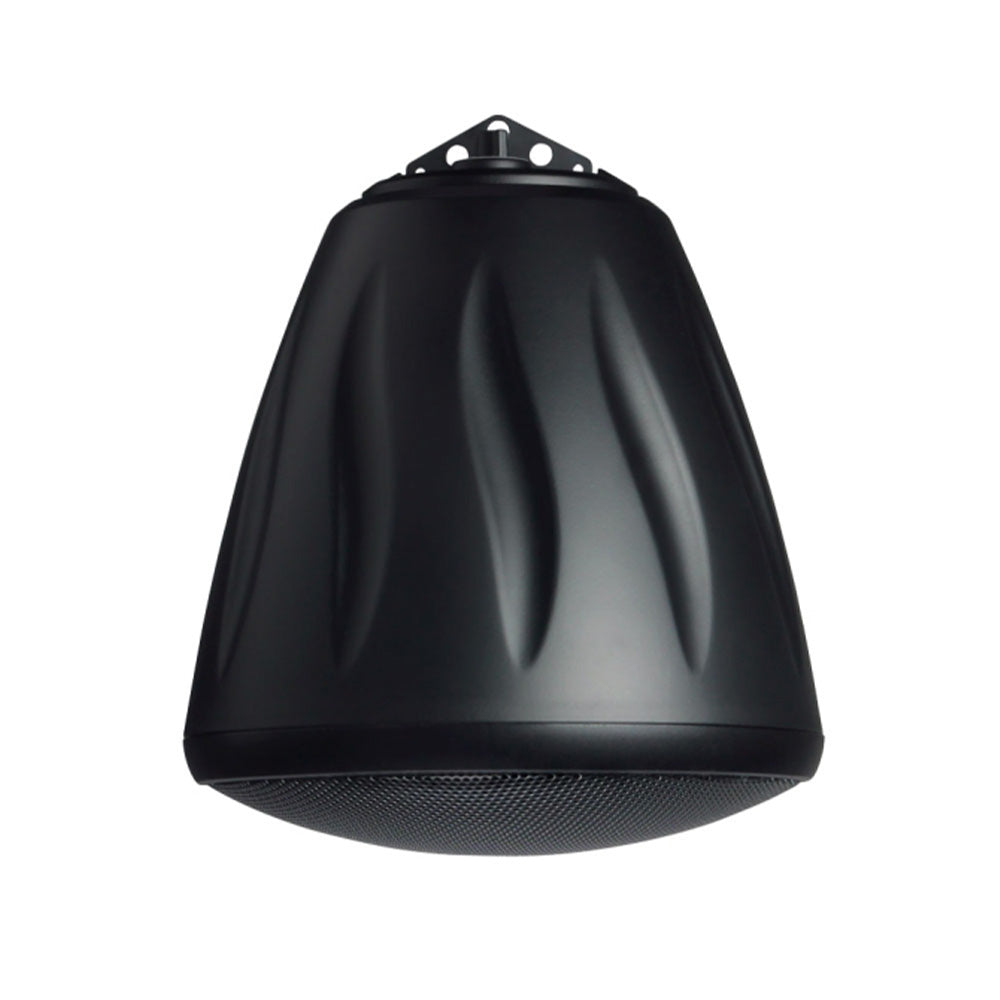

Soundtube RS4-EZ-BK - Full-Range Ported 4-Inch Hanging Loudspeaker (Black)
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The RS4-EZ is a 4-inch, full-range, ported speaker with an open-ceiling enclosure design. Hanging hardware is included and features a SpeedClamp self-locking wire grip for fast, easy and secure installation. SoundTube's customengineered driver and electro-acoustic network deliver high-performance sound in a cost-effective speaker design. The RS4-EZ speaker incorporates a low-profile grille and a five-position tap switch with transformer bypass position.
Features:
- One 4 inch (102 mm) full-range, treated fiber driver mounted to an ABS baffle.
- Weatherized components for indoor and outdoor applications.

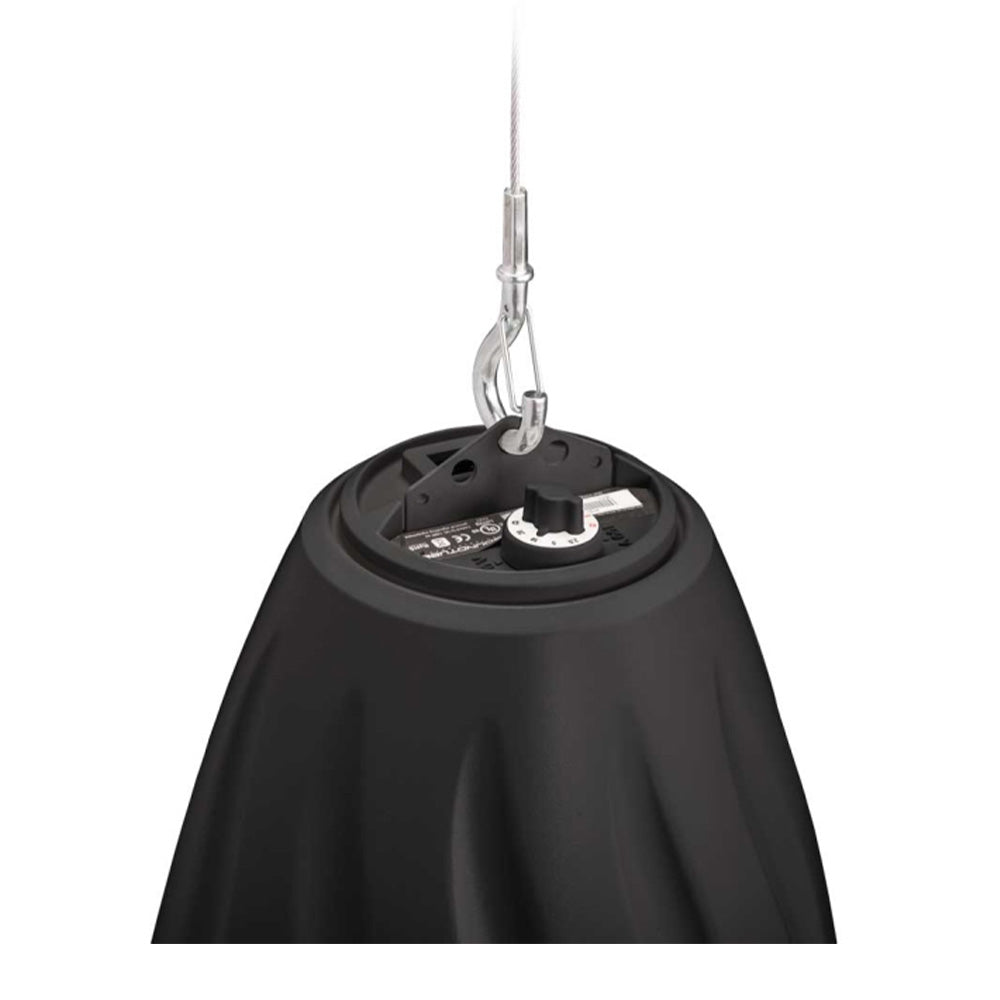

- Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity.

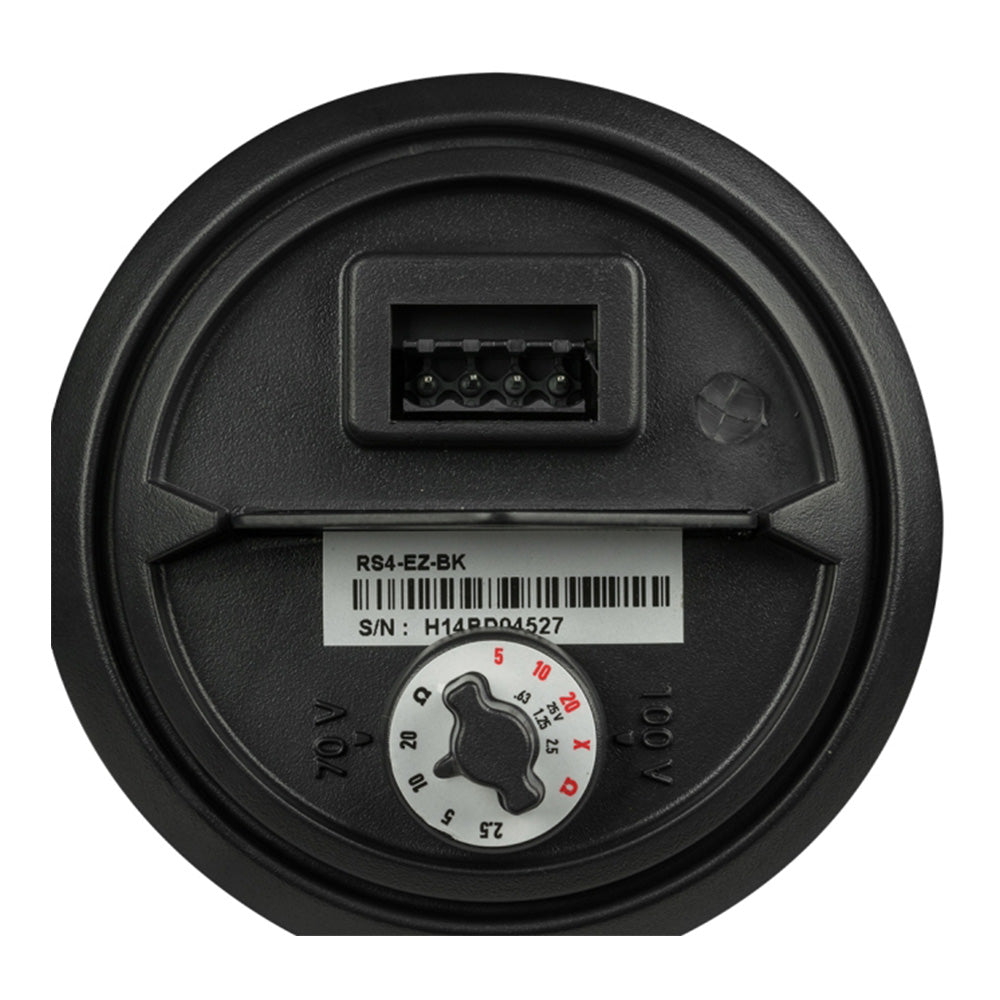

- Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking.

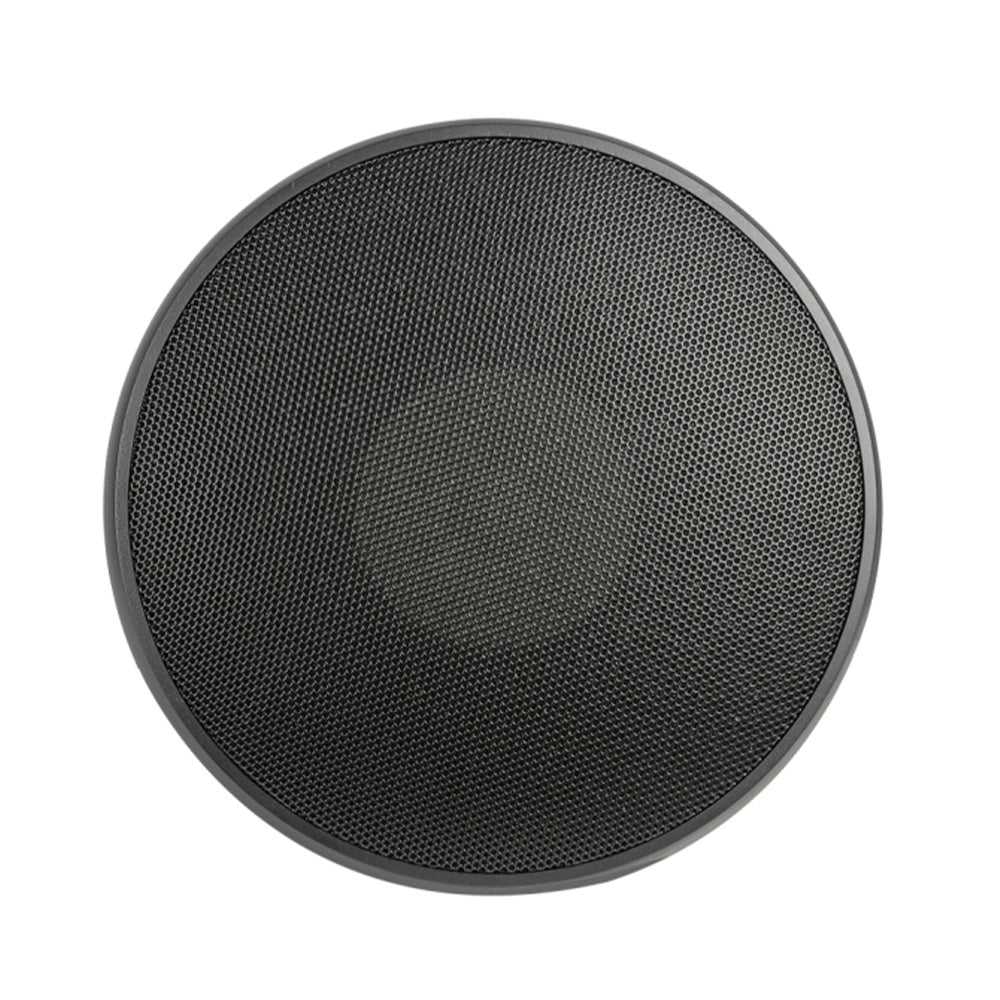

- Steel grille with protective powdercoated finish for lasting durability.
- Average sensitivity of 90.0 dB offers high-output capabilities and reduced amplification costs.
- UL 2239 (hanging cable) approved
- High-quality black or white paint finish. Custom colors available.
- Optional accessory: AC-RS-SM5 bracket for surface-mount applications.
With excellent off-axis performance and easy installation (including direct conduit mount), these economy pendant speakers are ideal for open-ceiling installations including retail, grocery stores, restaurants and fitness centers. Six RS-EZ models are available along with the long-throw HP82-EZ. Weatherized components for indoor and outdoor applications.
| Frequency Response (-3 dB) | 185 Hz _ 13 kHz |
| Low Frequency(-10 dB) | 98 Hz _ 22 kHz |
| Sensitivity | 90.0 dB |
| Power Capacity RMS | 20 W |
| Max SPL dB @ 1 M | 103.0 dB |
| Nominal Impedance | 8 ohms |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 8 Ohm direct |
| Tweeter | 4.0 in. Extended-range paper cone, Full-Range. |
| Woofer | 4 Full-Range |
| Connections | Four-pin Euroblock |
| Height | 223.5 mm (8.80 in.) |
| Diameter | 195.6 mm (7.70 in.) |
| Weight | 1.8 kg (3.9 lbs.) |
| Shipping Weight | 2.7 kg (6 lbs.) |
| Optional Accessory | AC-RS-SM5 bracket for surface-mount applications |
| Colors | Black / White, or Custom |
The RS4-EZ is a 4-inch, full-range, ported speaker with an open-ceiling enclosure design. Hanging hardware is included and features a SpeedClamp self-locking wire grip for fast, easy and secure installation. SoundTube's customengineered driver and electro-acoustic network deliver high-performance sound in a cost-effective speaker design. The RS4-EZ speaker incorporates a low-profile grille and a five-position tap switch with transformer bypass position.
Features:
- One 4 inch (102 mm) full-range, treated fiber driver mounted to an ABS baffle.
- Weatherized components for indoor and outdoor applications.
- Includes hanging hardware with galvanized steel cables and integrated SpeedClamp self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot.
- Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity.
- Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking.
- Steel grille with protective powdercoated finish for lasting durability.
- Average sensitivity of 90.0 dB offers high-output capabilities and reduced amplification costs.
- UL 2239 (hanging cable) approved
- High-quality black or white paint finish. Custom colors available.
- Optional accessory: AC-RS-SM5 bracket for surface-mount applications.
With excellent off-axis performance and easy installation (including direct conduit mount), these economy pendant speakers are ideal for open-ceiling installations including retail, grocery stores, restaurants and fitness centers. Six RS-EZ models are available along with the long-throw HP82-EZ. Weatherized components for indoor and outdoor applications.
| Frequency Response (-3 dB) | 185 Hz _ 13 kHz |
| Low Frequency(-10 dB) | 98 Hz _ 22 kHz |
| Sensitivity | 90.0 dB |
| Power Capacity RMS | 20 W |
| Max SPL dB @ 1 M | 103.0 dB |
| Nominal Impedance | 8 ohms |
| Transformer Options | 25 / 70.7 / 100 Volt option with a 8 Ohm direct |
| Tweeter | 4.0 in. Extended-range paper cone, Full-Range. |
| Woofer | 4 Full-Range |
| Connections | Four-pin Euroblock |
| Height | 223.5 mm (8.80 in.) |
| Diameter | 195.6 mm (7.70 in.) |
| Weight | 1.8 kg (3.9 lbs.) |
| Shipping Weight | 2.7 kg (6 lbs.) |
| Optional Accessory | AC-RS-SM5 bracket for surface-mount applications |
| Colors | Black / White, or Custom |
