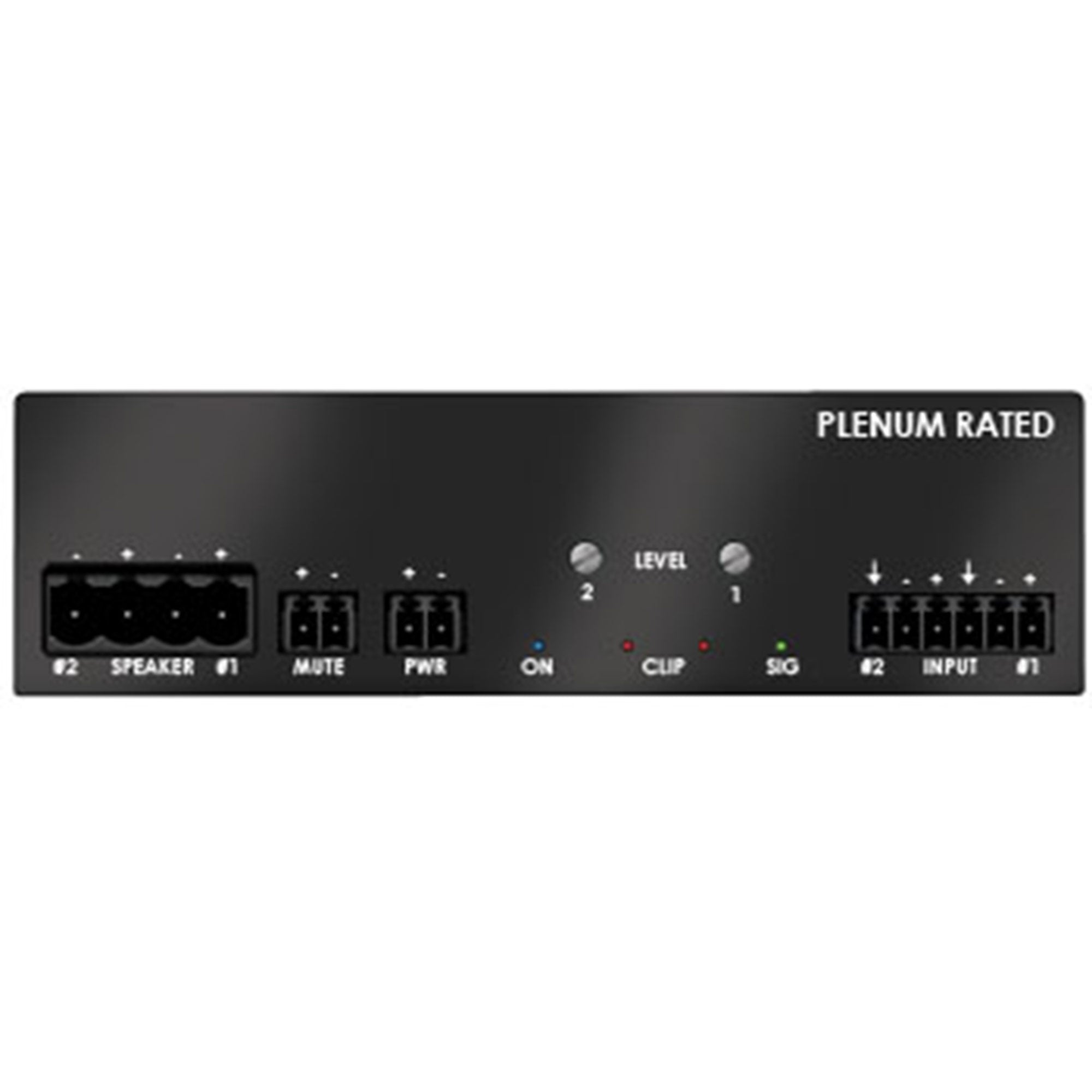

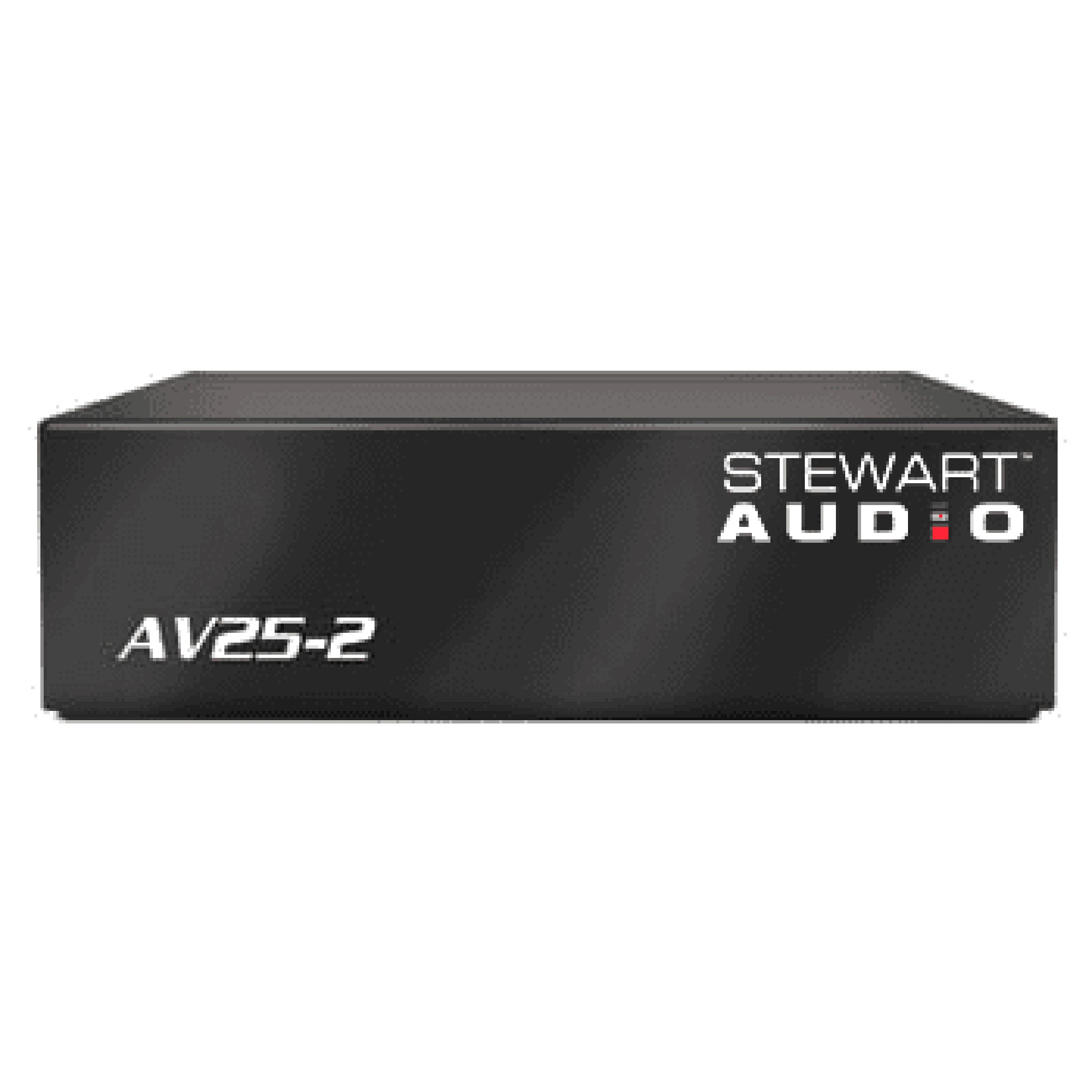

Stewart Audio AV-25-2 Sub Compact Power Amplifier 25w x 2 @ 8 Ohms
Contact us
Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The sub compact AV25 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV25 allows amplification to be located in places off limits to normal amplifiers without compromising sound or power.
Features- Sub Compact 1/4 rack package
- Two channel amplifier, optimized to drive 4 Ohm and 8 Ohm loads
- Music and fire alarm muting
- Clean full"–range dynamic power
- Signal Detect trigger for sleep & wake up
- Multiple mounting options
- External inline power supply
Like all Stewart products, the AV25 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology (SSPT) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.
| Frequency Response (+0, -3dB, 1W) | 30 Hz-20kHz |
| Power Bandwidth (+3, -3 dB) | 30 Hz - 30 kHz |
| Signal to Noise | >100dB |
| THD+N | < .1% |
| External Mute | 5-12VDC |
| Slew Rate | 30V/microsecond |
| Input Sensitivity | 0.5V (-3 dBV) |
| Standard Voltage Gain | 28X (26.5dB) |
| Input Impedance (Balanced/Unbalanced) | 20k Ohms/10k Ohms |
| Standby, Idle Current Draw & 1/8 power draw | 0.005/0.01/0.15 amps |
| Class | D |
| Input Connectors | Euro Block |
| Output Connectors | Euro Block |
| Power Supply | External in-line 48VDC (Included) |
| Cooling | Convection-Cooling (No Fans) |
| Controls | Level |
| LED Indicators | Power, Signal Present & Clip |
| Construction | Aluminum Chassis |
| Dimensions (h, w, d) | 1.25H x 4.35W x 3.2 D (3.2H x 11.1W x 8.1D cm) |
| Weight | <0.37 lbs (0.16kg) |
The sub compact AV25 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV25 allows amplification to be located in places off limits to normal amplifiers without compromising sound or power.
Features- Sub Compact 1/4 rack package
- Two channel amplifier, optimized to drive 4 Ohm and 8 Ohm loads
- Music and fire alarm muting
- Clean full"–range dynamic power
- Signal Detect trigger for sleep & wake up
- Multiple mounting options
- External inline power supply
Like all Stewart products, the AV25 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology (SSPT) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.
| Frequency Response (+0, -3dB, 1W) | 30 Hz-20kHz |
| Power Bandwidth (+3, -3 dB) | 30 Hz - 30 kHz |
| Signal to Noise | >100dB |
| THD+N | < .1% |
| External Mute | 5-12VDC |
| Slew Rate | 30V/microsecond |
| Input Sensitivity | 0.5V (-3 dBV) |
| Standard Voltage Gain | 28X (26.5dB) |
| Input Impedance (Balanced/Unbalanced) | 20k Ohms/10k Ohms |
| Standby, Idle Current Draw & 1/8 power draw | 0.005/0.01/0.15 amps |
| Class | D |
| Input Connectors | Euro Block |
| Output Connectors | Euro Block |
| Power Supply | External in-line 48VDC (Included) |
| Cooling | Convection-Cooling (No Fans) |
| Controls | Level |
| LED Indicators | Power, Signal Present & Clip |
| Construction | Aluminum Chassis |
| Dimensions (h, w, d) | 1.25H x 4.35W x 3.2 D (3.2H x 11.1W x 8.1D cm) |
| Weight | <0.37 lbs (0.16kg) |
