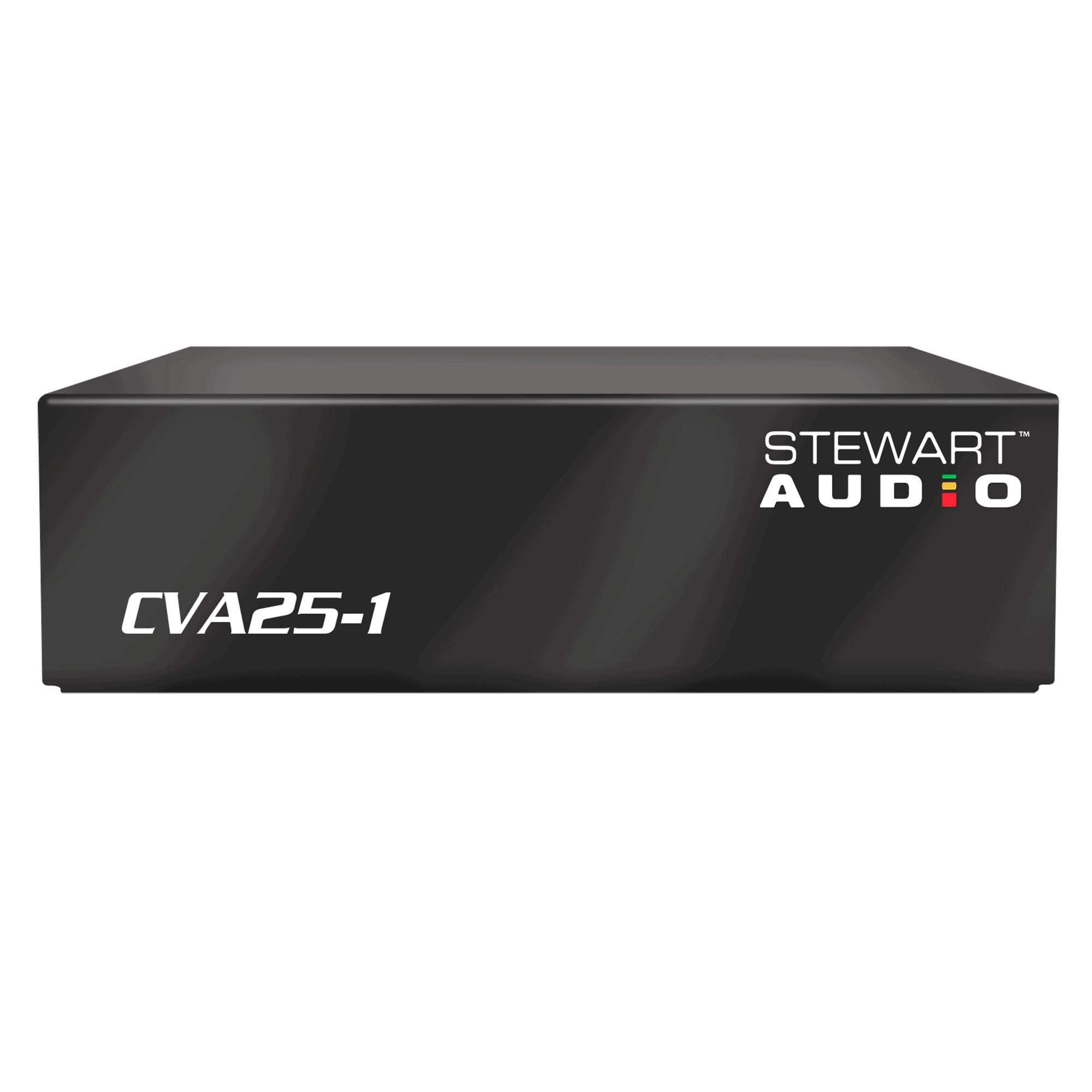

Stewart Audio CVA-25-1 Sub Compact 25 Watt @ 25V/70V Mono Power Amplifier
Contact us
Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The sub compact CVA-25-1 and CVA-50-1 are built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the CVA's allow amplification to be located in places normally off limits to standard amplifiers without compromising sound or power.
Features- Sub Compact 1/4 rack package
- Mono constant voltage amplifier (25V or 70V)
- Music and fire alarm muting
- Clean full"–range dynamic power
- Signal Detect trigger for sleep & wake up
- Remote volume control
- Multiple mounting options
- External inline power supply
The Plenum rating (UL 2043) and remote volume control further compliment the recessing options. Our Signal Sense Power Technology TM (SSPT TM) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life. Like all Stewart products, the CVA's are designed for sonic accuracy, high efficiency and extended duty cycles.
| Frequency Response (+0, –3 dB) | 100 Hz—20 kHz |
| Power Bandwidth (+3, –3 dB) | 80 Hz—30 kHz |
| THD+N | <.1% |
| Signal-to-Noise Ratio | >80dB |
| Remote Volume Control | 0-10V DC, 4 Pin Euro Block |
| Input Sensitivity | .5V (-3 dBV) |
| Standard Voltage Gain | 151X (43dB) @ 70.7 Volts out |
| Input impedance (Balanced/Unbalanced) | 20k Ohms/10k Ohms |
| Sleep, Idle Current Draw , 1/8 power draw | 0.005/ 0.01/0.15 Amps |
| Class | D |

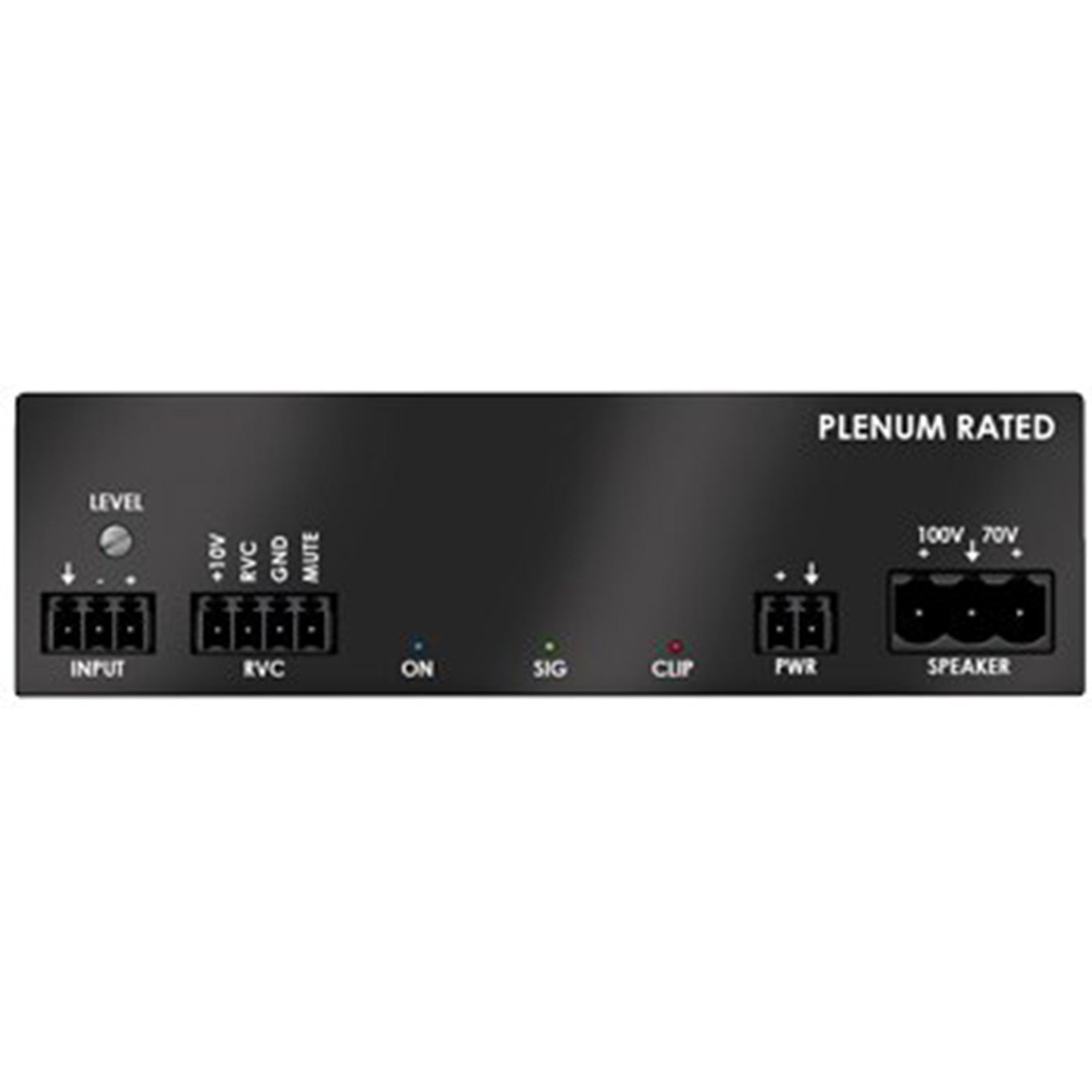

| Input Connectors | Euro Block 3 Pin, 3.5mm |
| Output Connectors | Euro Block 2 Pin, 5mm |
| Power Supply | External in-line 48VDC (Included), 2 pin Euro Block |
| Cooling | Convection–Cooling (No Fans) |
| Controls | Level |
| LED Indicators | Power, Signal Present & Clip |
| Construction | Aluminum Chassis & Top Cover |
| Dimensions (height, width, depth) | 1.25”H x 4.35” W x 3.2” D |
| Weight CVA-25/CVA-50 | <.7 lbs (0.32 kg)/1.2 lbs (0.54 kg) |
| Plenum Rating | UL 2043 Approved |
