DALE SKU # STDR-MICROCORE

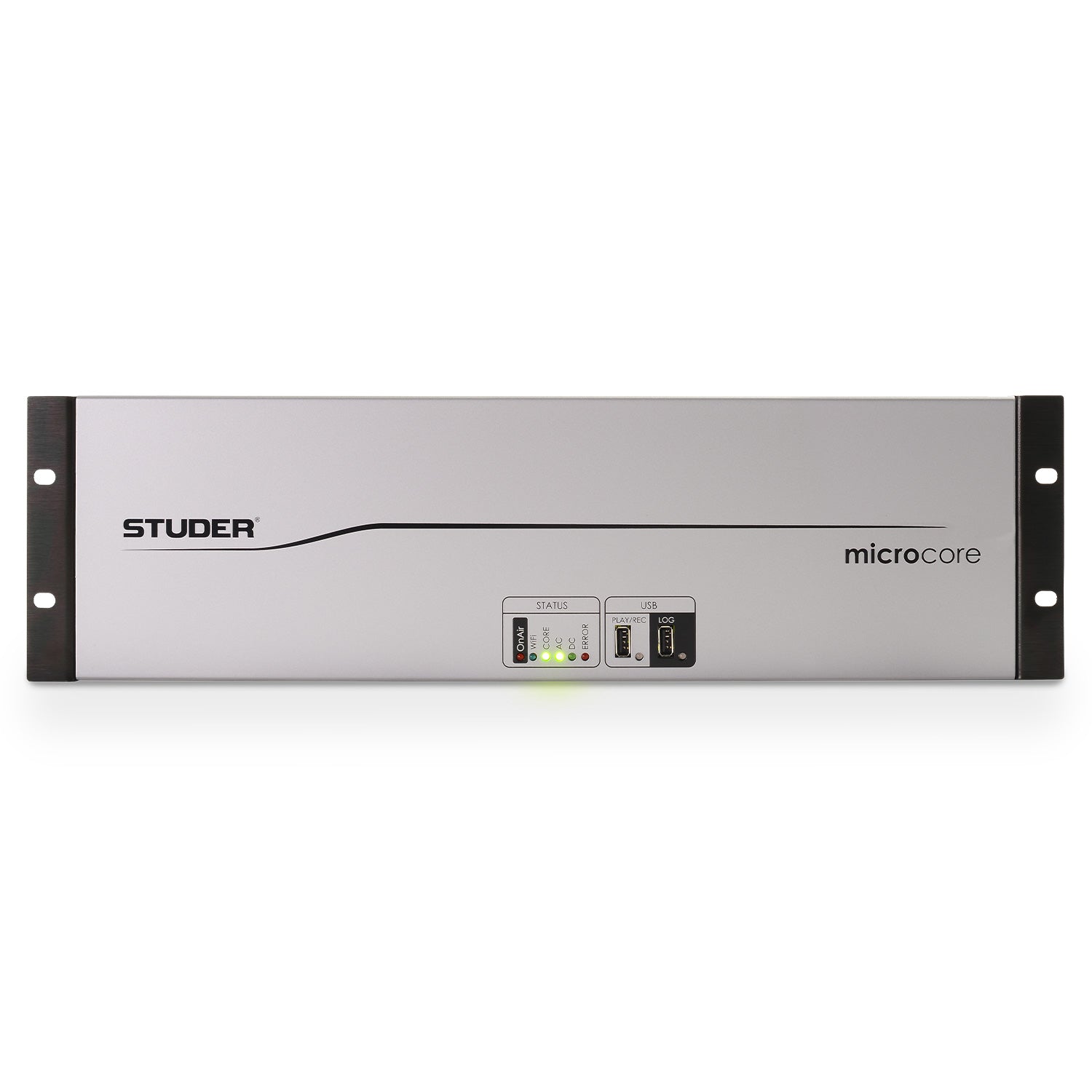

Studer MicroCore - Micro Series Digital Mixing Core with DSP and I/O

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Get the functionality of a high-end digital audio mixing system in a compact, cost-effective package. The Micro Series combines renowned Studer quality with powerful features including AoIP, Lexicon effects processing and VoiceMix automatic mixing.

    Comprised of the core unit, graphical user interface and optional fader control surface, the Studer Micro Series is ideal for radio and TV broadcast, production studios, ENG/DSNG and more. It's convenient HTML5-based user interface means you can fully control Studer Micro from the web browser on virtually any tablet or computer.

    Features:

    • Proven Studer sound quality and performance
    • Compact, integrated form factor
    • Comprehensive array of I/O including AoIP (Dante)
    • High-quality mic/line inputs
    • Fully controllable via LAN or Ethernet using an HTML 5- capable web browser on computer or tablet
    • Optional physical fader control surface
    • Highly acclaimed Studer VoiceMix for automatic mixing of up to 12 mono inputs
    • Automatic input gain level calibration on each mic input
    • Integrated stereo recorder, track player and jingle player
    • 2x stereo Lexicon multi-effects engines
    • Full suite of audio DSP functions including 4-band parametric EQ, dynamics, filters and more
    • Can be DC powered from optional external power brick


    One Powerful Core

    At the center of the Micro Series is the core unit - a rugged, fanless rack-mountable (3RU) chassis with integrated I/O, DSP and a control system hosted by an internal web server. Unlike other broadcast solutions that require expensive add-ons, the core features AoIP as standard with eight channels of Dante I/O.

    Intuitive, Flexible Interface
    Every function of the core unit can be controlled via the intuitive graphical user interface (GUI). Simply open the web browser on your computer or tablet using LAN or Ethernet, enter the IP address of the core and the GUI appears-no need to install any software. A single device can control multiple core units, and conversely, multiple devices can control a single core simultaneously.

    The web-based Micro Series GUI allows you to move freely anywhere in the mix environment. Surfaces are represented graphically, allowing a potentially large surface to be displayed on a small screen. This represents a huge cost-saving opportunity by practically eliminating the need for a large, expensive control surface.

    A Precise Touch
    For live broadcasters who appreciate the touch of physical faders for quick level adjustments and seamless multitasking, Studer offers an optional fader control surface that allows the operator to work the system by touch alone. The fader unit is a highly simplified 6-fader surface that offers streamlined controls for live operation. Two controllers can be attached to a single core for a maximum surface size of 12 faders.

    Audio I/O 4x high-quality mic inputs
    8x line inputs
    12x line outputs
    2x AES I/O pairs (with input SRC)
    8x Dante I/O (AoIP)
    Dedicated DJ and guest headphone outputs
    2x USB playback and record (stereo) ports
    Processing 12x Fat input channels (mono or stereo with de-esser, 4-band parametric EQ, high-pass and low-pass filters, compressor, noise gate and ducking)
    VoiceMix Automatic Mixing on all mono inputs
    2x stereo Lexicon effects engines
    Stereo PGM / REC buses
    4x stereo aux sends (configurable as N-1)
    Brickwall limiter on outputs
    Input and output routing
    Independent stereo USB track player (simple internal automation playout system)/recorder and jingle player
    Additional Connections External redundant 12V DC power supply input
    Dedicated wordclock I/O (AES and Dante also available)
    12x GPIO
    USB and HDMI
    LAN
    2x PoE for control surfaces
    Mic/Line Input
    Input Level Range -60dBu - +26dBu
    Maximum Level @ 0dBFS 86 one-dB steps
    Input Impedance 6.8k½
    Maximum Level @ 0dBFS 86 one-dB steps
    Frequency Response 20Hz-20kHz +0dB /-0.3dB
    30Hz -20kHz +0dB /-0.2dB
    THD / Noise < -87dB 1kHz, -1 dBFS
    < -94dB 1kHz, -9 dBFS
    < -102dB 20Hz -20kHz, -30dBFS
    CMRR > 46dB, typ. 60dB
    30Hz -20kHz, full gain range 1kHz, < -20dBu,> 35dB gain
    Crosstalk @ 1kHz > -110dB
    High crosstalk rejection due to symmetrical design
    Equivalent Input Noise -126dBu
    Rsource = 200½, maximum gain
    RF Rejection Yes; RF Rejection with common mode choke
    Analogue HP Filter 75Hz, 12dB/Oct; Switchable
    Phantom Power 48V; Switchable
    Zero-Cross Detection and Sample + Hold Yes; For click-free gain changes
    Line Input
    Maximum Input Level +9/+15/+18/+24dBu
    Maximum level @ 0dBFS 4 steps, software controlled
    Input Impedance > 10k½
    Frequency Response 20Hz -20kHz +0dB /-0.2dB
    THD / Noise < -87dB 1kHz, -1 dBFS 1kHz
    < -94dB -9 dBFS 20Hz -20kHz
    < -102dB -30dBFS
    CMRR > 60dB, 30Hz -20kHz, all four gain settings
    Crosstalk @ 1kHz > -110dB
    RF Rejection Yes
    Line Output
    Maximum Output Level +9/+15/+18/+24dBu
    Maximum level @ 0dBFS 4 steps, software controlled
    Output Impedance 40½
    Electronically Balanced Yes
    AES Input
    Input Sensitivity 0.2V
    Input Impedance 110½
    SRC Range 32Hz -108kHz
    AES Output
    Output Level 3V
    Input Impedance 110½
    Physical
    Dimensions Micro Core (with flanges) 19" W x 5.22" H x 7.77" D
    (483mm W x 133mm H x 197mm D)
