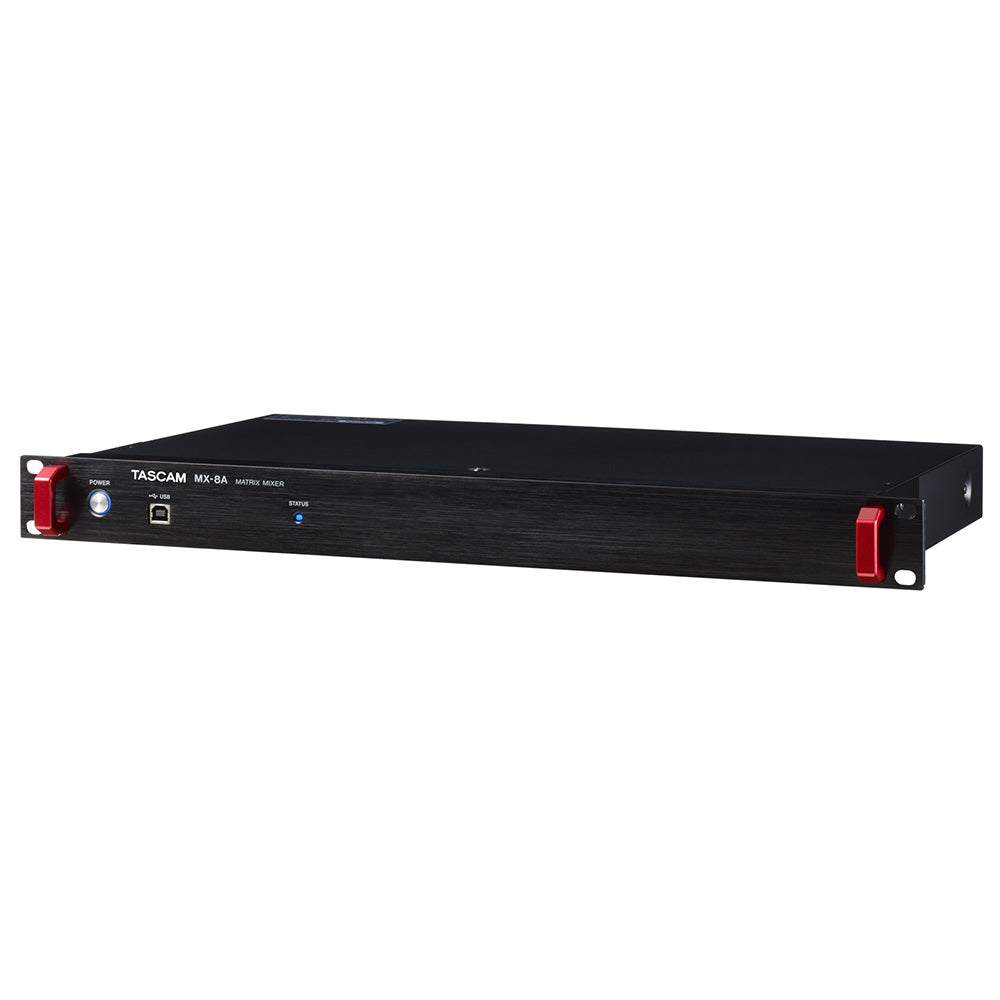

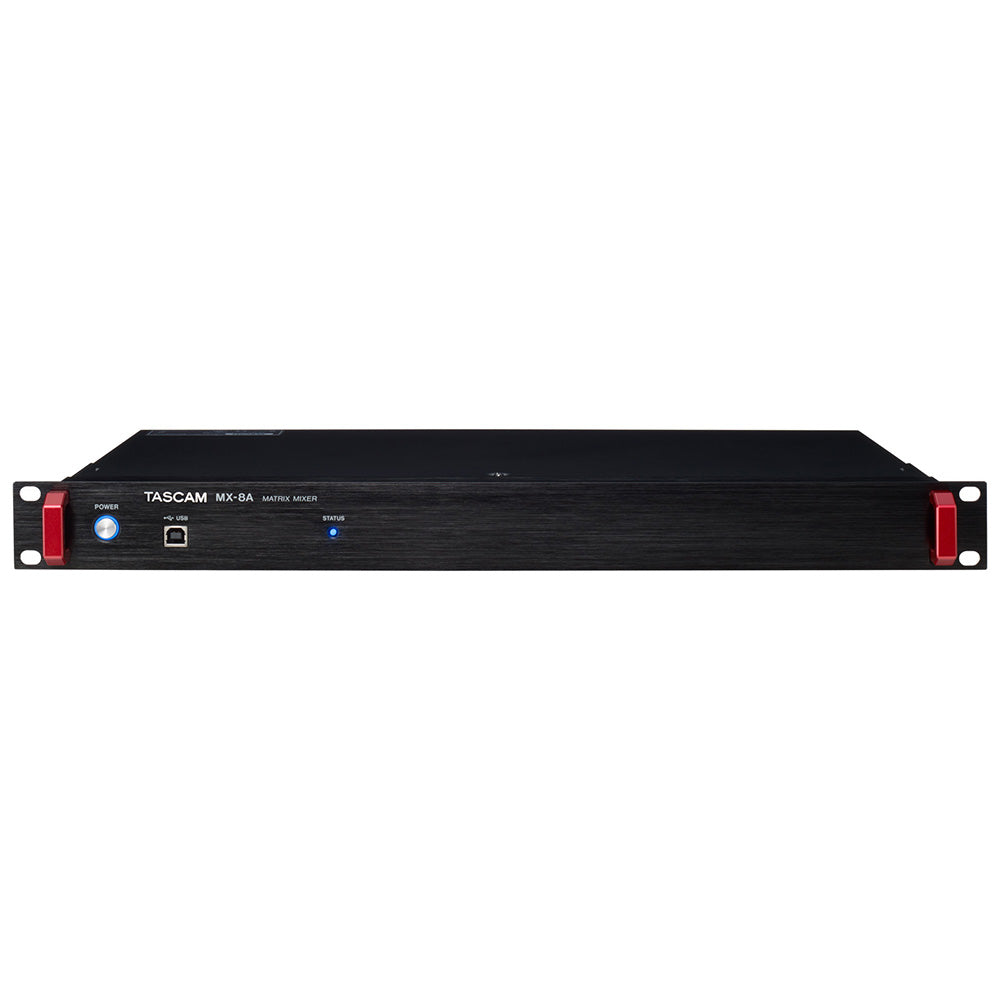

Tascam MX-8A - 8 Input /8 Output Matrix Mixer with DSP
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.
Features:
- 8-channel mic / line input with phantom power (+48v) support
- Supports remote mic gain control
- 8 line output

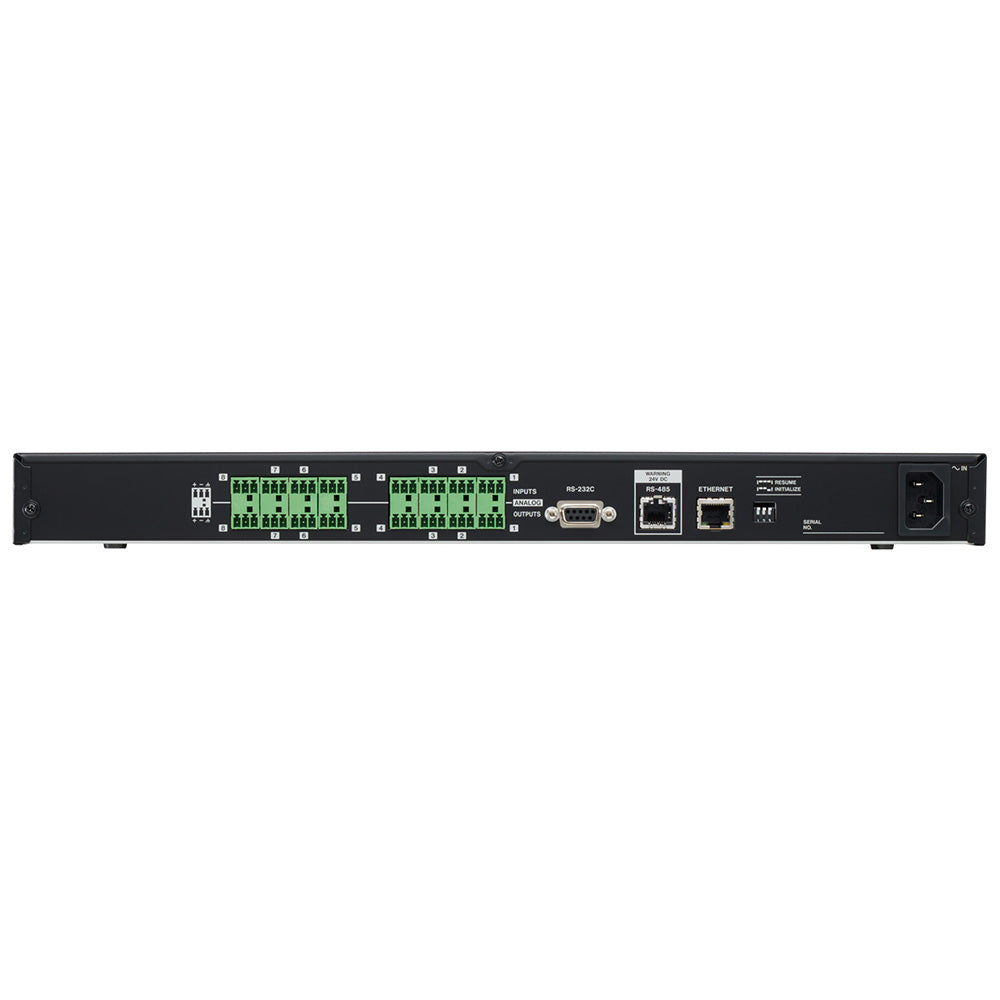

- Equipped with Euroblock connectors for signal input / output
- Compatible with external software (Windows / macOS / Android / iOS) for audio playback / recording via USB audio interface function
- Includes a variety of DSP functions for optimal use in different scenes / environments
- Flexible scene preset function allows recall of a variety of configurations (Up to 50 presets)
- Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
- 2 types of user control software available for Windows / Mac / iOS / Android devices:
TASCAM MX CONNECT (For integrators); Input / output routing selection, DSP / design / scene settings of the complete system, etc.
TASCAM EZ CONNECT (For end-users); Simple app design with only the necessary functions such as area volume settings, etc. - Equipped with a RS-232C connector to support serial remote control systems
- Equipped with an RS-485 connector for dedicated wall-mount programmable controller RC-W100-R120 / RC-W100-R86 (optional accessories, sold separately) enabling source selection and volume adjustment.
- Supports remote control via Ethernet
- 1U rack-mountable size
- Installed indicators display operating status and control software connection status
Dedicated wall-mount external controller
Source selection, volume adjustment, and mute functions can be remotely changed with the external wall-mount programmable controllers RC-W100-R120 and RC-W100-R86. Both controllers are equipped with one LCD display, an encoder and 4 switches. Up to 8 units of RC-W100-R120 or RC-W100-R86 can be installed with one TASCAM MX-8A.
* RC-W100-R120 and RC-W100-R86 are optional accessories, sold separately.
* The following updates are required to use RC-W100.
MX-8A firmware update to V1.10 or higher
TASCAM MX CONNECT software update to V1.2.0 or higher
Structuring small to mid-scale systems
The TASCAM MX-8A is possible to mix mic and playback equipment audio signals into 8 different zones. This function can be used in installation systems for small to medium scale stores, restaurants or banquet rooms, etc.
Powerful Integrated DSP
The onboard DSP provides a full set of audio processing for mic and line inputs including Compressor, 4 parametric EQ, auto level, ducking and more. On line level outputs, the DSP delivers 10 band EQ, high pass filters, low pass filters, delay and limiter effects.
Remote Control Software
Control of the TASCAM MX-8A via either of the two available control software applications
- TASCAM MX CONNECT, designed for integrators and providing control over the configuration and settings of an entire system.
- TASCAM EZ CONNECT, designed for end-users and providing easy control over a variety of settings.
Available for Windows / mac OS / Android / iOS devices.
| FORMAT | 44.1k / 48k Hz, 16bit / 24bit |
| USB | |
| Connector | 4-pin USB B-type |
| Transfer rate | USB2.0 High Speed (480Mbps) |
| ANALOG IN | |
| Connector | Euroblock (Balanced) 3.81mm pitch |
| Minimum input level | -70dBu |
| Maximum input level | |
| MIC | +26dBu |
| LINE | +24dBu |
| Input impedance | 2.2k½ or higher |
| ANALOG OUT | |
| Connector | Euroblock (Balanced) 3.81mm pitch |
| Nominal output level | +4dBu (when Ref.Level set to other than -9dBFS) +6dBu (when Ref.Level set to -9dBFS) |
| Maximum output level (switchable) |
+15dBu (Ref.Level: -9dBFS) +18dBu (Ref.Level: -14dBFS) +20dBu (Ref.Level: -16dBFS) +22dBu (Ref.Level: -18dBFS) +24dBu (Ref.Level: -20dBFS) |
| Output impedance | 200½ or lower |
| RS-232C | |
| Connector | D-sub 9-pin (female, inch-standard) |
| RS-485 | |
| Connector | RJ-45 |
| Cables | Category 5e or faster STP cables |
| ETHERNET | |
| Connector | RJ-45 |
| Transmission protocol | TCP/IP |
| Ethernet standard | 100BASE-TX |
| Cables | Category 5e or faster STP cables |
| Power | AC100-240 V, 50/60 Hz |
| Power consumption | 21W |
| Dimensions | 483(W) _ 45(H) _ 304.1(D)mm (including protrusions) |
| Weight | 3.0kg |
| Operating temperature range | 0_40¡C |
| Included items | Power cord _ 1, Euroblock plug _ 16_Cable band kit _ 1, Rackmount screw kit _ 1, Owner's Manual (including warranty) _ 1 |
| Audio performance | |
| Mic amp EIN (equivalent input noise) | -126dBu or less (MIC IN _ LINE OUT, Input impedance 150½, 22_Hz LPF+A, A-weighted, JEITA) |
| Frequency response | +0.5/-0.5dB: 20Hz_20kHz (+24dBu input, MIC IN _ LINE OUT, GAIN MIN, JEITA) |
| Distortion (THD+N) | 0.005% or less (+24dBu input, 1kHz, MIC IN _ LINE OUT, GAIN MIN, JEITA) |
| S/N ratio | 106dB or higher (+24dBu input, 44.1 k/48 kHz sampling frequency, MIC IN _ LINE OUT, GAIN MIN, JEITA) |
| Crosstalk | 106dB or higher (+24dBu input, 1kHz, MIC IN _ LINE OUT, GAIN MIN, JEITA) |
| Dynamic range | 106dB or higher (MIC IN _ LINE OUT, GAIN MIN, JEITA) |
| Supported audio drivers | |
| Windows | UAC2.0, WDM |
| macOS / iOS | UAC2.0 |
| Android | UAC2.0 |
| Supported OS' | |
| Windows | Windows 10 (November 2019 Update)ÊNew |
| Mac | macOS Catalina , macOS Mojave |
