TELEFUNKEN ELA M 260 Master - Small-Diaphragm Tube Condenser Microphone Set
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
One of the few small diaphragm tube microphones available today, the ELA M 260 is an absolute first choice for acoustic instrument recording. Everything from stringed instruments to drum overheads will benefit from the 260’s perfect combination of small diaphragm precision and classic tube warmth. It’s tonality and detail when capturing acoustic instruments, especially strings, brass, woodwind and percussion is unrivaled. Hand-built in the USA, the ELA M 260 is available Cardioid only or with all capsule options (Master Set), as well as in Stereo and Tri-Mono (Decca Tree) packages, which include an American-made power supply and matched thread-on interchangeable capsules in a premium flight case.
Features:
- A brilliant combination of tube warmth and small-diaphragm precision
- Flattering tone and open top end complements most acoustic instruments
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- Vintage-inspired 5840W vacuum tube-based amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads

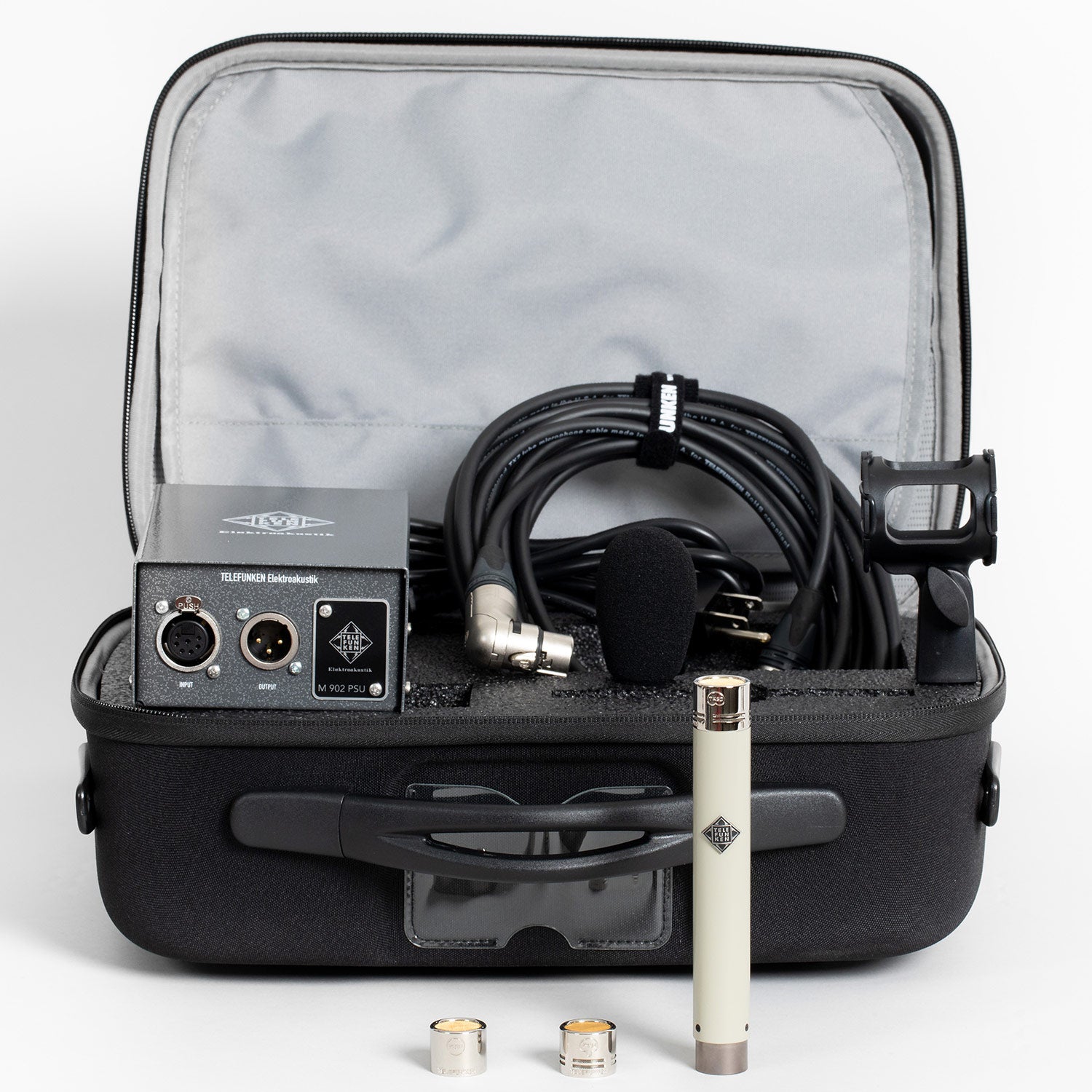

Cardioid Stereo Set includes:
- M 260 Tube Microphone

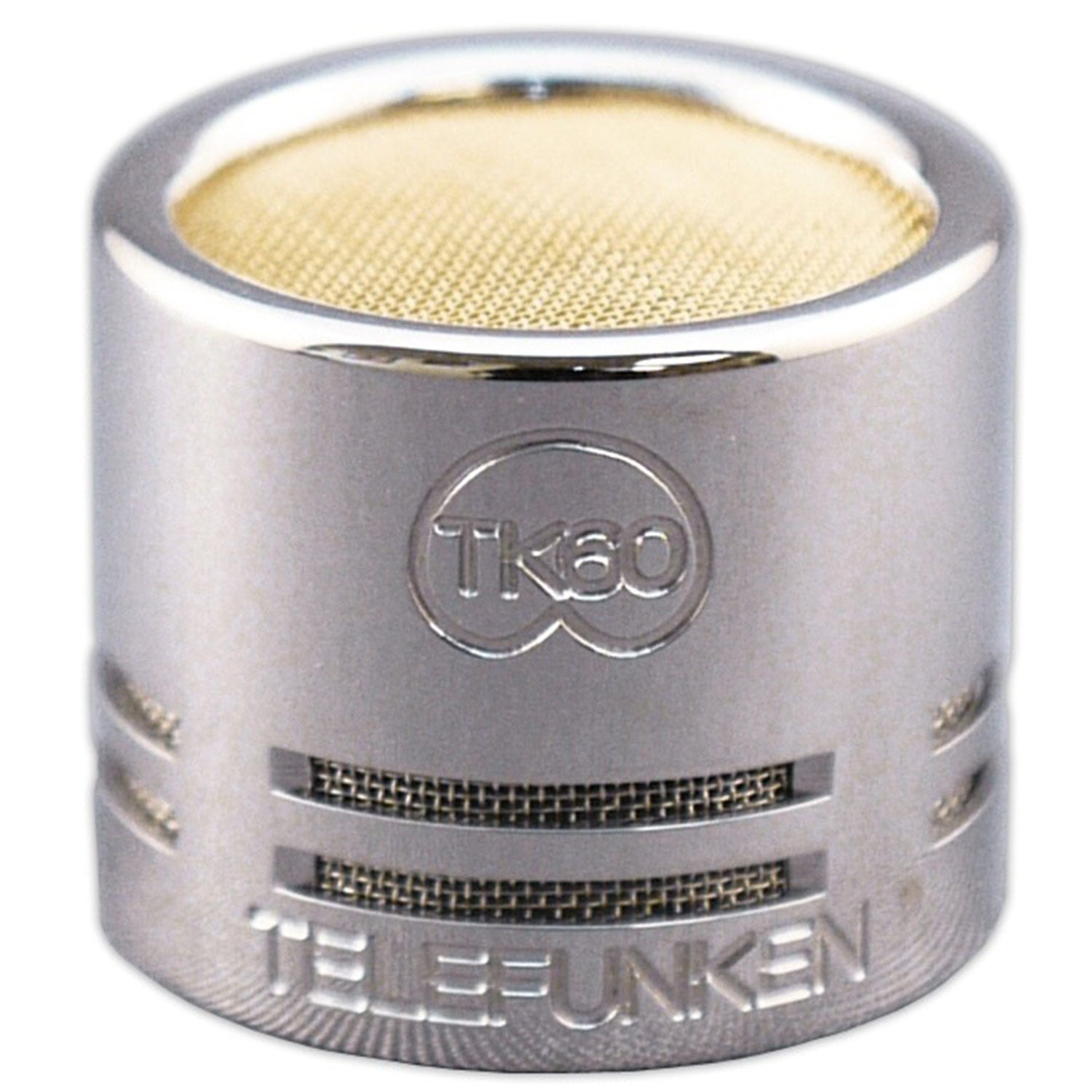

- TK60 Cardioid Capsule

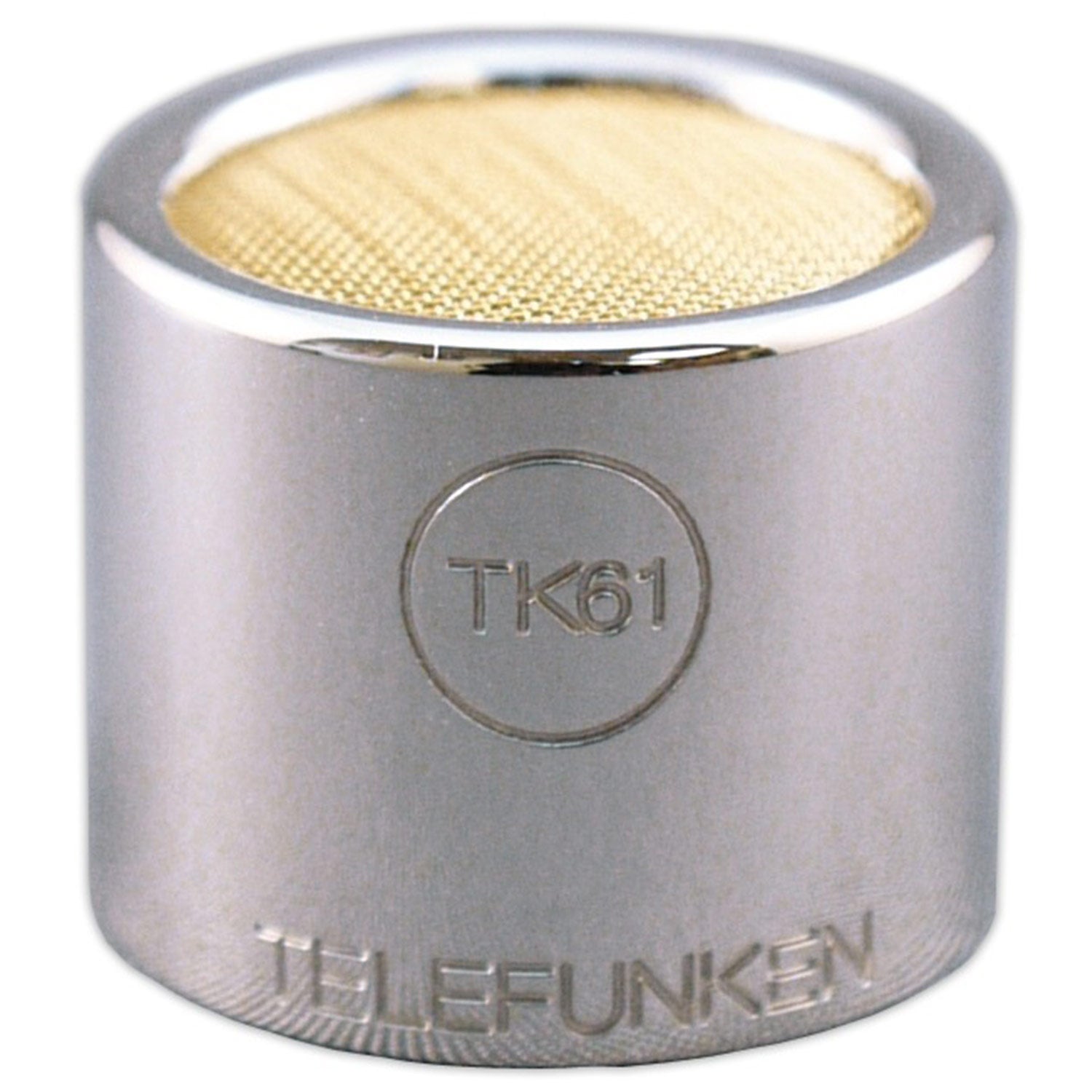

- TK61 Omni Capsule

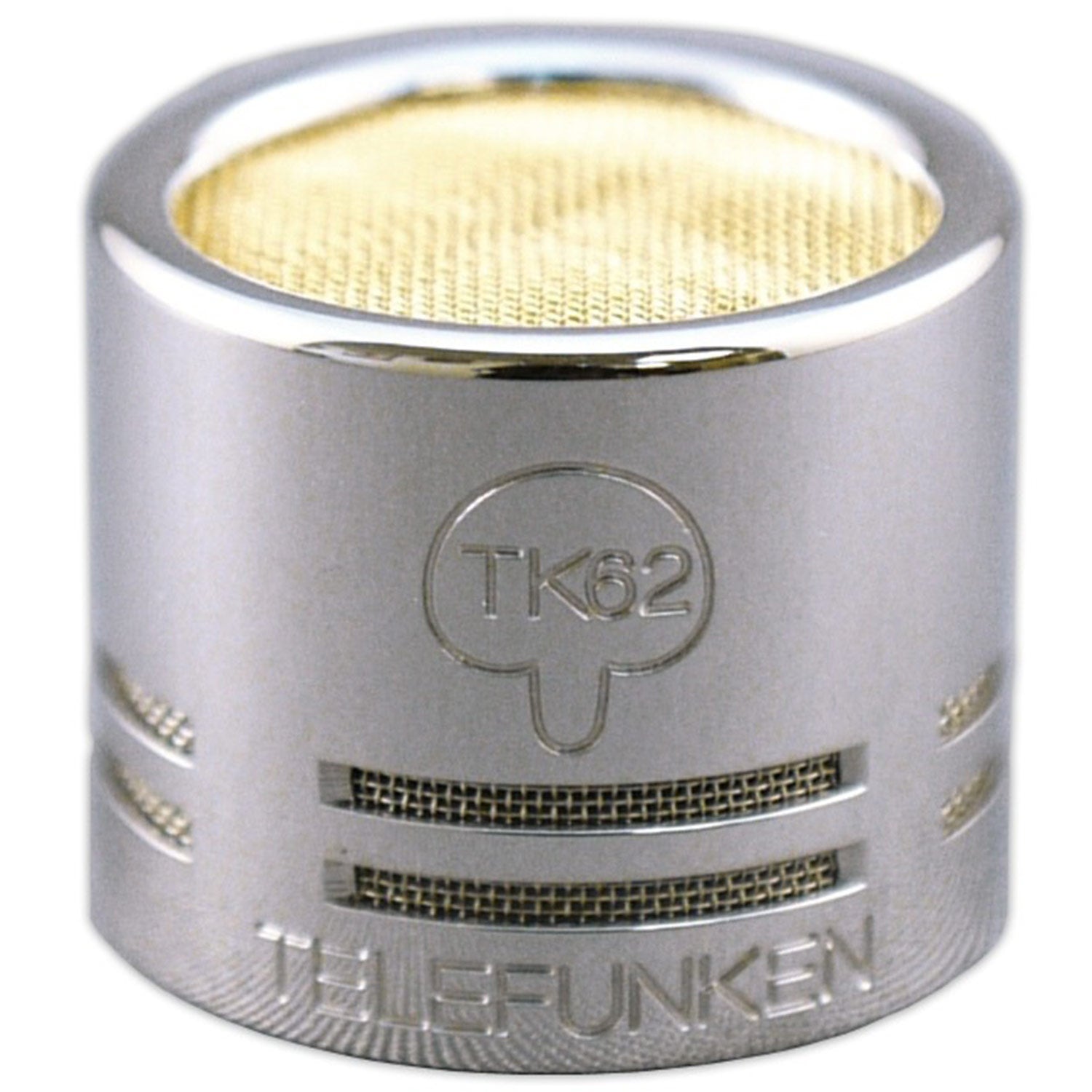

- TK62 Hypercardioid Capsule
- M 902 Power Supply
- M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m
- M 761 Elastic Shock Mount
- WS20 20mm Foam Windscreen
- ZC60 Zipper Case
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Hypercardioid capsules available |
| Frequency Range | 20 Hz Ð 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK60, TK61, TK62 Ð Edge Terminated Small Diaphragm, Thread-on |
| Tube | NOS Philips 5840W |
| Transformer | TELEFUNKEN Elektroakustik T60 |
| Sensitivity | 16.5 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.15% |
| Output Impedance | 200 ½ |
| Maximum SPL (for 1% THD) | 135 dB |
| S/N Ratio | 83 dBA |
| Self Noise (Amplifier) | 11 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 116 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case |
One of the few small diaphragm tube microphones available today, the ELA M 260 is an absolute first choice for acoustic instrument recording. Everything from stringed instruments to drum overheads will benefit from the 260’s perfect combination of small diaphragm precision and classic tube warmth. It’s tonality and detail when capturing acoustic instruments, especially strings, brass, woodwind and percussion is unrivaled. Hand-built in the USA, the ELA M 260 is available Cardioid only or with all capsule options (Master Set), as well as in Stereo and Tri-Mono (Decca Tree) packages, which include an American-made power supply and matched thread-on interchangeable capsules in a premium flight case.
Features:
- A brilliant combination of tube warmth and small-diaphragm precision
- Flattering tone and open top end complements most acoustic instruments
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- Vintage-inspired 5840W vacuum tube-based amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads
Cardioid Stereo Set includes:
- M 260 Tube Microphone
- TK60 Cardioid Capsule
- TK61 Omni Capsule
- TK62 Hypercardioid Capsule
- M 902 Power Supply
- M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m
- M 761 Elastic Shock Mount
- WS20 20mm Foam Windscreen
- ZC60 Zipper Case
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Hypercardioid capsules available |
| Frequency Range | 20 Hz Ð 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK60, TK61, TK62 Ð Edge Terminated Small Diaphragm, Thread-on |
| Tube | NOS Philips 5840W |
| Transformer | TELEFUNKEN Elektroakustik T60 |
| Sensitivity | 16.5 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.15% |
| Output Impedance | 200 ½ |
| Maximum SPL (for 1% THD) | 135 dB |
| S/N Ratio | 83 dBA |
| Self Noise (Amplifier) | 11 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 116 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case |
