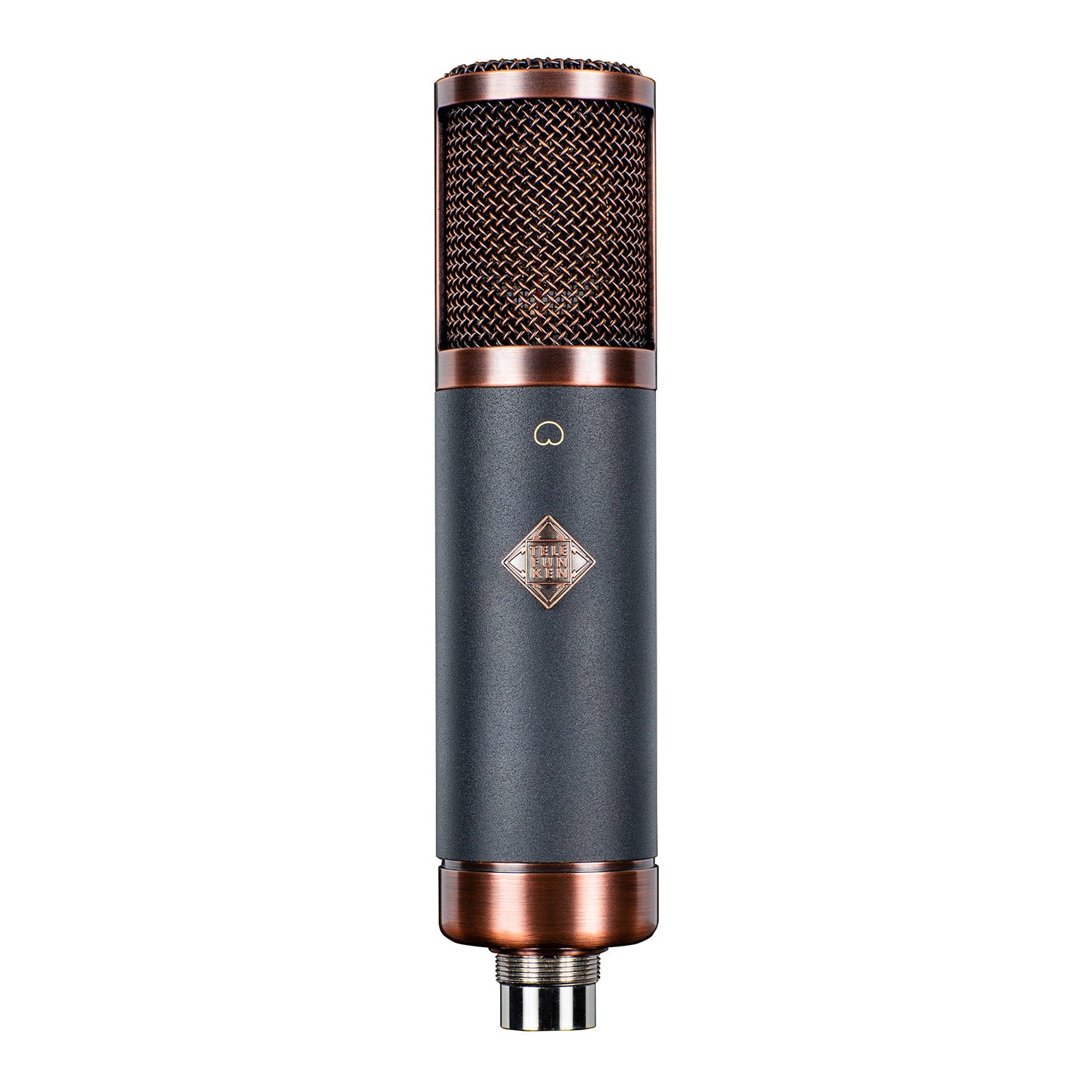

TELEFUNKEN TF29 Copperhead - Alchemy Series Tube Condenser Microphone

  • Dale #:

    TEFU-SYTM087
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The TF29 Copperhead is an evolution of the CU-29 Copperhead, an original TELEFUNKEN Elektroakustik design that garnered fans for its natural and non-hyped tonality and unparalleled quality for price. The TF29 continues this reputation of outstanding sonic performance and value. It's a workhorse m... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The TF29 Copperhead is an evolution of the CU-29 Copperhead, an original TELEFUNKEN Elektroakustik design that garnered fans for its natural and non-hyped tonality and unparalleled quality for price. The TF29 continues this reputation of outstanding sonic performance and value. It's a workhorse microphone, accurately and honestly capturing vocals, acoustic and electric guitar, drums, and nearly any source put in front of it.

Circuit Design
The TF29 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF29 a trusty go-to choice.

Features:

  • Designed and assembled by hand in the USA
  • Pleasant, natural mid range
  • Extended low frequency response
  • Stand out antique copper finish
  • Premium EU-made Lundahl transformer

Applications:

  • Natural vocals, bluegrass, folk, and Americana styles
  • Electric guitar
  • Drums: Kick Out, Overheads, and Room
  • Saxophone
  • Upright piano
  • Banjo

More +

Product Specs

Type Condenser Pressure Gradient
Capsule TK67S Center Terminated Diaphragm
Tube Type 5654W (New Old Stock)
Transformer Lundahl LL 1935
Polar Pattern Cardioid

Frequency Range

20Hz - 20kHz
Sensitivity 17mV/Pa
THD at 1kHZ at 1Pa (Amplifier) < 0.3%
Output Impedance < 300 Ω
Maximum SPL (for 1% THD) 130 dB
S/N Ratio 87 dBA
Self Noise (Amplifier) 7 dBA
Dimensions/Size 200 mm L x 46 mm Dia
Weight 650 g
Current Draw from Mains 50 mA
Power Supply M 902 PSU - 7 Pin Female XLR Input, 3 Pin Male XLR Output

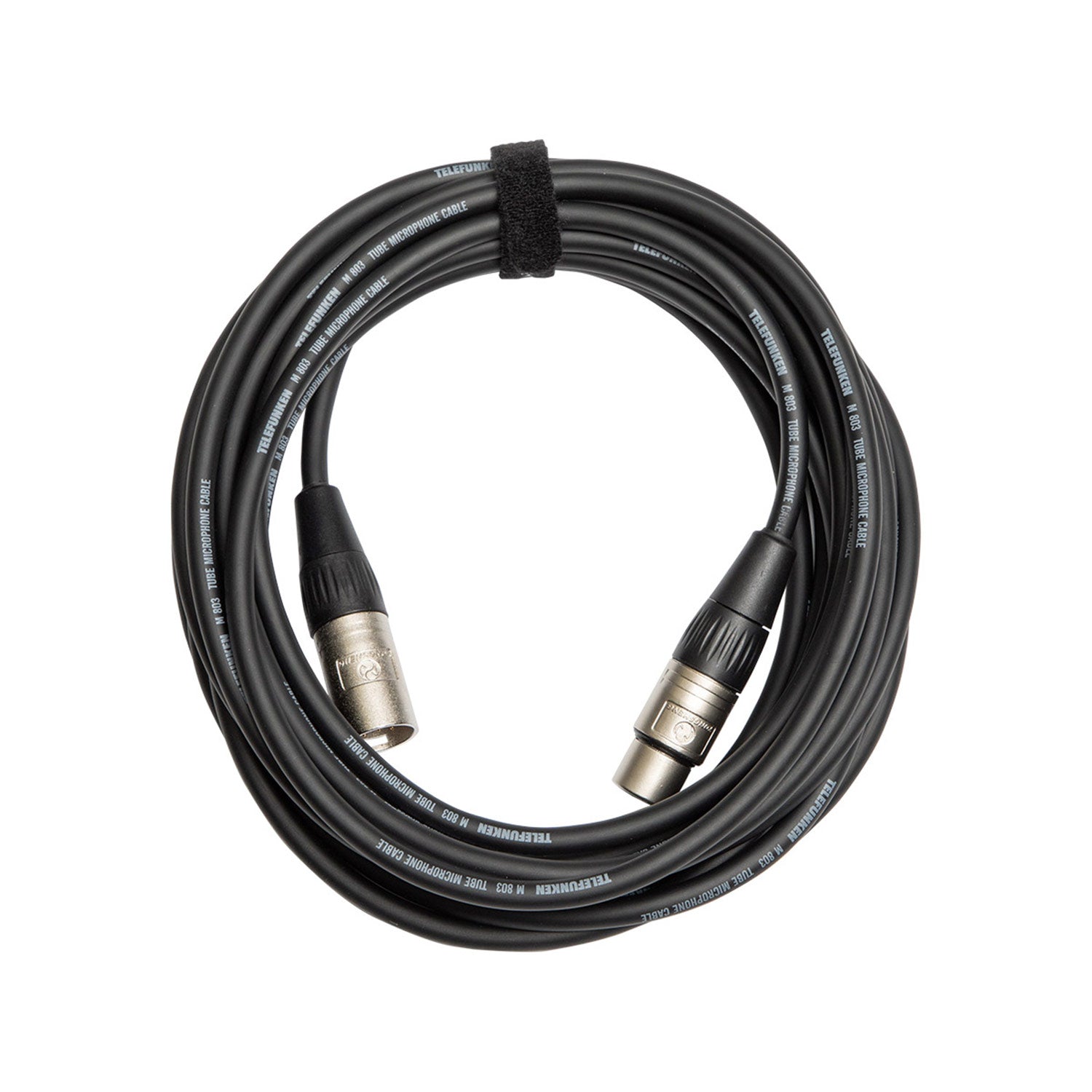

Cable M 803 - 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs

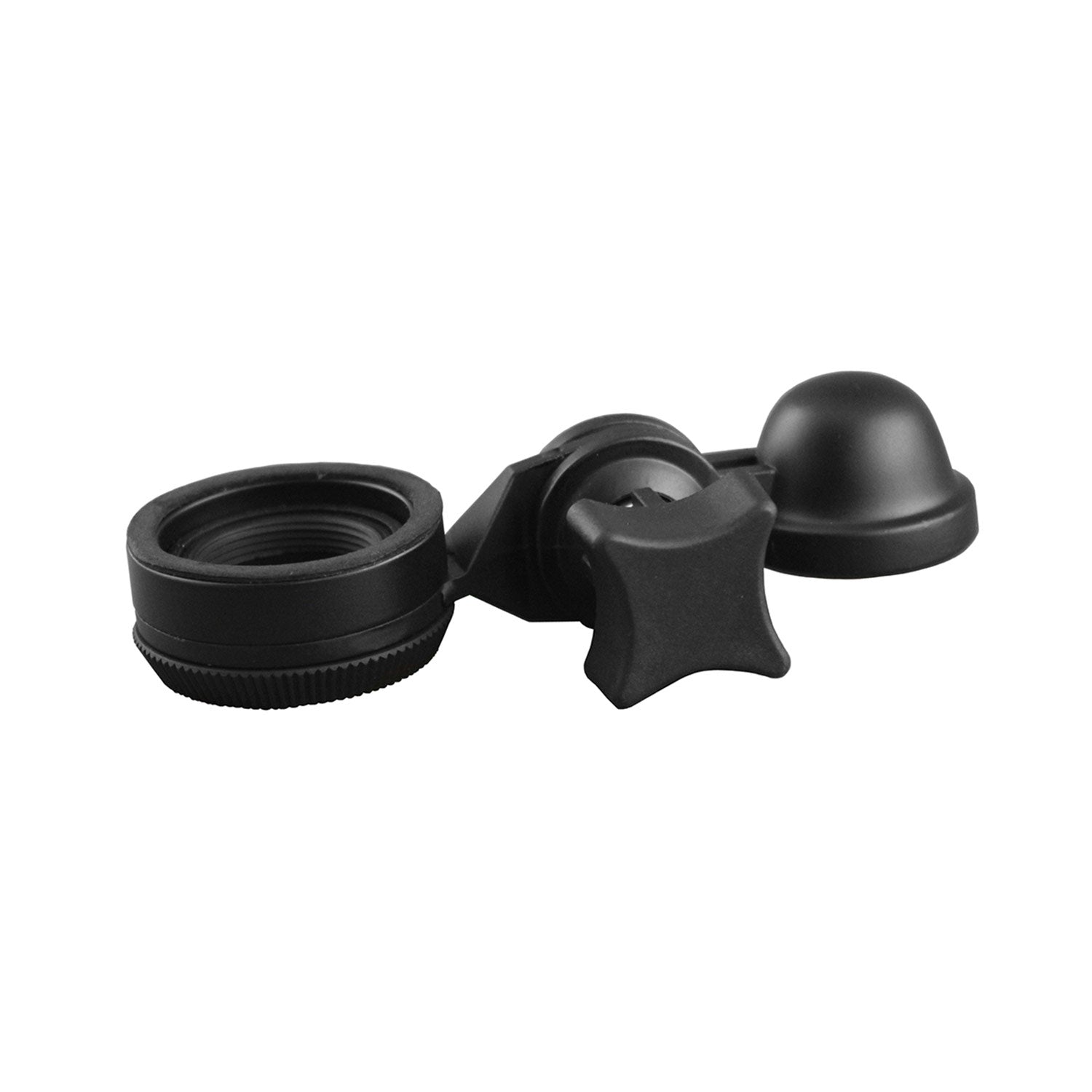

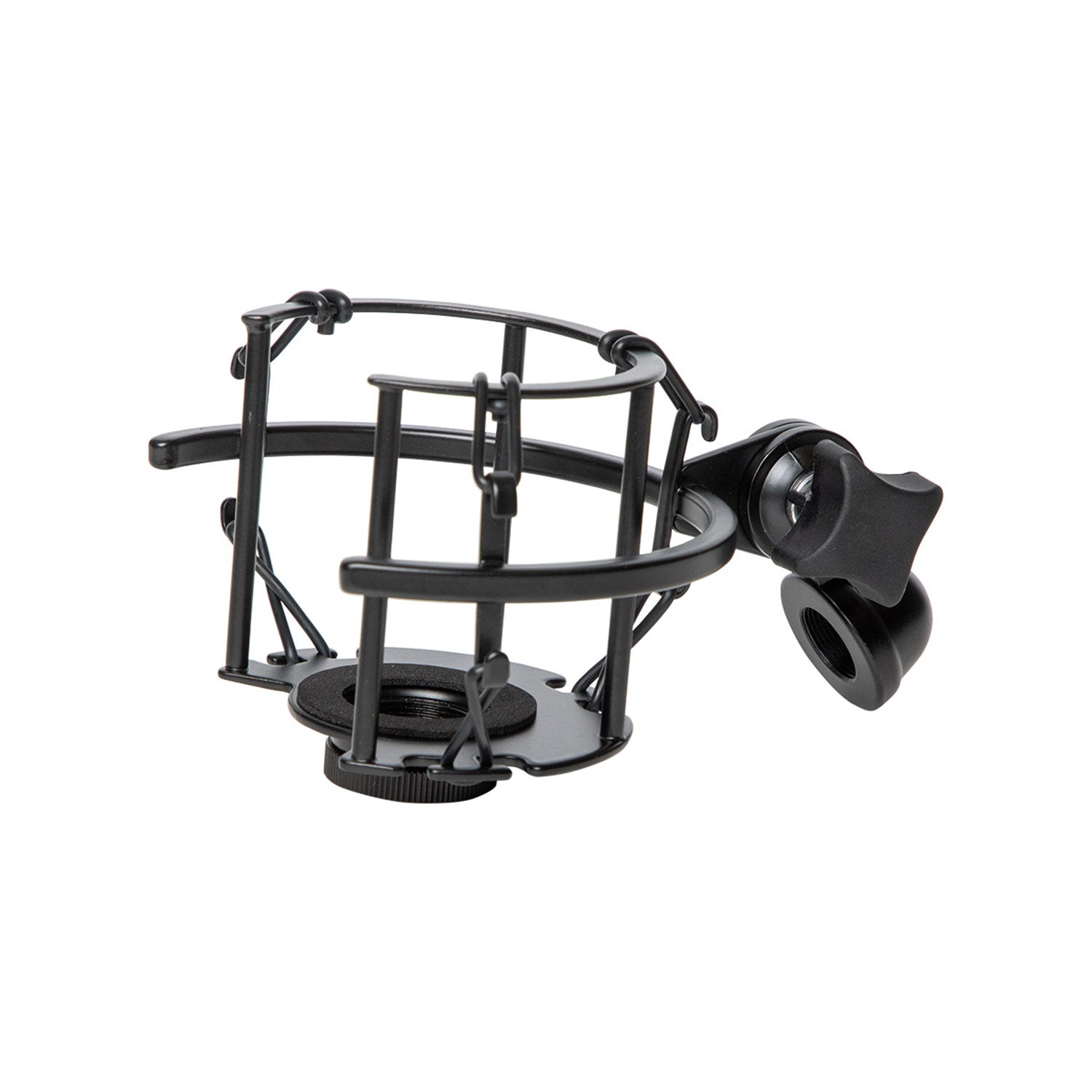

Shock Mount M 703 - Shock Mount, M 782 - Stand Mount

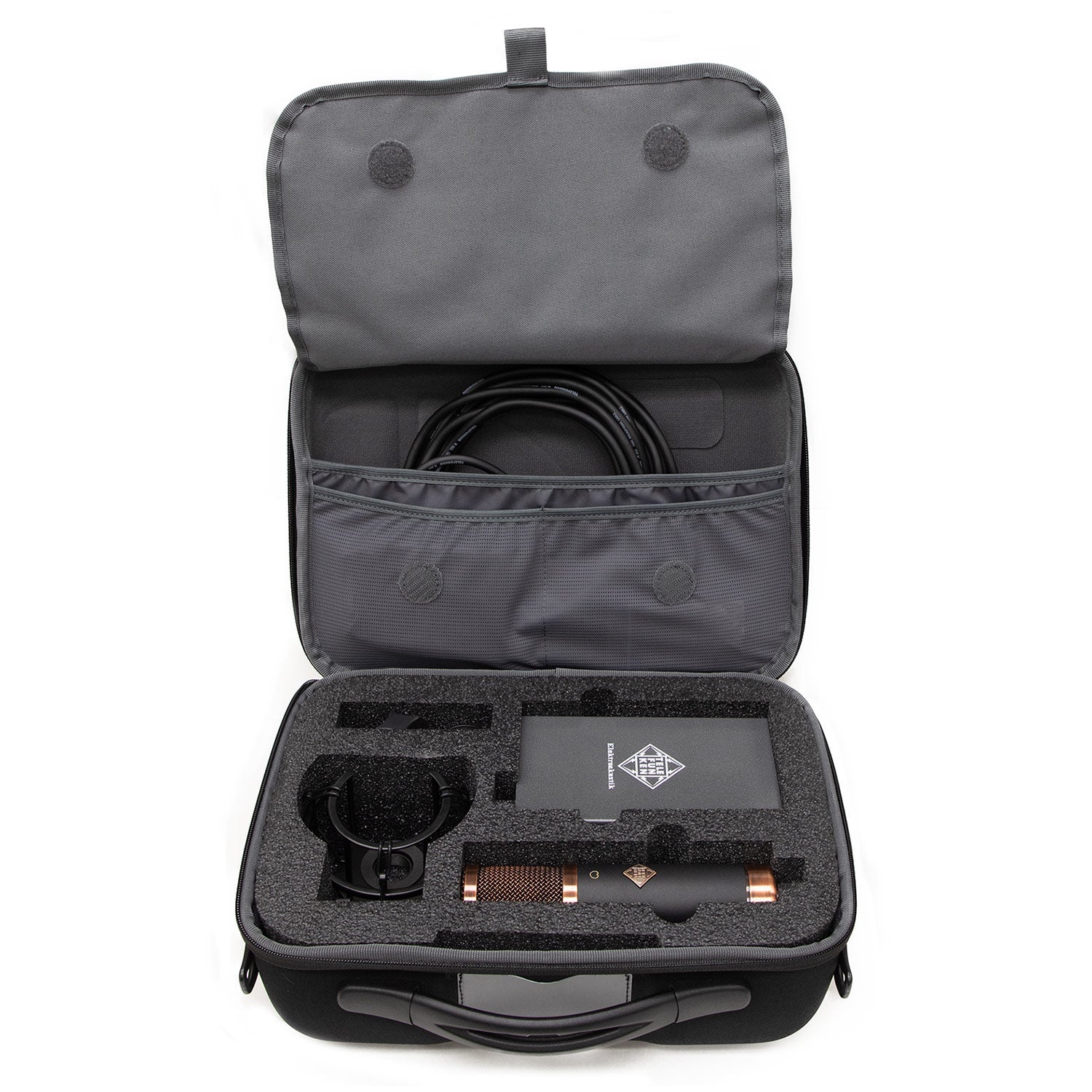

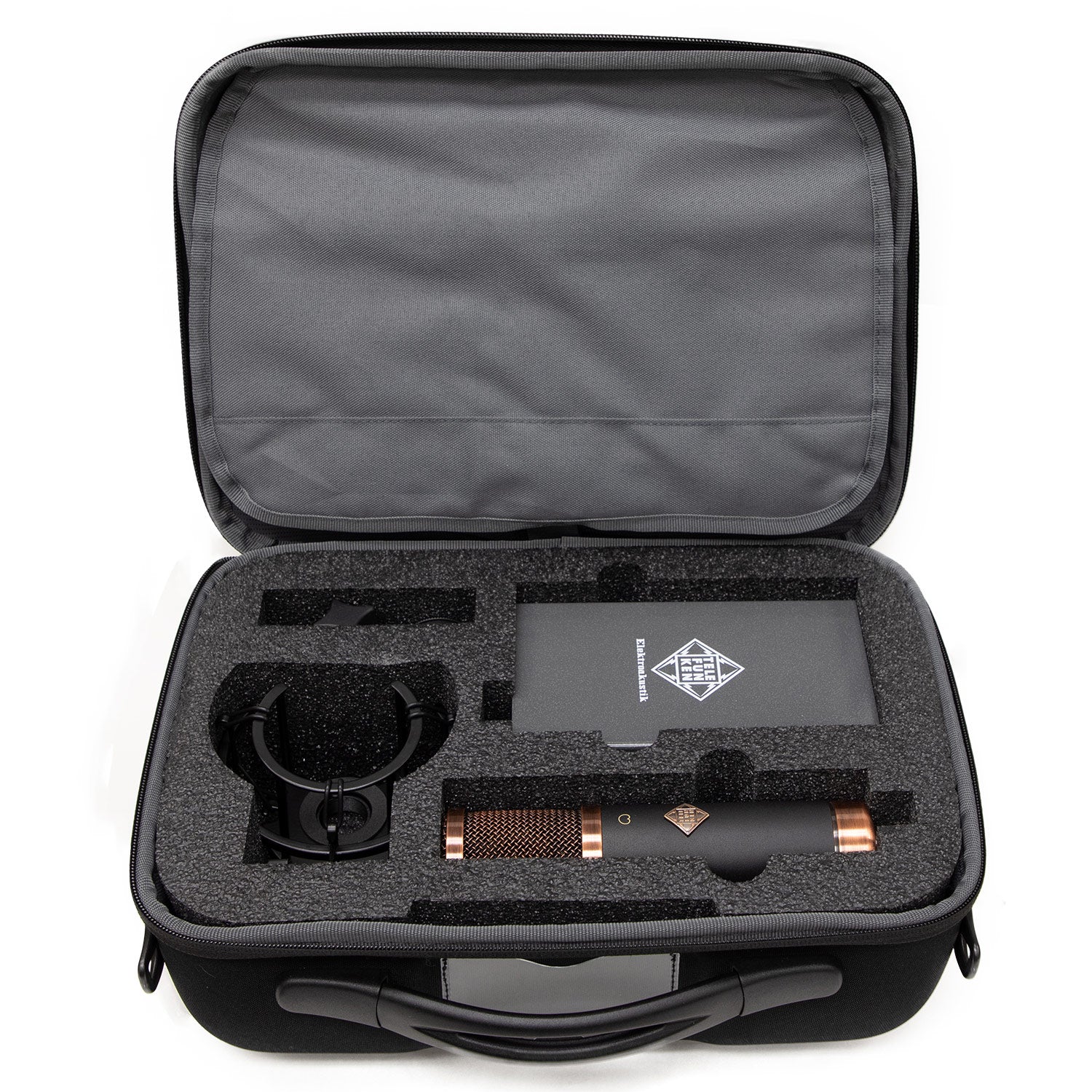

Flight Case ZC03 - Light Weight Carrying Case

More +
