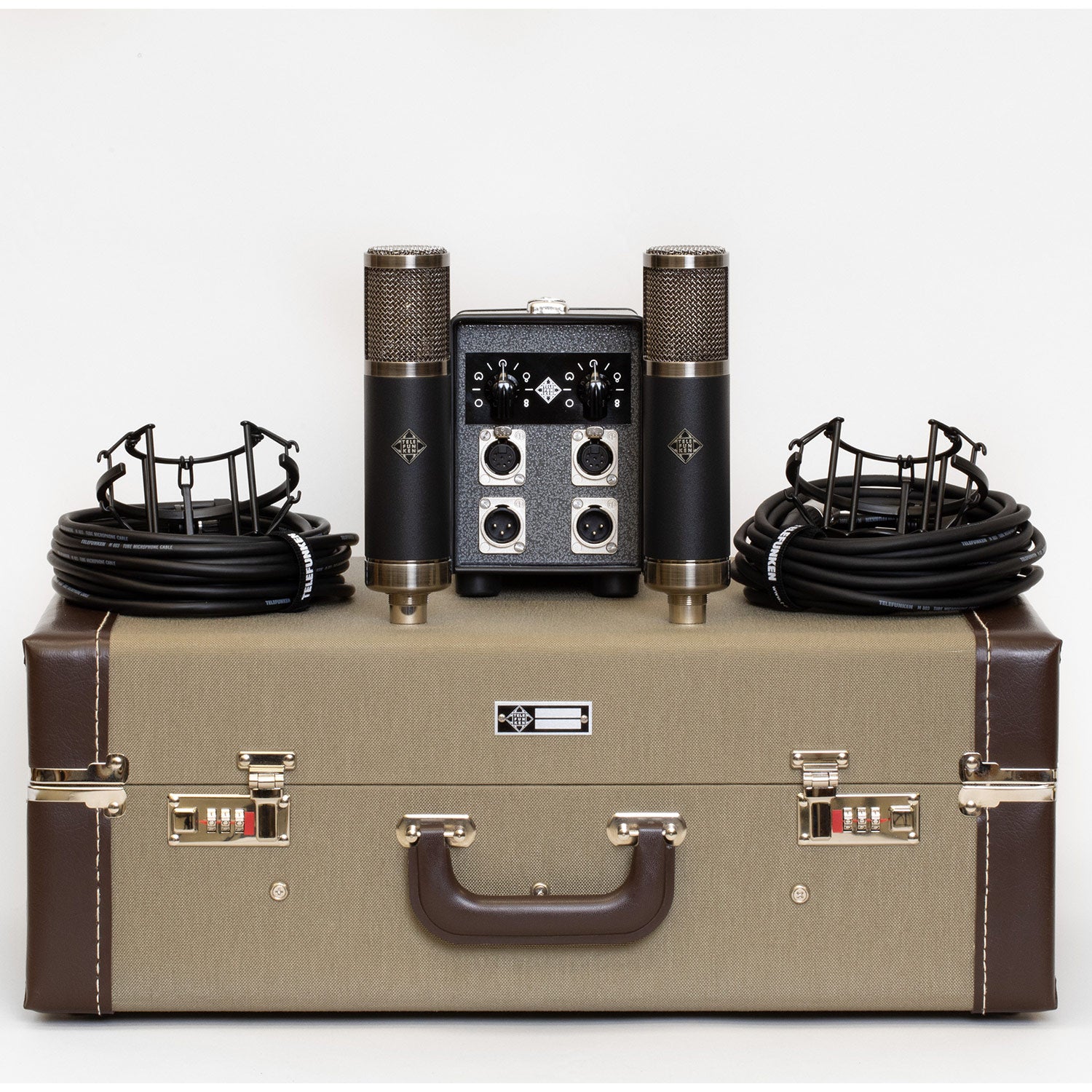

TELEFUNKEN TF47 Alchemy Series Tube Condenser Microphone (Stereo Set)

  • Dale #:

    TEFU-TF47STEREOSET
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps,... Read More

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.

Circuit Design
At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.

Features:

  • Forward mid-range, reminiscent of the U47
  • Smooth and detailed top end
  • Full and round low end
  • Hand assembled in the USA
  • K47-style capsule and BV8 transformer, similar to the U47

Applications:

  • RnB, rap or aggressive vocals, female soul vocals
  • Upright bass
  • Toms and kick out
  • Trombone
  • Cello
  • Percussion

More +

Product Specs

Type Condenser Pressure Gradient
Capsule TK47 Center Terminated Diaphragm
Tube Type 5840W (New Old Stock)
Transformer Custom Wound TELEFUNKEN BV8
Polar Pattern Cardioid, Omnidirectional, Figure-8
Frequency Range 20Hz - 20kHz
Sensitivity 22 mV/Pa

THD at 1kHZ at 1Pa (Amplifier)

< 0.3%
Output Impedance < 300 Ω
Maximum SPL (for 1% THD) 125 dB
S/N Ratio 84 dBA
Self Noise (Amplifier) 10 dBA
Dimensions/Size 200 mm L x 46 mm Dia
Weight 710 g
Current Draw from Mains 50 mA

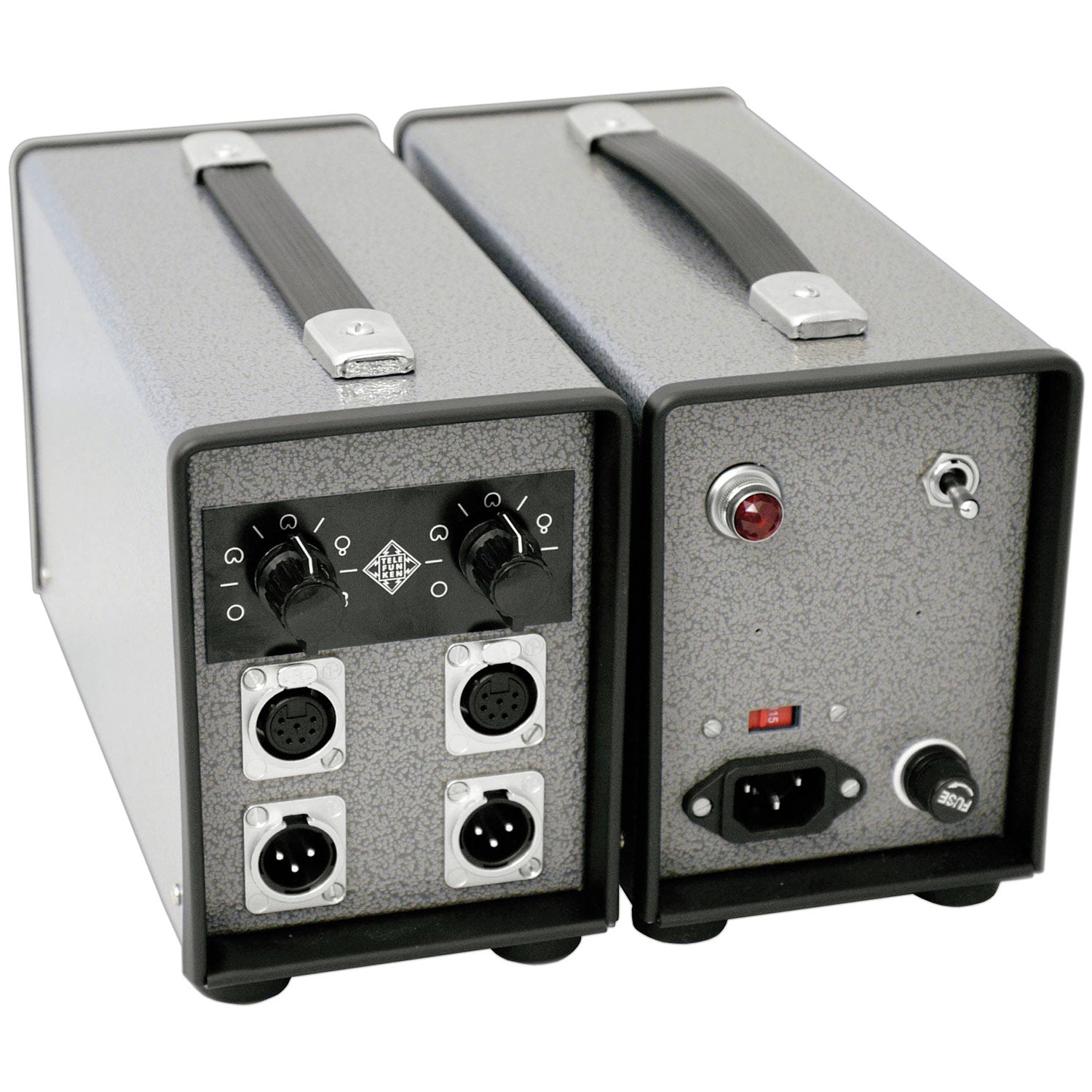

Power Supply M 903 PSU - 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector
Cable M 803 - 7 Meter TELEFUNKEN Tube Microphone Cable, 7 Pin Male & Female XLRs
Shock Mount M 703 - Shock Mount, M 782 - Stand Mount

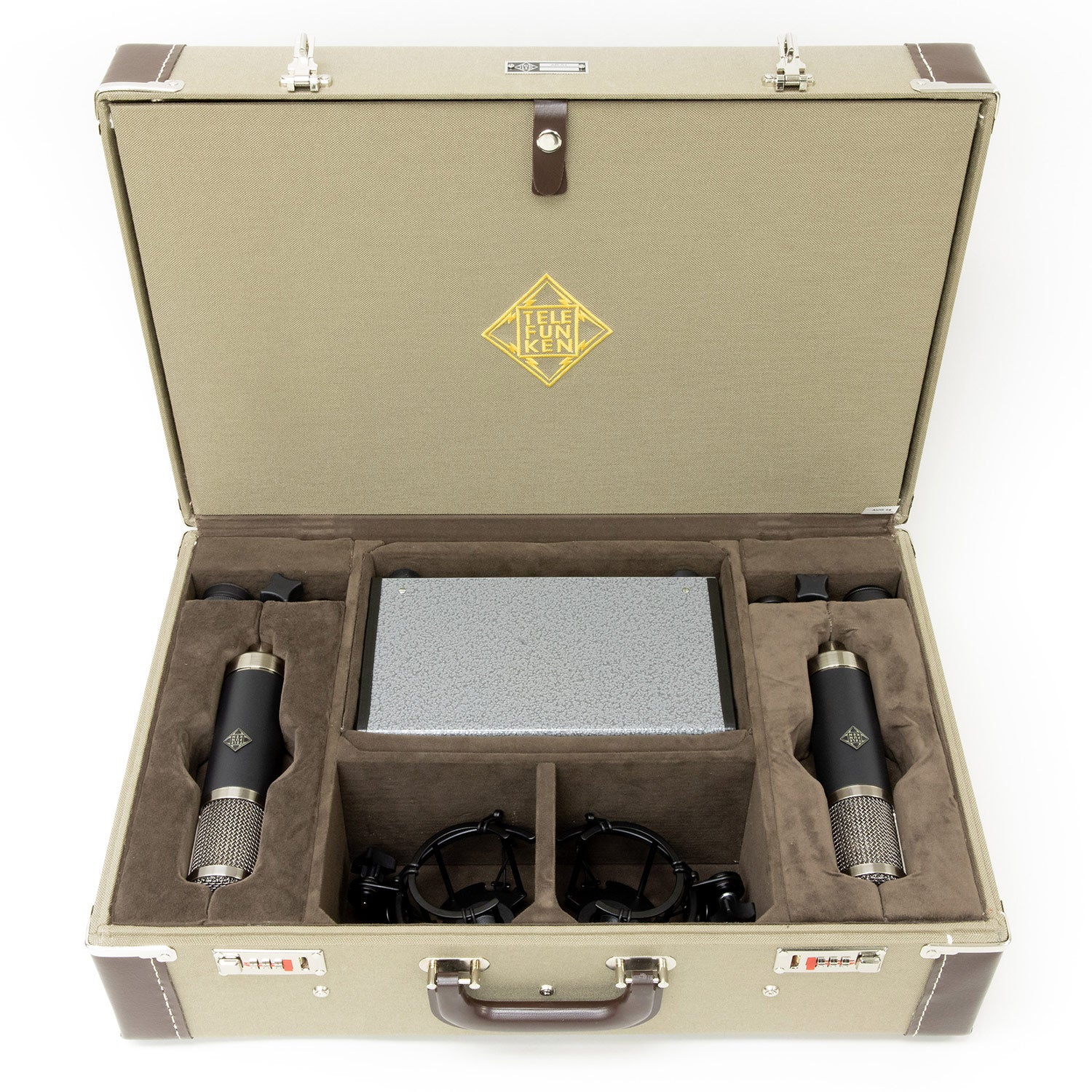

Flight Case ZC03 - Light Weight Carrying Case

More +
