TOA BA-260 - 60-Watt 4-Ohm/25/70V Mono Power Amplifier with Stereo Line Input
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BA-260 60 Watt Power Amplifier offers a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BA-260 power amplifier is designed to make sound projects affordable, reliable and easy to install.
The BA-260 Amplifier is UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.
Features- Targets simple BGM applications using a single audio source without paging or MOH requirements
- Remote master volume control
- RCA pin jack line input
- Thermal protection circuits shut down to protect system should overheating occur
- Accessory security knobs for volume control prevent unauthorized volume setting changes
- Rack-mount kit options
- UL/cUL listed
- Five Year Warranty
THE TOA BA SERIES POWER AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, fast food outlets, bars, lounges, cafes, classrooms, meeting rooms and similar mid-sized locations.. Incorporating TOA's no-compromise technology, the new BA Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation. The new BG/BA Series is tailor-made for BGM distribution with its reliability and affordability.
TOA's new performance-oriented, cost-effective amplifiers. The new BG/BA Series of mixer/amplifiers represent ideal solutions for the most requested user requirements. The combination of proven TOA reliability and quality with the most essential features and functions required for paging, music distribution and music-on-hold applications provide more cost effectiveness than before in economical packages. Together with fast set-up capability and easy installation, the new BG Series are the best choice for a variety of environments.
Incorporating TOA's no-compromise technology, the new BG/BA Series are designed to provide the high performance and audio quality long associated with TOA products. Boasting a wide frequency response, vanishingly low noise and distortion and with stable output regulation, the new BG Series are also remarkably easy to install and configure as they are fitted with removable terminal blocks.
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 60 W |
| Power Consumption | 130 W (rated output), 66 W (based on cULus standards) |
| Frequency Response | 50 Hz - 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input | Line In: 0 dB*/+4 dB* (selectable), 10 k½, unbalanced, removable terminal block or RCA jack |

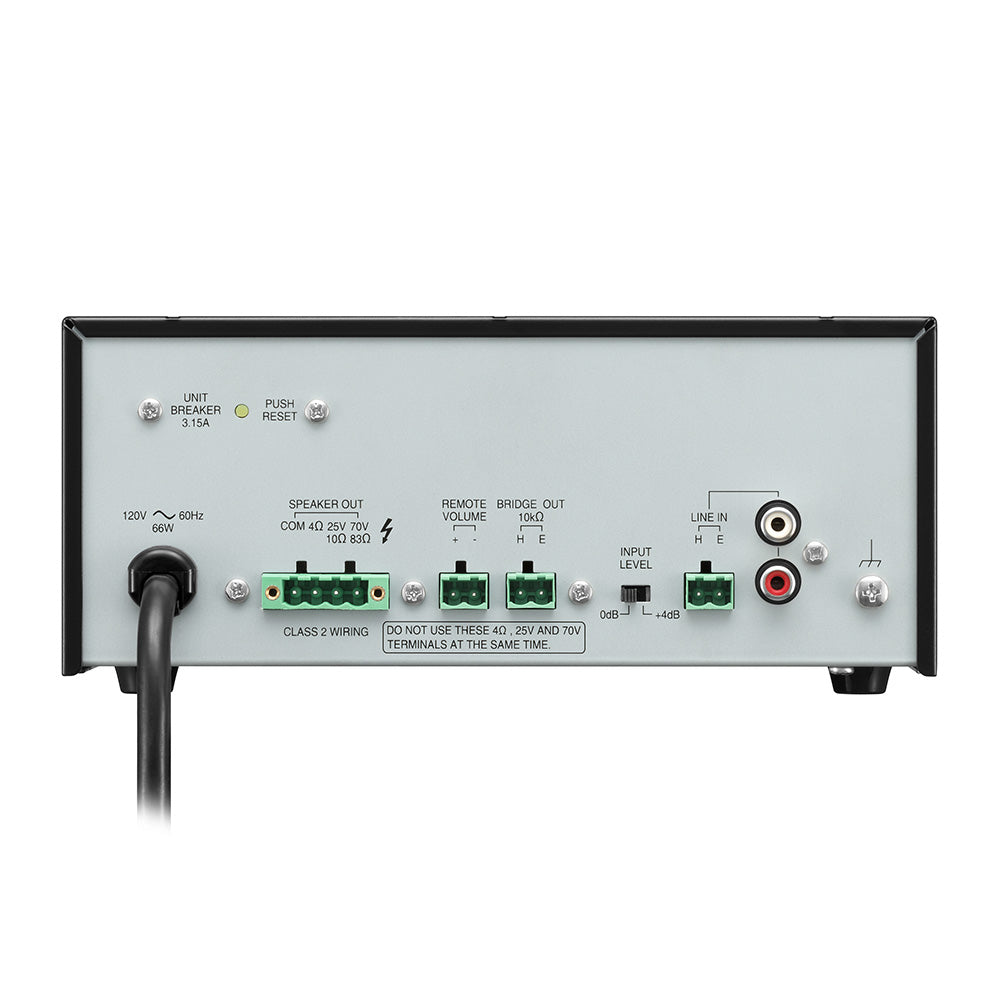

| Output | Speaker: 4 ½, 25 V (10 ½) and 70 V (83 ½), balanced, removable terminal block Bridge: parallel in Line in, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio | 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |

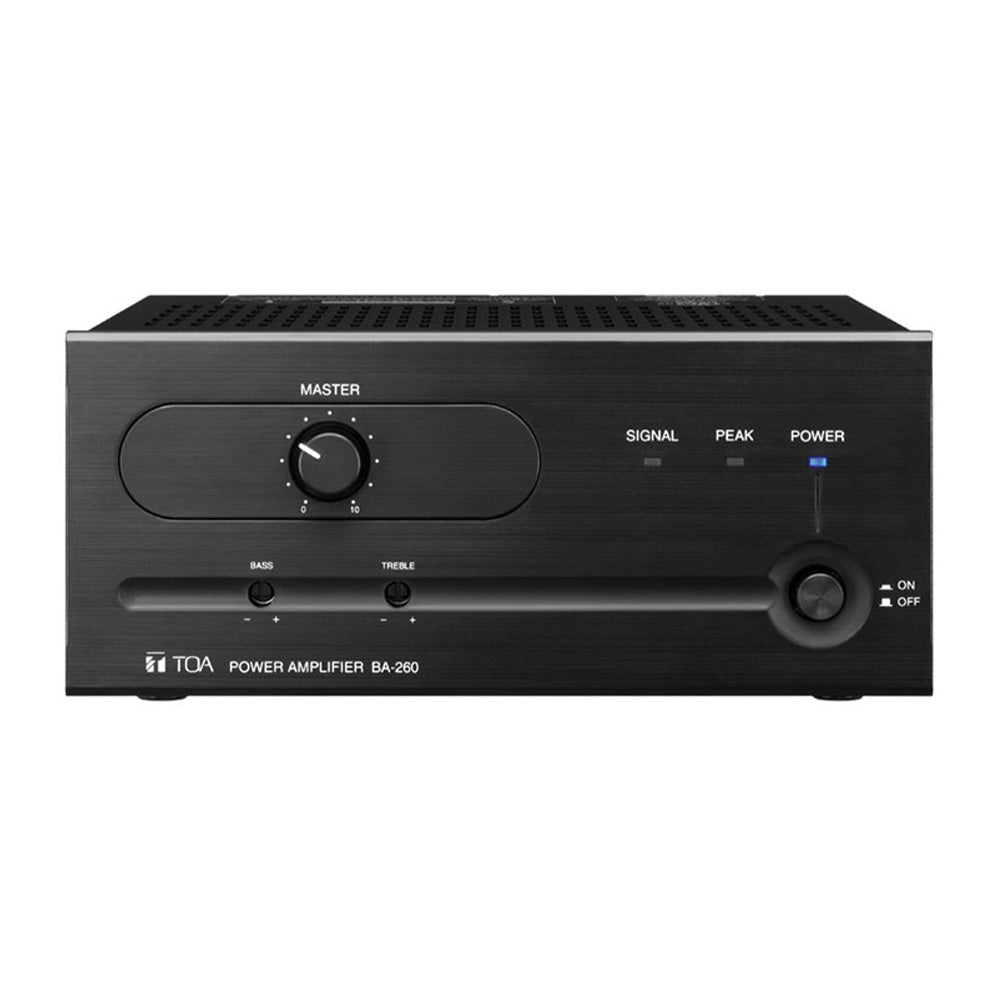

| Control | Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 _ to +35 _ (32 _F to 95 _F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 210 (W) _ 94.3 (H) _ 265 (D) mm (8.27" _ 3.71" _10.43") |
| Weight | 4.6 kg (10.14 lb) |
| Accessory | Volume control cover: YA-920 ÉÉ1 Removable teminal plug (2 pins) ÉÉ3 Removable teminal plug (4 pins) ÉÉ1 |
| Option | Rack mounting bracket: MB-25B-BK, MB-25B-J |
The BA-260 60 Watt Power Amplifier offers a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BA-260 power amplifier is designed to make sound projects affordable, reliable and easy to install.
The BA-260 Amplifier is UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.
Features- Targets simple BGM applications using a single audio source without paging or MOH requirements
- Remote master volume control
- RCA pin jack line input
- Thermal protection circuits shut down to protect system should overheating occur
- Accessory security knobs for volume control prevent unauthorized volume setting changes
- Rack-mount kit options
- UL/cUL listed
- Five Year Warranty
THE TOA BA SERIES POWER AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, fast food outlets, bars, lounges, cafes, classrooms, meeting rooms and similar mid-sized locations.. Incorporating TOA's no-compromise technology, the new BA Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation. The new BG/BA Series is tailor-made for BGM distribution with its reliability and affordability.
TOA's new performance-oriented, cost-effective amplifiers. The new BG/BA Series of mixer/amplifiers represent ideal solutions for the most requested user requirements. The combination of proven TOA reliability and quality with the most essential features and functions required for paging, music distribution and music-on-hold applications provide more cost effectiveness than before in economical packages. Together with fast set-up capability and easy installation, the new BG Series are the best choice for a variety of environments.
Incorporating TOA's no-compromise technology, the new BG/BA Series are designed to provide the high performance and audio quality long associated with TOA products. Boasting a wide frequency response, vanishingly low noise and distortion and with stable output regulation, the new BG Series are also remarkably easy to install and configure as they are fitted with removable terminal blocks.
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 60 W |
| Power Consumption | 130 W (rated output), 66 W (based on cULus standards) |
| Frequency Response | 50 Hz - 20 kHz |
| Total Harmonic Distortion | 0.5 % or less, at 1 kHz, rated output |
| Input | Line In: 0 dB*/+4 dB* (selectable), 10 k½, unbalanced, removable terminal block or RCA jack |
| Output | Speaker: 4 ½, 25 V (10 ½) and 70 V (83 ½), balanced, removable terminal block Bridge: parallel in Line in, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1 kHz) |
| S/N Ratio | 80 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control | Master gain control, Bass tone control, Treble tone control, Input Level selector switch, Remote Volume control, Power ON/OFF switch |
| Indicator | Power LED, Signal LED, Peak LED |
| Operating temperature | 0 _ to +35 _ (32 _F to 95 _F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 210 (W) _ 94.3 (H) _ 265 (D) mm (8.27" _ 3.71" _10.43") |
| Weight | 4.6 kg (10.14 lb) |
| Accessory | Volume control cover: YA-920 ÉÉ1 Removable teminal plug (2 pins) ÉÉ3 Removable teminal plug (4 pins) ÉÉ1 |
| Option | Rack mounting bracket: MB-25B-BK, MB-25B-J |
