TOA BA-260 60 Watt 4 Ohm/25/70V Mono Power Amplifier with Stereo Line Input


  • Dale #:

    TOA-BA260
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

The BA-260 60 Watt Power Amplifier offers a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof constructio... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

The BA-260 60 Watt Power Amplifier offers a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BA-260 power amplifier is designed to make sound projects affordable, reliable and easy to install.

The BA-260 Amplifier is UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.

Features
  • Targets simple BGM applications using a single audio source without paging or MOH requirements
  • Remote master volume control
  • RCA pin jack line input
  • Thermal protection circuits shut down to protect system should overheating occur
  • Accessory security knobs for volume control prevent unauthorized volume setting changes
  • Rack-mount kit options
  • UL/cUL listed
  • Five Year Warranty

THE TOA BA SERIES POWER AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, fast food outlets, bars, lounges, cafes, classrooms, meeting rooms and similar mid-sized locations.. Incorporating TOA's no-compromise technology, the new BA Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation. The new BG/BA Series is tailor-made for BGM distribution with its reliability and affordability.

TOA's new performance-oriented, cost-effective amplifiers. The new BG/BA Series of mixer/amplifiers represent ideal solutions for the most requested user requirements. The combination of proven TOA reliability and quality with the most essential features and functions required for paging, music distribution and music-on-hold applications provide more cost effectiveness than before in economical packages. Together with fast set-up capability and easy installation, the new BG Series are the best choice for a variety of environments.

Incorporating TOA's no-compromise technology, the new BG/BA Series are designed to provide the high performance and audio quality long associated with TOA products. Boasting a wide frequency response, vanishingly low noise and distortion and with stable output regulation, the new BG Series are also remarkably easy to install and configure as they are fitted with removable terminal blocks.

More +

Product Specs

Power Source120 V AC, 60 Hz
Rated Output60 W
Power Consumption130 W (rated output), 66 W (based on cULus standards)
Frequency Response50 Hz – 20k Hz
Total Harmonic Distortion0.5% or less, at 1 kHz, rated output
Input

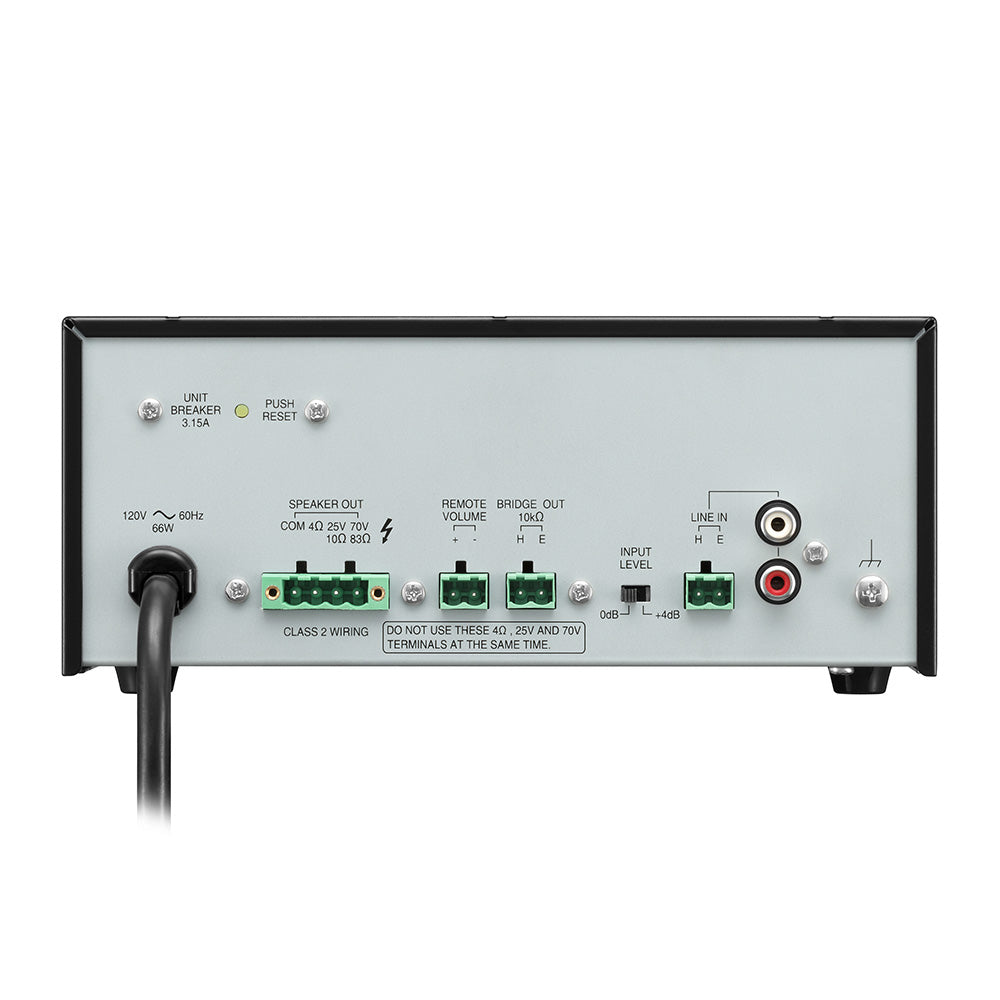

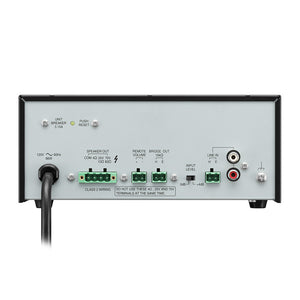

Line0 dB/+4 dB (selectable), 10k Ω, unbalanced, removable terminal block or RCA jack
OutputSpeaker4 Ω, 25 V (18 Ω) and 70 V (140 Ω), balanced, removable terminal block
BridgeParallel in Line input, removable terminal block
Output Regulation2 dB or less, no load to full load (1k Hz)
S/N Ratio80 dB or more (Band Pass: 20 Hz – 20k Hz, Tone Controls: Centered)
Tone ControlBass±10 dB at 100 Hz
Treble±10 dB at 10k Hz

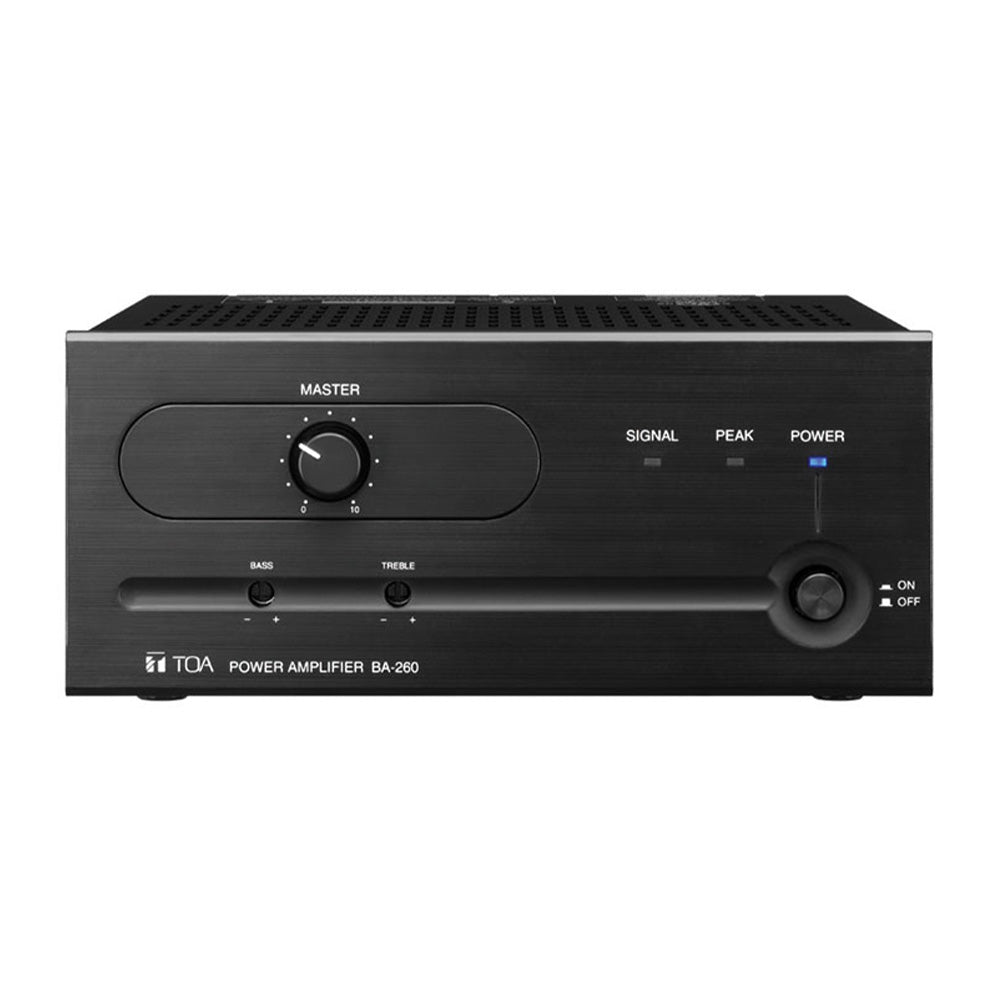

ControlsMaster gain control, Bass tone control, Treble tone control, Input level selector switch, Remote Volume control, Power ON/OFF switch
IndicatorsPower LED, Signal level LED, Peak LED
Other FeatureAutomatic electronic drive limiter
Operating Temperature0°C to 40 °C (32°F to 104 ºF)
Operating Humidity35 % to 80 % RH (no condensation)
Finish PanelABS resin, black/Case: Steel plate, black, paint
Dimensions210 (W) × 94.3 (H) × 265 (D)mm (8.27" × 3.71" × 10.43")
Weight4.6 kg (10.14 lb)
AccessoriesVolume control cover: YA-920 × 1, Removable terminal plug (2 pins) × 3, Removable terminal plug (4 pins) × 1
Option Rack mounting brackets: MB-25B-BK, MB-25B-J
