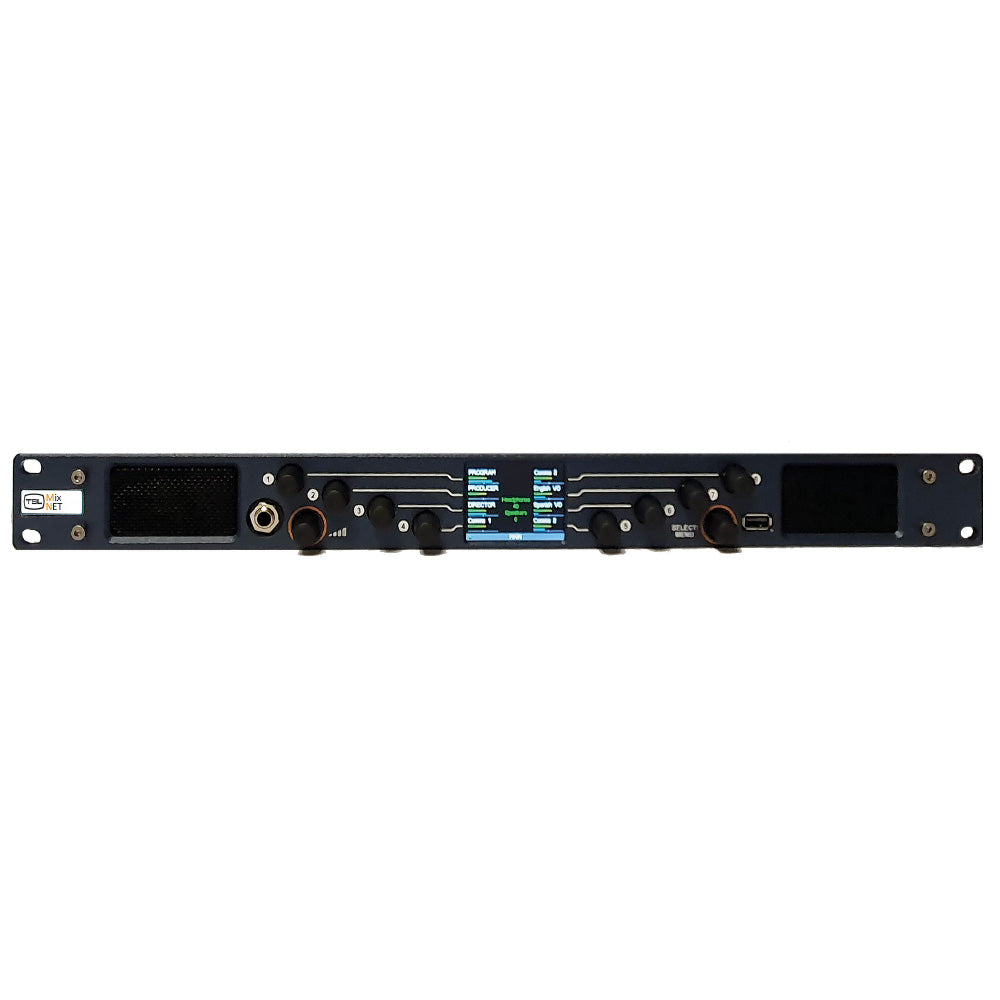

TSL MPA1-MIX-NET-V-1 - AES67 / ST2110 Audio Monitoring Unit

The MPA1 range of audio monitors is trusted by operators and engineers worldwide. The MPA1-MIX-NET provides simultaneous audio monitoring of 64 AoIP audio channels and an optional MADI input providing a further 64 channels, with an intuitive interface and easy to use controls.

Built on years of global broadcast audio expertise, the powerful and intuitive MPA1-MIX-NET from TSL provides 64 channels of 1GbE AoIP (audio over IP) connectivity with a simple and intuitive way to monitor multiple audio sources by using it's 8 dedicated rotary controls to quickly configure and create the required monitoring mix. Natively supporting ST 2110-30, AES67 and Ravenna AoIP formats, along with NMOS discovery and control, provides full integration with today's Broadcast IP networks allowing operators to easily access any audio sources for monitoring. With a total of 128 audio channels available, up to 16 different monitoring mixes can be created and instantly recalled with the unique 'scroll to select' function. As a member of the MPA1 range of audio monitors, the MPA1-MIX-NET comes complete with a comprehensive webpage and SNMP support, allowing remote configuration and control.

Features:

• 8 dedicated rotary controls for source level adjustment
• Up to 8 independent mixes provide instant recall of routing configurations, providing maximum coverage of input sources when required
• Front panel display of audio levels, complete with pan/balance information
• Web interface provides quick and simple control and configuration of all key parameters from any remote location
• Simultaneously monitor multiple signal formats in hybrid environments
• Acoustically tuned internal loudspeakers 64 channels of AoIP connectivity through a 1G Ethernet connection
• Support for AES67, Ravenna and ST 2110-30 Level A, B and C (1ms and 125?s packet time, stream size up to 64 channels)
• Support for NMOS IS-04, IS-05 (in-band) and SNMP control (out-of-band) for integration with TSL control and leading third party systems
• SFP slot for optional MADI input (fibre or copper based)
• 2 line level balanced analogue outputs
• Unit depth of only 100mm

Connections:

• 64 channels of AoIP connectivity through a 1G Ethernet connection
• Support for 31AoIP input streams
• Support for NMOS IS-04 and IS-05
• Optional support for 64 MADI channels via SFP
