TSL PAM2-12G-ND-DNT - Precision Audio Monitor for 12G SDI and ST2110

PAM2-12G 2RU Precision Audio Monitor. Includes DANTE/AES67 Audio Monitoring option, Dante Domain Manger Compliant. High quality, fully comprehensive Audio Monitoring Solution useful when needing to handle a wide variety of uncompressed audio sources including Dante.

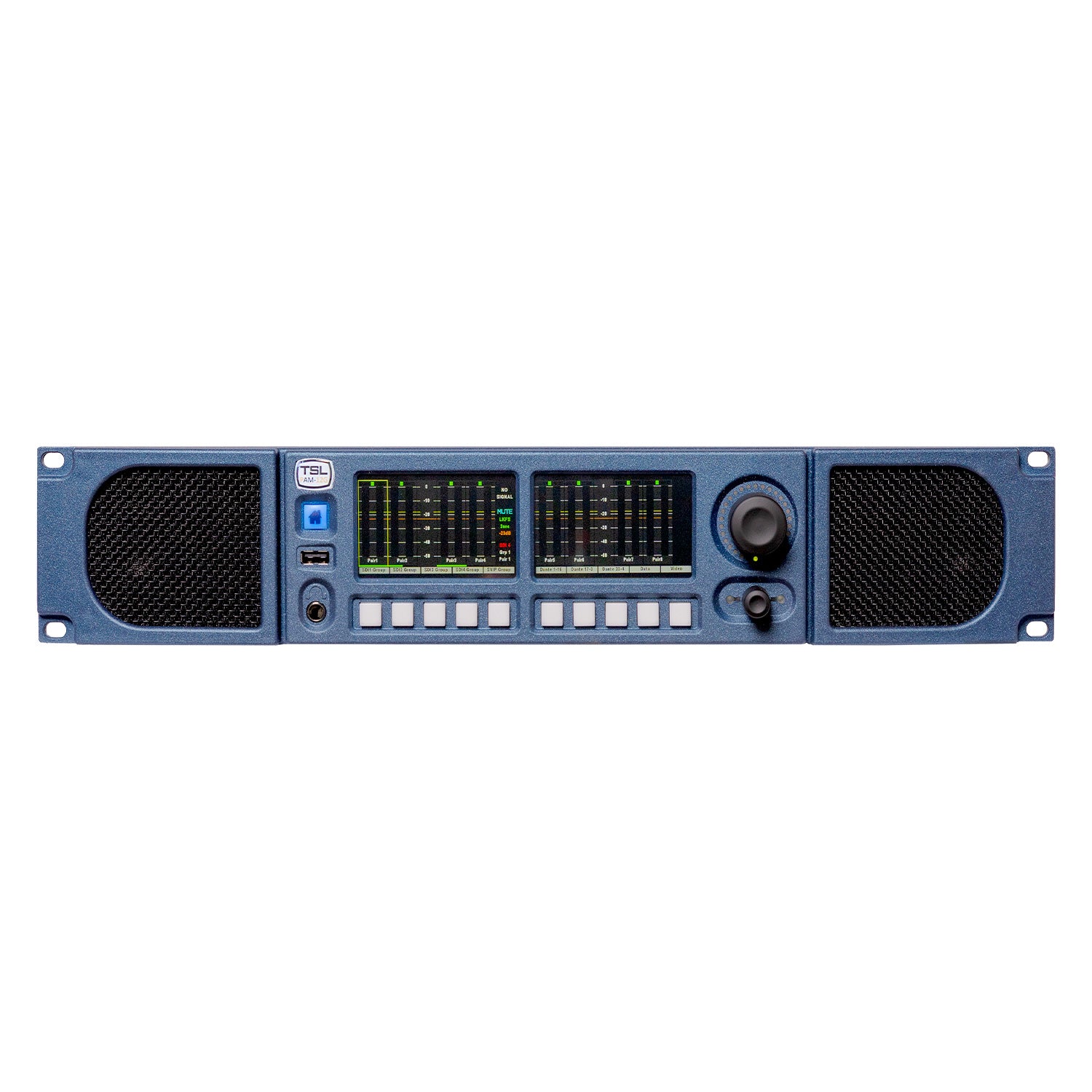

PAM2-12G provides high-quality audio monitoring for customers needing to handle a wide variety of signal types, including AES and analogue audio, UHD and HD-SDI, or AES67/Dante, SMPTE 2110, and SMPTE 2022-6 IP sources. PAM2-12G is available in a 2RU form factor, with an intuitive front panel interface including two high-resolution LCD screens showing 16 audio bargraphs with selectable scales, scroll-to-hear audio channel navigation, 8 user presets for fast configuration changes, and a high-quality loudspeaker system.

In addition, PAM2-12G range includes advanced monitoring features such as comprehensive loudness monitoring with histogram display, Dolby-encoded audio monitoring (including metadata and downmixing), and a video confidence display of both SDI and IP sources.

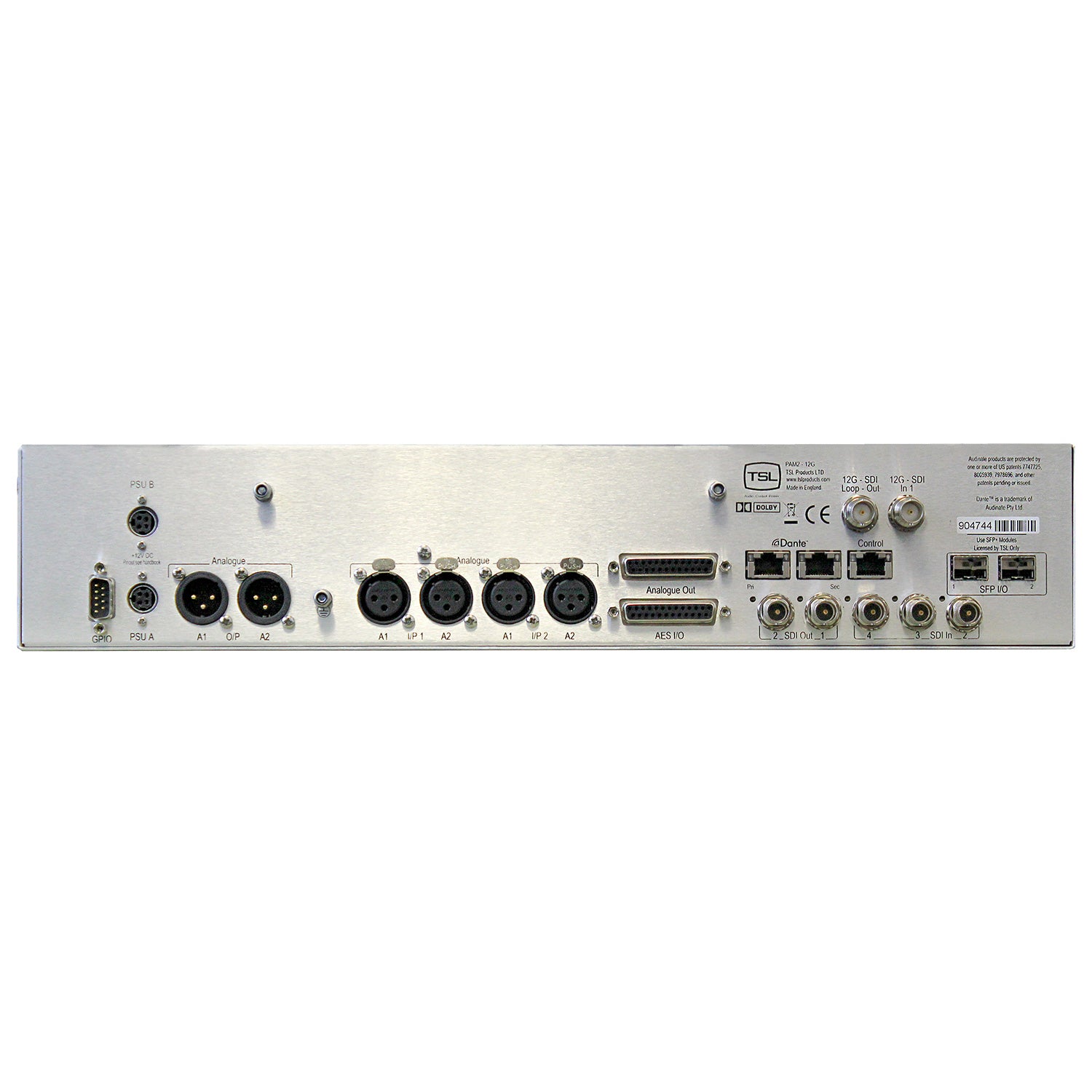

In addition to handling baseband video and audio signals, PAM2-12G is equipped with 2 x 10Gig/E interfaces for direct connection into COTS IP fabrics. Supporting IP control protocols such as NMOS and Ember+ allows for 'In-Band' control, offering tight integration with a variety of control systems. Audio over IP is also covered, with Primary and Redundant 1Gig/E Dante/AES67 ports, allowing up to 64 AoIP audio channels to be monitored.

Features:

• Wide range of input signals supported including; SD/HD/3G/12G-SDI with 16 channel audio de-embedding, balanced or unbalanced AES audio, balanced analog audio, and 10GbE ST 2110 and ST 2022-6 IP streams
• Dual High Resolution 3.4'' LCD displays allow side-by-side viewing of video, audio and metadata information
• ITU BS1770.71 Audio loudness measurement with Histogram display
• Optional Dolby E, D and D+ decoding and Metadata display
• Optional Monitoring of Dante/AES67 AoIP streams (Dante Domain Manager Compliant)
• High quality internal loudspeaker system, and headphone output with selectable loudspeaker muting behavior
• Downmixing of discreet multichannel sources, plus Multichannel audio outputs suitable for external 2.0 and 5.1 loudspeaker systems
