TSL PAM2-12G-ND - Precision Audio Monitor for 12G SDI and ST2110

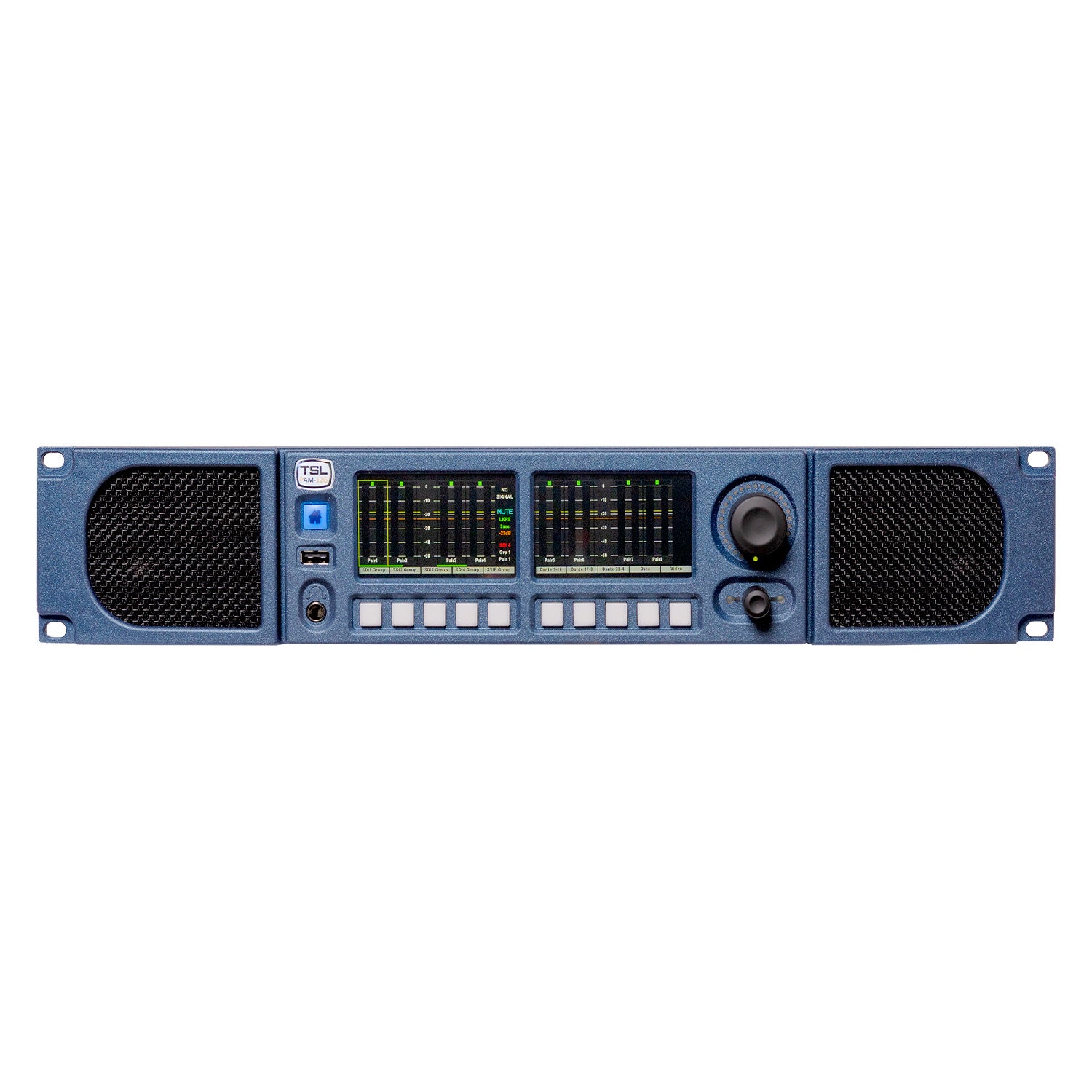

PAM2-12G 2RU Precision Audio Monitor. High quality, fully comprehensive Audio Monitoring Solution designed for use in hybrid baseband and IP environments enabling audio to be monitored from either IP, SDI or direct audio signals.

PAM2-12G provides high-quality audio monitoring for customers needing to handle a wide variety of signal types, including AES and analogue audio, UHD and HD-SDI, or AES67/Dante, SMPTE 2110, and SMPTE 2022-6 IP sources. PAM2-12G is available in a 2RU form factor, with an intuitive front panel interface including two high-resolution LCD screens showing 16 audio bargraphs with selectable scales, scroll-to-hear audio channel navigation, 8 user presets for fast configuration changes, and a high-quality loudspeaker system.

In addition, PAM2-12G range includes advanced monitoring features such as comprehensive loudness monitoring with histogram display, Dolby-encoded audio monitoring (including metadata and downmixing), and a video confidence display of both SDI and IP sources.

In addition to handling baseband video and audio signals, PAM2-12G is equipped with 2 x 10Gig/E interfaces for direct connection into COTS IP fabrics. Supporting IP control protocols such as NMOS and Ember+ allows for 'In-Band' control, offering tight integration with a variety of control systems. Audio over IP is also covered, with Primary and Redundant 1Gig/E Dante/AES67 ports, allowing up to 64 AoIP audio channels to be monitored.

Features:

• Wide range of input signals supported including; SD/HD/3G/12G-SDI with 16 channel audio de-embedding, balanced or unbalanced AES audio, balanced analog audio, and 10GbE ST 2110 and ST 2022-6 IP streams
• Dual High Resolution 3.4'' LCD displays allow side-by-side viewing of video, audio and metadata information
• ITU BS1770.71 Audio loudness measurement with Histogram display
• Optional Dolby E, D and D+ decoding and Metadata display
• Optional Monitoring of Dante/AES67 AoIP streams (Dante Domain Manager Compliant)
• High quality internal loudspeaker system, and headphone output with selectable loudspeaker muting behavior
• Downmixing of discreet multichannel sources, plus Multichannel audio outputs suitable for external 2.0 and 5.1 loudspeaker systems
