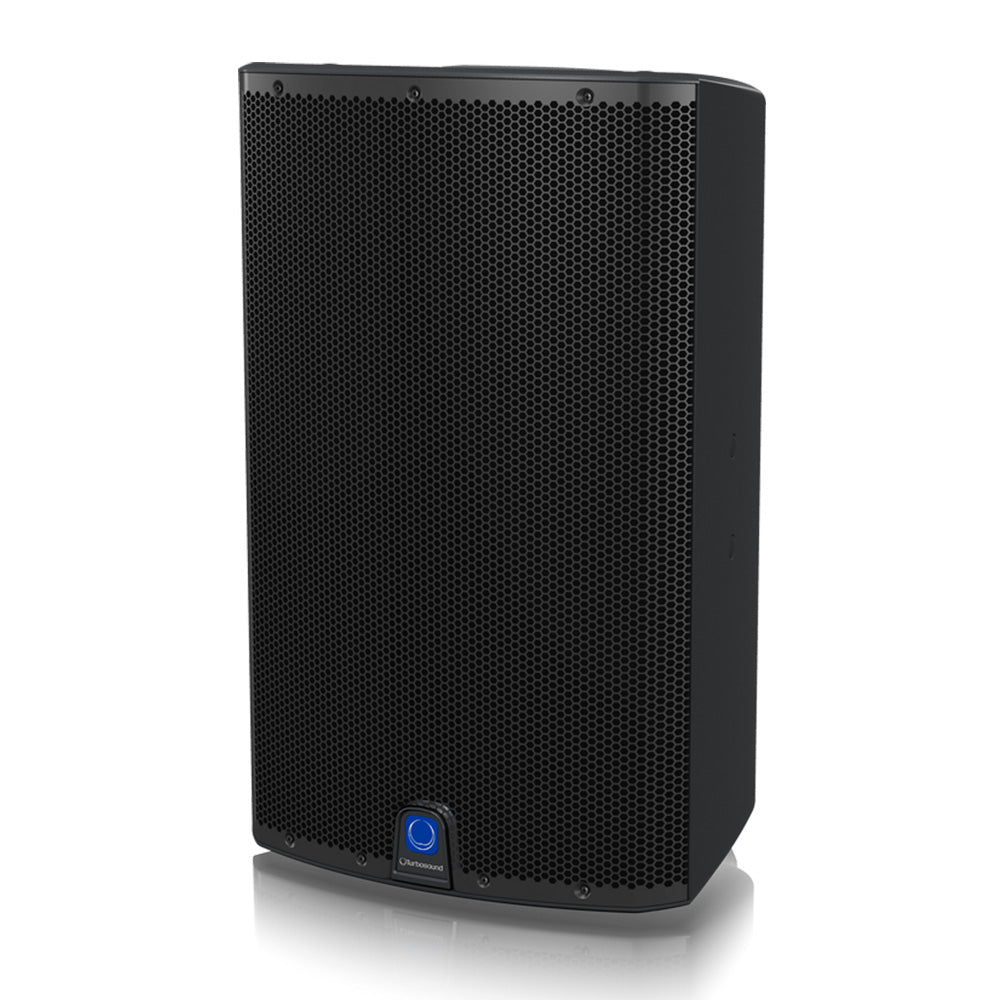

Turbosound iQ15 Active 2-Way 15" Loudspeaker with Klark Teknik Signal Processing



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:TURB-IQ15

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Shipping Charges Apply
  • The 2,500-Watt iQ15 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 15" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.

    Features:

    • 2 way full range loudspeaker for portable PA and installation applications
    • 2,500 Watt power featuring KLARK TEKNIK Class-D technology
    • KLARK TEKNIK Digital Signal Processing for total system control
    • Speaker modelling includes accurate models of industry standard speakers
    • SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
    • ULTRANET digital audio networking connects to mixers and other sources
    • 15" low frequency driver with low mass voice coil for improved transient response
    • High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
    • Fully featured user interface with LCD display for ease of navigation
    • PC remote control software downloadable at turbosound.com
    • Lightweight fibre glass reinforced composite enclosure
    • Rugged powder coated perforated steel mesh grille
    • Dual angle pole mount for accurate audience coverage
    • Multiple internal rigging points for installation applications
    • Mains input and link output on Neutrik powerCON connectors
    • 3-Year Warranty Program
    • Designed and engineered in England

    Equipped with a very efficient and lightweight two channel KLARK TEKNIK Class-D power amplifier, the iQ15 provides an impressive 2,500 Watts of output power. A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels - and long-term reliability. iQ15's advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry's most-respected loudspeakers.

    KLARK TEKNIK also developed a highly versatile Spatial Contour Control (SCC) DSP function, which allows the user to easily optimise the iQ15's frequency response for the physical speaker placement. This advanced functionality provides frequency compensation for stand, floor, wall or ceiling placement, much like the adjustments commonly found on studio reference monitors.

    On the rear panel amplifier module, you will find a fully featured user interface consisting of an LCD display, the Channel A and B gain controls, and a single rotary encoder for intuitive access to level, EQ, Speaker modelling, SCC, Subwoofer Integration and Feedback Control (FBI). In addition to the two combination balanced XLR/jack inputs, balanced XLR outputs for each of the two independent channels, and a Mix Out XLR connector, the iQ15 features a mic/line switch and level control with signal present LED on each channel.

    The iQ15 also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ15 via PC computer, as well as DSP and speaker modelling firmware updates.

    The lightweight fibre glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille and multiple internal rigging points for permanent installations. The iQ15 is also fitted with a dual angle pole mount socket, allowing the enclosure to be pole mounted straight on, or raised and angled downwards for optimal audience coverage. Mains power input and link output is provided via Neutrik powerCON* connectors.

  • System
    Frequency response 50 Hz – 18 kHz ±3 dB 42 Hz – 20 kHz -10 dB
    Nominal dispersion 75° H x 55° V @ -6 dB points
    Maximum SPL 132 dB peak
    Crossover type Active
    Transducers 1 x 15" (387 mm) LF driver
    1 x 1" (25.4 mm) HF compression driver
    Limiter Independent HF, LF, peak and rms
    Amplifier
    Maximum output power 2,500 W
    Type Class-D
    Protection Short circuit, open circuit, thermal
    Connectors
    InputA/B 2 x combo jack/XLR
    Sensitivity Line +4 dBu, mic -22 dBu, switchable
    Input impedance 20 kΩ unbalanced, 40 kΩ balanced
    Maximum input level +21 dBu
    OutputA/B 2 x XLR Linked to input
    Mix output XLR, balanced
    Output impedance 100 Ω unbalanced, 200 Ω balanced
    Ultranet input/link 2 x RJ45
    Mains Supply Neutrik powerCON input 20A and link 15A
    Controls
    DSP Rotary push-encoder
    Buttons for PROCESS, SETUP, EXIT, ENTER
    Mixer section 2 x gain controls (channels A and B) 2 x Line/Mic switch
    User DSP Functions
    Factory EQ presets Positioning, Sound mode, Sound modeling, FBQ
    Display LCD 128 x 32, blue backlit
    Delay 0 - 300 ms
    Equalisation High and low shelving EQ
    2 x parametric EQ
    Limiter Zero attack input limiter
    Presets 20 total presets, 19 user-definable
    Crossover High Pass L-R 24 dB/oct
    Protection Lock-out function for all settings
    Ultranet Digital Network
    System 16 channels
    Signal Latency < 0.9 ms
    Cabling Shielded CAT5
    max. 246 ft / 75 m recommended
    Power Supply
    Power consumption 150 W @ 1⁄8 max power
    Voltage (fuses)
    USA / Canada
    UK / Australia / Europe Korea / China /Japan
    120 V~, 60 Hz (T 15 A H 250 V) 220-240 V~, 50/60 Hz (T 10 A H 250 V) 220-240 V~, 50/60 Hz (T 10 A H 250 V) 100 V~, 50/60 Hz (T 15 A H 250 V)
    Enclosure
    Dimensions HWD 711x450 x381mm(27.9x17.7x15.0")
    Net weight 26.1 kg (57 lbs)
    Construction Injection-moulded polypropylene enclosure
    Finish Black painted
    Grille Powder coated perforated steel
    Flying hardware M10 x 3 points
    Accessories IQ15-WB Steel wall bracket
