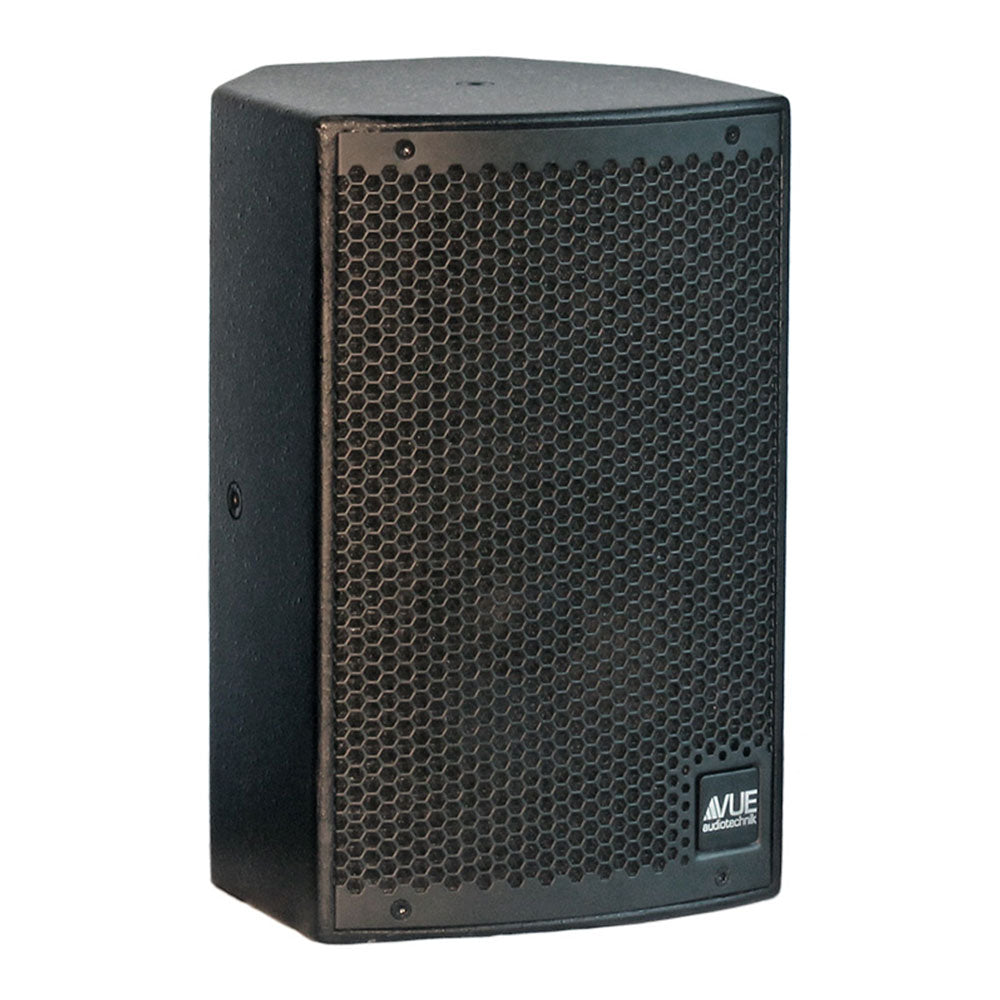

VUE Audiotechnik i-6t Two-Way 6-Inch Install Loudspeaker (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The highly flexible i-6 and i-6a two-way loudspeakers are ideal for mid-field applications where greater output and frequency response are required. Both models combine a professional-grade 6.5-inch woofer with a 1-inch, silk-dome, ferrofluid tweeter. Both drivers are mated to a high-quality crossover network and housed in a robust, high-density wood enclosure with a rugged industrial-grade coating. Connections are quick and easy thanks to recessed, phoenix input terminals. Included mounting hardware ensures quick installation on a flat, horizontal or vertical surface.
Features:
- 6.5" polypropylene LF driver with rubber surround and
- 1" (25 mm) voice coil
- 1", ferrofluid, neodymium, silk-dome tweeter
- 70º x 70º coverage
- 80 Hz – 20 kHz frequency response
- Max long term output 104 dB SPL
- High-density wood enclosure with durable textured finish
- Variable position yoke bracket mounting hardware included
Suggested Applications:
- Restaurants and cafes
- Bars and clubs
- Corporate facilities
- House of worship
- Front-fill and under-balcony coverage
- Retail outlets
- Airports
| DESCRIPTION | Passive 6-inch surface-mount foreground system |
| ACOUSTIC DATA | |
| Frequency Response (+- 3 dB) | 80 Hz Ð 20 kHz |
| Frequency Range (-10 dB) | 60 Hz Ð 20 Khz |
| Sensitivity (1 W/1 m) | 86 dB |
| Power Handling Long Term | 70 watts (Switchable 70/100V Taps) |
| Power Handling Program | 140 watts |
| Max Peak SPL(band limited pink noise 6 dB crest factor) | 108 dB SPL |
| Max SPL Long Term (AVG SPL @1 band limited pink noise 6 dB crest factor)) | 102 dB SPL |
| Coverage Horizontal | 70 degrees Ð 6 dB |
| Coverage Vertical | 70 degrees Ð 6 dB |
| TRANSDUCER DATA | |
| LF Driver Description | 6.5” polypropylene, rubber surround, 1” voice coil, ferrite, 10 mm winding, 5 mm gap height, 16 Ohms |
| HF Driver Description | 1” silk dome, 8 Ohms, neodym, ferrofluid, waveguide |
| Impedance and Transformer Taps | 8 Ohm and 4 transformer wattage taps switched |

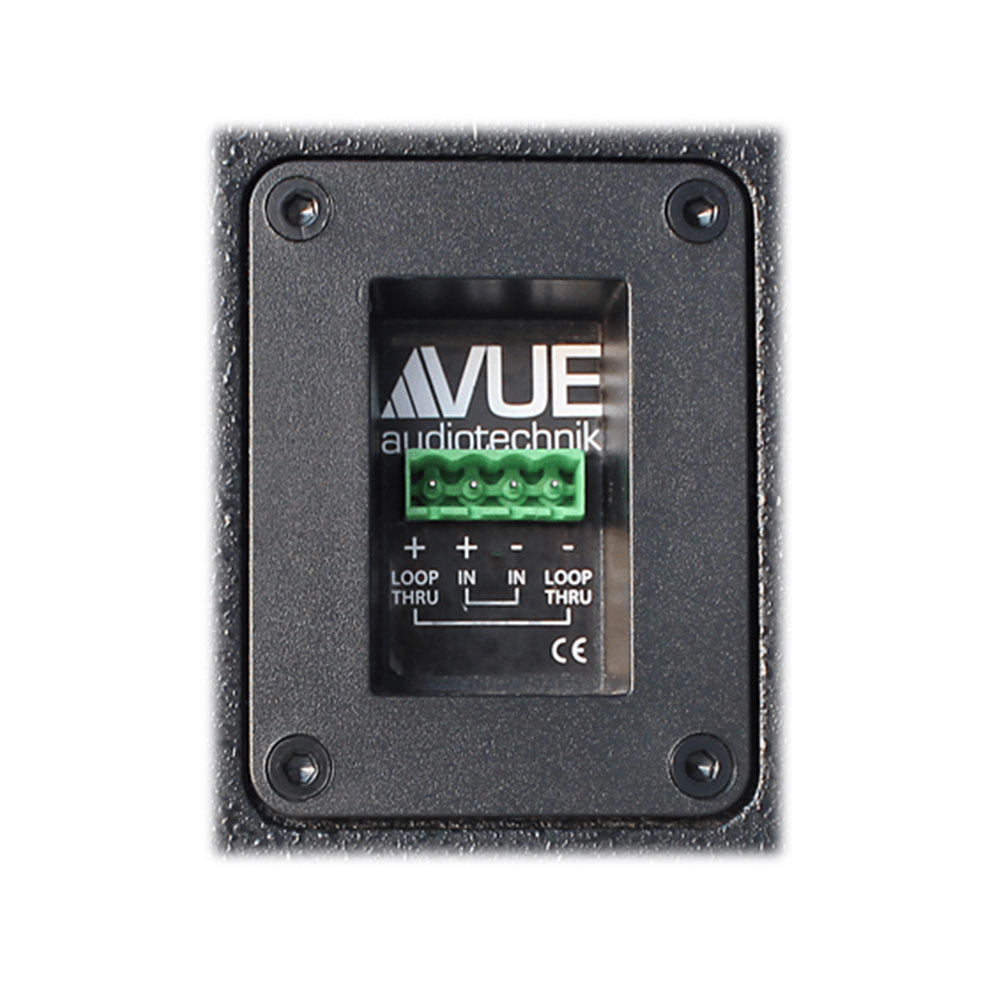

| Connectors | 4-pin Pheonix type connector |
| PHYSICAL DATA | |
| Cabinet Material | High density wood composite |
| Cabinet Surface | Black polyurethane coating |
| Dimensions (H x W x D) | 12.6 x 7.87 x 7.85 in (320 x 200 x 200 mm) |
| Weight | Net: 8.7 lbs (3.94 kg) / Shipped: 13.5 lbs (6.12 kg) |
The highly flexible i-6 and i-6a two-way loudspeakers are ideal for mid-field applications where greater output and frequency response are required. Both models combine a professional-grade 6.5-inch woofer with a 1-inch, silk-dome, ferrofluid tweeter. Both drivers are mated to a high-quality crossover network and housed in a robust, high-density wood enclosure with a rugged industrial-grade coating. Connections are quick and easy thanks to recessed, phoenix input terminals. Included mounting hardware ensures quick installation on a flat, horizontal or vertical surface.
Features:
- 6.5" polypropylene LF driver with rubber surround and
- 1" (25 mm) voice coil
- 1", ferrofluid, neodymium, silk-dome tweeter
- 70º x 70º coverage
- 80 Hz – 20 kHz frequency response
- Max long term output 104 dB SPL
- High-density wood enclosure with durable textured finish
- Variable position yoke bracket mounting hardware included
Suggested Applications:
- Restaurants and cafes
- Bars and clubs
- Corporate facilities
- House of worship
- Front-fill and under-balcony coverage
- Retail outlets
- Airports
| DESCRIPTION | Passive 6-inch surface-mount foreground system |
| ACOUSTIC DATA | |
| Frequency Response (+- 3 dB) | 80 Hz Ð 20 kHz |
| Frequency Range (-10 dB) | 60 Hz Ð 20 Khz |
| Sensitivity (1 W/1 m) | 86 dB |
| Power Handling Long Term | 70 watts (Switchable 70/100V Taps) |
| Power Handling Program | 140 watts |
| Max Peak SPL(band limited pink noise 6 dB crest factor) | 108 dB SPL |
| Max SPL Long Term (AVG SPL @1 band limited pink noise 6 dB crest factor)) | 102 dB SPL |
| Coverage Horizontal | 70 degrees Ð 6 dB |
| Coverage Vertical | 70 degrees Ð 6 dB |
| TRANSDUCER DATA | |
| LF Driver Description | 6.5” polypropylene, rubber surround, 1” voice coil, ferrite, 10 mm winding, 5 mm gap height, 16 Ohms |
| HF Driver Description | 1” silk dome, 8 Ohms, neodym, ferrofluid, waveguide |
| Impedance and Transformer Taps | 8 Ohm and 4 transformer wattage taps switched |
| Connectors | 4-pin Pheonix type connector |
| PHYSICAL DATA | |
| Cabinet Material | High density wood composite |
| Cabinet Surface | Black polyurethane coating |
| Dimensions (H x W x D) | 12.6 x 7.87 x 7.85 in (320 x 200 x 200 mm) |
| Weight | Net: 8.7 lbs (3.94 kg) / Shipped: 13.5 lbs (6.12 kg) |
