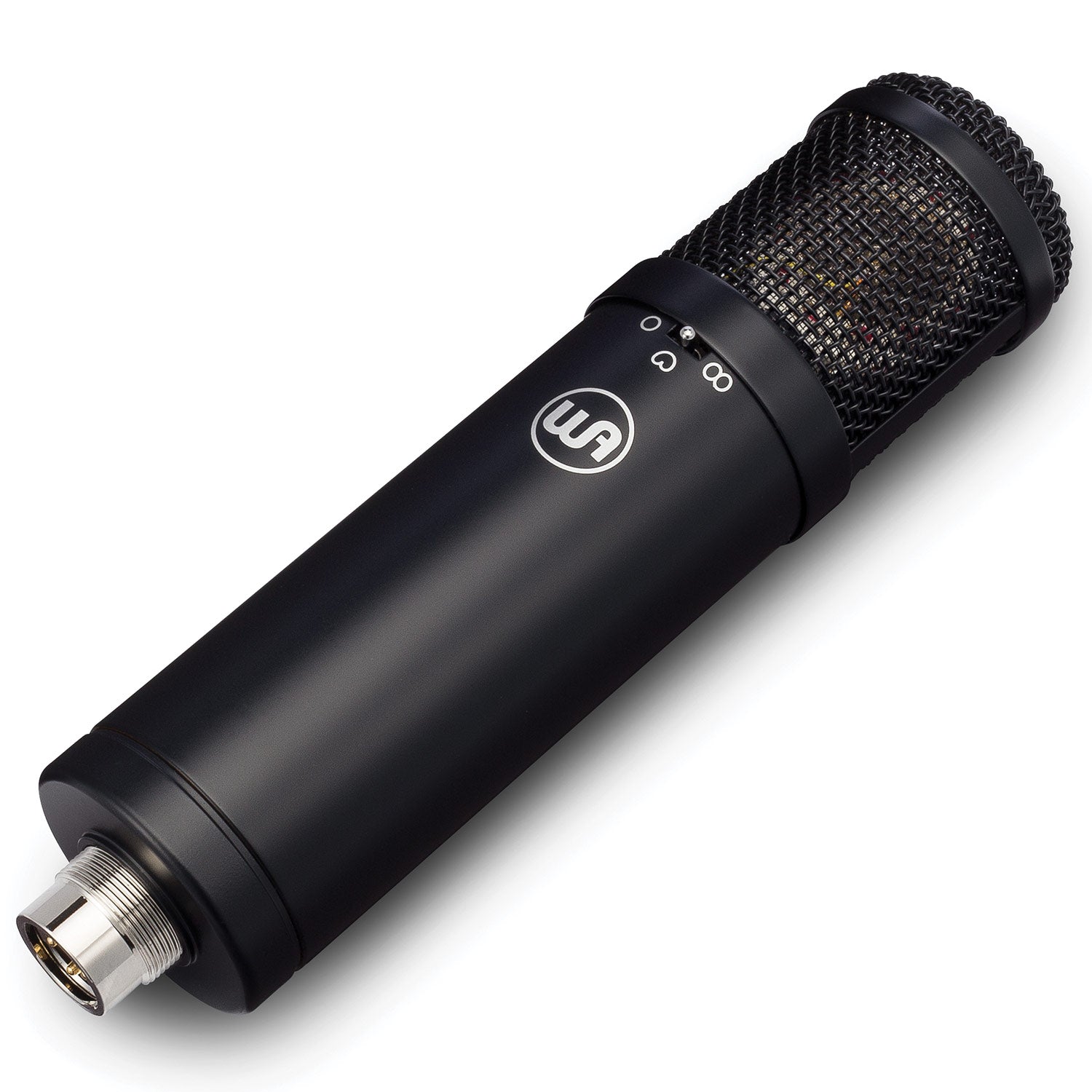

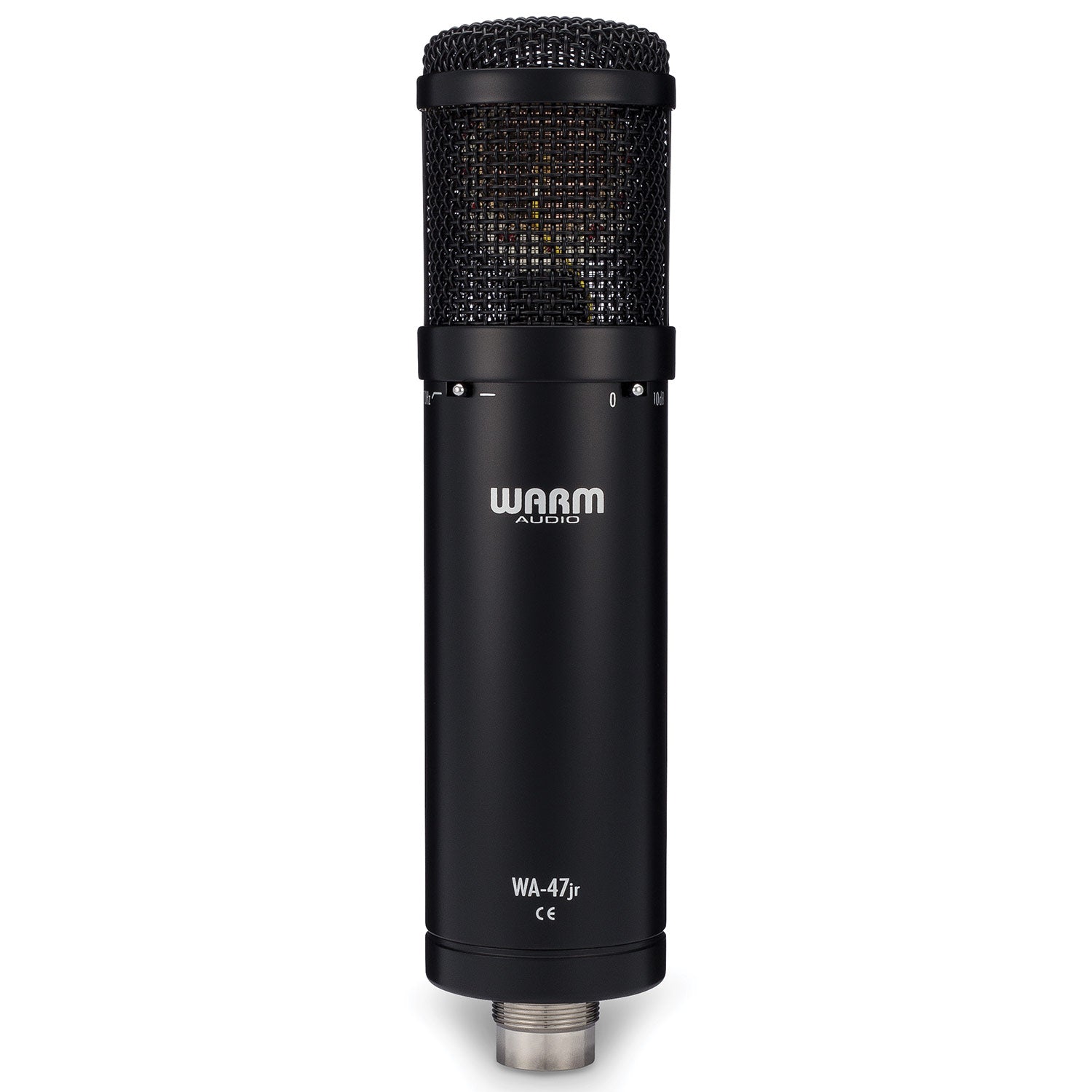

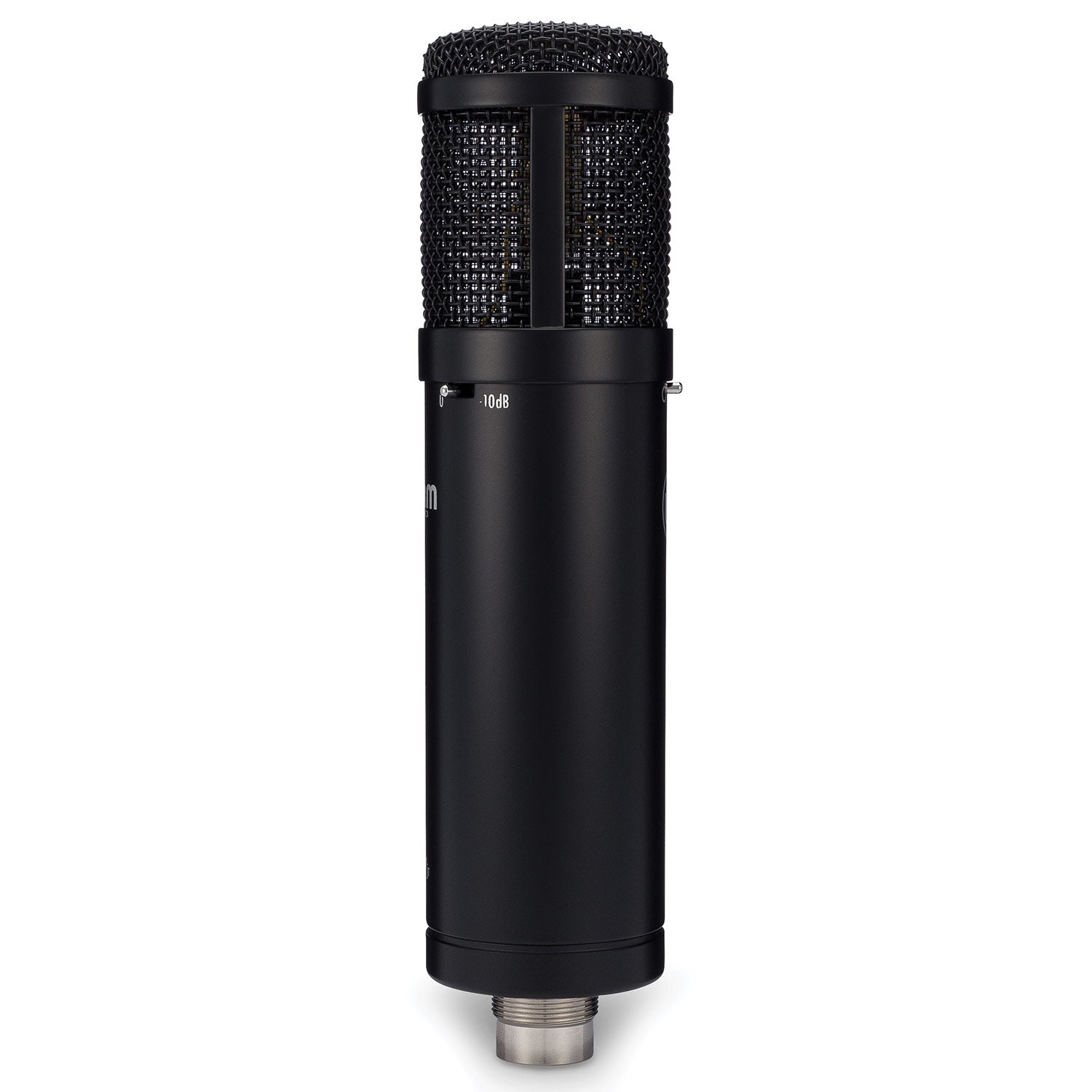

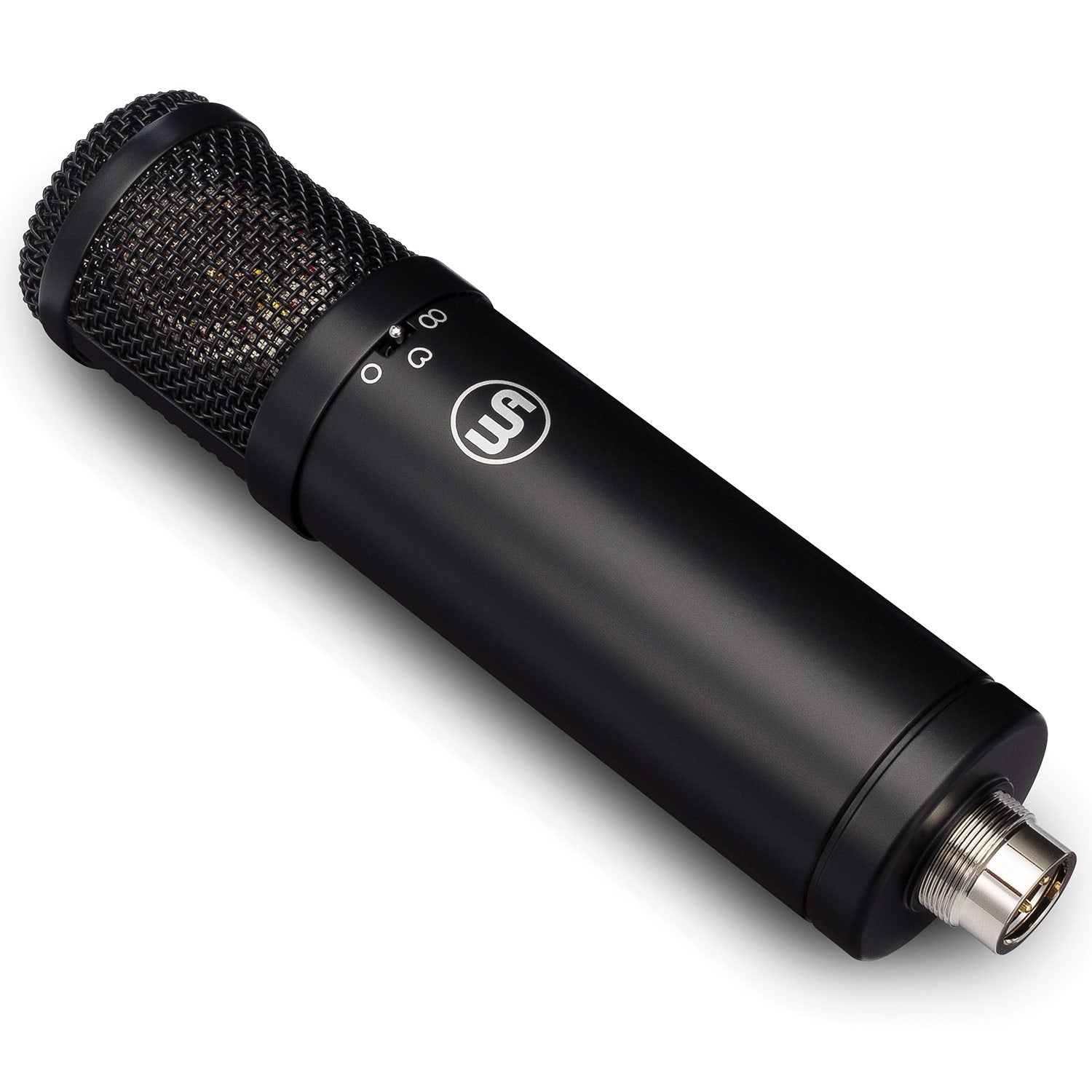

Warm Audio WA-47jr FET Condenser Microphone - Black

  • Dale #:

    WARM-WA47JRBLACK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Like Father. Like Son.The WA-47jr is an FET transformerless version of the highly renowned classic '47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcas... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Like Father. Like Son.
The WA-47jr is an FET transformerless version of the highly renowned classic '47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.

Features:

  • FET transformerless '47 style condenser microphone.
  • Custom true '47 capsule reproduction (k47 style) - Model# WA-47-B-80v.
  • Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film).
  • Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors.
  • Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage design. Warm's version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. The WA47jr's low-noise and discrete signal path, when paired with this excellent true '47 style capsule, allows it to obtain a very similar tone to the classic '47 microphone, but at a much lower price tag. The WA-47jr utilizes the same k47 style capsule found in our flagship WA-47 tube condenser microphone.

The WA-47jr circuit uses high quality Toshiba FET’s, Wima film capacitors and Panasonic electrolytic capacitors. The circuit is modernized and more simple than the classic '47 tube microphone, but the components and circuitry are top-notch, and have a sound quality and tone that punches far above anything ever heard in this price range.

Warm Audio are very excited to bring this '47 style FET condenser microphone and classic tone to the market at such an affordable price. They feel confident that you will enjoy a lifetime of beautiful recordings with the WA-47jr.

Quality Components Make A Better Mic
The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage part. This version of this capsule (model# WA-47-B-80v) is assembled with precision by an Australian capsule manufacturer. The WA47jr's low-noise and discrete signal path then paired with an excellent true '47 style capsule allows this mic to obtain a very similar tone to the classic '47 microphone at a much lower price tag.

The Warm Audio WA-47-B-80v capsule is also used in our flagship WA-47 tube condenser microphone.

Born Out Of Need
When designing their first microphone they knew that the single greatest challenge would be to offer a capsule that was built to a high standard and priced in a range that every-day musicians and engineers could afford. Warm already knew where to find great microphone transformers, precision resistors, polystyrene, tantalum and WIMA film capacitors; but they came to realize that a quality affordable microphone capsule that met their specifications simply wasn’t out there. Warm knew they would have to develop their own line of capsules.

The WA (Warm Audio) brand of capsule is the result of several years of research, a lifetime of listening, and a passion for great sound. Above all else, Warm Audio capsules came from the desire to give customers far more quality/value than what they are used to getting in an affordable microphone. Every Warm Audio capsule is made in the same small assembly house in a clean-room environment, and packaged in its own protective jewel case until the moment it is loaded into the microphone. Every capsule visually inspected and electrically tested for imperfections. Every capsule is also made with all brass parts (no teflon or other cost saving material), and is carefully skinned from the same supply of high purity NOS Mylar (PET film). Warm are confident that you will be just as pleased with our microphone capsules as they are to offer them, and that they will give you a lifetime of great recordings and enjoyment.

More +

Product Specs

Polar PatternsCardioid, figure-of-eight, and omnidirectional

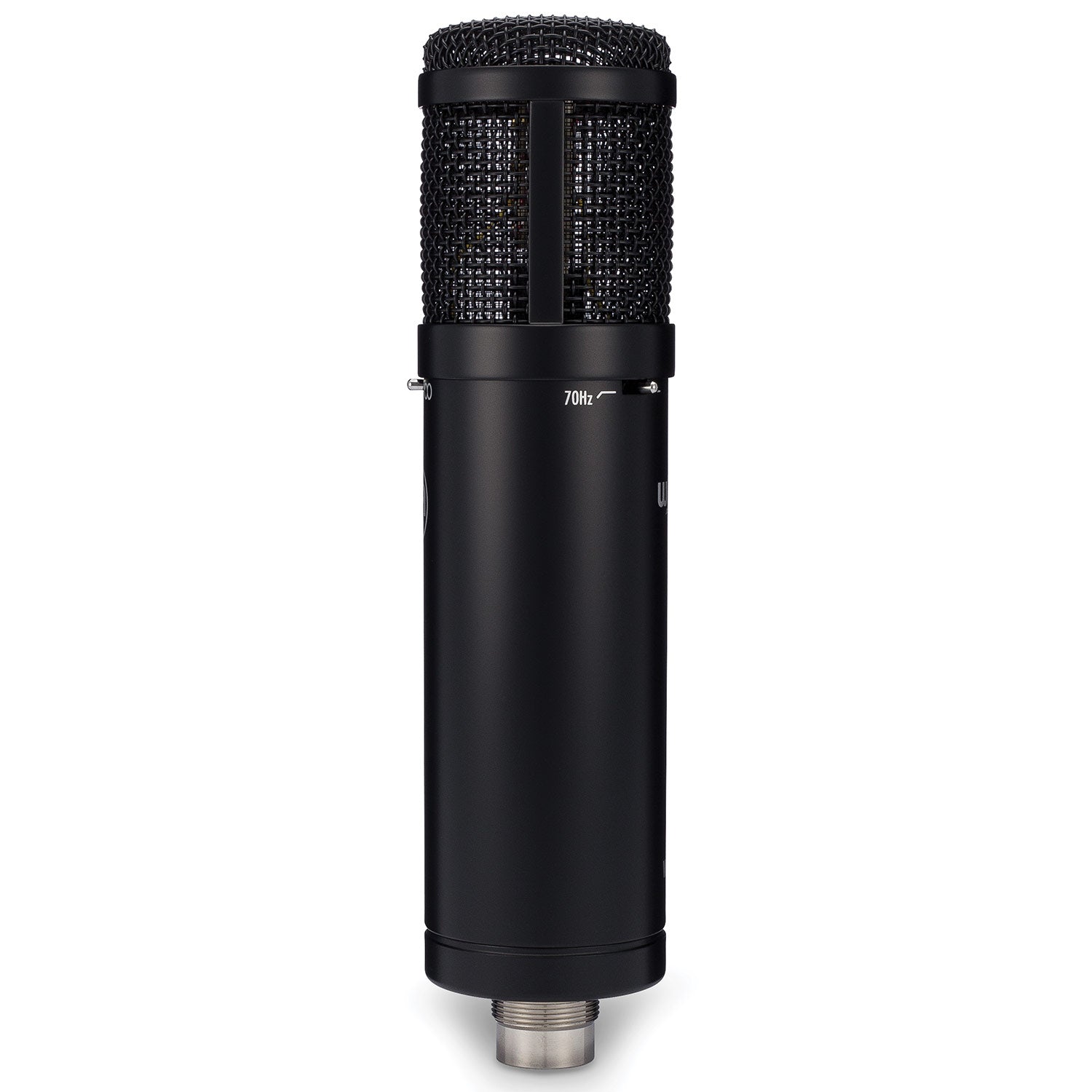

High-pass filter70Hz
Pad-10db
Self-noise9dBA
Dynamic range138dBA
Maximum SPL147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
Frequency Range20 Hz~20 kHz
Sensitivity10mV/Pa or -40dB
Output Impedance100 ohms
Rated Load Impedance?1kOhms
Maximum output16dBu @1kHz, 1kOhms, 0.5% THD
S/N Ratio85dBA (IEC651)
Equivalent Noise9dBA (IEC651)
Dynamic Range138dBA (IEC651)
Powering48v phantom powered
Output Connector3-Pin Gold-Plated XLR

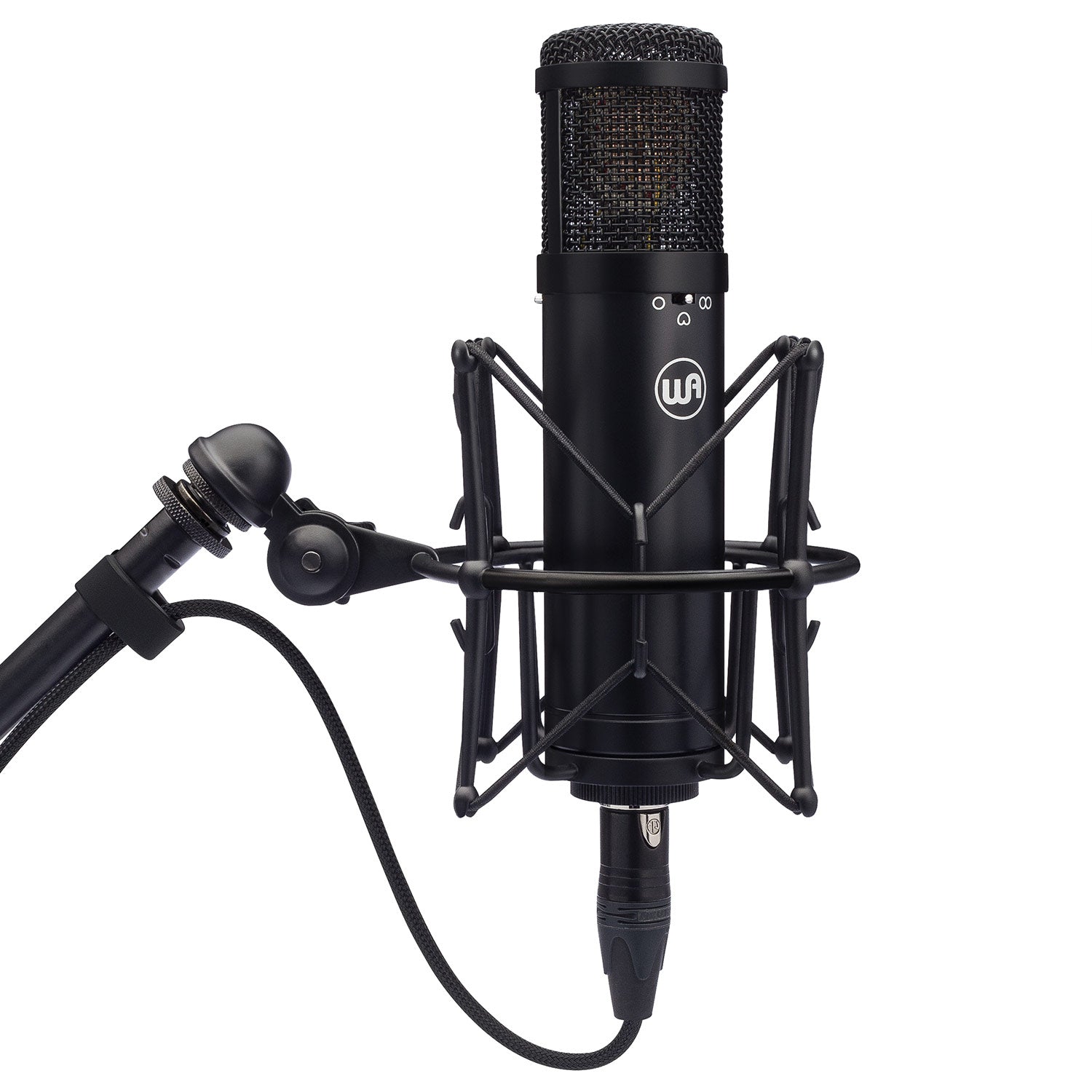

IncludesShockmount, hardmount, zipper storage pouch
FinishNickel Plated
Weight1.1 lbs
Diameter52mm
Length210mm

More +
