Warm Audio WA-84-C-B Small Diaphragm Condenser Microphone - Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.

Description
The WA-84 is a cardioid, vintage-style, small diaphragm condenser microphone based on classic microphone circuit topology. The WA-84 sports a fully discrete signal path, a CineMag USA transformer, Fairchild transistors and Wima capacitors. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.
The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag signal transformer in its signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease and lower-cost manufacturing. When designing the WA-84, however, Warm Audio chose to go the extra mile and take the classic route by tackling a more boutique design known for its it’s crystal clear, yet smooth, LARGE sound.
Warm Audio are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that they feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.
Features:
- Utilizes a CineMag USA Transformer
- Fully Discrete Vintage-style Signal Path
- Vintage Capsule Reproduction
Package Includes:
- Microphone
- Cardioid Capsule

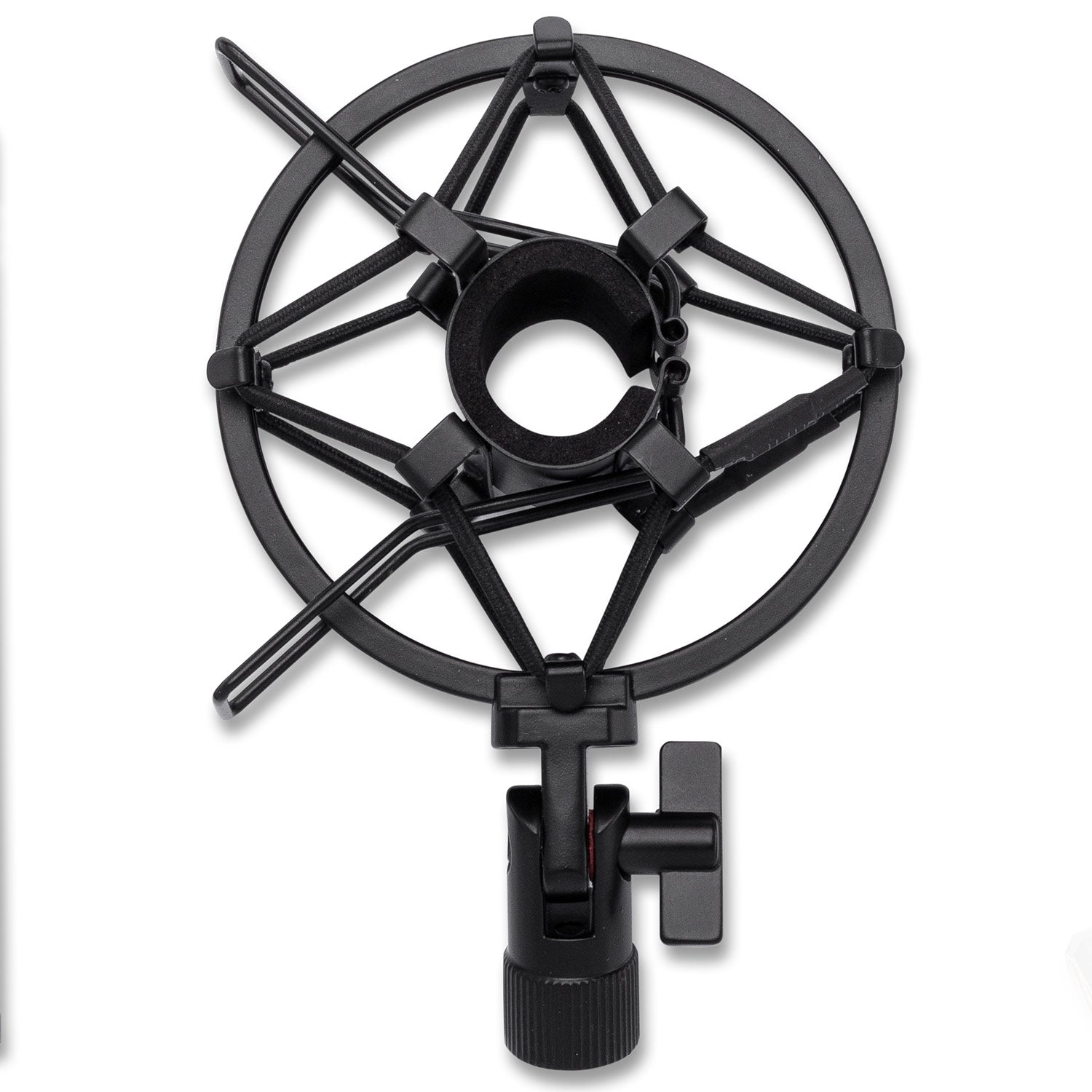

- Shock-mount
- Mic Clip
- Windscreen and Carrying Case
(Stereo pairs include 2 of each item in a single carrying case)
| Directional Pattern | Cardioid |
| Power | 48V Phantom |
| Frequency Range | 20Hz - 20kHz |
| Sensitivity | -39dB or 11mV/Pa @ 1kHz |
| Output Impedance | 200? |
| Rated Load Impedance | ?1k? |
| Pad | 0db or -10db |
| Maximum SPL | 123/133dB @ 1kHz, 0.5% THD, 0/-10dB |
| S/N Ratio | 78dBA (IEC651) |
| Equivalent Noise | 16dBA (IEC651) |
| Dynamic Range | 107dBA (IEC651) |
| Connector | 3-Pin Gold-Plated XLR |
| Weight | 122g each |
| Finish | Black / Nickel |
