West Penn 226 2-Conductor 14AWG Speaker Cable (White/1000 Foot Spool)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
West Penn 226 2-Conductor 14AWG Speaker Cable (White/1000 Foot Spool)
Sale price$423.50
Description

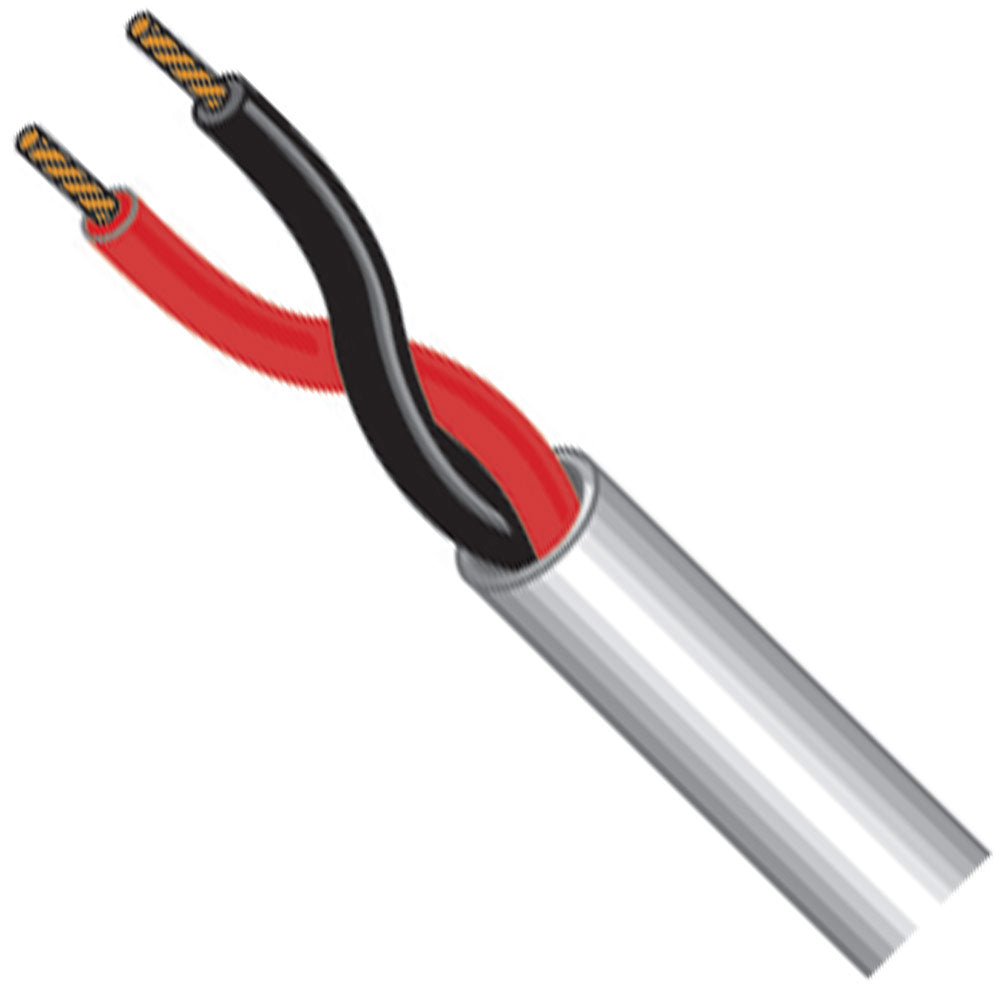

14/2 stranded Bare copper conductors, Unshielded with an overall jacket. Ideal for (indoor): Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
| Conductor | 14 AWG Bare Copper |
| Stranding | 19x27 |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.010'' Nom. |
| Number of Conductors | 2 |
| Shield | None |
| Drain | None |
| Jacket Material | PVC |
| Jacket Thickness | 0.017'' Nom. |
| Overall Cable Diameter | 0.230'' Nom. |
| Approximate Cable Weight | 36.2 Lbs/1M' Nom. |
| Flame Rating | UL 1666 Riser Flame Test |
| Temperature Rating | -20¡C To +60¡C |
| Operating Voltage | 150 V RMS |
| Max.Capacitance Between Conductors @ 1 KHz | 23 pf/ft Nom. |
| DC Resistance per Conductor @ 20deg C | 2.7 Ohms/1M' Nom. |
| Insulation Colors | Black , White |
| Jacket Color | Gray, Brown, Black, White |
| RoHS Compliant | Yes |
| Max. Recommended Pull Tension | 59 lbs. |
| Min. Bend Radius (Install) | 2.25Ó |
14/2 stranded Bare copper conductors, Unshielded with an overall jacket. Ideal for (indoor): Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
| Conductor | 14 AWG Bare Copper |
| Stranding | 19x27 |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.010'' Nom. |
| Number of Conductors | 2 |
| Shield | None |
| Drain | None |
| Jacket Material | PVC |
| Jacket Thickness | 0.017'' Nom. |
| Overall Cable Diameter | 0.230'' Nom. |
| Approximate Cable Weight | 36.2 Lbs/1M' Nom. |
| Flame Rating | UL 1666 Riser Flame Test |
| Temperature Rating | -20¡C To +60¡C |
| Operating Voltage | 150 V RMS |
| Max.Capacitance Between Conductors @ 1 KHz | 23 pf/ft Nom. |
| DC Resistance per Conductor @ 20deg C | 2.7 Ohms/1M' Nom. |
| Insulation Colors | Black , White |
| Jacket Color | Gray, Brown, Black, White |
| RoHS Compliant | Yes |
| Max. Recommended Pull Tension | 59 lbs. |
| Min. Bend Radius (Install) | 2.25Ó |
