West Penn 25357BGY - 4-Conductor 22AWG Plenum Audio / Control Cable (Gray Jacket / 1000 Foot Box)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

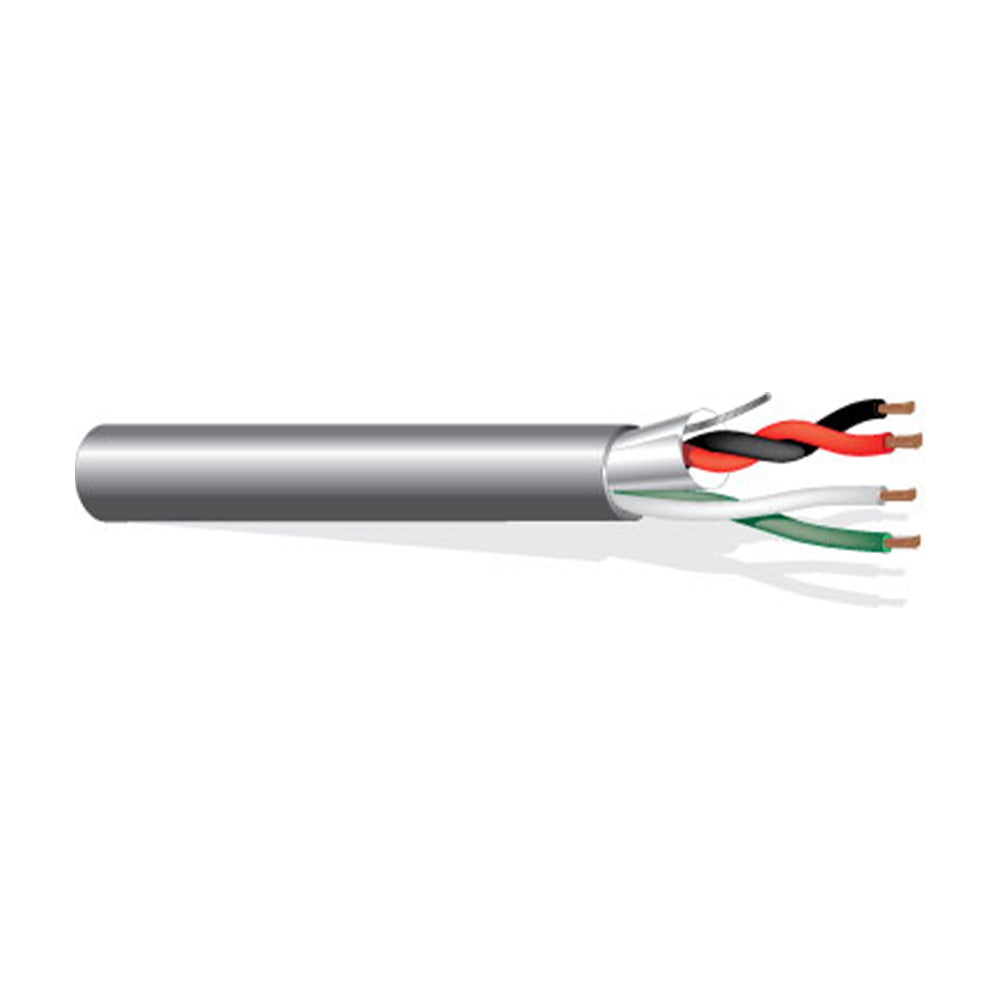

22awg plenum-rated audio control cable. 4-conductor, with 1 pair shielded and 1 pair unshielded.
| CONSTRUCTION / DIMENSIONS | ||
| Component | Shielded | Unshielded |
| CONDUCTOR PARAMETER | ||
| ¥ Number of Conductors | 2 | 2 |
| ¥ AWG Size | 22 | 22 |
| ¥ Conductor Stranding | 7x30 | 7x30 |
| ¥ Conductor Type | Bare Copper | Bare Copper |
| ¥ Nominal DCR | 17 Ohm/1000ft | 17 Ohm/1000ft |
| INSULATION PARAMETER- | ||
| ¥ Insulation Type | Plenum PVC | Plenum PVC |
| ¥ Insulation Thickness | 0.007 in | 0.007 in |
| ¥ Insulation Color Code | 1. Black 2.Red | 1. White 2.Green |
| SHIELDING PARAMETER | ||
| ¥ Shield Type | Overall 100% Aluminum Foil | None |
| ¥ Drain Wire Type | Tinned Copper | - |
| ¥ Drain Wire AWG | 24 AWG | - |
| ELECTRICAL CHARACTERISTICS | ||
| ¥ Nom. Cap. Between Conductors | 54 pF/ft | - |
| ¥ Nom. Cap. Conductor to Shield | 97 pF/ft | - |
OVERALL CONSTRUCTION PARAMETERS |
- |
Total Number of Conductors |
4 |
Jacket Type |
Flexible Plenum |
Jacket Thickness |
0.015 in |
Nominal Cable O.D. |
0.145 in |
Plenum |
Yes |
NEC UL Rating |
CMP |
RoHS Compliant |
Yes |
Pull Tension |
51 lbs |
Bend Radius |
1.305 in |
Cable Weight |
18 lbs |
22awg plenum-rated audio control cable. 4-conductor, with 1 pair shielded and 1 pair unshielded.
| CONSTRUCTION / DIMENSIONS | ||
| Component | Shielded | Unshielded |
| CONDUCTOR PARAMETER | ||
| ¥ Number of Conductors | 2 | 2 |
| ¥ AWG Size | 22 | 22 |
| ¥ Conductor Stranding | 7x30 | 7x30 |
| ¥ Conductor Type | Bare Copper | Bare Copper |
| ¥ Nominal DCR | 17 Ohm/1000ft | 17 Ohm/1000ft |
| INSULATION PARAMETER- | ||
| ¥ Insulation Type | Plenum PVC | Plenum PVC |
| ¥ Insulation Thickness | 0.007 in | 0.007 in |
| ¥ Insulation Color Code | 1. Black 2.Red | 1. White 2.Green |
| SHIELDING PARAMETER | ||
| ¥ Shield Type | Overall 100% Aluminum Foil | None |
| ¥ Drain Wire Type | Tinned Copper | - |
| ¥ Drain Wire AWG | 24 AWG | - |
| ELECTRICAL CHARACTERISTICS | ||
| ¥ Nom. Cap. Between Conductors | 54 pF/ft | - |
| ¥ Nom. Cap. Conductor to Shield | 97 pF/ft | - |
OVERALL CONSTRUCTION PARAMETERS |
- |
Total Number of Conductors |
4 |
Jacket Type |
Flexible Plenum |
Jacket Thickness |
0.015 in |
Nominal Cable O.D. |
0.145 in |
Plenum |
Yes |
NEC UL Rating |
CMP |
RoHS Compliant |
Yes |
Pull Tension |
51 lbs |
Bend Radius |
1.305 in |
Cable Weight |
18 lbs |
