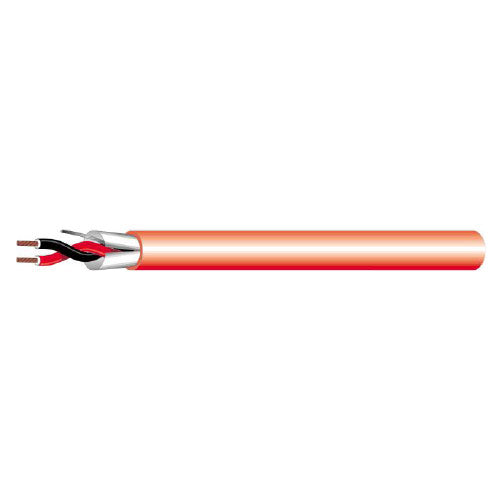

West Penn 975 18GA 2-Conductor Audio/Control Cable (Red/1000 Foot Spool)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
West Penn 975 18GA 2-Conductor Audio/Control Cable (Red/1000 Foot Spool)
Sale price$206.50
Description
18/2 Solid bare copper conductors, shielded with an overall jacket.
Indoor for: Fire Alarm, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits.
| NEC RATING | FPLR, NEC Article 760 |
| APPROVALS | (UL) Listed |
| Conductor | 18 AWG Bare Copper |
| Stranding | Solid |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.007'' Nom. |
| Number of Conductors | 2 |
| Shield | 100% Aluminum Polyester Foil |
| Drain | Stranded Tinned Copper |
| Jacket Material | PVC |
| Jacket Thickness | 0.017'' Nom. |
| Overall Cable Diameter | 0.150'' Nom. |
| Rip Cord | Yes |
| Approximate Cable Weight | 22 Lbs/1M' Nom. |
| Flame Rating | UL 1666 |
| Riser Flame Test | NEC Article 760 |
| Other Specifications | California State Fire Marshall Certified |
| Temperature Rating | -20deg C to 60deg C |
| Operating Voltage | 300 V RMS |
| Max.Capacitance Between Conductors @ 1 KHz | 40 pf/ft Nom. |
| Capacitance Between Conductors to Shield @ 1 KHz | 72 pf/ft Nom. |
| DC Resistance per Conductor @ 20deg C | 6.4 Ohms/1M' Nom. |
| Insulation Colors | Black, Red |
| Jacket Color | Red, Blue, White, Yellow |
| RoHS Compliant | Yes |
| Max. Recommended Pull Tension | 53.2 lbs. |
| Min. Bend Radius (Install) | 1.5” |
18/2 Solid bare copper conductors, shielded with an overall jacket.
Indoor for: Fire Alarm, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits.
| NEC RATING | FPLR, NEC Article 760 |
| APPROVALS | (UL) Listed |
| Conductor | 18 AWG Bare Copper |
| Stranding | Solid |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.007'' Nom. |
| Number of Conductors | 2 |
| Shield | 100% Aluminum Polyester Foil |
| Drain | Stranded Tinned Copper |
| Jacket Material | PVC |
| Jacket Thickness | 0.017'' Nom. |
| Overall Cable Diameter | 0.150'' Nom. |
| Rip Cord | Yes |
| Approximate Cable Weight | 22 Lbs/1M' Nom. |
| Flame Rating | UL 1666 |
| Riser Flame Test | NEC Article 760 |
| Other Specifications | California State Fire Marshall Certified |
| Temperature Rating | -20deg C to 60deg C |
| Operating Voltage | 300 V RMS |
| Max.Capacitance Between Conductors @ 1 KHz | 40 pf/ft Nom. |
| Capacitance Between Conductors to Shield @ 1 KHz | 72 pf/ft Nom. |
| DC Resistance per Conductor @ 20deg C | 6.4 Ohms/1M' Nom. |
| Insulation Colors | Black, Red |
| Jacket Color | Red, Blue, White, Yellow |
| RoHS Compliant | Yes |
| Max. Recommended Pull Tension | 53.2 lbs. |
| Min. Bend Radius (Install) | 1.5” |
