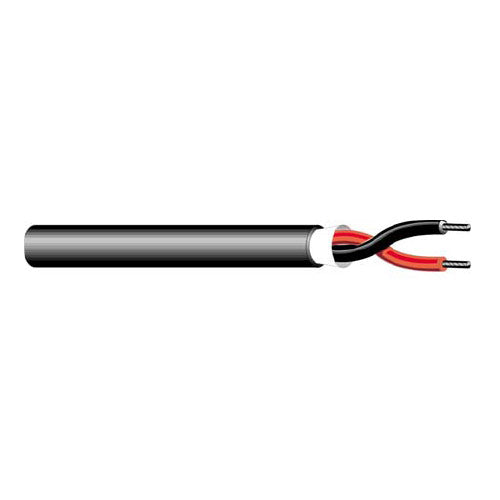

West Penn AQ225 AquaSeal 16-Gauge 2-Conductor Speaker Cable (Black/500 Foot Spool)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
16/2 Stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket.
Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, PowerLimited tray cable PLTC)
UL listed for direct burial.
| Conductor | 16 AWG Bare Copper |
| Stranding | 7x46 |
| Insulation Material | PVC with Nylon |
| Insulation Thickness | PVC 0.015'' Nom. Nylon .005Ó Nom. |
| Number of Conductors | 2 (1 Pair) |
| Shield | None |
| Drain | None |
| Water-Blocking Tape | 2 Ply water swellable tape |
| Jacket Material | Sunlight/ Moisture Resistant PVC |
| Jacket Thickness | 0.040'' Nom. |
| Overall Cable Diameter | 0.295'' Nom. |
| Approximate Cable Weight | 48 Lbs/1M' Nom. |
| Flame Rating | UL 1685 Vertical Tray |
| Electrical / Environmental Properties | |
| Temperature Rating | -20deg C to 90deg C |
| Operating Voltage | 300 V RMS |
| Max.Capacitance Between Conductors @ 1 KHz | 25 pf/ft Nom. |
| DC Resistance per Conductor @ 20deg C | 4.2 Ohms/1M' Nom. |
| Insulation Colors | Black, Red |
| Jacket Color | Black |
| RoHS Compliant | N/A |
| TIA455-82B Water Infiltration Test Compliant | Yes |
| UL 444 / 13 Compliant | Yes |
| Mechanical Properties | |
| Max. Recommended Pull Tension | 54 lbs. |
| Min. Bend Radius (Install) | 2.9Ó |
