Williams AV PPA VP 37 Large-Area, Portable FM Assistive Listening System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Personal PA® Value Pack System broadcasts a speaker's voice, music program, or audio service wirelessly up to 1000 feet to a listening audience. Participants using the (included) single-channel receiver with a headset can listen to the broadcast at the volume of their comfort. The cornerstone of the Value Pack System is the T27 transmitter, featuring an LED display panel and push-button channel selection for easy operation. This System has 17 available channels and operates on 72-76 MHz. This system complies with 2010 ADA guidelines for hearing assistance and is covered by a Lifetime PLUS Limited Warranty.
Features:
- PPA T27 transmitter
- Up to 1000’ operating range
- Transmitter is FCC Part 15 compliant
- Great for portable use
- Flexible 3.5mm mic and RCA line-level inputs
- Lifetime PLUS Limited Warranty. 90 days on accessories
- Transmitter is FCC Part 15 compliant

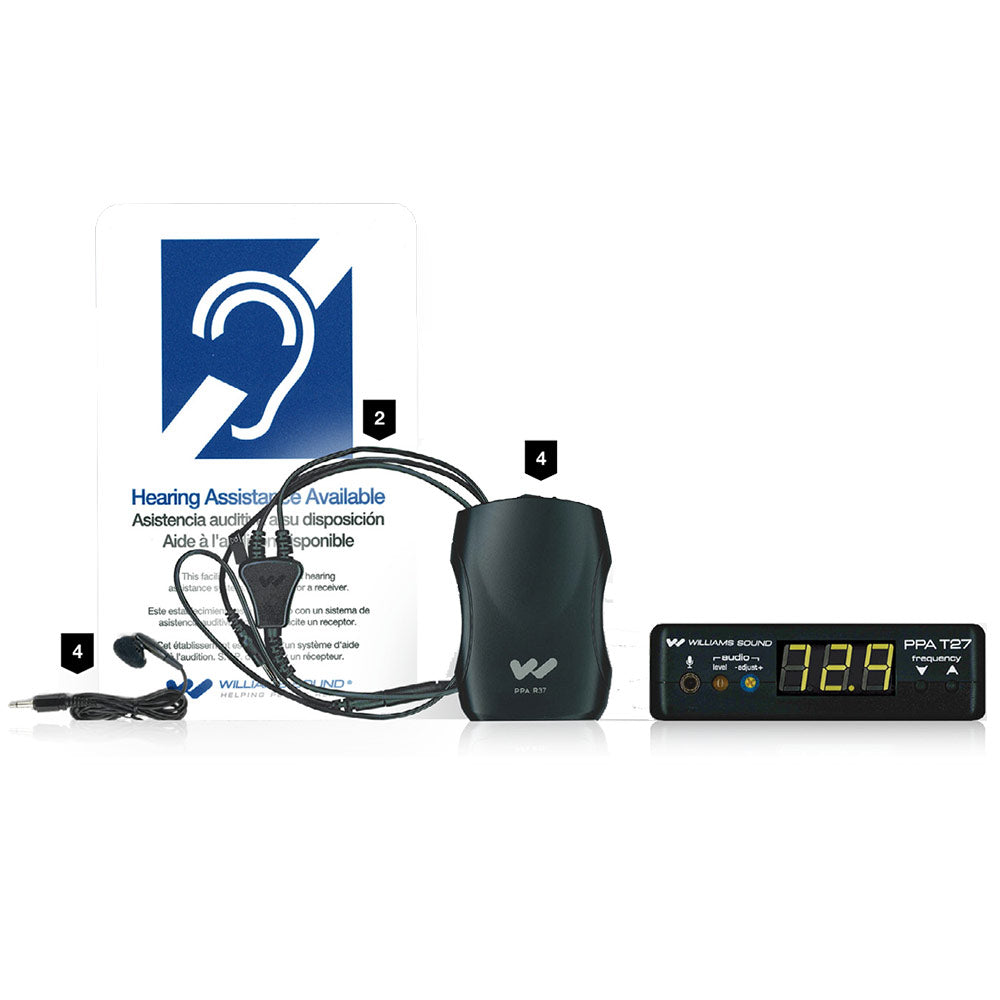

System Includes:
- (1) PPA T27 Transmitter
- (4) SELECT PPA R37 Receivers

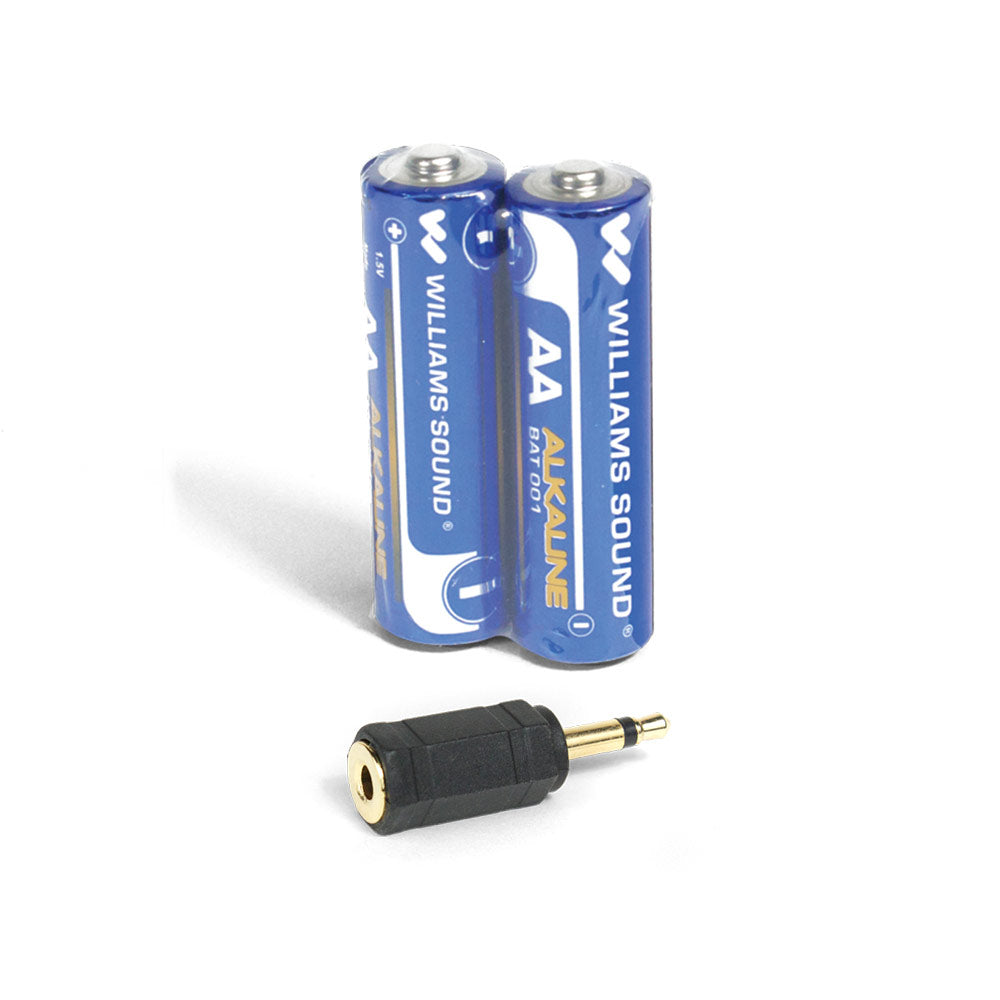

- (4) BAT 001-2 AA batteries

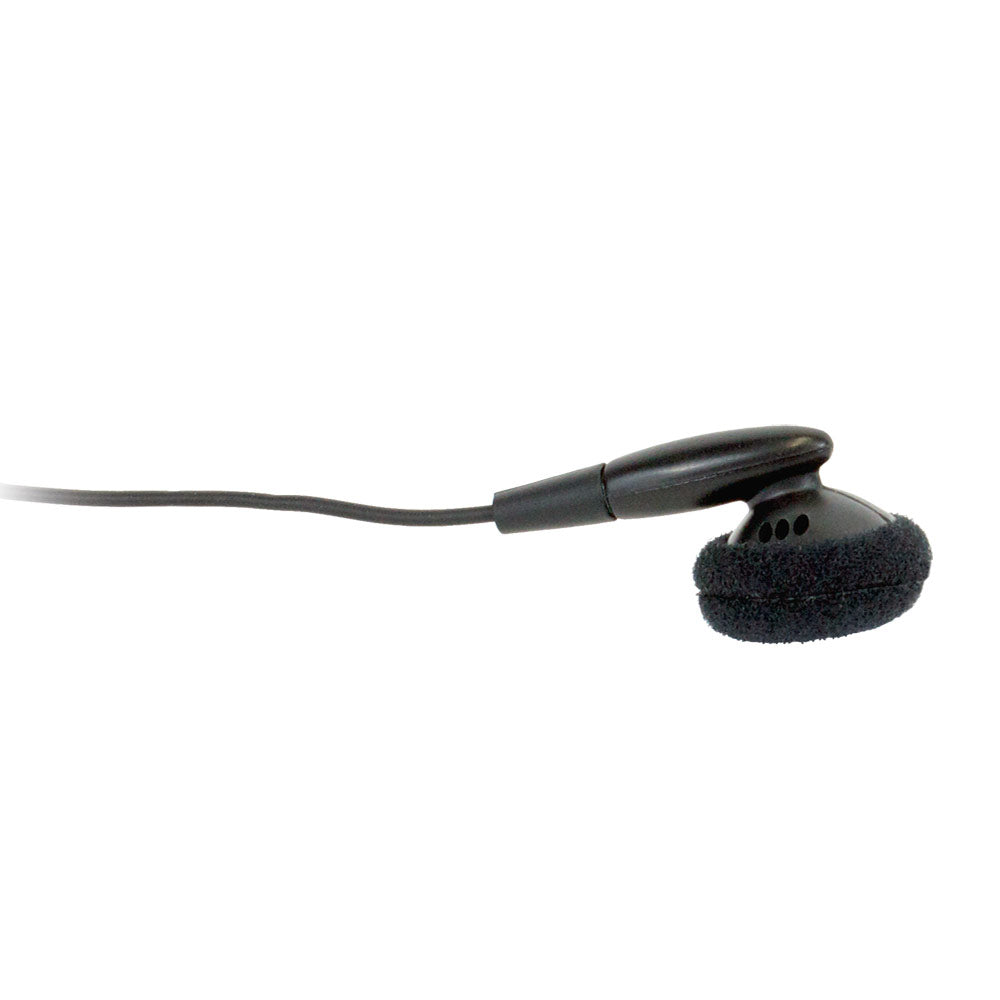

- (4) EAR 013 single mini earbuds

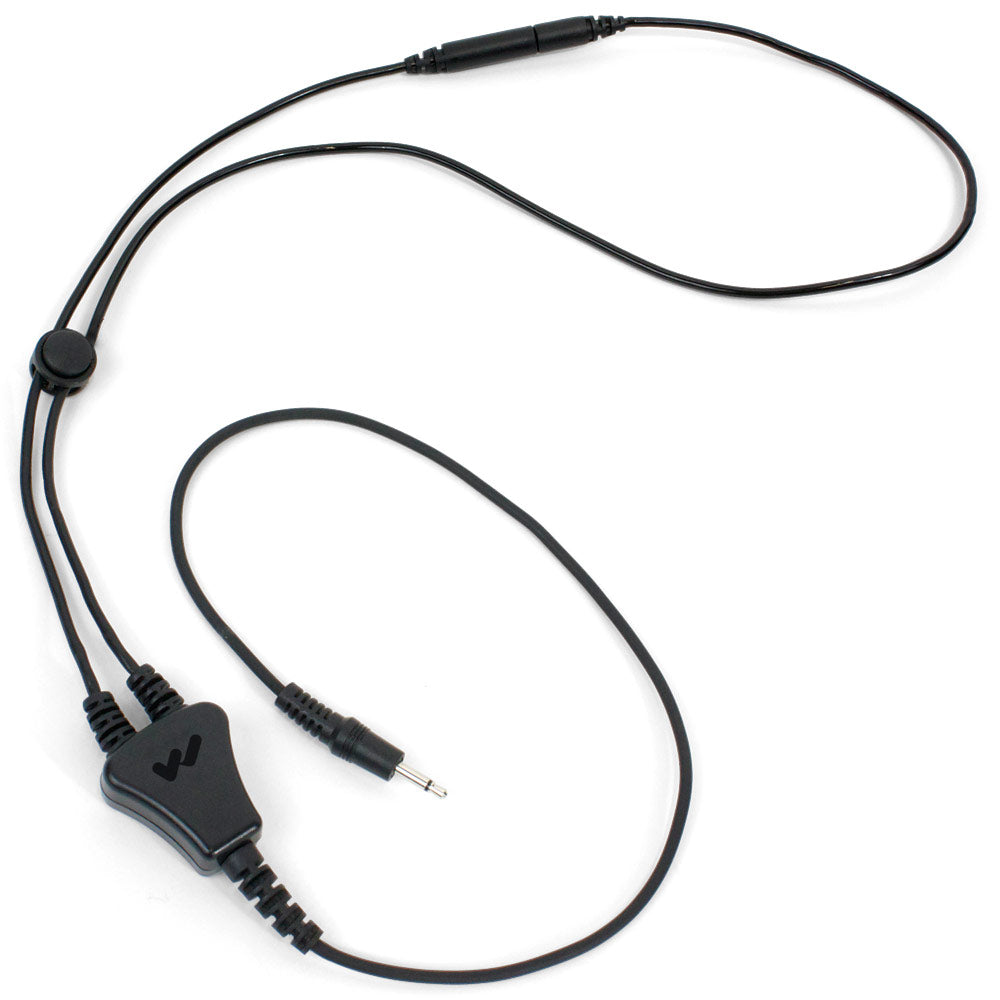

- (2) NKL 001 neckloops
- (1) IDP 008 Wall Plaque

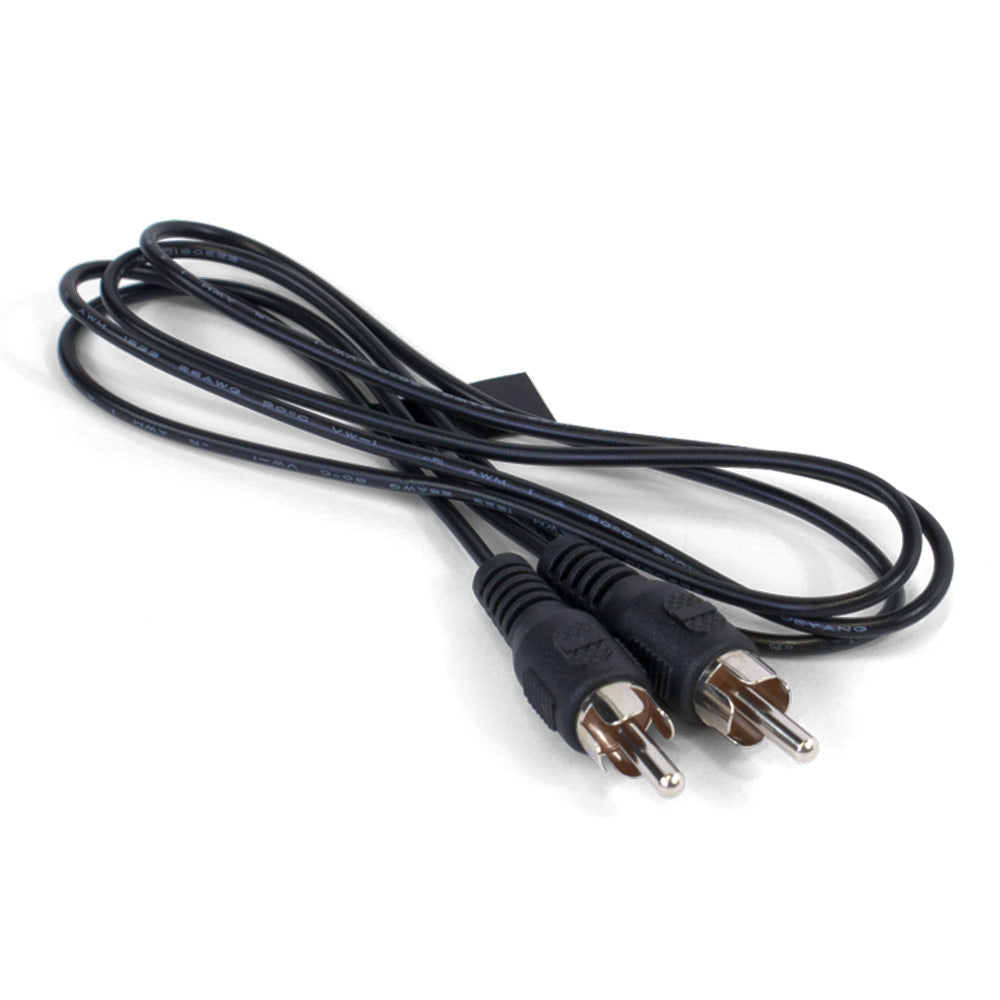

- (1) WCA 013 Audio Cable

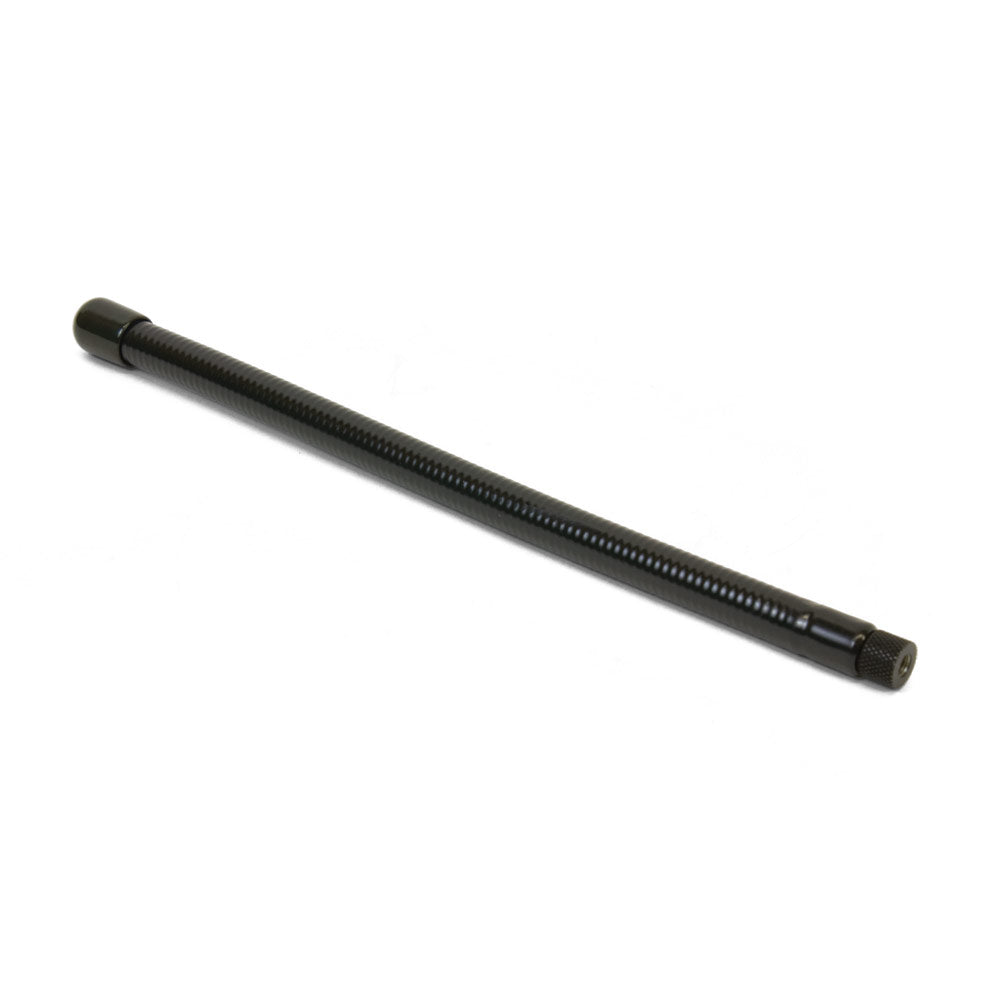

- (1) ANT 021 Antenna

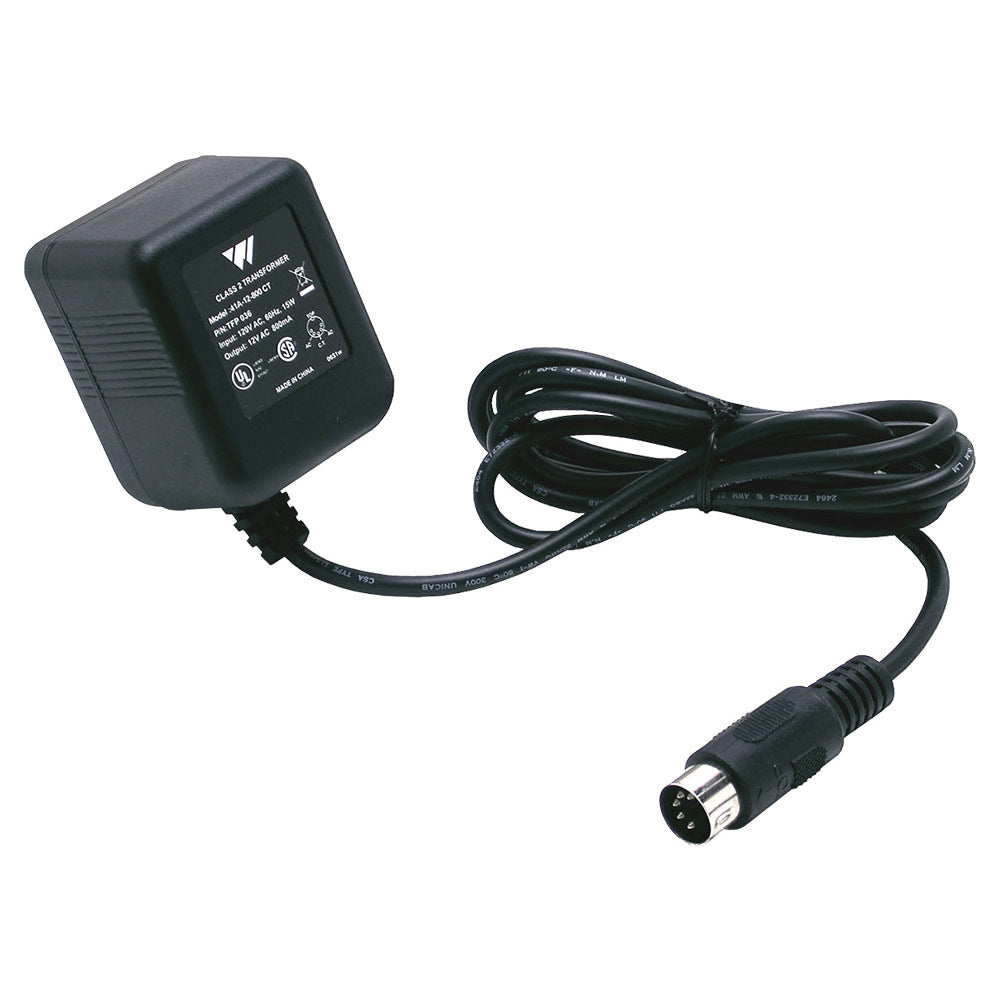

- (1) TFP 036 Power Supply
All items can be purchased separately
NOTE: The Personal PA Value Pack System is approved by the FCC for operation in U.S. markets. The system cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.
Disclaimer: FCC rules limit use of this equipment to auditory assistance.
| ANT 021 | |
| Use with | PPA T45, PPA T45NET, PPA T27 Transmitters |
| Connector type | Screw to PCB |
| Cable type | N/A|
| Nominal Impedance | 75 Ohm |
| Length | 9 inches |
| BAT 001-2 | |
| Alkaline, 1.2 Volt | |
| EAR 041 | |
| Plug | 3.5 mm mono |
| Cord length | 39 inches |
| Impedance | 32 Ohms |
| Frequency Range | 20 - 20kHz |
| Max input power | 5 mV |
| Sensitivity | 128 dB @ 1kHz |
| Driver Size | N/A13 mm |
| Weight | 9g |
| Replacement Pads | EAR 015 |
| IDP 008 | |
| 10-3/8" (L) x 6- 1/4" (W) x 1/8" (H) | |

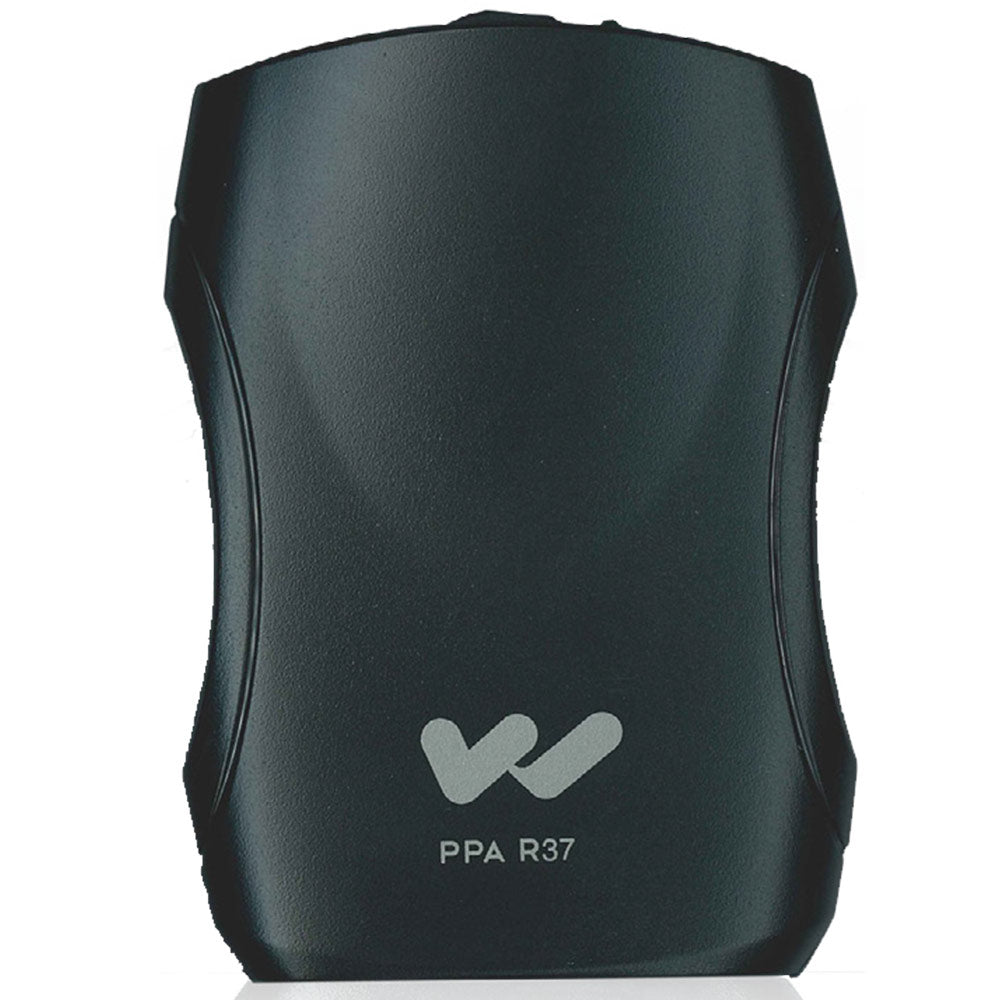

| PPA R37 | |
| Dimensions | 4.1" x 2.85" x 1.38" (104 x 72 x 35mm) |
| Weight | 4.6oz (130g) with batteries. 2.6oz (73g) without batteries |
| Color | Black |
| Battery Type | (2) AA Alkaline or 2 x AA NiMH |
| Battery Life | (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs |
| Current Consumption | 52mA nominal |
| Temperature Range | - 0 to 50C |
| Channels | 17, accessed via seek button in battery compartment |
| Operating Freq. | 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz |
| Intermediate Freq. | 75 kHz |
| FM Deviation | 75 µS |
| De-Emphasis | 75 µS |
| LED Indicator | Power: Green; Low Battery: Flashes Green |
| AFC Range | ± 120 kHz |
| Sensitivity | 2 µV at 12 dB Sinad with squelch defeated |
| Input Overload | 100 mV |
| Frequency Response | 200 - 15 kHz |
| Modulation | FM, +/- 75 kHz peak deviation |
| Signal-to-Noise Ratio | 65 dB min @ 100 uV |
| Receive Antenna | Integral with earphone/headphone cord |
| Audio Output | 35 mW max, peak into 16 ohms |
| Output Connector | 3.5 mm stereo/mono phone jack |
| Earphone | Earbud-type with foam cushion, 3.5 mm plug, 32 ? |
| Auto Shut-off | Enters sleep mode after approx 6 mins of no RF signal |
| Approvals | FCC, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories. |

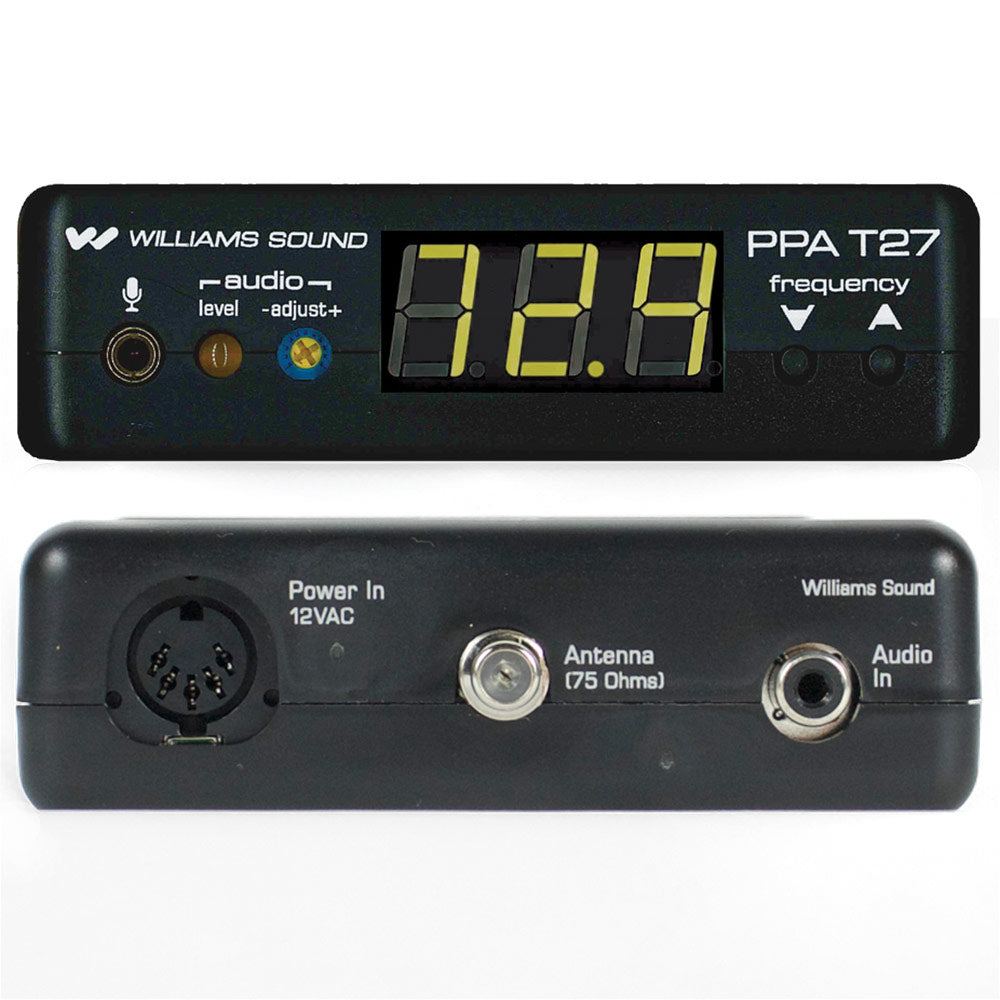

| PPA T27 | |
| Dimensions and Weight | 4.1" W x 6.1" L x 1.3" H (104.1 mm x 154.9 mm x 33 mm) 7.8 oz. (221 g) |
| Color | Black |
| Power (U.S./Canada) | 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC |
| Operating Frequencies | 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H) |
| Frequency Selector | External switches, 17 channels (lockable) |
| RF Field Strength | Does not exceed 80mV/m @ 3m |
| Nominal Range | Up to 1000 feet (305 m) w/standard ANT 021 "rubber duckie" antenna or optional ANT 005 coaxial antenna. |
| Modulation | FM, 75 kHz deviation (wide - band) max. |
| Stability | ± .005% over 0-50?C |
| Pre-Emphasis | 75 µS |
| Frequency Response | 85Hz - 14kHz ±3dB |
| Distortion | 1% Max. THD |
| Signal-to-Noise Ratio | 65 dB with R35 Receiver |
| Microphone Input | 3.5mm mini phone jack, supplies +DC for electret mics |
| Mic Input Level | 1 - 10 mV, nominal |
| Line-Level Input | RCA Jack, Hi Z, unbal |
| Line Input Level | .1 - 1 Vrms, nominal |
| Input Attenuator | Pot, screwdriver-adjustable |
| Antenna Outputs | Thread mount for ANT 021 "rubber duckie" antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna |
| Approvals | FCC including part 15*, Industry Canada, RoHS, WEEE |
| Warranty | Lifetime PLUS Limited Warranty, 90 Days on most accessories |
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*Effective July 11, 2016, the FCC has mandated tighter emissions limits on auditory assistance transmitters (72-76 MHz) manufactured or imported after this date to help avoid interference with and/or degradation of other airborne signals (All products manufactured prior to July 11, 2016, are compliant). Williams Sound FM transmitters - PPA T46, PPA T27 and PPA T45 (all models) - all have received a Grant of Certification from the FCC and are fully compliant/approved under this new mandate.
