Williams Sound DL210 SYS 2 2.0 Large-Area, 48-Volt Induction Loop System w/ Network Control
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Large-area system offers flexible, powerful software control of mixing, equalization, compression and phase shift. Potent, class D, pulse-width amplifiers maximize efficiency and reduce size and weight. Dual-amplifier design offers the option of a single 12A output for large perimeter loops or dual 10A outputs for phase loop arrays.
System Includes:

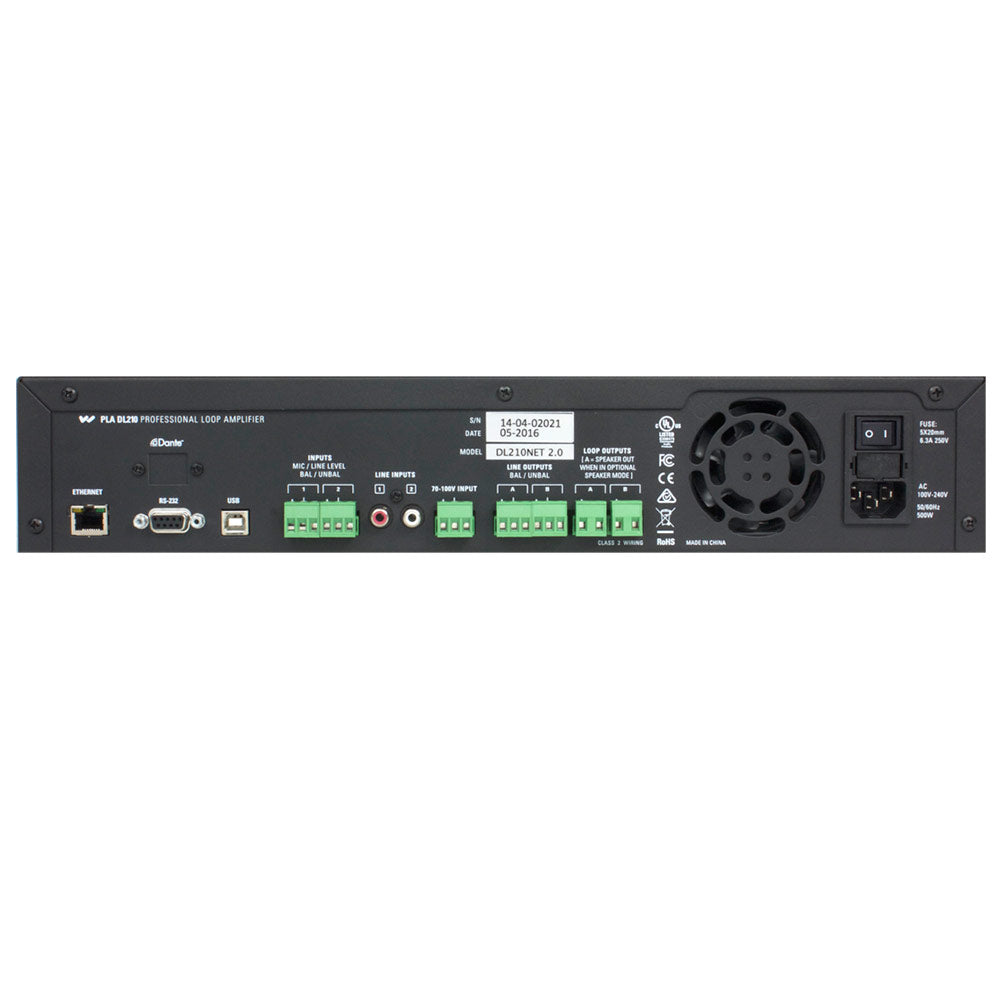

- (1) DL210 NET 2.0 induction loop amplifier

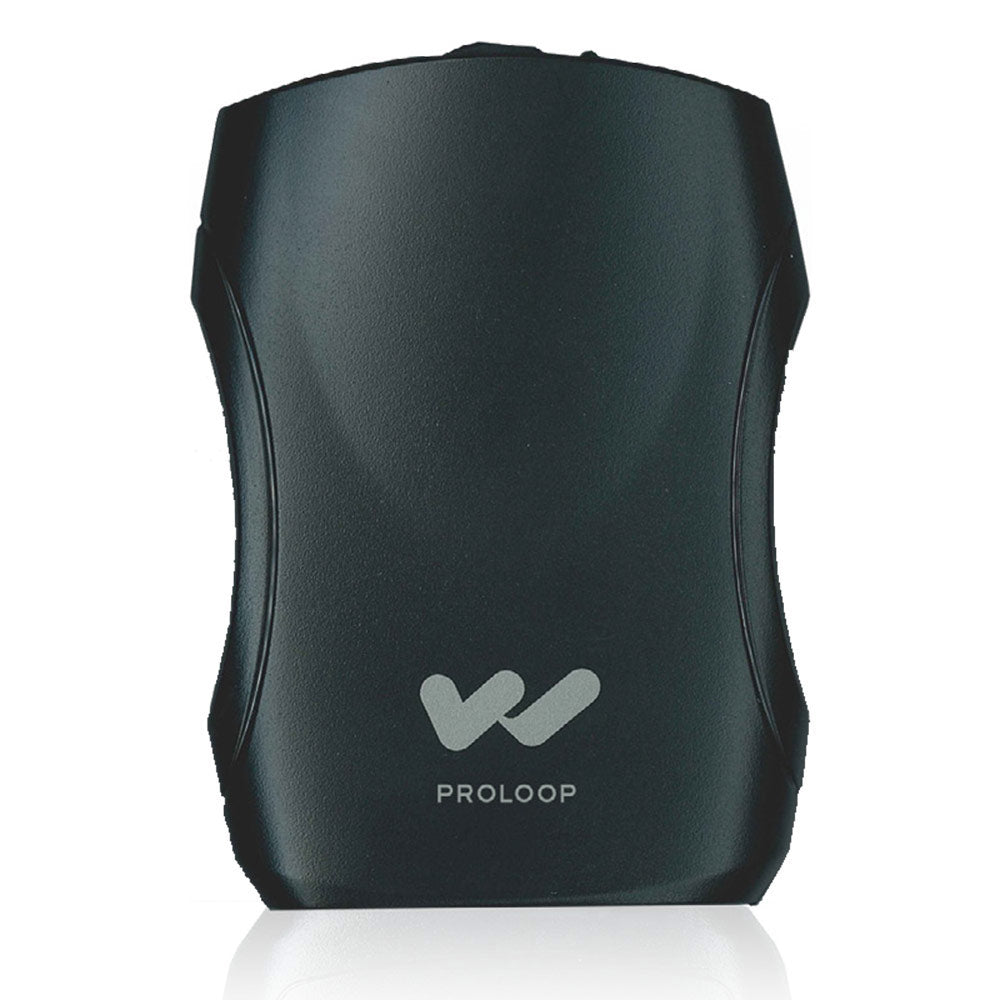

- (2) PLR BP1 body-pack receivers with batteries

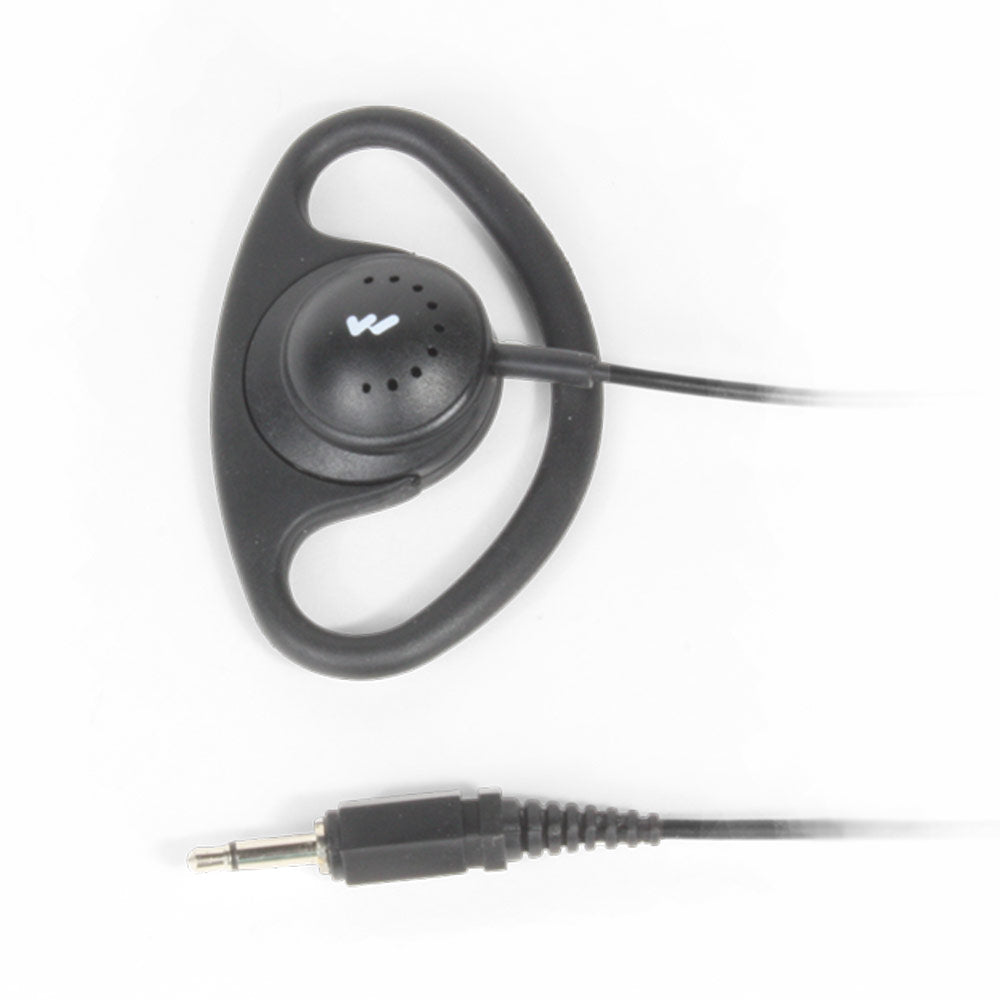

- (2) EAR 022 surround earphones

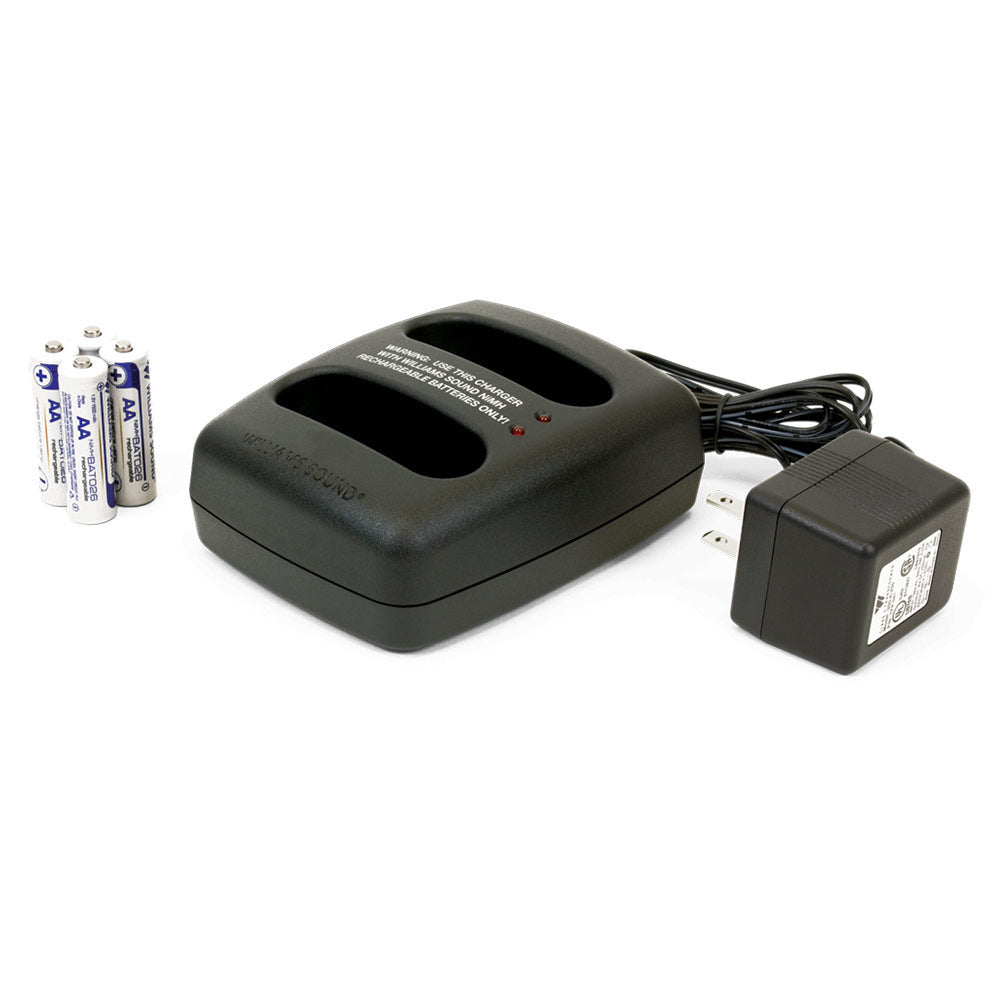

- (1) BAT KT6 Dual Drop-in Charger Kit (includes CHG 3502 Dual Drop-In Charger and (2) BAT 026-2 AA NiMH batteries)

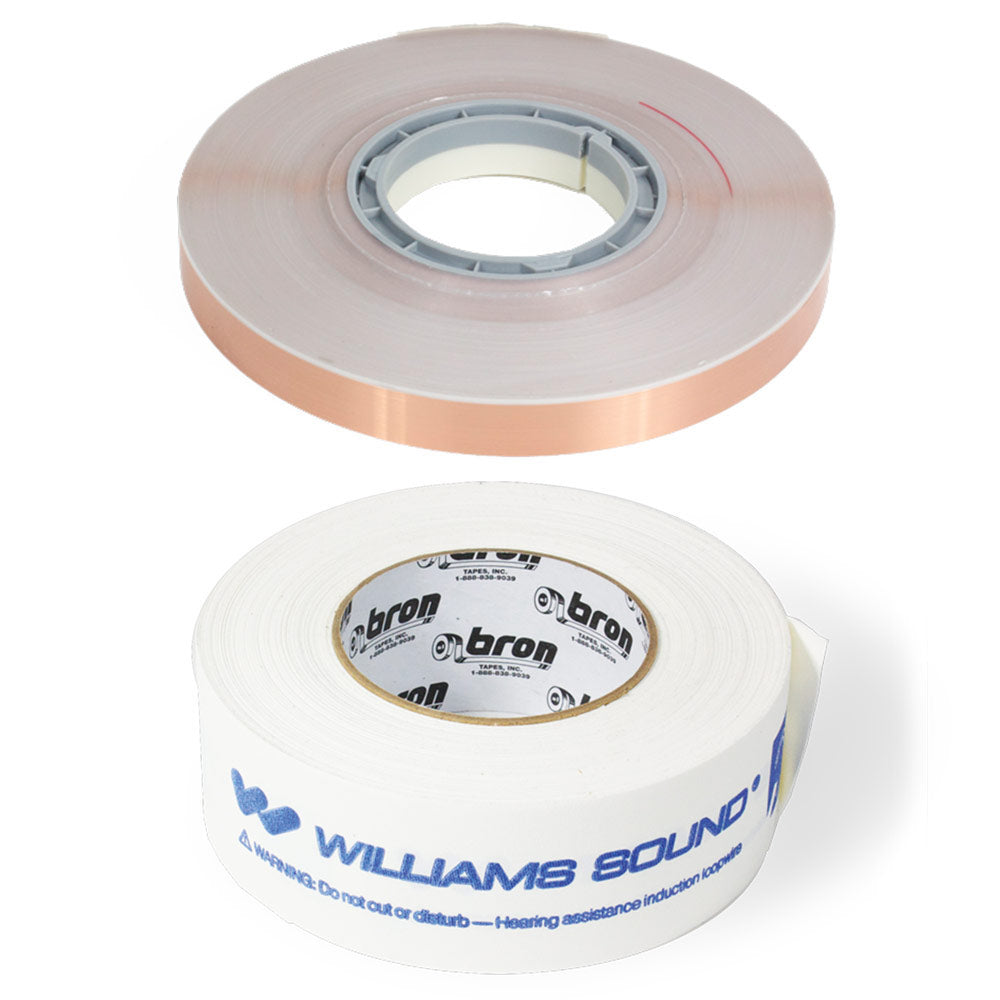

- (2) PLW F500 500 ft. rolls of flat power loop wire
- (6) FWT 001 rolls of flat wire warning tape
- (1) IDP 009 ADA wall plaque (T-Coil)

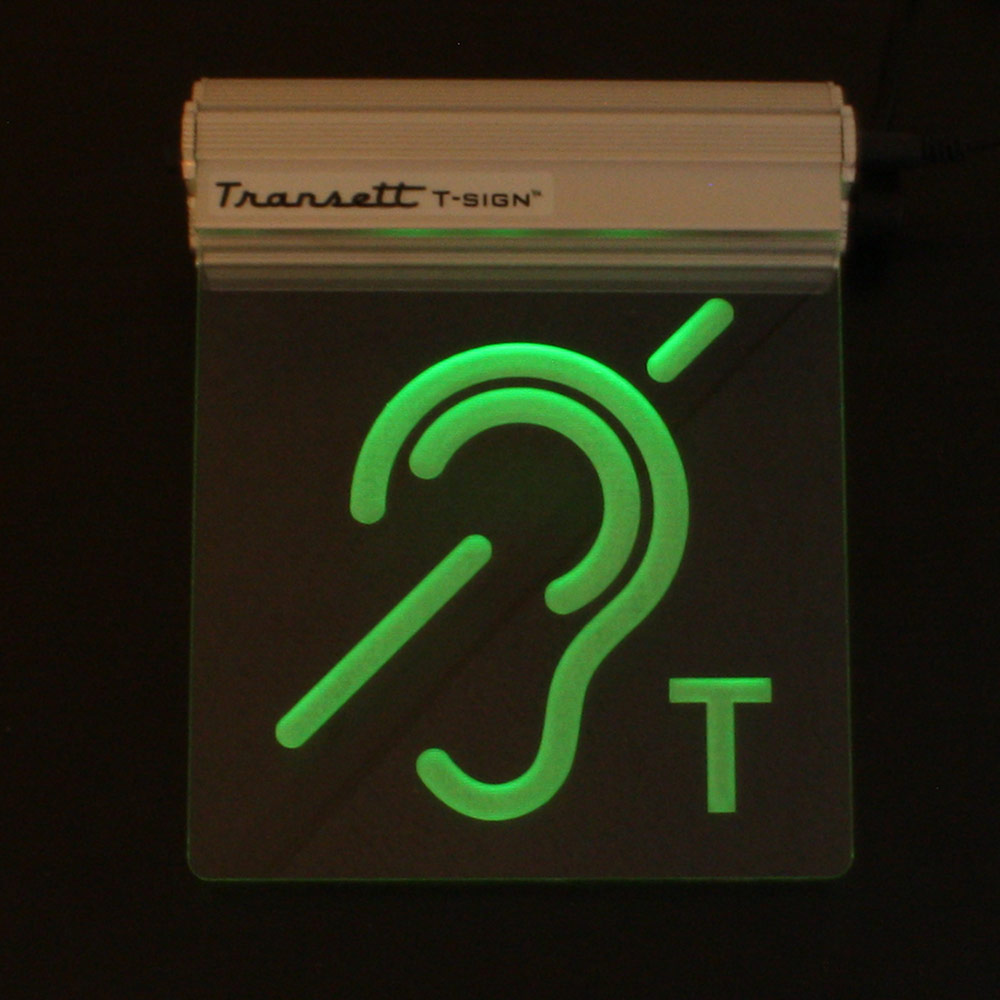

- (1) IDP 013 Induction Loop Status Sign
- 5-year Warranty on amplifier
| DL210 NET 2.0 | |
| GENERAL | |
| Dimensions | 2 RU Rackmount, 19" W x 3.5" H x 12" D. Chassis is 17" W |
| Weight | 14.3 lbs (6.5 kg) |
| Color | Case: Black, white and blue legends on front, white legends on back. LCD: Backlit Blue |
| Fan cooling | Variable Speed, Temperature Controlled |
| Power Supply | Internal, Universal 100-240 VAC, 50/60 Hz, 250 Watt. Fuse: 5 x 20 mm, 5 A, 250 V AC power plug is IEC 320-C14 |
| Heat output @ 120 VAC | Sleep state: 100 BTU/hr; Idle state: 146 BTU/hr; Driving two loops @ 12 A each: 1,040 BTU/hr |
| Ethernet | (1x) RJ-45; 10-100 MBps |
| USB | (1x) standard-B. USB 1.1, 2.0 or 3.0 supported |
| RS-232/Loop fault relay | (1x) DB-9 jack. RS-232: Pin 2=Tx, Pin 3=Rx, Pin 5=gnd. Loop fault relay: Pin 1=NC, Pin 4=Common, Pin 6=NO. Relay contact rating: 2.0 A @ 30 VDC |
| Environment | 0-35¡ C ( 32-95¡ F), 0-90% relative humdity |
| Coverage Area | N/A31,400 sq. ft. (2,917 sq. m.) (Perimeter Loop, 1:1 aspect ratio, both outputs driven) 51,660 sq. ft. (4,800 sq. m.) (Perimeter Loop, 3:1 aspect ratio, both outputs driven) |
| INPUTS | |
| Dante input | No. Dante input available on DL210 NET D 2.0 model only |
| Mic/Line inputs | (2x) 3-position terminal block, input impedance=1.5 k? Mic, 10 k? Line Configurable/Accepts: Mic, Line -10 dBV, Line +4 dBu, or Line +8 dBu, balanced or unbalanced. Phantom supply (48V) |
| 70-100 V input | (1x) 2-position terminal block; high/speaker-level input (accepts 25 V, 70 V or 100 V) from distributed audio/paging systems |
| OUTPUTS | |
| Line Outputs | (1x) 3-position terminal block; loop-through of Mic/Line Input 1 and Line Input 2, +4 dBu, Balanced or Unbalanced. The line outputs mirror the audio of the loop output |
| Loop output(s) | (1x) 2-position terminal block per output |
| Audio output delay | Adjustable from 0 to 165 msec |
| Headphone output | (1x) 1/4" stereo headphone jack, on front of unit. Monitored input or output selectable in menu |
| Loop fault relay | Integrated into RS-232 DB-9 jack. Pin 1=NC, Pin 4=Common and Pin 6=NO Contact rating: 2.0 A @ 30 VDC |
| Loop output drive voltage | 33.3 Vrms (47.1 Vpk) continuous |
| Rated loop output current | 12 Arms (17 Apk) per output |
| Loop resistance range | 0.5 ? to 3.0 ? (DC) |
| Speaker output | Integrated into Loop Output A terminal block (switchable in menu). 225 Watts x 1 channel @ 4?, 125 Watts x 1 channel @ 8?, (Class D) Frequency response = 20 Hz-20 kHz, THD=0.07% |
| AUDIO | |
| Rated load | 0.5 ? DC with 135 µH inductance |
| Loop frequency response | 45 Hz to 9.0 kHz ± 2 dB (1 kHz ref.) |
| Rated loop THD | <1 % at rated output current (1 kHz sine wave) |
| OTHER | |
| Front controls | Front LCD display menu access/adjustment via control button/dial |
| Adjustable settings | Input mixing, parametric equalization, compression, metal loss compensation, high and low-pass filters, AGC and audio delay, output levels. See User Manual for adjustment range(s) |
| Internal calibration tools | Test tone generator with pink noise, loop current adjustment/matching. See User Manual for details |
| Other features | Save/load configuration, loop test, priority input selection with adjustable threshold, loop fault relay, open/short and thermal protection. See User Manual for details |
| Network control and firmware | Function control and calibration by DigiLoop PC App via ethernet (RJ-45). PC App requires Windows 7 or higher. Firmware updates through USB only |
| Warranty | 5 years |
| Approvals | CE, UL, ULC, FCC, Industry Canada, RoHS, WEEE, CB scheme, RCM |
| Standards compliance | This product is designed to meet the IEC-60118-4 standard when correctly designed, installed and commissioned. Test Specifications provided to the IEC 62489-1 standard |
| EAR 022 | |
| Style | Around-ear speaker |
| Plug | 3.5mm mono |
| Cord | 39" |
| Driver Size | 23mm |
| Nominal Impedance | 32? |
| Freq. Response | 20 - 20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | 118 dB @ 1kHz |
| FWT 001 | |
| Description | Cloth-based warning tape, 2 in. Width, 165 ft Length per roll |
| Dimensions | 6" Dia x 2" W x 165' L Roll |
| Weight | 1.28lbs |
| Color | White cloth Blue Williams Sound logo, T-Coil Logo, and Warning Text |
| Warning Text | Warning: Do not cut or disturb - Hearing assistance induction loopwire |
| Used with | PLW F300, PLW F500 |
| LDP 009 | |
| 10-3/8" (L) x 6- 1/4" (W) x 1/8" (H) | |
| LDP 013 | |
| Dimensions | 7" H x 6" W x 1-3/4" D (18 cm H x 15 cm W x 4.5 cm D) |
| Weight | 12.7 oz.(360 g) |
| PLR BP1 | |
| Dimensions | 4.1"H x 2.85"W x 1.38"D (104 mm H x 72 mm W x 35 mm D) |
| Weight | 4.6 oz (130 g) with batteries, 2.6 oz (73 g) without batteries |
| Color/Material | Black ABS/polycarbonate molded plastic case |
| Battery Type | (2) AA (1.5VDC) Alkaline or NiMH (rechargeable) |
| Battery Life | Up to 200 hours with Alkaline batteries |
| LED Indicator | Green LED indicates power on, flashes when batteries are low |
| Headphone Jack | 3.5mm stereo TRS jack works with mono or stereo headphones |
| Volume control | External switched thumb wheel controls power on/off and volume level |
| Tone control | Rotary control inside battery compartment (1kHz reference at 400mA/m input with Tone at mid position) |
| Induction Coil | Maximum reception: receiver oriented vertically |
| Power Output | 35mW (max) into 33 ohms mono impedance |
| THD | <2% |
| Frequency Response | 300Hz to 10KHz, -6dB |
| PLW F500 | |
| Length | 500 ft. |
| Width | OD: 22 mm (with insulation) ID: 19 mm (bare copper) |
| Thickness | OD: 0.17 mm (with insulation) ID: 0.1 mm (bare copper) |
| Spool Dimensions | 8-1/8" W x _" H |
| Spool Weight | 6.5 lbs. |
| Color/Material | Copper with Mylar (polyester) encapsulation |
Large-area system offers flexible, powerful software control of mixing, equalization, compression and phase shift. Potent, class D, pulse-width amplifiers maximize efficiency and reduce size and weight. Dual-amplifier design offers the option of a single 12A output for large perimeter loops or dual 10A outputs for phase loop arrays.
System Includes:
- (1) DL210 NET 2.0 induction loop amplifier
- (2) PLR BP1 body-pack receivers with batteries
- (2) EAR 022 surround earphones
- (1) BAT KT6 Dual Drop-in Charger Kit (includes CHG 3502 Dual Drop-In Charger and (2) BAT 026-2 AA NiMH batteries)
- (2) PLW F500 500 ft. rolls of flat power loop wire
- (6) FWT 001 rolls of flat wire warning tape
- (1) IDP 009 ADA wall plaque (T-Coil)
- (1) IDP 013 Induction Loop Status Sign
- 5-year Warranty on amplifier
| DL210 NET 2.0 | |
| GENERAL | |
| Dimensions | 2 RU Rackmount, 19" W x 3.5" H x 12" D. Chassis is 17" W |
| Weight | 14.3 lbs (6.5 kg) |
| Color | Case: Black, white and blue legends on front, white legends on back. LCD: Backlit Blue |
| Fan cooling | Variable Speed, Temperature Controlled |
| Power Supply | Internal, Universal 100-240 VAC, 50/60 Hz, 250 Watt. Fuse: 5 x 20 mm, 5 A, 250 V AC power plug is IEC 320-C14 |
| Heat output @ 120 VAC | Sleep state: 100 BTU/hr; Idle state: 146 BTU/hr; Driving two loops @ 12 A each: 1,040 BTU/hr |
| Ethernet | (1x) RJ-45; 10-100 MBps |
| USB | (1x) standard-B. USB 1.1, 2.0 or 3.0 supported |
| RS-232/Loop fault relay | (1x) DB-9 jack. RS-232: Pin 2=Tx, Pin 3=Rx, Pin 5=gnd. Loop fault relay: Pin 1=NC, Pin 4=Common, Pin 6=NO. Relay contact rating: 2.0 A @ 30 VDC |
| Environment | 0-35¡ C ( 32-95¡ F), 0-90% relative humdity |
| Coverage Area | N/A31,400 sq. ft. (2,917 sq. m.) (Perimeter Loop, 1:1 aspect ratio, both outputs driven) 51,660 sq. ft. (4,800 sq. m.) (Perimeter Loop, 3:1 aspect ratio, both outputs driven) |
| INPUTS | |
| Dante input | No. Dante input available on DL210 NET D 2.0 model only |
| Mic/Line inputs | (2x) 3-position terminal block, input impedance=1.5 k? Mic, 10 k? Line Configurable/Accepts: Mic, Line -10 dBV, Line +4 dBu, or Line +8 dBu, balanced or unbalanced. Phantom supply (48V) |
| 70-100 V input | (1x) 2-position terminal block; high/speaker-level input (accepts 25 V, 70 V or 100 V) from distributed audio/paging systems |
| OUTPUTS | |
| Line Outputs | (1x) 3-position terminal block; loop-through of Mic/Line Input 1 and Line Input 2, +4 dBu, Balanced or Unbalanced. The line outputs mirror the audio of the loop output |
| Loop output(s) | (1x) 2-position terminal block per output |
| Audio output delay | Adjustable from 0 to 165 msec |
| Headphone output | (1x) 1/4" stereo headphone jack, on front of unit. Monitored input or output selectable in menu |
| Loop fault relay | Integrated into RS-232 DB-9 jack. Pin 1=NC, Pin 4=Common and Pin 6=NO Contact rating: 2.0 A @ 30 VDC |
| Loop output drive voltage | 33.3 Vrms (47.1 Vpk) continuous |
| Rated loop output current | 12 Arms (17 Apk) per output |
| Loop resistance range | 0.5 ? to 3.0 ? (DC) |
| Speaker output | Integrated into Loop Output A terminal block (switchable in menu). 225 Watts x 1 channel @ 4?, 125 Watts x 1 channel @ 8?, (Class D) Frequency response = 20 Hz-20 kHz, THD=0.07% |
| AUDIO | |
| Rated load | 0.5 ? DC with 135 µH inductance |
| Loop frequency response | 45 Hz to 9.0 kHz ± 2 dB (1 kHz ref.) |
| Rated loop THD | <1 % at rated output current (1 kHz sine wave) |
| OTHER | |
| Front controls | Front LCD display menu access/adjustment via control button/dial |
| Adjustable settings | Input mixing, parametric equalization, compression, metal loss compensation, high and low-pass filters, AGC and audio delay, output levels. See User Manual for adjustment range(s) |
| Internal calibration tools | Test tone generator with pink noise, loop current adjustment/matching. See User Manual for details |
| Other features | Save/load configuration, loop test, priority input selection with adjustable threshold, loop fault relay, open/short and thermal protection. See User Manual for details |
| Network control and firmware | Function control and calibration by DigiLoop PC App via ethernet (RJ-45). PC App requires Windows 7 or higher. Firmware updates through USB only |
| Warranty | 5 years |
| Approvals | CE, UL, ULC, FCC, Industry Canada, RoHS, WEEE, CB scheme, RCM |
| Standards compliance | This product is designed to meet the IEC-60118-4 standard when correctly designed, installed and commissioned. Test Specifications provided to the IEC 62489-1 standard |
| EAR 022 | |
| Style | Around-ear speaker |
| Plug | 3.5mm mono |
| Cord | 39" |
| Driver Size | 23mm |
| Nominal Impedance | 32? |
| Freq. Response | 20 - 20kHz |
| Weight | 15g |
| Max Power Input | 30 mW |
| Sensitivity | 118 dB @ 1kHz |
| FWT 001 | |
| Description | Cloth-based warning tape, 2 in. Width, 165 ft Length per roll |
| Dimensions | 6" Dia x 2" W x 165' L Roll |
| Weight | 1.28lbs |
| Color | White cloth Blue Williams Sound logo, T-Coil Logo, and Warning Text |
| Warning Text | Warning: Do not cut or disturb - Hearing assistance induction loopwire |
| Used with | PLW F300, PLW F500 |
| LDP 009 | |
| 10-3/8" (L) x 6- 1/4" (W) x 1/8" (H) | |
| LDP 013 | |
| Dimensions | 7" H x 6" W x 1-3/4" D (18 cm H x 15 cm W x 4.5 cm D) |
| Weight | 12.7 oz.(360 g) |
| PLR BP1 | |
| Dimensions | 4.1"H x 2.85"W x 1.38"D (104 mm H x 72 mm W x 35 mm D) |
| Weight | 4.6 oz (130 g) with batteries, 2.6 oz (73 g) without batteries |
| Color/Material | Black ABS/polycarbonate molded plastic case |
| Battery Type | (2) AA (1.5VDC) Alkaline or NiMH (rechargeable) |
| Battery Life | Up to 200 hours with Alkaline batteries |
| LED Indicator | Green LED indicates power on, flashes when batteries are low |
| Headphone Jack | 3.5mm stereo TRS jack works with mono or stereo headphones |
| Volume control | External switched thumb wheel controls power on/off and volume level |
| Tone control | Rotary control inside battery compartment (1kHz reference at 400mA/m input with Tone at mid position) |
| Induction Coil | Maximum reception: receiver oriented vertically |
| Power Output | 35mW (max) into 33 ohms mono impedance |
| THD | <2% |
| Frequency Response | 300Hz to 10KHz, -6dB |
| PLW F500 | |
| Length | 500 ft. |
| Width | OD: 22 mm (with insulation) ID: 19 mm (bare copper) |
| Thickness | OD: 0.17 mm (with insulation) ID: 0.1 mm (bare copper) |
| Spool Dimensions | 8-1/8" W x _" H |
| Spool Weight | 6.5 lbs. |
| Color/Material | Copper with Mylar (polyester) encapsulation |
