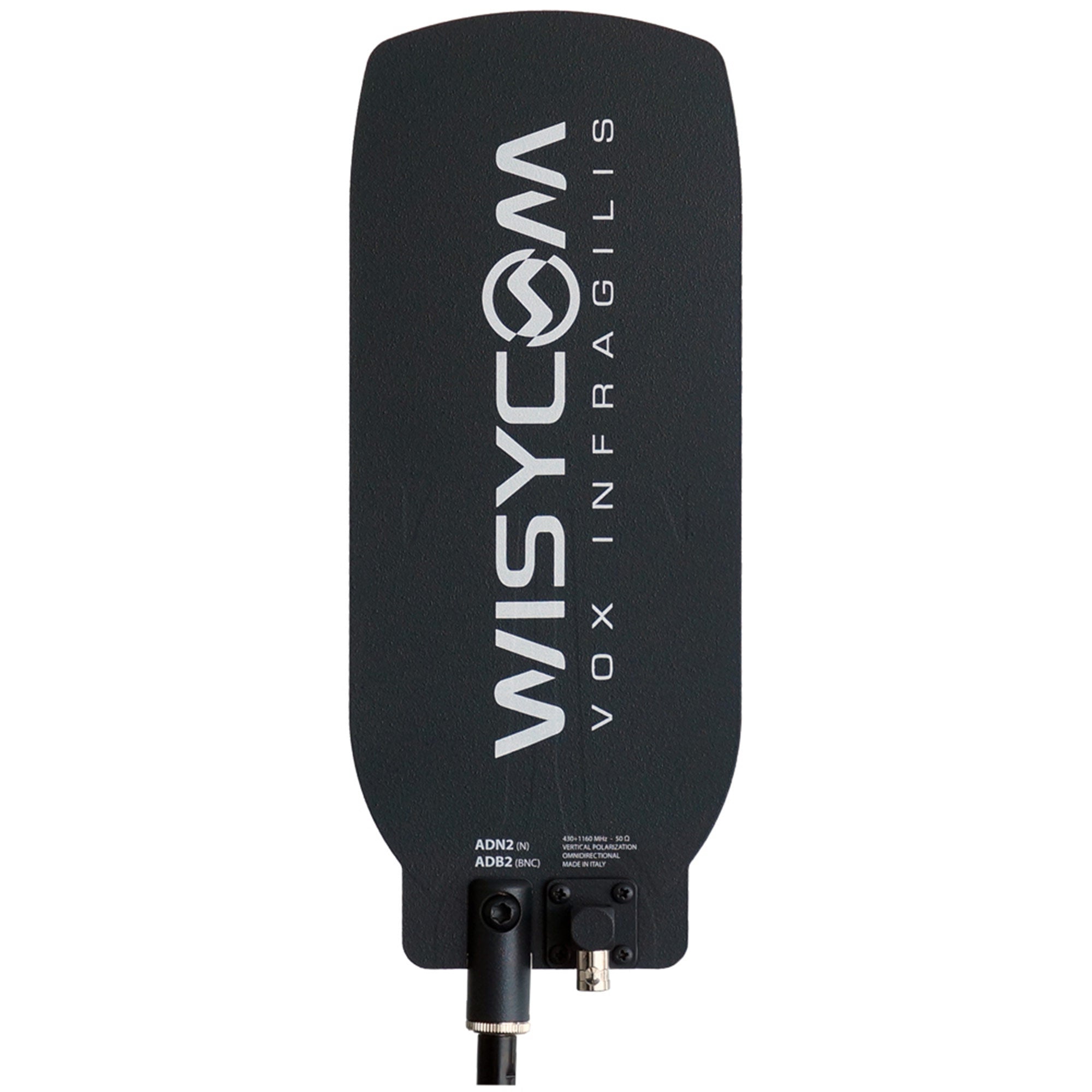

Wisycom ADB2 - Omnidirectional Wideband Antenna


  • Dale #:

    WISY-ADB2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

ADN/ADB is a wideband UHF omnidirectional antenna. It enhances reception providing approx. 3.2 dBi gain. Features: AGILE: working bandwidth of 430-1160 MHz RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints HIGH-PERFORMANCES: optimized 3.2dB gain Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

ADN/ADB is a wideband UHF omnidirectional antenna. It enhances reception providing approx. 3.2 dBi gain.

Features:

  • AGILE: working bandwidth of 430-1160 MHz
  • RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints
  • HIGH-PERFORMANCES: optimized 3.2dB gain

More +

Product Specs

Frequency ranges 430-1160 MHz
SWR < 1:1.5 in the range 430 ÷ 960 MHz
< 1:1.9 in the range 430 ÷ 1160 MHz
Polarization Vertical
Radiation Omnidirectional
Connector N or BNC
Impedance 50 ?
Material epoxy fiberglass (copper – clad)
Finishing black matte textured weather resistance coating
Mounting 5/4" / 3/8" thread (metal support and mounting base)
Dimensions 290 x 111 x 40 mm (N) or
290 x 111 x 28 (BNC) (H x W x D)
Weight 245 g (BNC), 295 g (N)

More +
