Yamaha MY8-SDI-ED HD/SD-SDI Embed/De-Embed Card (for Yamaha Digital Mixers)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description

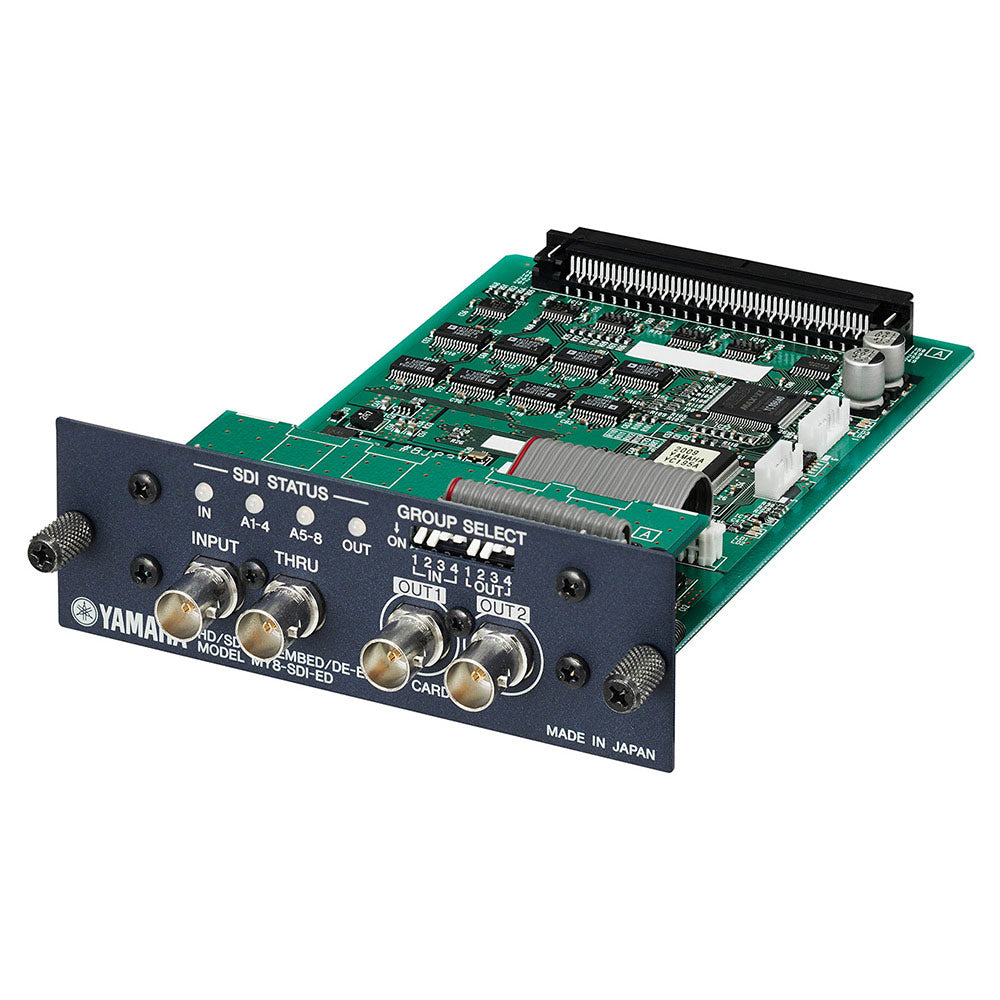

The MY8-SDI-ED is an interface card that provides I/O of HD-SDI embedded audio signals for Yamaha MY (Mini-YGDAI) equipped digital mixers and mixing engines.
Features:
- 1 x HD/SD-SDI Input, 2 x HD/SD-SDI Output (same signal), 1 x thru-output (reclocked)
- Able to de-embed up to two of the 4 audio groups (4 channels per group; total 8 channels) multiplexed in a HD-SDI signal
- Able to embed 2 audio groups into an HD/SD-SDI signal for output
- LED audio status display
| HD-SDI/SD-SDI I/O CHARACTERISTICS | |
| HD-SDI I/O Signal | SMPTE 292M (1.485 Gbps, 1.485/1.001 Gbps) |
| SD-SDI I/O Signal | SMPTE 259M-C (270 Mbps) |
| Resolution | 24 bit |
| Fs | 48 kHz |
| Impedance | 75 |
| Connector | Input: 1 x BNC Output: 2 x BNC (same signal) |
| Lines | Selected 2 audio groups of 4 channels; total 8 channels |
| HD-SDI/SD-SDI THRU OUTPUT CHARACTERISTICS | |
| SDI Output Signal | Reclocked thru output |
| Impedance | 75 |
| Connector | 1 x BNC |
| COMPATIBLE FORMAT | 525i 59.94 |
The MY8-SDI-ED is an interface card that provides I/O of HD-SDI embedded audio signals for Yamaha MY (Mini-YGDAI) equipped digital mixers and mixing engines.
Features:
- 1 x HD/SD-SDI Input, 2 x HD/SD-SDI Output (same signal), 1 x thru-output (reclocked)
- Able to de-embed up to two of the 4 audio groups (4 channels per group; total 8 channels) multiplexed in a HD-SDI signal
- Able to embed 2 audio groups into an HD/SD-SDI signal for output
- LED audio status display
| HD-SDI/SD-SDI I/O CHARACTERISTICS | |
| HD-SDI I/O Signal | SMPTE 292M (1.485 Gbps, 1.485/1.001 Gbps) |
| SD-SDI I/O Signal | SMPTE 259M-C (270 Mbps) |
| Resolution | 24 bit |
| Fs | 48 kHz |
| Impedance | 75 |
| Connector | Input: 1 x BNC Output: 2 x BNC (same signal) |
| Lines | Selected 2 audio groups of 4 channels; total 8 channels |
| HD-SDI/SD-SDI THRU OUTPUT CHARACTERISTICS | |
| SDI Output Signal | Reclocked thru output |
| Impedance | 75 |
| Connector | 1 x BNC |
| COMPATIBLE FORMAT | 525i 59.94 |
