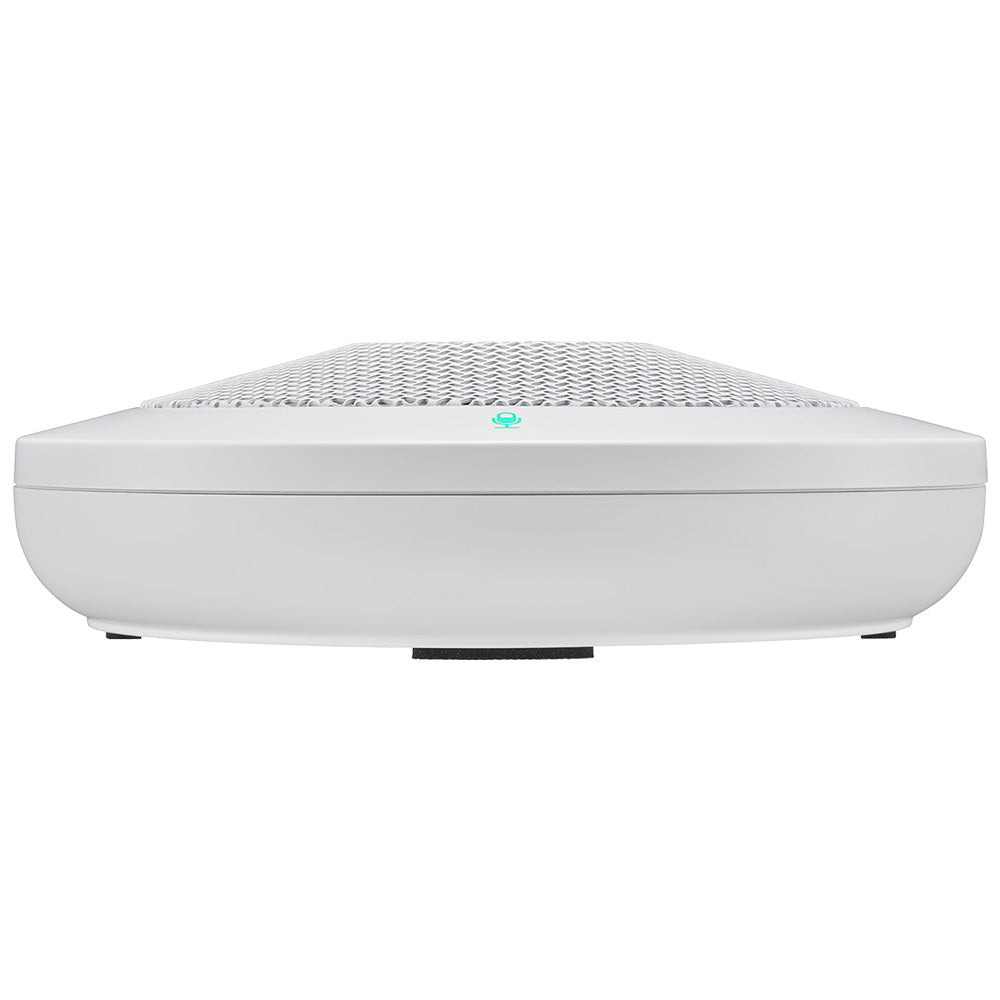

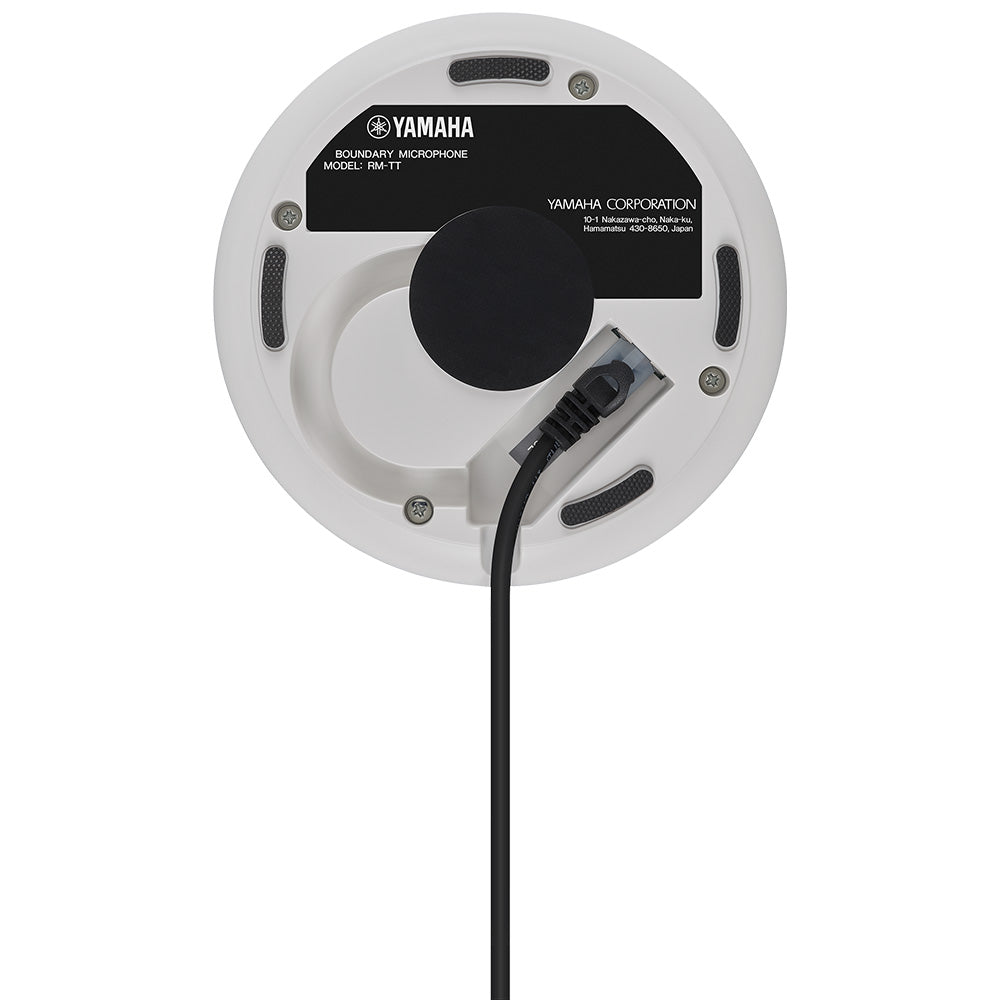

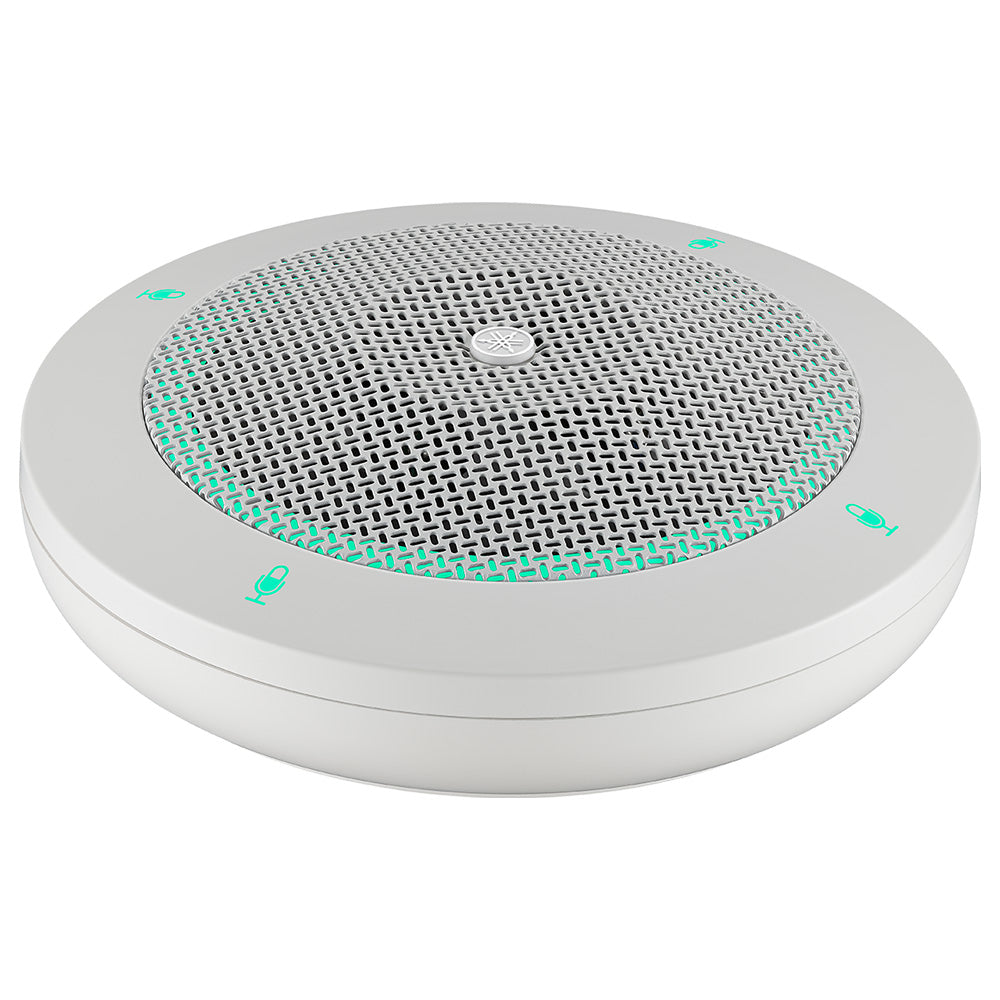

Yamaha RM-TT - Wired Tabletop Conferencing Microphone for ADECIA (White)

  • Dale #:

    YAUC-RMTTW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Tabletop array microphone provides a comfortable conference sound environment with no configuration needed. Features: Supports network audio standard, Dante. Auto Voice Tracking allows flexibility of table layout in meeting room and position of participants. 6 types of microphone directivit... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Tabletop array microphone provides a comfortable conference sound environment with no configuration needed.

Features:

  • Supports network audio standard, Dante.
  • Auto Voice Tracking allows flexibility of table layout in meeting room and position of participants.
  • 6 types of microphone directivity to choose from, depending on the number of participants and meeting style.
  • Achieves comfortable sound quality by making full use of adaptive echo canceller, auto gain control, noise reduction, and dereverberation.
  • When using Auto Voice tracking, RM-CR automatically selects the microphone that is the nearest to talker to pick up voice.
  • Dante audio, control reception and PoE power are connected through a single network cable.
  • With included mounting adaptor, the microphone can be fixed on the table

More +

Product Specs

General Specifications
Description Boundary Microphone
Colour Black, White
Dimensions (W x D x H) 140 mm x 140 mm x 41.5 mm
Weight 310 g
Power Requirements PoE (IEEE 802.3af)
Maximum Power Consumption 4.5 W
In Operation Temperature 0°C - 40°C
Humidity 30% - 90% (No condensation)
Storage Temperature -20°C - 60°C
Humidity 20% - 90% (No condensation)
Indicator Mute Indicator (Mute/Unmute)
Status Indicator (Ring)
Network Port Indicator
Maximum Device Number with RM-CR 14 (without VXL1-16P, up to 16)
Accessories Installation Manual, Table-top mounting adapter, 3 x Screw for mounting, 3 x Spacer
Network Specifications
Ethernet Dante, Remote Control, Web UI, PoE
Cable Requirements CAT5e or higher (STP)
Audio Specifications
Frequency Response 160 Hz - 16 kHz (-10 dB)
Sampling Rate 48 kHz
Bit Depth 24 bit
Latency (including signal processing) 46 ms (except for toroidal directivity)
50 ms (for toroidal directivity)
Audio I/O Dante 1 in x 2 out
In1=AEC reference signal/Out1=output of beam mix, Out2= output of beam mix (simple processed)
Maximum Input Level of SPL (0 dBFS) 106.8 dB SPL
Self Noise 6.3 dBA SPL
SNR (Ref. 94 dB SPL at 1 kHz) 87.7 dBA
Sensitivity -12.8 dBFS/Pa
Dynamic Range 100.5 dBA
Signal Processing Auto Voice Tracking
Selectable Polar Pattern: Cardioid, Hyper Cardioid, Super Cardioid, Omni, Bi-Directional, Troid
AEC, NR, Dereverberation, Auto Mixer, AGC, User PEQ, Output Gain
