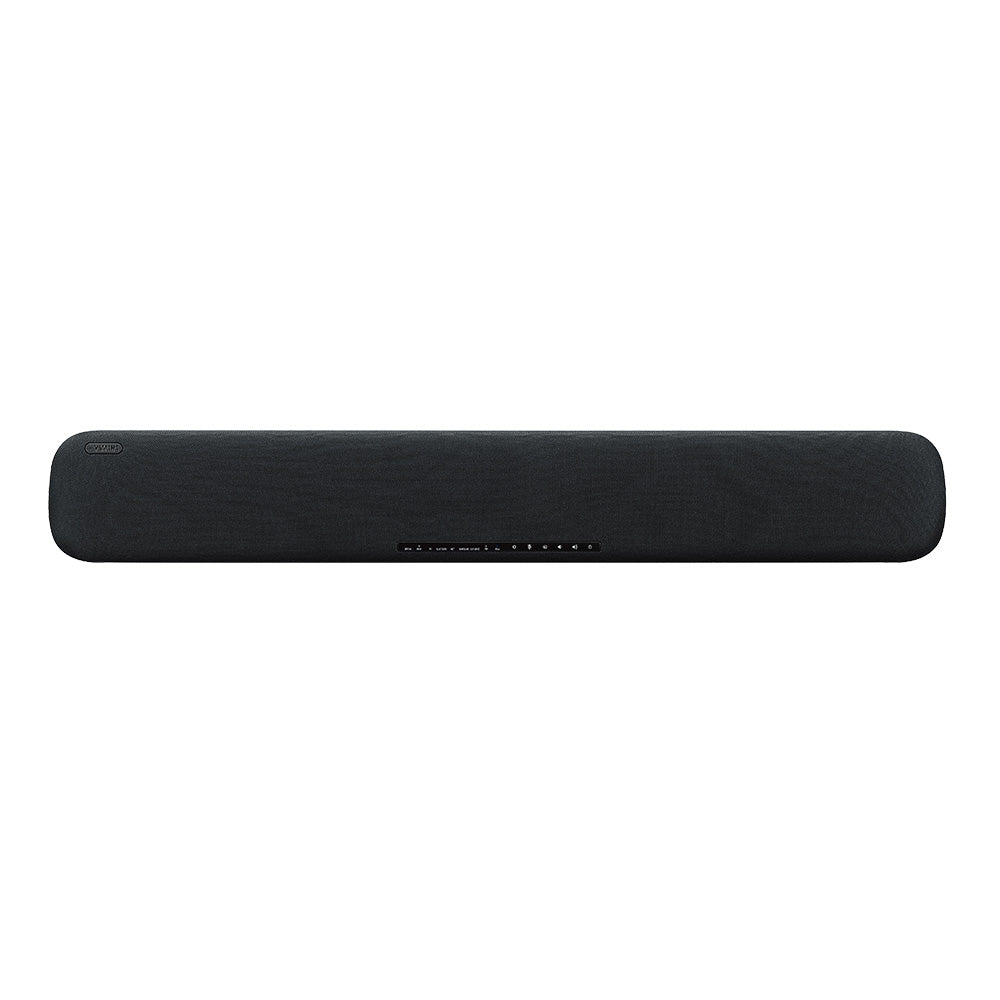

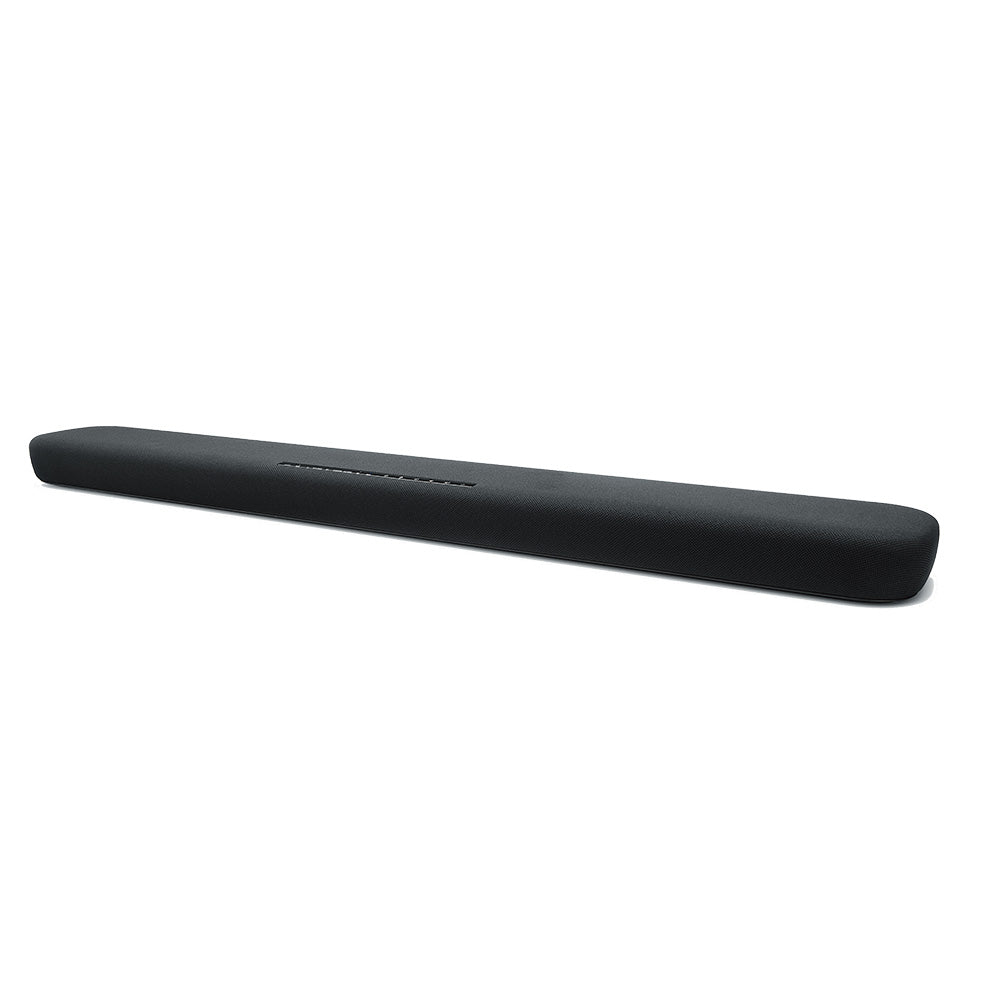

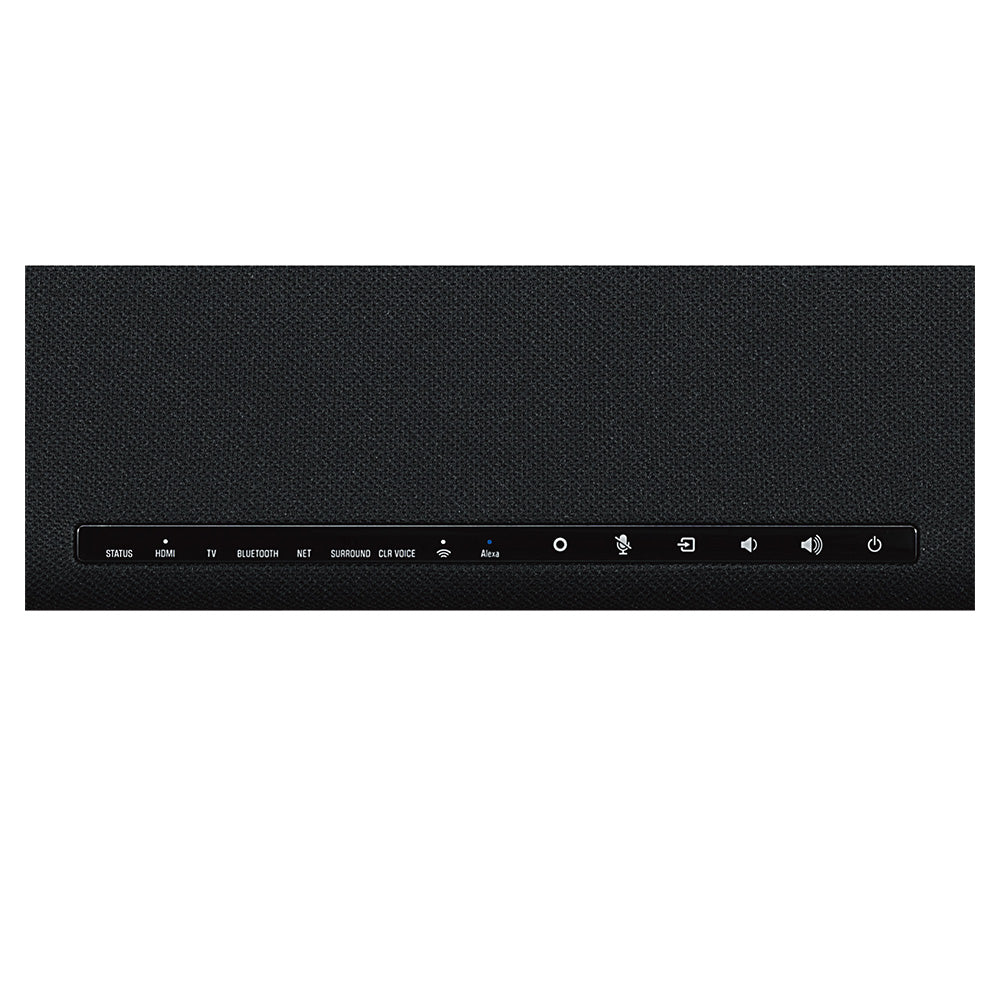

Yamaha Unified Communications ESB-1090 - Enterprise Sound Bar
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Yamaha Unified Communications ESB-1090 - Enterprise Sound Bar
Sale price$284.99
Regular price$285.00
Description
Incorporating 2 built-in subwoofers, dome tweeters, and full range speakers, the ESB-1090 delivers rich sound output and premium sound quality for middle-sized rooms. With 3 preset modes, "Conference mode", "Education mode" and "Hotel mode", you can optimize playback for your appropriate use case.
Features:
- Rich sound output and premium sound quality enhance remote conferencing and content sharing
- Two built-in subwoofers, dome tweeters and full range speakers
- 3 preset modes optimize the sound and operability for offices, schools and hotels
- Flexible install with both flat and wall-mount options
- Blends into modern room designs
Application Preset Modes:
Corporate
- Remote Flexibility
- Optimized with conference mode
Education
- Hybrid and Remote flexibility
- Optimized for learning environments
Hospitality
- Contents sharing optimized for relaxation, TV, and music
| GENERAL | |
| Drivers | Front L/R: 5.5 cm (2-1/8") cone x 2, Tweeter: 2.5cm (1") dome x 2, Built-in subwoofer: 7.5cm (3") cone x 2 |
| Output Power | 120 W (Front L/R: 30 W x 2, Built-in subwoofer: 60 W) |
| Power Supply | AC 100 V to 120 V, 50/60 Hz |
| Power Consumption | 30 W (Rated) |
| Standby Power Consumption | 4.3 W (Voice Control Ready) 0.2 W (HDMI control off, network standby off) 1.7/1.9/1.7 W (HDMI control off, network standby on [Wired/Wi-Fi/Bluetooth]) 0.6 W (HDMI control on, network standby off) 2.2 W (HDMI control on, network standby on) |
| Maximum Volume | Max SPL: 96 dB at 1 m |
| Dimensions (W x H x D) | Installing the unit in front of a TV, etc.: 890 x 53 x 131 mm (35" x 2-1/8" x 5-1/8") Mounting the unit on a wall, with spacers: 890 x 131 x 62 mm (35" x 5-1/8" x 2-1/2") |
| Weight | 3.4 kg (7.5 lbs) |
| Operating Environment | Temperature: 5¼C to 40¼C (41¡F to 104¡F) Humidity: 30% to 90% (no condensation) |
| Storage Environment | Temperature: -20¼C to +60¼C (-4¡F to 140¡F) Humidity: 30% to 90% (no condensation) |
| Accessories | The unit, Remote control, Power cord, Optical digital audio cable, Mounting template, Spacers (*2/sheet), OwnerÕs Manual |
| Others | Mode change: Conference mode, Education mode, Hotel mode |
| DECODER | |
| Supported Audio Signal | PCM, Dolby Digital, DTS Digital Surround (up to 5.1ch) |
| INTERFACE | |
| HDMI | 4k/60p 4:4:4, HDR (HDR10, Hybrid Log-Gamma), HDCP2.3, 3D, ARC, CEC |
| Input Jacks | HDMI 1 (HDMI IN), Digital Optical 1, Network (Ethernet1, Wireless1) |
| Output Jacks | HDMI 1 (HDMI OUT (ARC)), Analog 1 (Subwoofer out) |
| Other Jacks | USB 1 (update only) |
| Bluetooth | Version: 4.2 Supported profiles: A2DP Supported codecs: SBC, AAC Class: Bluetooth Class2 Range (line-of-sight): Approx. 10m (33ft) Supported content protection method: SCMS-T [U.K., Europe and Russia models] Radio frequency 2402 MHz to 2480 MHz Maximum output power (EIRP) 9.5 dBm (8.9 mW) |
| Wired Network | Ethernet standard: 100BASE-TX/10BASE-T |
| Wi-Fi Network | Wireless LAN standards: IEEE 802.11b/g/n Radio frequency band: 2.4 GHz Available security method: WEP, WPA2-PSK (AES), Mixed Mode [U.K., Europe and Russia models] Radio frequency: 2.4 GHz band 2402 MHz to 2482 MHz (20 MHz) Maximum output power (EIRP): 2.4 GHz band 18.8 dBm (75.9 mW) |
| COMPLIANCE | |
| Classification | Class B Device |
| Safety | CB (IEC62368-1, IEC60065), CE (EN62368-1, EN60065), UL/CSA (UL62368-1, CSA62368-1) |
| EMC | FCC (Part 15 Subpart B (SDoC)), ICES-003, CE (EN61000-3-2, EN61000-3-3, EN55035, EN55032) |
| Radio | FCC (Part 15 Subpart C), RSS-247, CE (EN300328, EN62311, EN301 489-1, EN301 489-3, EN301 489-17) |
| Environment | RoHS compliant |
| Warranty | 2 years |
Incorporating 2 built-in subwoofers, dome tweeters, and full range speakers, the ESB-1090 delivers rich sound output and premium sound quality for middle-sized rooms. With 3 preset modes, "Conference mode", "Education mode" and "Hotel mode", you can optimize playback for your appropriate use case.
Features:
- Rich sound output and premium sound quality enhance remote conferencing and content sharing
- Two built-in subwoofers, dome tweeters and full range speakers
- 3 preset modes optimize the sound and operability for offices, schools and hotels
- Flexible install with both flat and wall-mount options
- Blends into modern room designs
Application Preset Modes:
Corporate
- Remote Flexibility
- Optimized with conference mode
Education
- Hybrid and Remote flexibility
- Optimized for learning environments
Hospitality
- Contents sharing optimized for relaxation, TV, and music
| GENERAL | |
| Drivers | Front L/R: 5.5 cm (2-1/8") cone x 2, Tweeter: 2.5cm (1") dome x 2, Built-in subwoofer: 7.5cm (3") cone x 2 |
| Output Power | 120 W (Front L/R: 30 W x 2, Built-in subwoofer: 60 W) |
| Power Supply | AC 100 V to 120 V, 50/60 Hz |
| Power Consumption | 30 W (Rated) |
| Standby Power Consumption | 4.3 W (Voice Control Ready) 0.2 W (HDMI control off, network standby off) 1.7/1.9/1.7 W (HDMI control off, network standby on [Wired/Wi-Fi/Bluetooth]) 0.6 W (HDMI control on, network standby off) 2.2 W (HDMI control on, network standby on) |
| Maximum Volume | Max SPL: 96 dB at 1 m |
| Dimensions (W x H x D) | Installing the unit in front of a TV, etc.: 890 x 53 x 131 mm (35" x 2-1/8" x 5-1/8") Mounting the unit on a wall, with spacers: 890 x 131 x 62 mm (35" x 5-1/8" x 2-1/2") |
| Weight | 3.4 kg (7.5 lbs) |
| Operating Environment | Temperature: 5¼C to 40¼C (41¡F to 104¡F) Humidity: 30% to 90% (no condensation) |
| Storage Environment | Temperature: -20¼C to +60¼C (-4¡F to 140¡F) Humidity: 30% to 90% (no condensation) |
| Accessories | The unit, Remote control, Power cord, Optical digital audio cable, Mounting template, Spacers (*2/sheet), OwnerÕs Manual |
| Others | Mode change: Conference mode, Education mode, Hotel mode |
| DECODER | |
| Supported Audio Signal | PCM, Dolby Digital, DTS Digital Surround (up to 5.1ch) |
| INTERFACE | |
| HDMI | 4k/60p 4:4:4, HDR (HDR10, Hybrid Log-Gamma), HDCP2.3, 3D, ARC, CEC |
| Input Jacks | HDMI 1 (HDMI IN), Digital Optical 1, Network (Ethernet1, Wireless1) |
| Output Jacks | HDMI 1 (HDMI OUT (ARC)), Analog 1 (Subwoofer out) |
| Other Jacks | USB 1 (update only) |
| Bluetooth | Version: 4.2 Supported profiles: A2DP Supported codecs: SBC, AAC Class: Bluetooth Class2 Range (line-of-sight): Approx. 10m (33ft) Supported content protection method: SCMS-T [U.K., Europe and Russia models] Radio frequency 2402 MHz to 2480 MHz Maximum output power (EIRP) 9.5 dBm (8.9 mW) |
| Wired Network | Ethernet standard: 100BASE-TX/10BASE-T |
| Wi-Fi Network | Wireless LAN standards: IEEE 802.11b/g/n Radio frequency band: 2.4 GHz Available security method: WEP, WPA2-PSK (AES), Mixed Mode [U.K., Europe and Russia models] Radio frequency: 2.4 GHz band 2402 MHz to 2482 MHz (20 MHz) Maximum output power (EIRP): 2.4 GHz band 18.8 dBm (75.9 mW) |
| COMPLIANCE | |
| Classification | Class B Device |
| Safety | CB (IEC62368-1, IEC60065), CE (EN62368-1, EN60065), UL/CSA (UL62368-1, CSA62368-1) |
| EMC | FCC (Part 15 Subpart B (SDoC)), ICES-003, CE (EN61000-3-2, EN61000-3-3, EN55035, EN55032) |
| Radio | FCC (Part 15 Subpart C), RSS-247, CE (EN300328, EN62311, EN301 489-1, EN301 489-3, EN301 489-17) |
| Environment | RoHS compliant |
| Warranty | 2 years |
