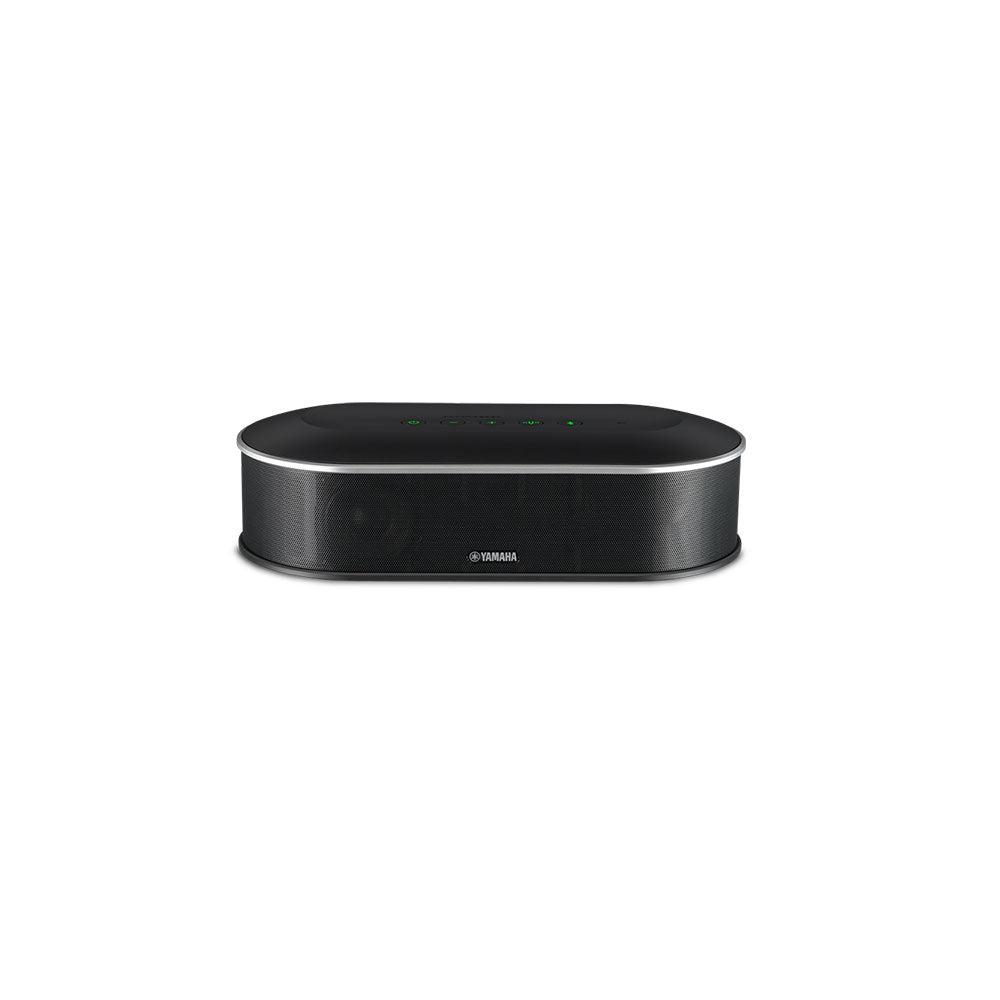

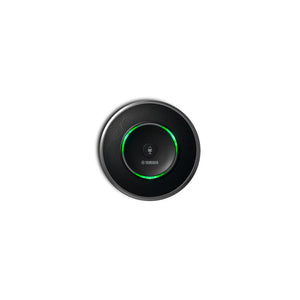

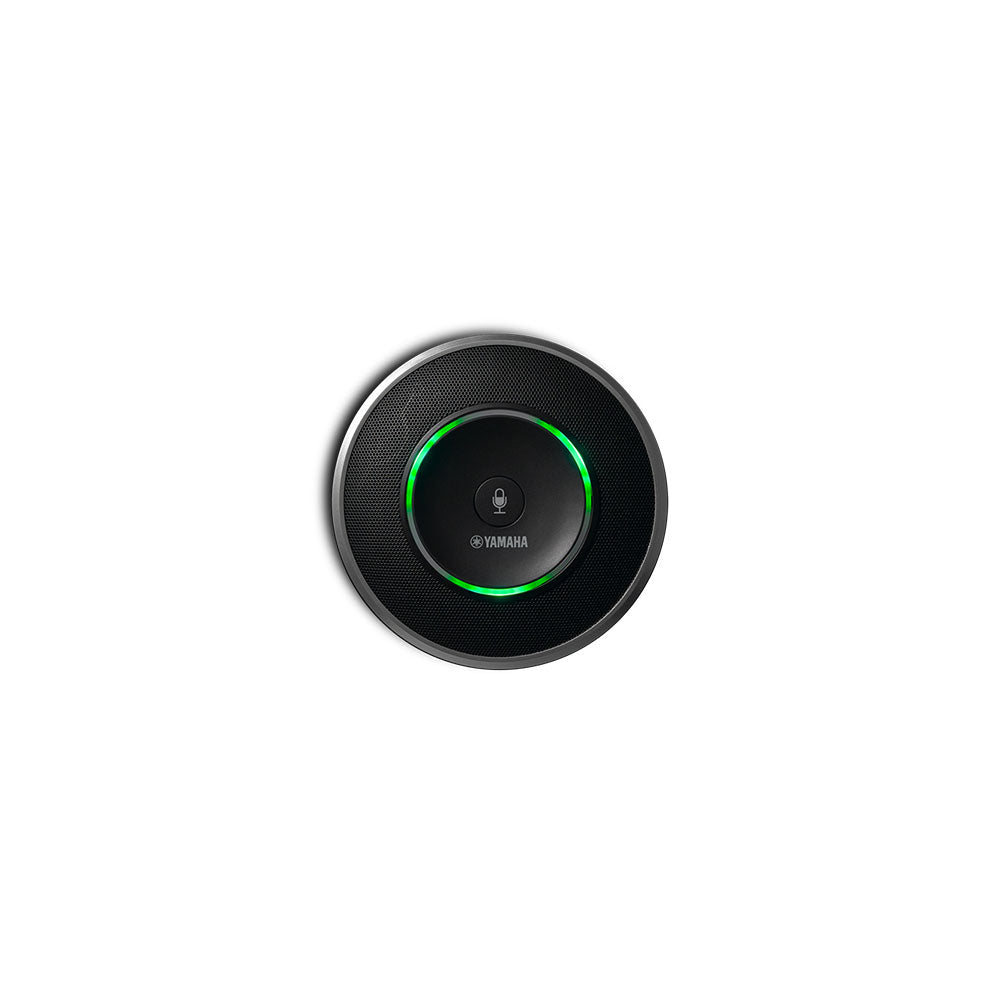

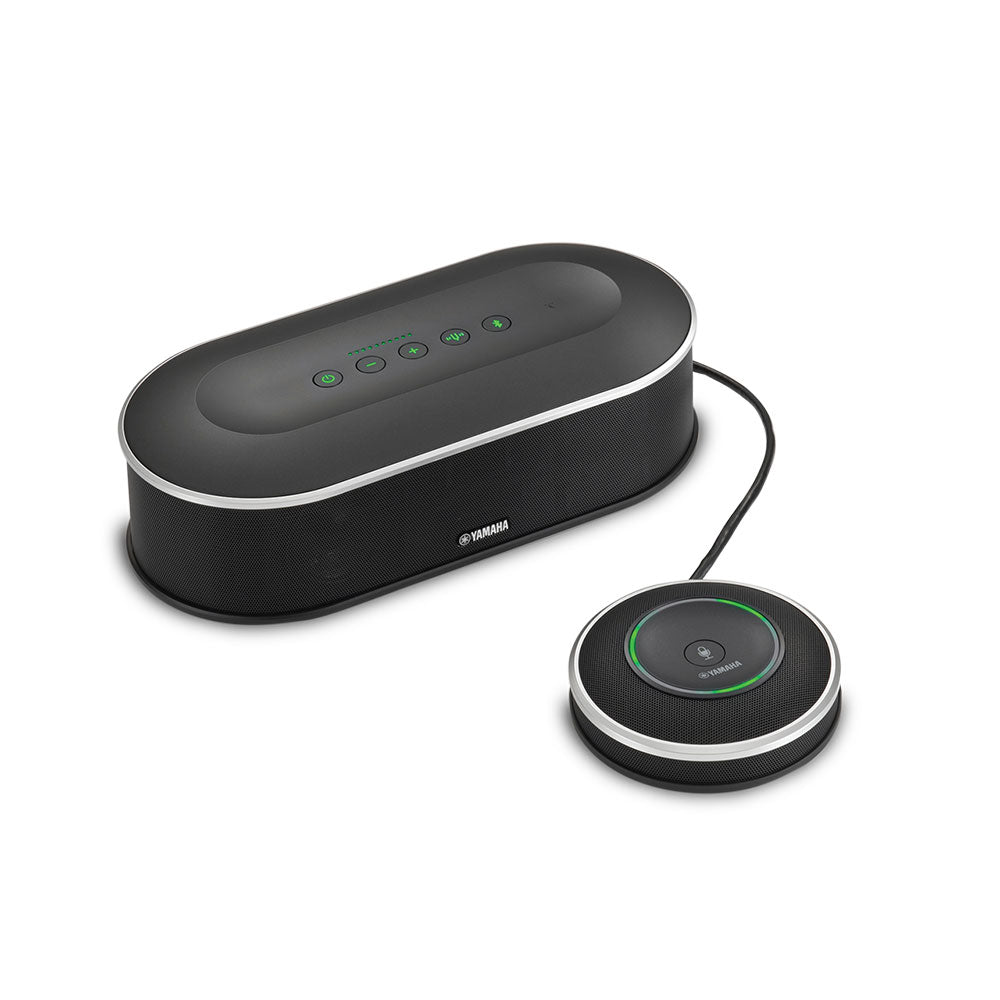

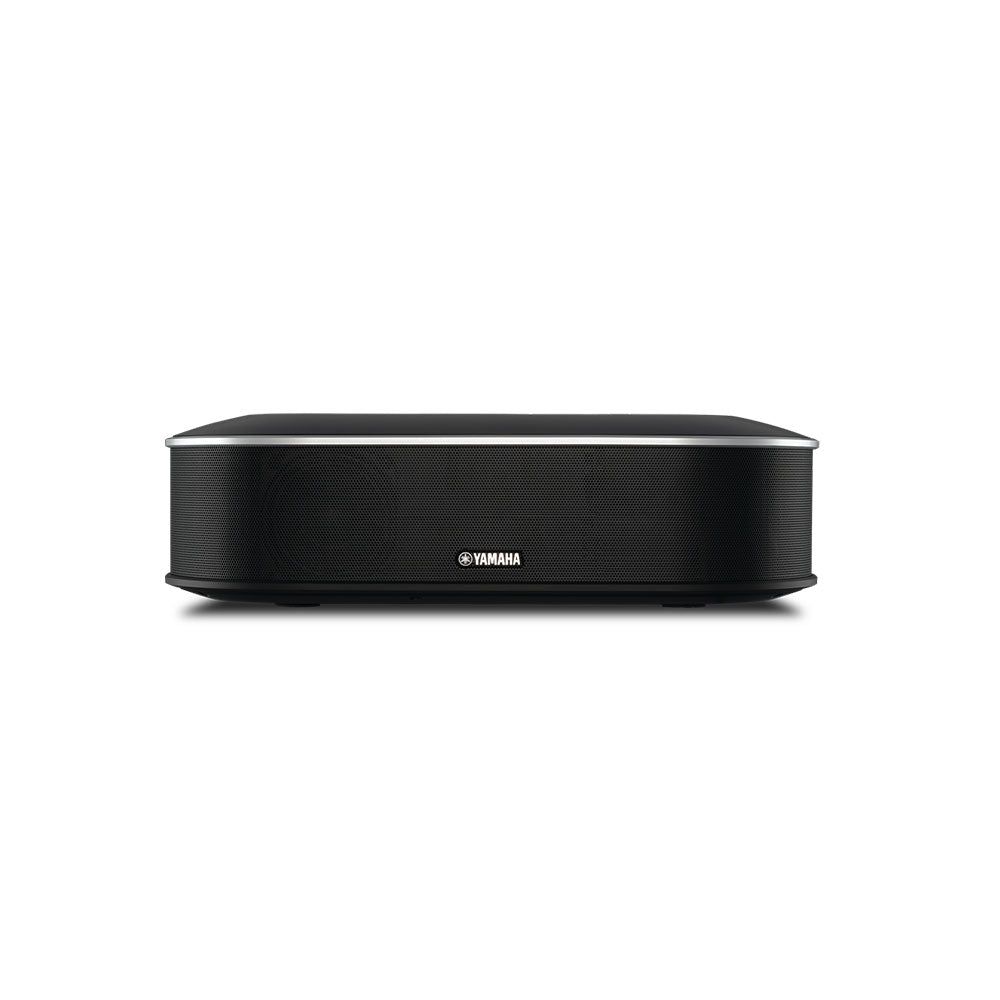

Yamaha YVC-1000NA USB and Bluetooth Conferencing Microphone System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Ideal for medium and large spaces, this intuitive communications system features separate microphone and speaker units for flexibility during audio, web, and video conferencing. Designed to support 2 external speakers and 5 daisy-chained microphones, it’s the perfect scalable solution for accommodating larger meeting rooms and additional participants. Adaptive echo cancellation and human voice activity detection (HVAD) minimize background noise, facilitating natural, stress-free conversation during every call.
Features:
- Multiple connection options via Bluetooth® and USB
- Ability to daisy chain up to 5 microphone pods (per base unit) for a total of 15 microphones (3 internal mics per pod)
- Speaker tracking
- Scalability to fit various and ever-changing table configurations
- Flexible alternative to installed audio solutions for large conference rooms
- Supports 2 external speakers
- High-quality audio technology with Human Voice Activity Detection (HVAD) to minimize background noise during calls
- Automatic auto-tuning measures and analyzes the room environment and adjusts acoustic settings to the optimal level
- Automatic system warnings to help with poor microphone placement
- Certified for Zoom and similar online services (except Skype for Business)
| Interface | Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication) Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals |
| Power consumption (max) | 20 W (one connected microphone), 35 W (five connected microphones) |
| Radio interference standard | FCC (Part 15B) Class A, ICES-003 |
| Operating environment | Temperature: 0 to 40¡C (32 to 104¡F) Humidity: 20 to 85% (no condensation) |
| Dimensions | Control Unit (W x H x D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in) Microphone (W x H x D): 136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in) |
| Weight | Control Unit: 1.8 kg (4.0 lbs), Microphone: 0.4 kg (0.9 lbs) |
| Power source | 120 V (60 Hz) |
| Supported OS | OS: 32-bit or 64-bit Windows 10, 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7, Mac OS X 10.11, Mac OS X 10.10, Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later |
| Bluetooth | Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: SBC, mSBC Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft) |
| NFC | Compatible devices: NFC-compatible Android devices, versions 4.1, 4.2, 4.3 and 4.4 |
| Voice Guidance | English, Japanese, Chinese, Korean, French, Spanish, German |
| Accessories | Power cable (3 m (9.8 ft)), USB cable (5 m (16.4 ft)), microphone cable (5 m (16.4 ft)), Quick Start Guide |
| Others | Firmware update (transfer from PC through USB) |
| Audio | |
| Microphone Unit | Unidirectional x 3 |
| Speaker Unit | Full-range x 1 |
| Maximum Volume | 95 dB (0.5 m (1.6 ft)) |
| Frequency Bandwidth | For sound pickup: 100 to 20,000 Hz, For playback: 100 to 20,000 Hz |
| Signal Processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning |
Ideal for medium and large spaces, this intuitive communications system features separate microphone and speaker units for flexibility during audio, web, and video conferencing. Designed to support 2 external speakers and 5 daisy-chained microphones, it’s the perfect scalable solution for accommodating larger meeting rooms and additional participants. Adaptive echo cancellation and human voice activity detection (HVAD) minimize background noise, facilitating natural, stress-free conversation during every call.
Features:
- Multiple connection options via Bluetooth® and USB
- Ability to daisy chain up to 5 microphone pods (per base unit) for a total of 15 microphones (3 internal mics per pod)
- Speaker tracking
- Scalability to fit various and ever-changing table configurations
- Flexible alternative to installed audio solutions for large conference rooms
- Supports 2 external speakers
- High-quality audio technology with Human Voice Activity Detection (HVAD) to minimize background noise during calls
- Automatic auto-tuning measures and analyzes the room environment and adjusts acoustic settings to the optimal level
- Automatic system warnings to help with poor microphone placement
- Certified for Zoom and similar online services (except Skype for Business)
| Interface | Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication) Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals |
| Power consumption (max) | 20 W (one connected microphone), 35 W (five connected microphones) |
| Radio interference standard | FCC (Part 15B) Class A, ICES-003 |
| Operating environment | Temperature: 0 to 40¡C (32 to 104¡F) Humidity: 20 to 85% (no condensation) |
| Dimensions | Control Unit (W x H x D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in) Microphone (W x H x D): 136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in) |
| Weight | Control Unit: 1.8 kg (4.0 lbs), Microphone: 0.4 kg (0.9 lbs) |
| Power source | 120 V (60 Hz) |
| Supported OS | OS: 32-bit or 64-bit Windows 10, 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7, Mac OS X 10.11, Mac OS X 10.10, Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later |
| Bluetooth | Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: SBC, mSBC Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft) |
| NFC | Compatible devices: NFC-compatible Android devices, versions 4.1, 4.2, 4.3 and 4.4 |
| Voice Guidance | English, Japanese, Chinese, Korean, French, Spanish, German |
| Accessories | Power cable (3 m (9.8 ft)), USB cable (5 m (16.4 ft)), microphone cable (5 m (16.4 ft)), Quick Start Guide |
| Others | Firmware update (transfer from PC through USB) |
| Audio | |
| Microphone Unit | Unidirectional x 3 |
| Speaker Unit | Full-range x 1 |
| Maximum Volume | 95 dB (0.5 m (1.6 ft)) |
| Frequency Bandwidth | For sound pickup: 100 to 20,000 Hz, For playback: 100 to 20,000 Hz |
| Signal Processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning |
