Yellowtec YT2203 - IntelliMix NEO Desktop Broadcast or Podcast Mixer
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Intellimix NEO Desktop Mixer is an 8-channel mixer for any kind of audio mixing that does not require AoIP connectivity. It comes with extended I/Os and detailed setting options. Intellimix NEO gets you control over eight inputs with channels displayed in two layers. It is designed as a mixing device to master every imaginable and complex 8-channel mixing task for anyone who does not need AoIP connectivity. Thanks to remote control options, admin mode and an unlimited amount of user profiles, Intellimix NEO is ideal for shared workplaces.

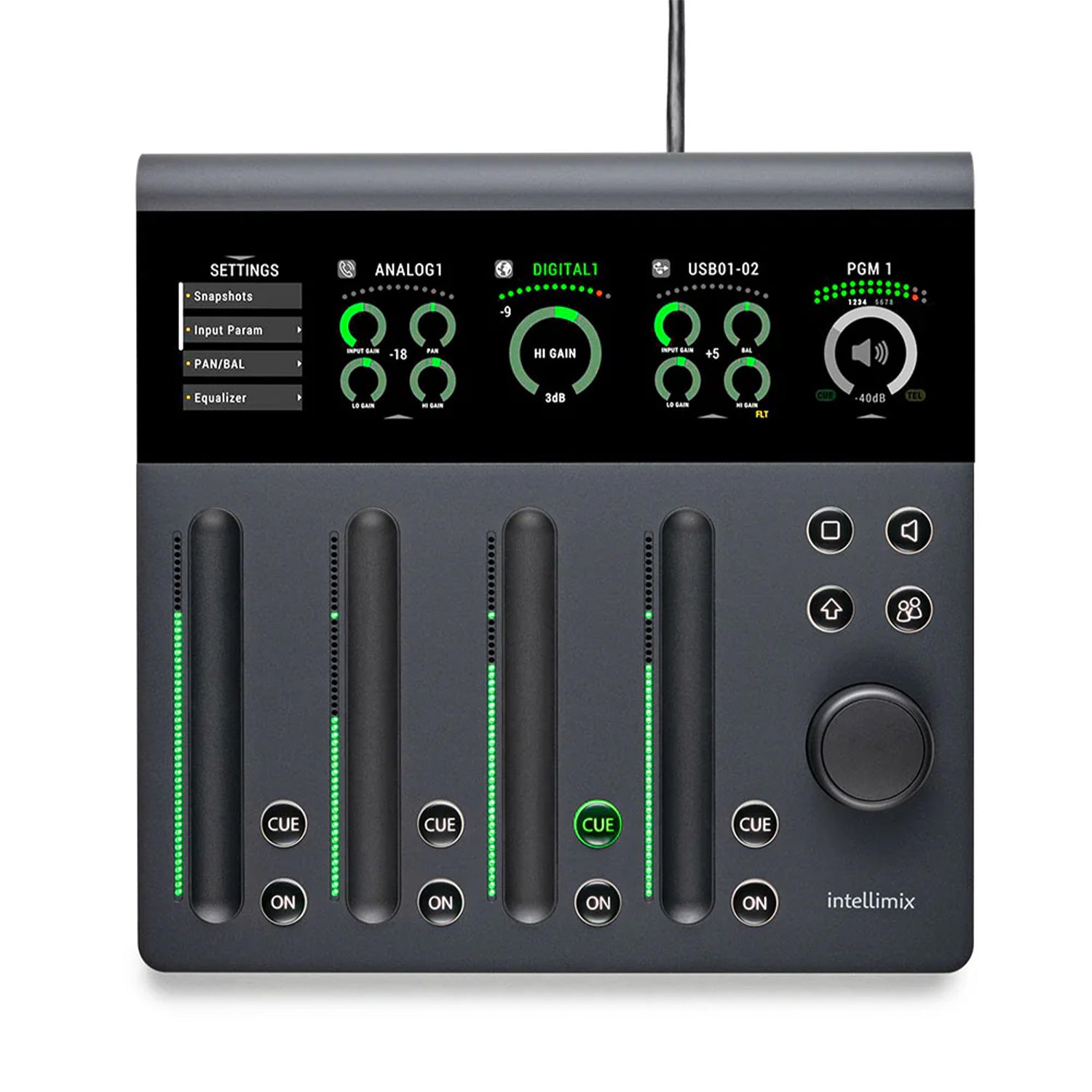

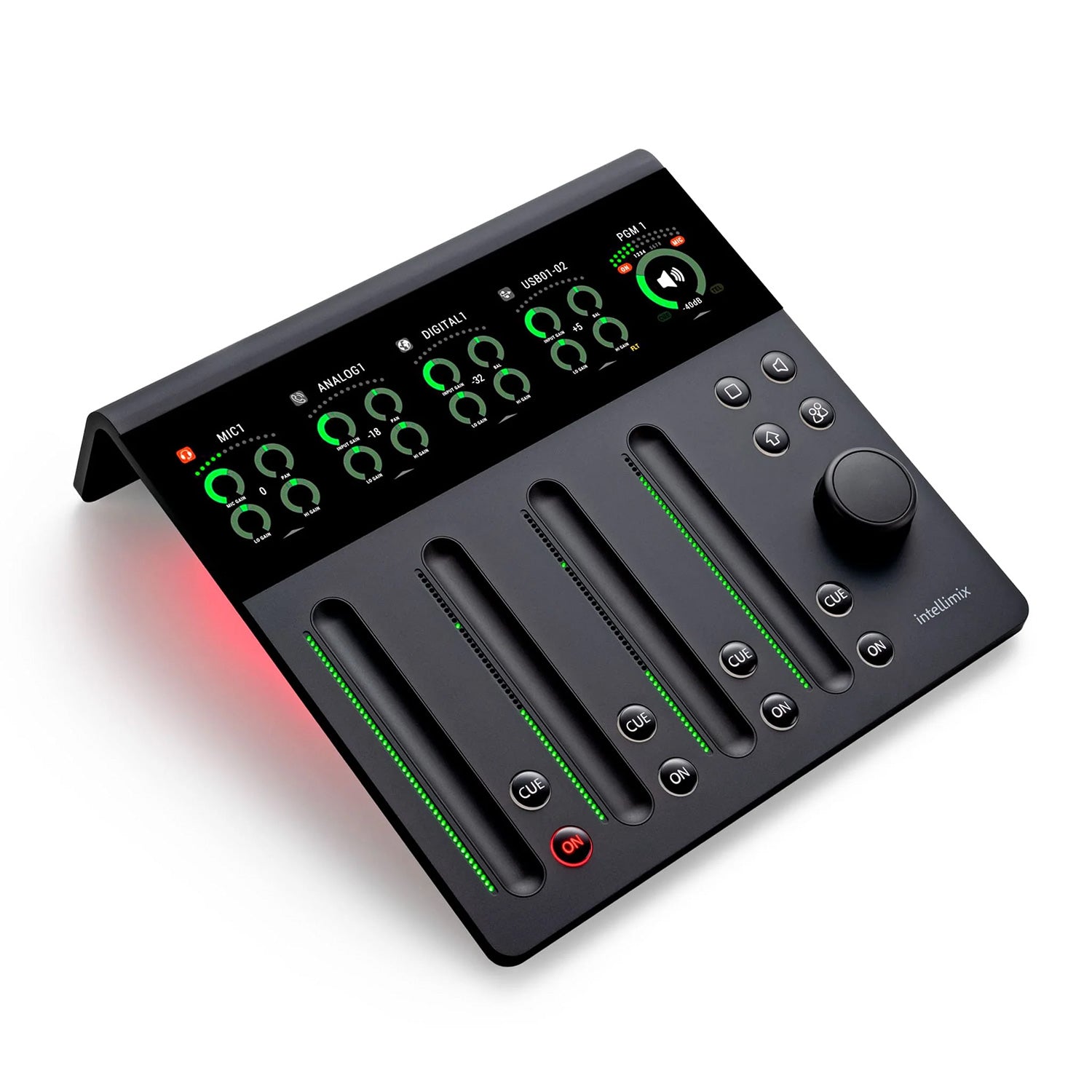

The most important elements of the Intellimix Control Unit are its four G-Touch© fader, the multitouch widescreen display and a rotary control. As a whole new fader technology, the G-Touch© fader combines all the existing fader types' benefits in a whole new way. Receive an enormous responsiveness and physical orientation when sliding your fingers through the molded groove. Make use of the option to preset fader positions and enjoy different fader modes and various LED bar graph indication options.

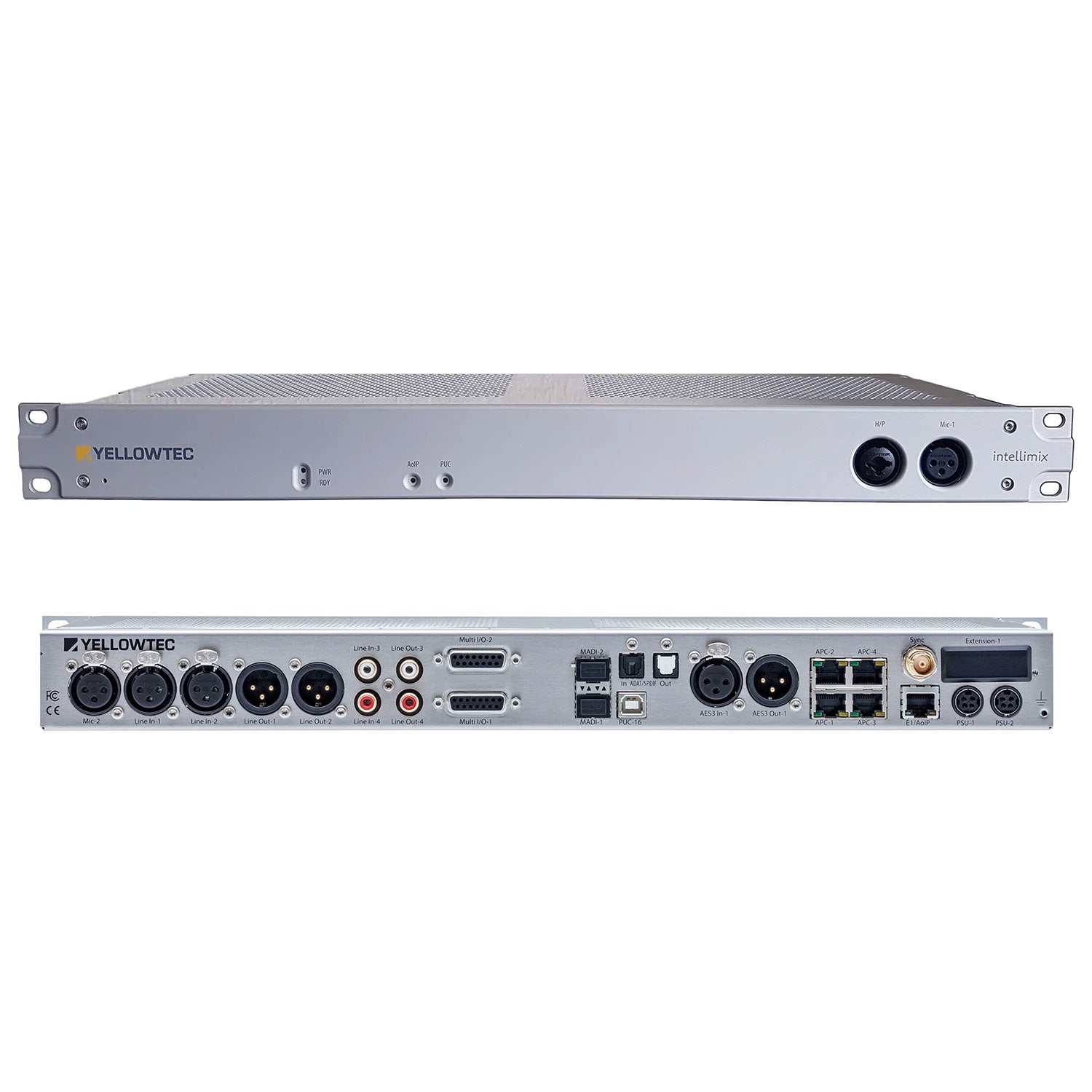

The Intellimix NEO Base Unit is where the audio-processing takes place. Directly access headphone and microphone inputs on its front side. All the other in- and outputs are located on the Base Unit's rear side. In contrast to Intellimix PRO, Intellimix NEO comes without built-in X64 AoIP solution.
Features:
- 8-channel mixer with awarded desing
- Outstanding fader experience due to unique G-Touch© Fader Technology
- Perfect fit for any mixing task without required AoIP connecitivty
- Advanced setting options: Fully parametric EQ + Dynamics
- Compressor, Limiter, Noise Gate, De-Esser, Expander
- Admin mode + unlimited amount of user profiles
- 8 channels displayed in 2 layers
- Fader link in up to 4 groups of max. 8 channels available
- Intuitive control over a wide feature set + extended settings
- 4x 120mm G-Touch® Faders with LED bar graphs + choice of fader modes
- Each of the 4 channel displays shows 4 parameters of your choice (Fab Four!)
- 1x master display section for overall setting + volume control
- Sealed hard keys + a robust rotary control for tactile feedback
| Inputs (channel count in mono) | |
| Mic/Line | 2x XLR, balanced, selectable sensitivity -77dBuÉ+18dBu |
| Line analog | 2x XLR, balanced + 2x RCA, unbalanced (max. 24dBu) |
| Line digital | 3x AES3/EBU with sample rate converters |
| ADAT-S/PDIF | 1x selectable ADAT 8-channel or S/PDIF stereo output |
| USB | 1x multichannel PUC2 16 mono / 8 stereo outputs |
| DANTE AoIP | 1x RJ45 - 4x mono channels come as standard |
| Outputs (channel count in mono) | |
| Line analog | 4x XLR, balanced + 2x RCA, unbalanced (max. 24dBu) |
| Headphone | 2x 1/4" stereo jack |
| Line digital | 3x AES3/EBU with sample rate converters |
| ADAT-S/PDIF | 1x selectable ADAT 8-channel or S/PDIF stereo output |
| USB | 1x multichannel PUC2 16 mono / 8 stereo outputs |
| DANTE AoIP | 1x RJ45 - 4x mono channels come as standard |
| Buses | 2x Program, 2x Aux, 4x Mix Minus (incl. 2x with b-line control) |
| GPIO/GPIOs | 2x GPI on optocoupler + 4x GPO from PhotoMOS relay 2 external extension slots for MADI |
| OPTION | Compatible with optional X64 AoIP Extension |
| Dimensions (packaging) | 54.5 x 31.5 x 17.5cm |
| Weight | 4.5kg |
| Dimensions Control Unit | 24.5 x 24.5cm |
| Base Unit | 19" Rack |
The Intellimix NEO Desktop Mixer is an 8-channel mixer for any kind of audio mixing that does not require AoIP connectivity. It comes with extended I/Os and detailed setting options. Intellimix NEO gets you control over eight inputs with channels displayed in two layers. It is designed as a mixing device to master every imaginable and complex 8-channel mixing task for anyone who does not need AoIP connectivity. Thanks to remote control options, admin mode and an unlimited amount of user profiles, Intellimix NEO is ideal for shared workplaces.
The most important elements of the Intellimix Control Unit are its four G-Touch© fader, the multitouch widescreen display and a rotary control. As a whole new fader technology, the G-Touch© fader combines all the existing fader types' benefits in a whole new way. Receive an enormous responsiveness and physical orientation when sliding your fingers through the molded groove. Make use of the option to preset fader positions and enjoy different fader modes and various LED bar graph indication options.
The Intellimix NEO Base Unit is where the audio-processing takes place. Directly access headphone and microphone inputs on its front side. All the other in- and outputs are located on the Base Unit's rear side. In contrast to Intellimix PRO, Intellimix NEO comes without built-in X64 AoIP solution.
Features:
- 8-channel mixer with awarded desing
- Outstanding fader experience due to unique G-Touch© Fader Technology
- Perfect fit for any mixing task without required AoIP connecitivty
- Advanced setting options: Fully parametric EQ + Dynamics
- Compressor, Limiter, Noise Gate, De-Esser, Expander
- Admin mode + unlimited amount of user profiles
- 8 channels displayed in 2 layers
- Fader link in up to 4 groups of max. 8 channels available
- Intuitive control over a wide feature set + extended settings
- 4x 120mm G-Touch® Faders with LED bar graphs + choice of fader modes
- Each of the 4 channel displays shows 4 parameters of your choice (Fab Four!)
- 1x master display section for overall setting + volume control
- Sealed hard keys + a robust rotary control for tactile feedback
| Inputs (channel count in mono) | |
| Mic/Line | 2x XLR, balanced, selectable sensitivity -77dBuÉ+18dBu |
| Line analog | 2x XLR, balanced + 2x RCA, unbalanced (max. 24dBu) |
| Line digital | 3x AES3/EBU with sample rate converters |
| ADAT-S/PDIF | 1x selectable ADAT 8-channel or S/PDIF stereo output |
| USB | 1x multichannel PUC2 16 mono / 8 stereo outputs |
| DANTE AoIP | 1x RJ45 - 4x mono channels come as standard |
| Outputs (channel count in mono) | |
| Line analog | 4x XLR, balanced + 2x RCA, unbalanced (max. 24dBu) |
| Headphone | 2x 1/4" stereo jack |
| Line digital | 3x AES3/EBU with sample rate converters |
| ADAT-S/PDIF | 1x selectable ADAT 8-channel or S/PDIF stereo output |
| USB | 1x multichannel PUC2 16 mono / 8 stereo outputs |
| DANTE AoIP | 1x RJ45 - 4x mono channels come as standard |
| Buses | 2x Program, 2x Aux, 4x Mix Minus (incl. 2x with b-line control) |
| GPIO/GPIOs | 2x GPI on optocoupler + 4x GPO from PhotoMOS relay 2 external extension slots for MADI |
| OPTION | Compatible with optional X64 AoIP Extension |
| Dimensions (packaging) | 54.5 x 31.5 x 17.5cm |
| Weight | 4.5kg |
| Dimensions Control Unit | 24.5 x 24.5cm |
| Base Unit | 19" Rack |
