DALE SKU # YELL-YT3900

Yellowtec YT3900 - Hush Plus On-Air Controller for m!ka with Microphone Preamp and Remote Control Bundle

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

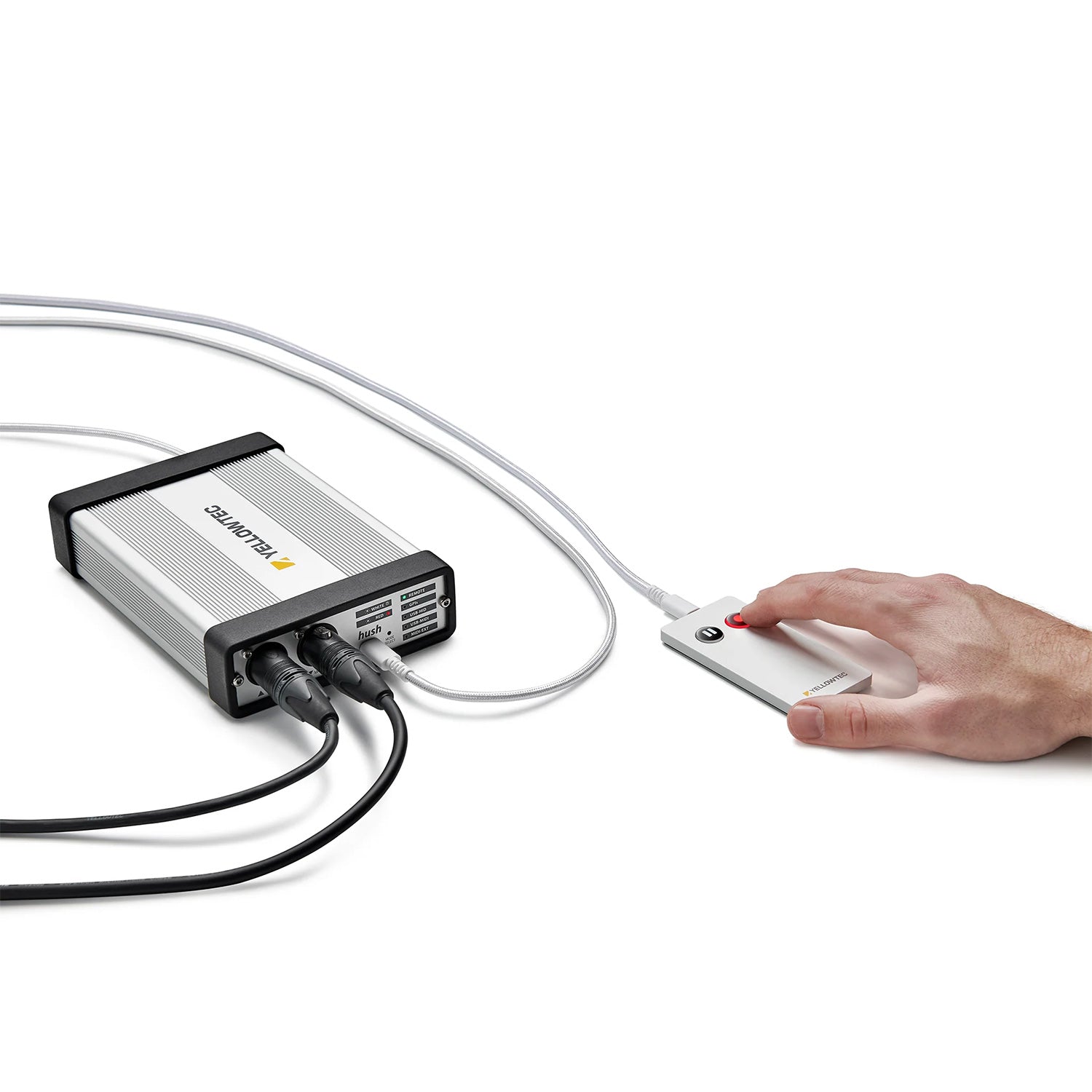

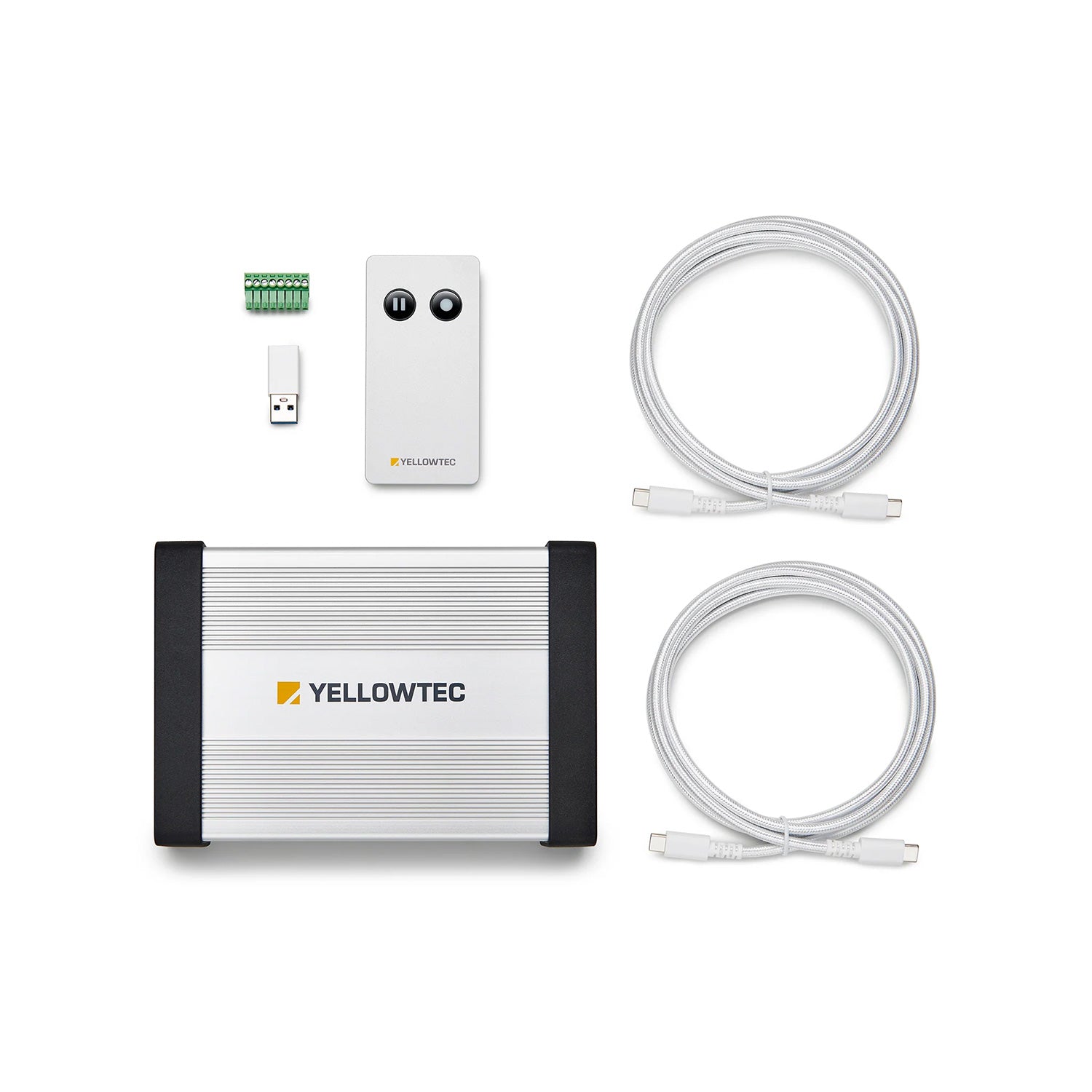

    Note: hush+ Bundle that includes a hush+ OnAir Controller and a hush Remote.

    hush+ is a convenient controller for your OnAir signaling. In addition to red light control, the hush+ model also allows you to control your microphone signal. Using hush+, you will find several settings in the hush App. hush+ allows for easy control over both, your OnAir LED signals and your mic signal. Its integrated preamp delivers highest available standards with gain from 12dB to 75dB at incredible -129dB input referred noise. On top, you benefit from its mute function and can control highpass filter and phantom power via hush App.

    hush+'s plug'n'play concept allows fast handling. Made for m!ka, hush+ perfectly fits the XLR-5 connector at the bottom end of your m!ka Mic Arm OnAir's cable. Simply plug'n'play! You're instantly in control of your OnAir signaling. Manage your mic signal and make most of the m!ka Mic Arm's dual-color LED indicator with hush+. If you are looking for OnAir control without preamp and mute function, please check out the hush OnAir Controller that loops through your mic signal unprocessed.

    Thanks to five different modes, hush+ fits nearly any setup. Directly on the device or within the corresponding hush App you can select your preferred mode to control your hush device. Choose between the hush Remote, GPIs, USB-HID or MIDI (USB / Ext.). No matter your needs, hush+ supports you in the driver's seat!

    Features:

    • Premium device to control your OnAir signaling
    • Allows for control over LED and mic signal incl. mute
    • Designed to fit Yellowtec's m!ka Mic Arms with OnAir indicator
    • Plug'n'play concept for mic arm's XLR-5 allows for fast handling
    • Optionally also control a color segment of the litt Signaling Device
    • Delivers highest available audio standards Integrated high-class preamp
    • 12dB...75dB at -129dB input referred noise
    • Adjust the gain of your mic signal in the hush App
    • Switch on / off a highpass filter to remove unwanted rumble
    • Activate or deactivate phantom power according to your mic's needs
    • Thanks to a great variety of modes, hush+ fits any setup
    • Control hush+ via hush Remote, GPIs, USB-HID or MIDI (USB / Ext.)
    Mic In
    Input Impedance 1.2 kOhm
    Max. Input Level +6 dBu
    Gain 12dB...75dB
    Input Referred Noise -129dB
    Subsonic Filter HP 80Hz 12dB/oct.
    Phantom Power Voltage: 48V +/- 5%
    Current: 7mA / 10mA peak
    Line Out
    Output Impedance 40 Ohm
    Max. Output Level +18 dBu
    THD+N 0,001%
    Frequency Range 20Hz - 20kHz
    USB
    Connector USB-C
    Compatibility ? USB 1.1 - USB 2 (with PSU)
    USB 3 (fully USB-powered)
    Data Rate 12 MB/sec
    Power via USB Voltage: 4.5V ..5.5V
    Current: typically 500mA / 900mA max.
    Red Light Power @5-Pin XLR
    Output Voltage 12V
    Output Current 40mA
    Output Voltage 12V
    Output Current 60mA
    litt Control
    Output Voltage 12V
    Output Current 60mA
    Control Modes
    hush Remote Connector: USB-C
    USB-HID Connector: USB-C
    MIDI-In Current Loop: 10mA@5V
    Data Rate: 31.25 kBaud
    GPI Switch to GND
    GPO Type: Open Collector
    Max. Voltage: +30V
    Max. Current: 1.5A

    Note: hush+ Bundle that includes a hush+ OnAir Controller and a hush Remote.

    hush+ is a convenient controller for your OnAir signaling. In addition to red light control, the hush+ model also allows you to control your microphone signal. Using hush+, you will find several settings in the hush App. hush+ allows for easy control over both, your OnAir LED signals and your mic signal. Its integrated preamp delivers highest available standards with gain from 12dB to 75dB at incredible -129dB input referred noise. On top, you benefit from its mute function and can control highpass filter and phantom power via hush App.

    hush+'s plug'n'play concept allows fast handling. Made for m!ka, hush+ perfectly fits the XLR-5 connector at the bottom end of your m!ka Mic Arm OnAir's cable. Simply plug'n'play! You're instantly in control of your OnAir signaling. Manage your mic signal and make most of the m!ka Mic Arm's dual-color LED indicator with hush+. If you are looking for OnAir control without preamp and mute function, please check out the hush OnAir Controller that loops through your mic signal unprocessed.

    Thanks to five different modes, hush+ fits nearly any setup. Directly on the device or within the corresponding hush App you can select your preferred mode to control your hush device. Choose between the hush Remote, GPIs, USB-HID or MIDI (USB / Ext.). No matter your needs, hush+ supports you in the driver's seat!

    Features:

    • Premium device to control your OnAir signaling
    • Allows for control over LED and mic signal incl. mute
    • Designed to fit Yellowtec's m!ka Mic Arms with OnAir indicator
    • Plug'n'play concept for mic arm's XLR-5 allows for fast handling
    • Optionally also control a color segment of the litt Signaling Device
    • Delivers highest available audio standards Integrated high-class preamp
    • 12dB...75dB at -129dB input referred noise
    • Adjust the gain of your mic signal in the hush App
    • Switch on / off a highpass filter to remove unwanted rumble
    • Activate or deactivate phantom power according to your mic's needs
    • Thanks to a great variety of modes, hush+ fits any setup
    • Control hush+ via hush Remote, GPIs, USB-HID or MIDI (USB / Ext.)
    Mic In
    Input Impedance 1.2 kOhm
    Max. Input Level +6 dBu
    Gain 12dB...75dB
    Input Referred Noise -129dB
    Subsonic Filter HP 80Hz 12dB/oct.
    Phantom Power Voltage: 48V +/- 5%
    Current: 7mA / 10mA peak
    Line Out
    Output Impedance 40 Ohm
    Max. Output Level +18 dBu
    THD+N 0,001%
    Frequency Range 20Hz - 20kHz
    USB
    Connector USB-C
    Compatibility ? USB 1.1 - USB 2 (with PSU)
    USB 3 (fully USB-powered)
    Data Rate 12 MB/sec
    Power via USB Voltage: 4.5V ..5.5V
    Current: typically 500mA / 900mA max.
    Red Light Power @5-Pin XLR
    Output Voltage 12V
    Output Current 40mA
    Output Voltage 12V
    Output Current 60mA
    litt Control
    Output Voltage 12V
    Output Current 60mA
    Control Modes
    hush Remote Connector: USB-C
    USB-HID Connector: USB-C
    MIDI-In Current Loop: 10mA@5V
    Data Rate: 31.25 kBaud
    GPI Switch to GND
    GPO Type: Open Collector
    Max. Voltage: +30V
    Max. Current: 1.5A
