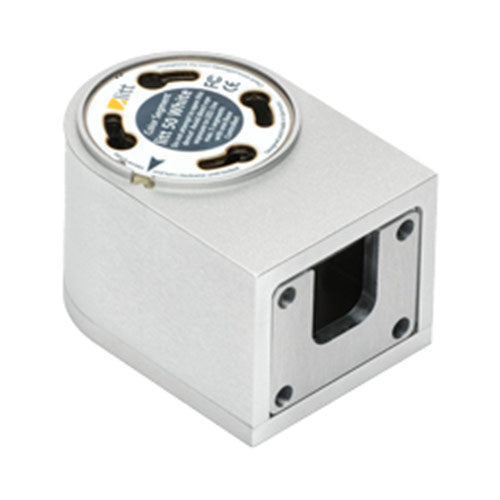

Yellowtec YT9101 - litt 50 Base Controller 51mm Aluminum Wall Mount


  • Dale #:

    YELL-YT9101
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

If you want to mount your litt Signaling Device to a wall, choose a litt Base Controller Wall Mount as the base element. Mix up to five litt Color Segments of different colors and sizes and place them on your Base Controller Wall Mount in any order. Optionally add a litt Sound Segment on top.litt... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

If you want to mount your litt Signaling Device to a wall, choose a litt Base Controller Wall Mount as the base element. Mix up to five litt Color Segments of different colors and sizes and place them on your Base Controller Wall Mount in any order. Optionally add a litt Sound Segment on top.

litt's Base Controller is equipped with automatic litt Color Segment recognition, individual control inputs for each color (2.4-24VDC) and reverse polarity protection. Its connection panel consists of an 8-pin terminal block and a mini-USB jack. All the connecting parts are located inside, giving it an extraordinarily elegant look.

Features:

  • Fundamental litt base element for wall mounting
  • Includes all mounting parts for wall mounting
  • Connect up to 5x litt Color Segments + 1x litt Sound Segment
  • Bus control with automatic recognition of litt Segments
  • 8-pin terminal block with control inputs for each color (2.4-24W)
  • Configure litt via mini-USB-port + litt Lighthouse® (Windows only)
  • Color: aluminum
  • Dimensions: 51mm x 45mm
  • Weight: 0.19kg
  • Extraordinarily clean + elegant anodized aluminum look
  • All connecting parts are located inside
  • Power supply+execution: via switch/potential-free contacts/external logic switch
  • Power requirement Base Controller: 0.5W
  • Power supply (permanent): 9V¦24V

Features:

  • Base Controller Wall Mount
  • Bus Controller with automatic segment color recognition
  • Drives up to 5 color segments
  • Solid aluminium body
  • Individual control inputs for each color (2,4 - 24VDC)
  • Reverse polarity protection
  • USB port for easy configuration via free Lighthouse«-Software
  • Comes with Universal Mounting Kit (UMK) and Installation Tool
