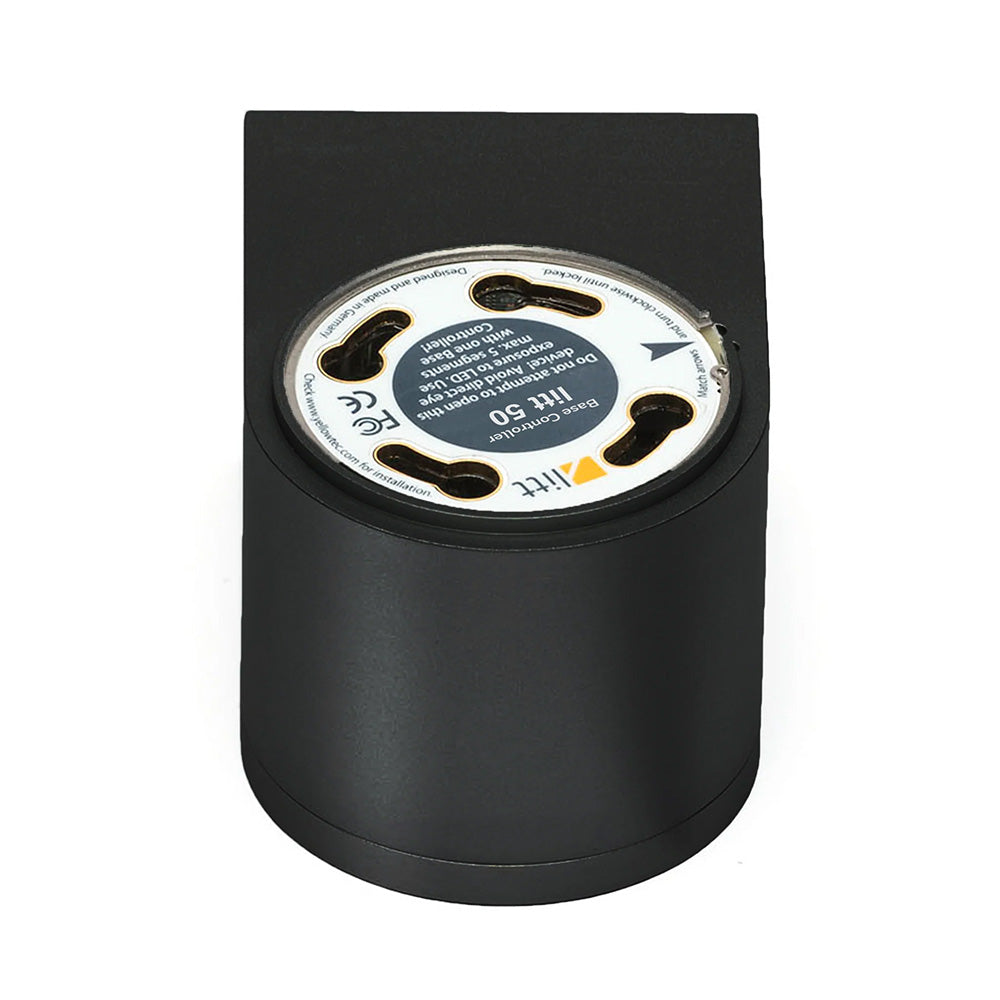

Yellowtec YT9701 - litt 50 Base Controller Wall Mount (Black)

If you want to mount your litt Signaling Device to a wall, choose a litt Base Controller Wall Mount as the base element. Mix up to five litt Color Segments of different colors and sizes and place them on your Base Controller Wall Mount in any order. Optionally add a litt Sound Segment on top.

litt's Base Controller is equipped with automatic litt Color Segment recognition, individual control inputs for each color (2.4-24VDC) and reverse polarity protection. Its connection panel consists of an 8-pin terminal block and a mini-USB jack. All the connecting parts are located inside, giving it an extraordinarily elegant look.

Features:

• Fundamental litt base element for wall mounting
• Includes all mounting parts for wall mounting
• Connect up to 5x litt Color Segments + 1x litt Sound Segment
• Bus control with automatic recognition of litt Segments
• 8-pin terminal block with control inputs for each color (2.4-24W)
• Configure litt via mini-USB-port + litt Lighthouse® (Windows only)
• Color: aluminum
• Dimensions: 51mm x 45mm
• Weight: 0.19kg
• Extraordinarily clean + elegant anodized aluminum look
• All connecting parts are located inside
• Power supply+execution:
• via switch/potential-free contacts/external logic switch
• Power requirement Base Controller: 0.5W
• Power supply (permanent): 9V…24V
