DALE SKU # MAAU-C68T

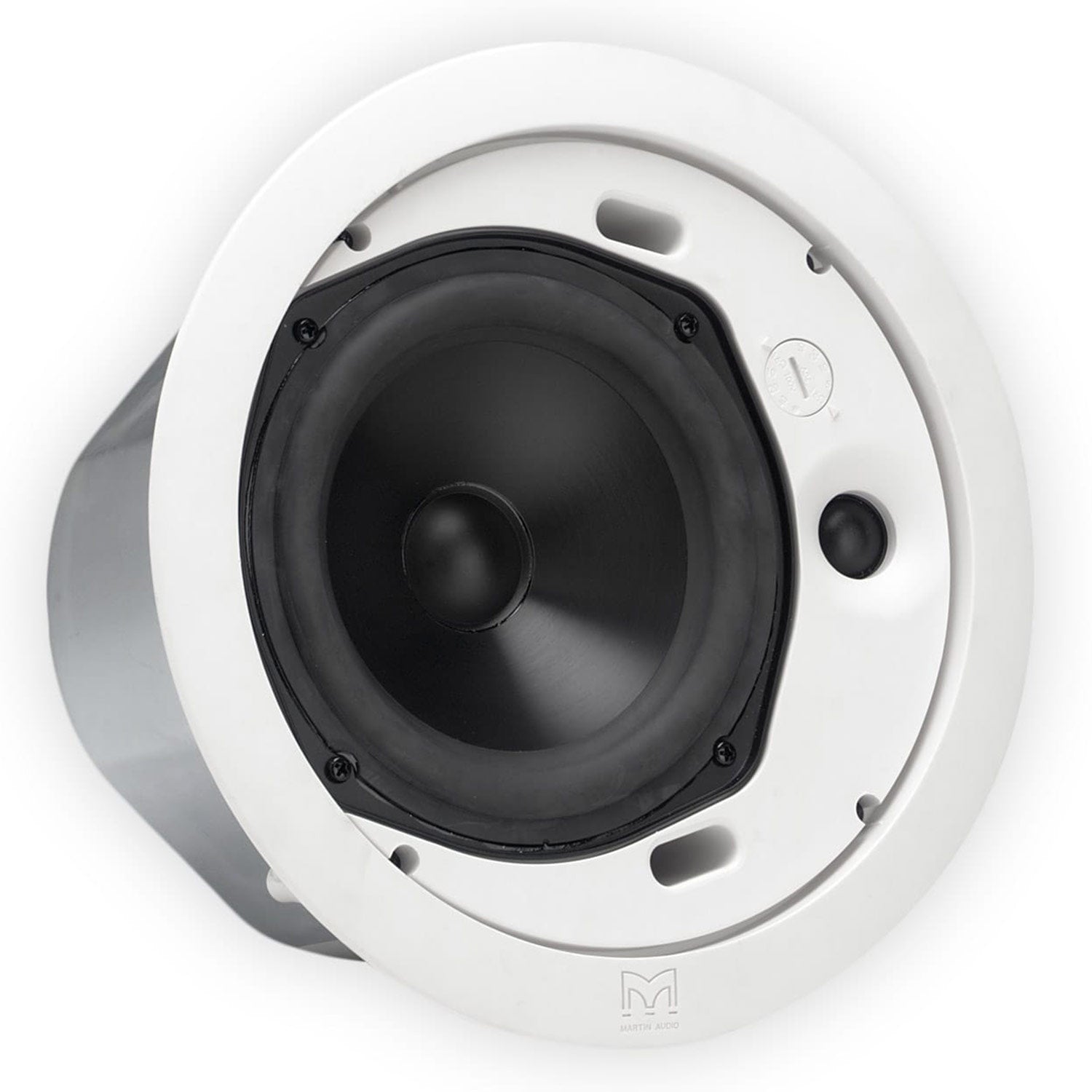

Martin Audio C6.8T Ceiling Mounted, 2-Way Vented Enclosure Loudspeaker (Pair)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Featuring a 6.5" (165mm) bass driver and a 0.8" (19mm) dome tweeter, The C6.8T is ideal for flush mounted applications where full frequency performance and wide dispersion are required from a compact, ported enclosure. The side-by-side arrangement of the drive units maintains smooth response up to 75° off-axis and makes the C6.8T perfectly suited for use in low ceilings, where its broad coverage means that fewer units will be required to deliver premium sound over the required listening area. The C6.8T features a 4-point mounting system for ease of installation and a rising clamp plug and socket permit easy pre-wiring with up to 2.5mm2 conductors.

    Features:

    • Two-way high performance flush mounting ceiling speaker
    • 6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
    • Very wide dispersion - 150? conical up to 7kHz
    • High & low impedance operation - transformer included
    • 106dB continuous max SPL @ 1 metre
    • 75W power handling - 16 ohm (40W transformer)
    • Polyswitch and thermal fuse protection
    • Steel backcan

    Applications:

    • Fixed installations in ceiling and walls
    • Low ceiling environments
    TYPECeiling mounted, two-way vented enclosure
    FREQUENCY RESPONSE (1)90Hz-20kHz ± 3dB
    -10dB @ 70Hz
    DRIVERS6.5" (165mm) UL94V-0 PP bass driver
    0.8" (19mm) dome tweeter
    RATED POWER (2)70W AES, 300W peak
    SENSITIVITY (3)89dB
    MAXIMUM SPL (4)106dB continuous, 112dB peak
    NOMINAL IMPEDANCE16 ohms
    DISPERSION (-6dB)150¼ conical up to 7kHz
    CROSSOVER4kHz passive
    ENCLOSURESteel backcan
    FINISHBezel / grille - white UV resistant
    Overpaintable
    Backcan - zinc plated
    PROTECTIVE GRILLEPerforated steel
    CONNECTORSRising clamp plug and socket
    ACCESSORIES (included)40W 70/100V line transformer
    Tile rails
    C bracket
    Paint mask
    Cut-out template
    VOLTAGE TAPS100V - 40W, 20W, 10W
    70V - 40W, 20W, 10W, 5W
    DIMENSIONS(OD) 260mm x (D) 181mm
    (OD) 10.2ins x (D) 7.1ins
    CUT-OUT DIAMETER224mm (8.83ins)
    WEIGHT3.5kg (7.7lbs)

    Featuring a 6.5" (165mm) bass driver and a 0.8" (19mm) dome tweeter, The C6.8T is ideal for flush mounted applications where full frequency performance and wide dispersion are required from a compact, ported enclosure. The side-by-side arrangement of the drive units maintains smooth response up to 75° off-axis and makes the C6.8T perfectly suited for use in low ceilings, where its broad coverage means that fewer units will be required to deliver premium sound over the required listening area. The C6.8T features a 4-point mounting system for ease of installation and a rising clamp plug and socket permit easy pre-wiring with up to 2.5mm2 conductors.

    Features:

    • Two-way high performance flush mounting ceiling speaker
    • 6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
    • Very wide dispersion - 150? conical up to 7kHz
    • High & low impedance operation - transformer included
    • 106dB continuous max SPL @ 1 metre
    • 75W power handling - 16 ohm (40W transformer)
    • Polyswitch and thermal fuse protection
    • Steel backcan

    Applications:

    • Fixed installations in ceiling and walls
    • Low ceiling environments
    TYPECeiling mounted, two-way vented enclosure
    FREQUENCY RESPONSE (1)90Hz-20kHz ± 3dB
    -10dB @ 70Hz
    DRIVERS6.5" (165mm) UL94V-0 PP bass driver
    0.8" (19mm) dome tweeter
    RATED POWER (2)70W AES, 300W peak
    SENSITIVITY (3)89dB
    MAXIMUM SPL (4)106dB continuous, 112dB peak
    NOMINAL IMPEDANCE16 ohms
    DISPERSION (-6dB)150¼ conical up to 7kHz
    CROSSOVER4kHz passive
    ENCLOSURESteel backcan
    FINISHBezel / grille - white UV resistant
    Overpaintable
    Backcan - zinc plated
    PROTECTIVE GRILLEPerforated steel
    CONNECTORSRising clamp plug and socket
    ACCESSORIES (included)40W 70/100V line transformer
    Tile rails
    C bracket
    Paint mask
    Cut-out template
    VOLTAGE TAPS100V - 40W, 20W, 10W
    70V - 40W, 20W, 10W, 5W
    DIMENSIONS(OD) 260mm x (D) 181mm
    (OD) 10.2ins x (D) 7.1ins
    CUT-OUT DIAMETER224mm (8.83ins)
    WEIGHT3.5kg (7.7lbs)
