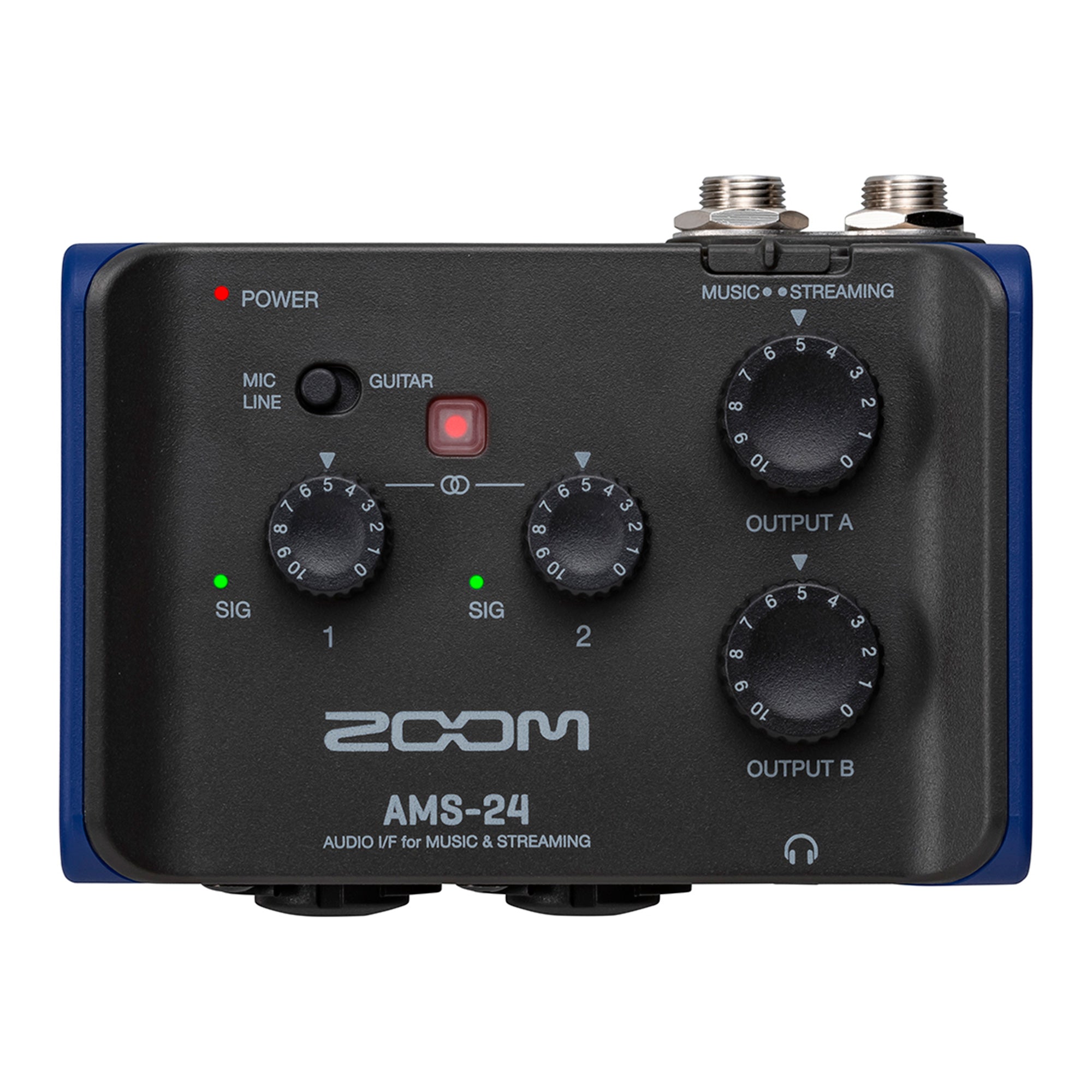

Zoom AMS-24 - Compact USB Audio Interface for Recording or Streaming
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

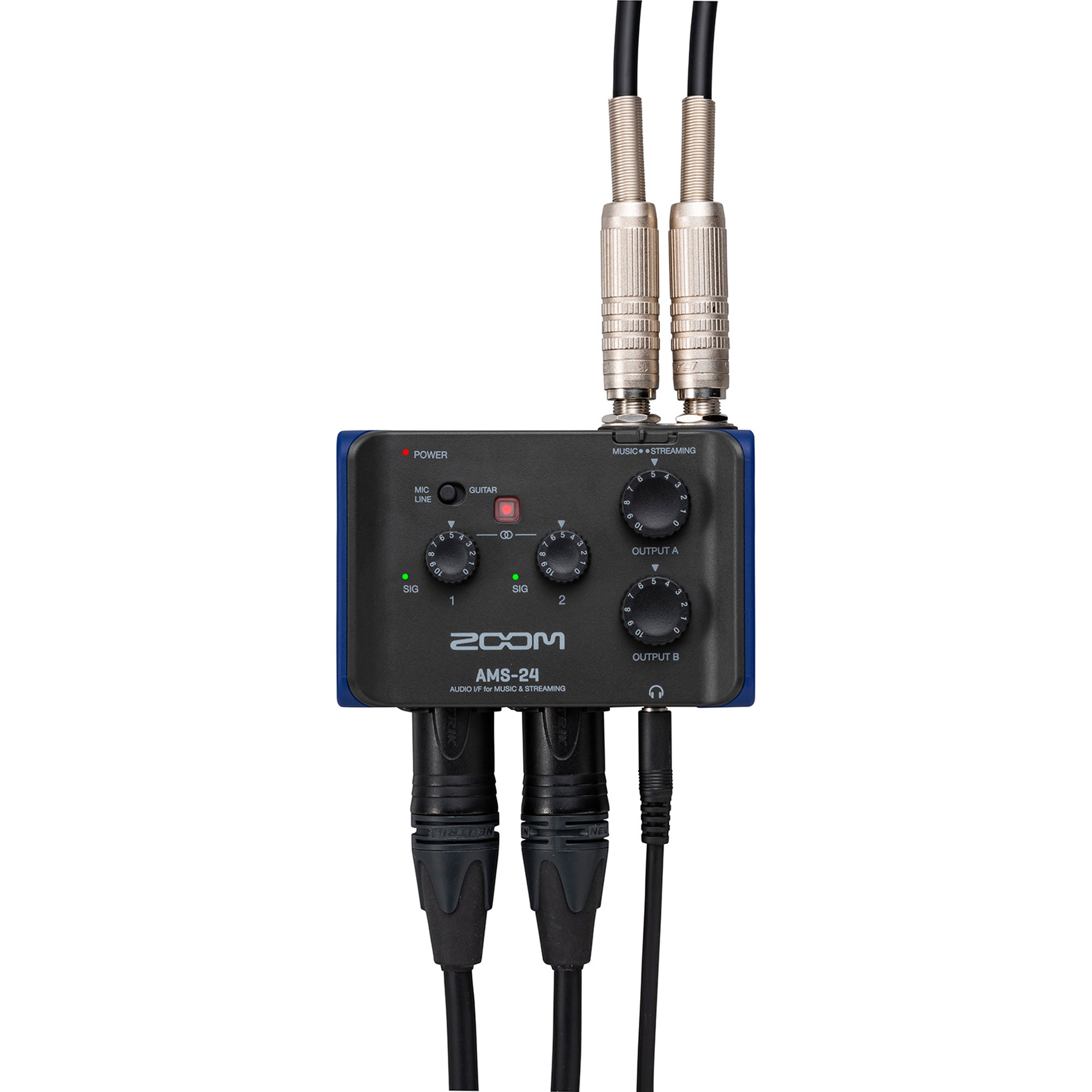

The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom’s low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.
AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.
The AMS-24 and AMS-44 feature an innovative Music / Streaming Switch.
-
MUSIC MODE
When switched to Music mode, you can record into your DAW with expanded input and output routing options. -
STREAMING MODE
When switched to Streaming mode all inputs are combined into a single signal so you can easily stream without needing additional complicated software.
LITTLE SWITCH, BIG STREAMS
Toggle from recording to livestreaming with the Music/ Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.
When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.
ONBOARD MONITORING

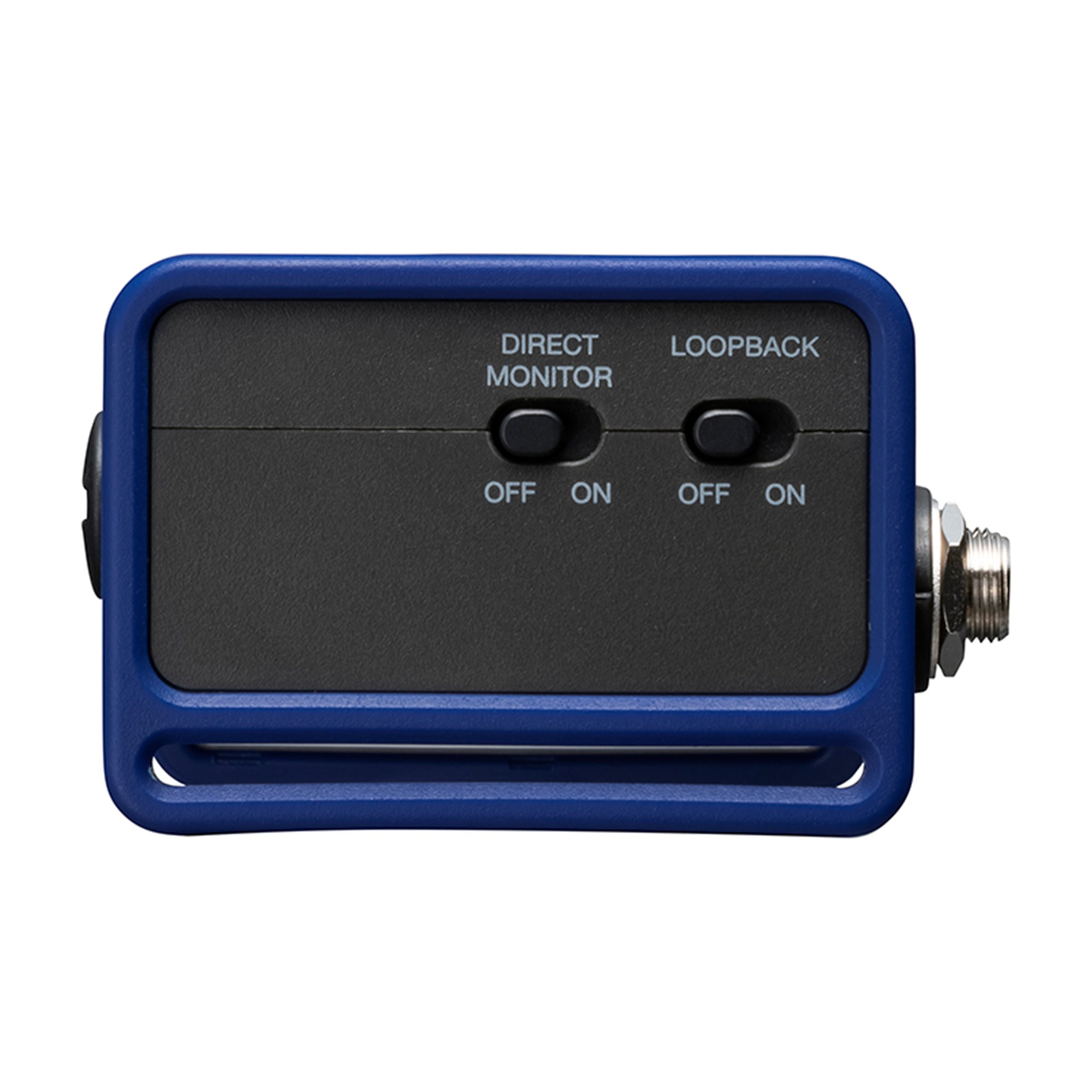

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.
LOOP IT BACK
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
POWER OPTIONS
All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

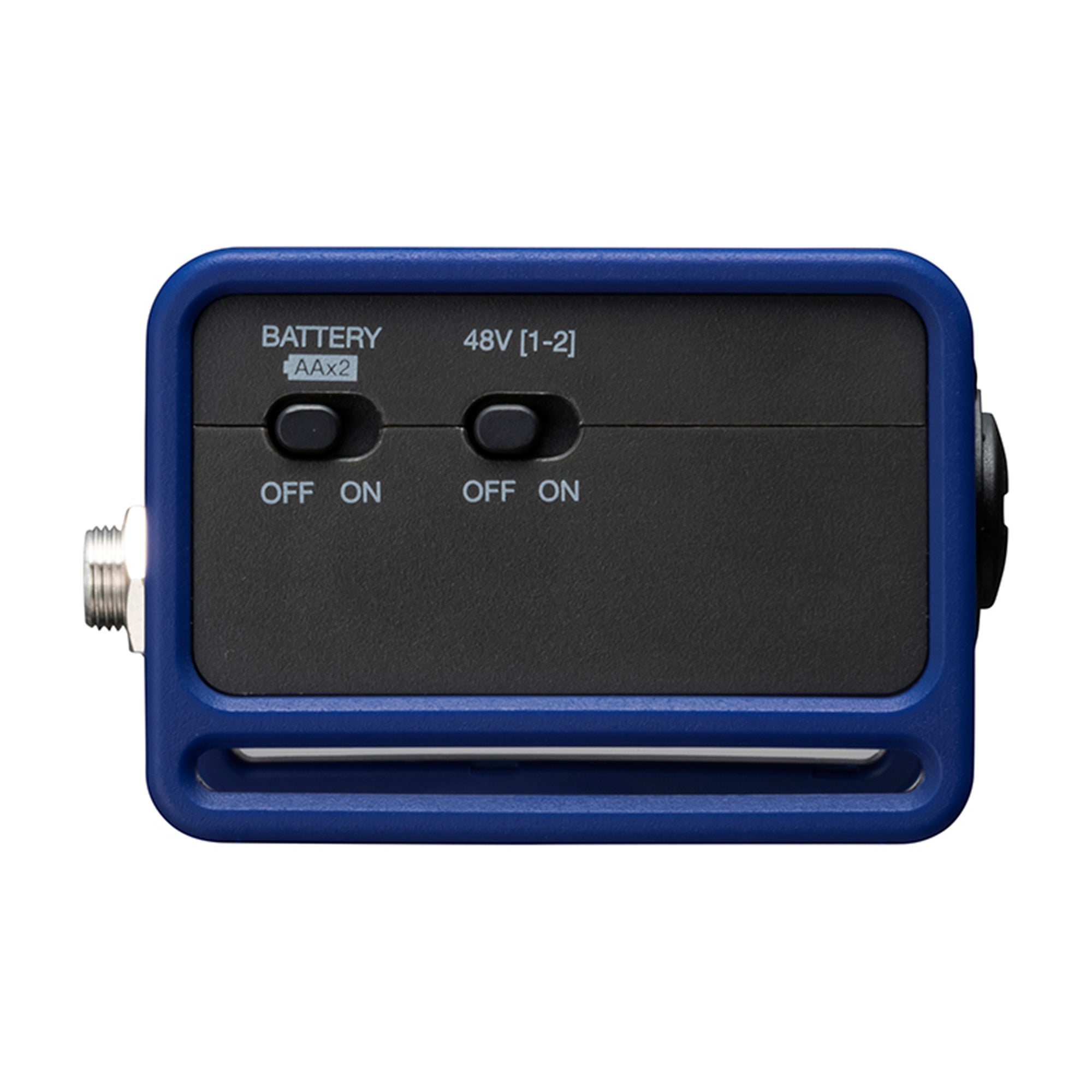

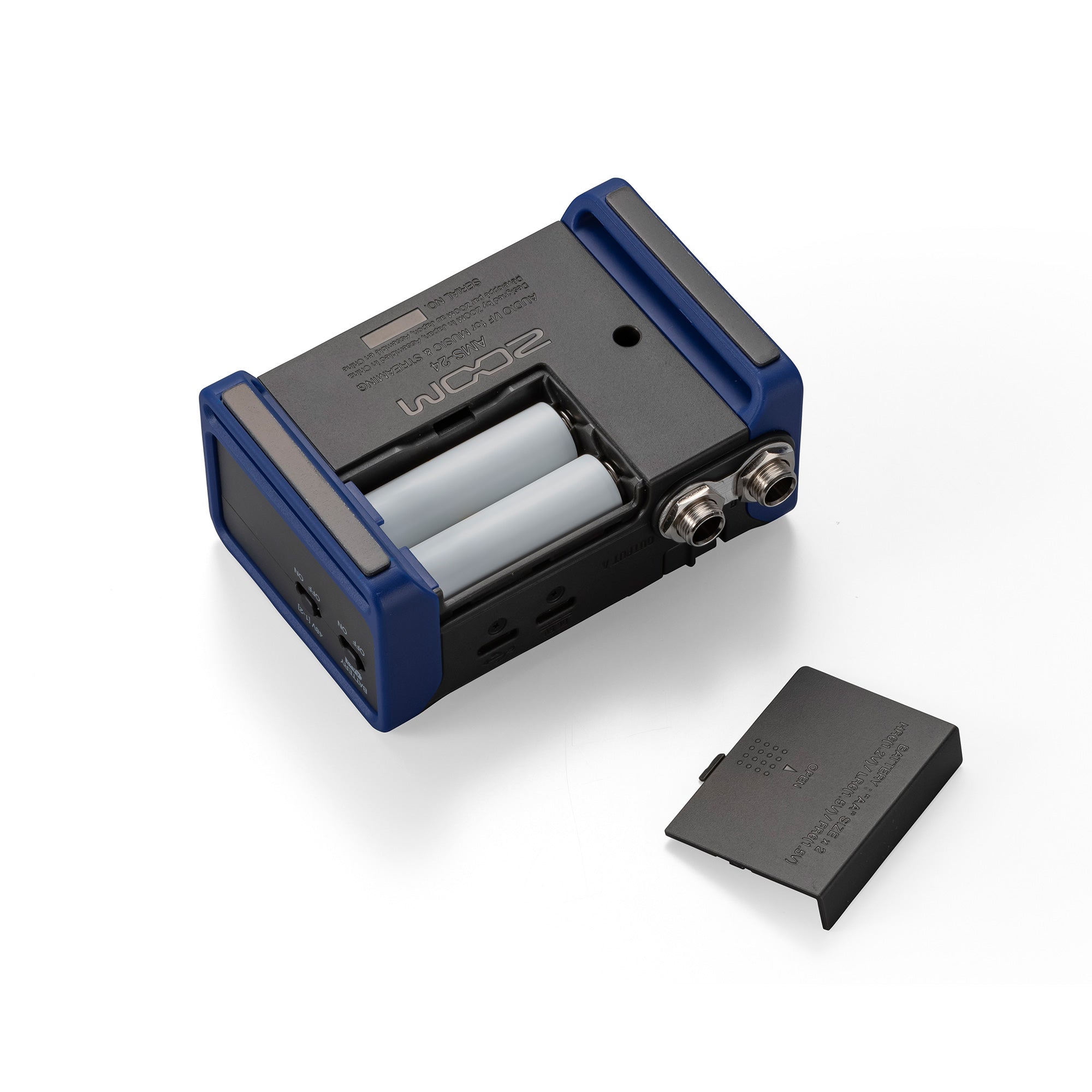

Additionally, the AMS-24 and AMS-44 can also use two AA batteries.
PLUG IT IN...
Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.
...AND PERFORM
The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.
In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram, and Patreon.
In Music mode, record with software like Adobe Audition, Pro Tools, Cubase, and Garage Band.
What's in The Box:
- AMS-44 USB Audio Interface
- USB-C Cable
- Quick Tour
| Input and Output Channels | |
| NUMBER OF INPUT CHANNELS | Mono (MIC/LINE) 2 |
| NUMBER OF OUTPUT CHANNELS | Stereo (TRS) 1 Stereo (PHONES) 2 |
| Connectors | |

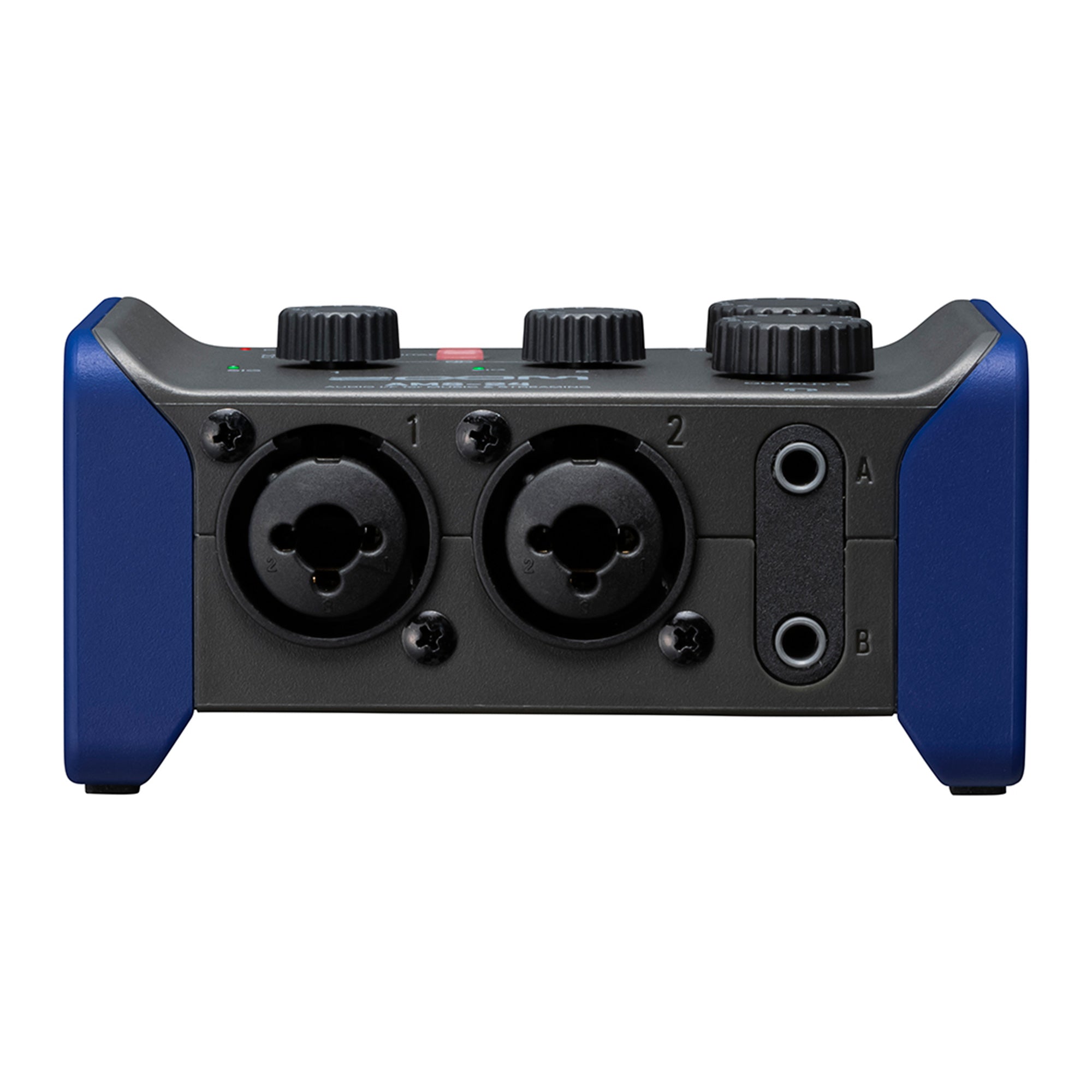

| INPUT 1Ð2 | Type XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain _° Ð +58 dB / _° Ð +50 dB (when set to GUITAR) Input impedance XLR: 2.7 k½ TRS: 18 k½ / 330 k½ (when set to GUITAR) Maximum input level XLR: +6 dBu TRS: +22 dBu / +8.5 dBu (when set to GUITAR) Phantom +48 V |

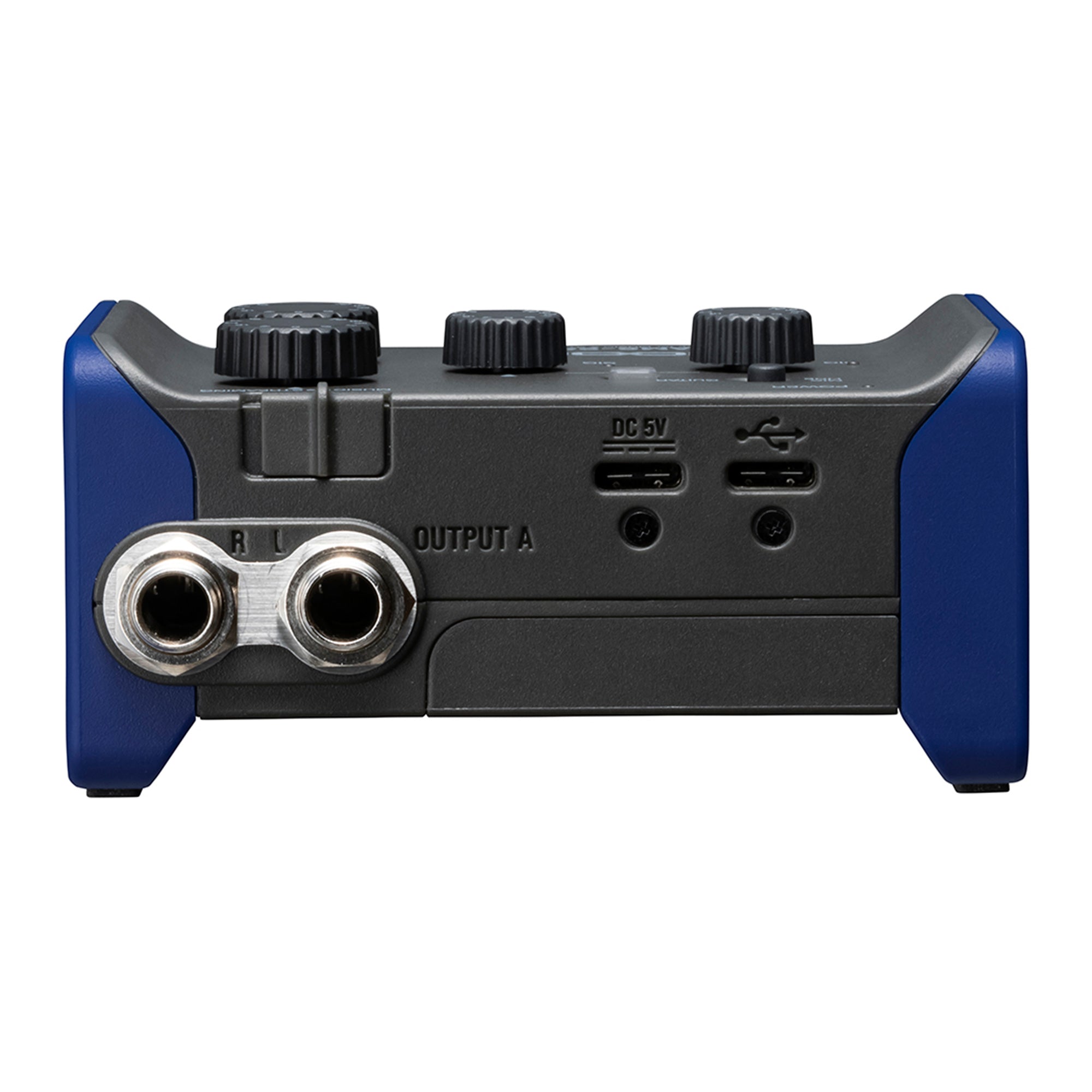

| OUTPUT A (STANDARD PHONE JACKS) | Type TRS phone jacks (impedance balanced) Maximum output level +10 dBu (at 0 dBFS) Output impedance 100 ½ |
| OUTPUT AÐB (HEADPHONE JACKS) | Type 3.5mm stereo mini jacks 30 mW + 30 mW (32 ½ load) Output impedance 10 ½ |
| USB | USB Type-C (audio interface function) ¥ Use a USB cable that supports data transfer. USB bus power is supported. |
| DC 5V | USB Type-C (for power supply) |
| Frequency Response | 44.1 kHz: ±1 dB (20 Hz Ð 20 kHz) 96 kHz: ±1.5 dB (20 Hz Ð 40 kHz) |
| Equivalent Input Noise | Ð120 dBu or less (IHF-A) at +58dB/150½ input |
| Audio Interface | |
| INPUT AND OUTPUT CHANNELS | Recording: 2 channels Playback: 4 channels |
| SAMPLING FREQUENCIES | 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz |
| BIT DEPTH | 24-bit |
| INTERFACE | USB 2.0 |
| CLASS | USB Audio Class 2.0 |
| Power | |
| Supply | 2 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-17): DC 5 V/1A ¥ USB bus power is supported. |
| Rated Current | USB/AC adapter (5 V): 380 mA Batteries (2.4 V): 470 mA |
| Estimated continuous operation time using batteries | 44.1 kHz, 48 V off, with 32½ headphone load Alkaline batteries: about 4 hours NiMH batteries (1900 mAh): about 5.5 hours Lithium batteries: about 11 hours The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions. |
| Power Consumption | 5 W maximum |
| Dimensions | 94.5 mm (W) _ 74.0 mm (D) _ 46.0 mm (H) |
| Weight (unit only) | 134 g |
| Weight (including batteries) | 180 g |
