The Only Recorder That Adapts To Your Way Of Creating! 12 simultaneous recording tracks, interchangeable capsules, and an App-driven touchscreen interface, the H8 is designed to meet all your audio recording needs.
- Customized applications for field recording, music and podcasting
- 3 distinct interfaces for field recording, music and podcasting
- Interchangeable input capsules
- 12-track simultaneous recording
- Four mic inputs and two XLR/TRS combo connectors
- Gain control knobs and -20dB pads for each input
- Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
- Phantom power for four main XLR inputs: +12/+24/+48V

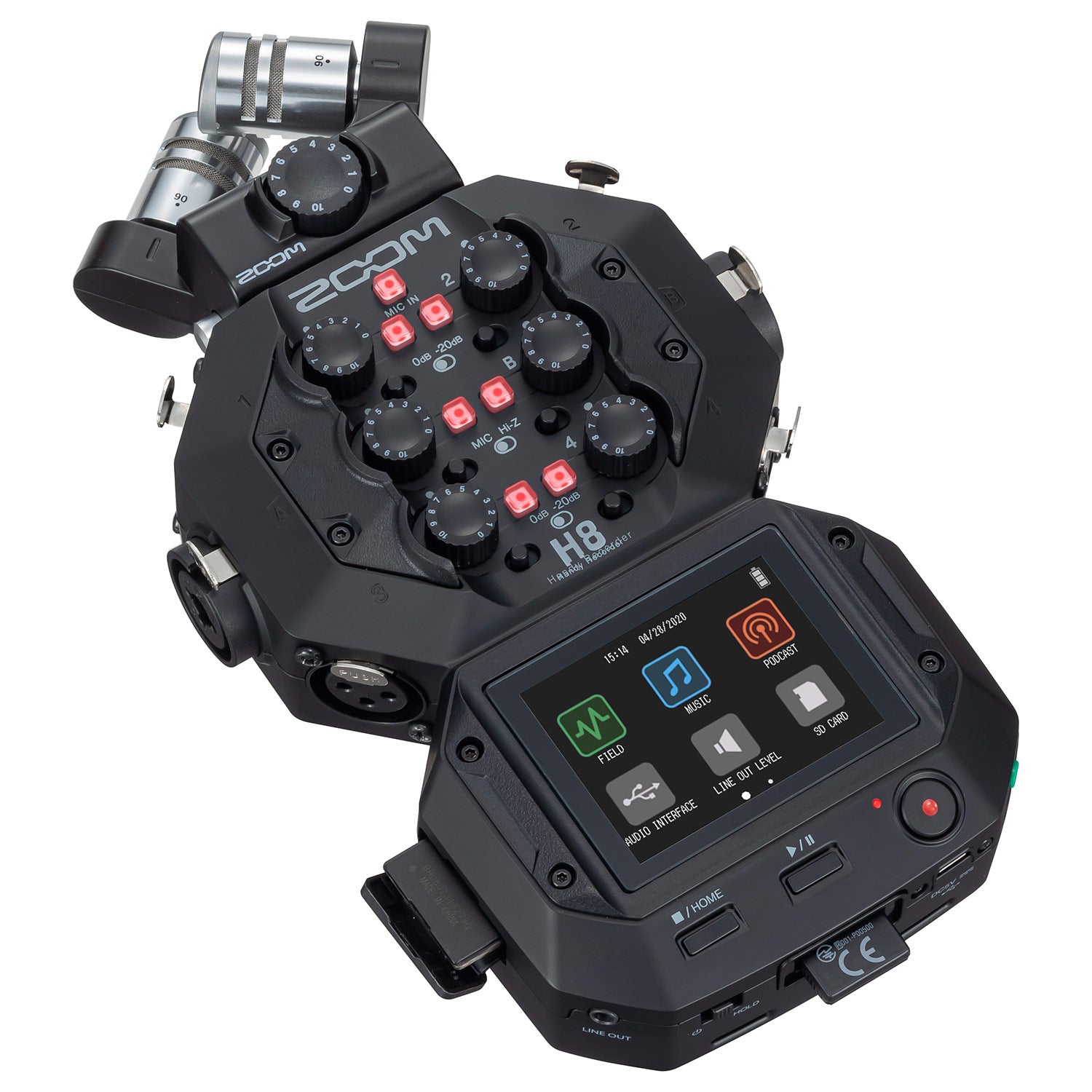

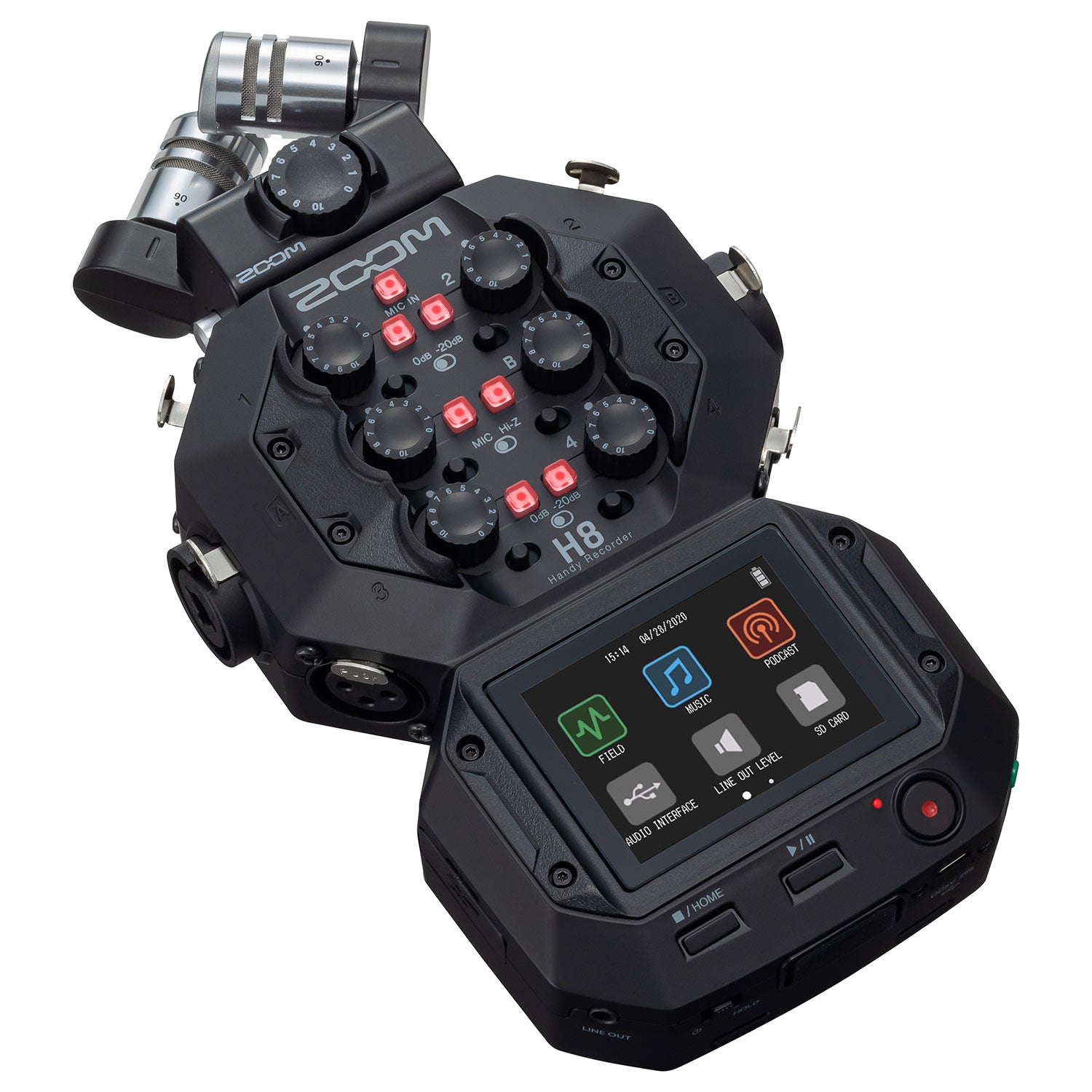

- Large color LCD touchscreen display
- Records directly to SD, SDHC and SDXC cards up to 512GB
- Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- Built-in effects, including low-cut filtering, compression, and limiting
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Accepts standard AA alkaline or NiMH rechargeable batteries
- Over 20 hours of operation with 4 AA alkaline batteries
There’s An App For Your Workflow
Whether you’re capturing audio on location, recording music, or producing a podcast, the H8 color touchscreen adapts to your project's needs with three App-driven interface options. All with the touch of your finger.
The Podcast App
The PODCAST App makes producing your podcast simple. With dedicated Sound Pads, use the touch screen to trigger sound effects, music beds and more. Choose from 13 high quality sounds or load your own via an SD card.
The Podcast App accommodates up to 4 mics and two Sound Pad channels.
The Music App
The MUSIC App puts all the important controls at your fingertips: audio levels, faders, metering and more. With 10 inputs and 12 tracks, capturing a large group is easy. Mix, overdub, and enhance your recordings with EQ and compression. Connect to Zoom’s Guitar Lab via USB to access an endless assortment of amps and effects.
The Field App
The FIELD App is ideal for location sound, sound design, conferences, and more. It gives you instant access to large meters for every track, so you can make sure your recordings never clip. Adjust input type, lo-cut, compression, limiter, noise gate, and other key settings.
The Mic Capsule
The H8 comes with the Zoom XYH-6 microphone. This capsule provides two matched high-quality unidirectional mics, for capturing signal directly in front of the recorder. With the Zoom mic capsule system you can easily swap capsules to ensure you’re always using the right mic for the job.
Six interchangeable mic capsules that can be swapped out as easily as the lenses of a camera.
Next Generation Capsule System
Zoom’s Capsule System 2.0 allows up to 4 channels of audio to be added to the H8's capsule connection, creating new ways to expand your recording capabilities.
COMBINATION XY / AB MIC
The XAH-8 capsule delivers pristine stereo recordings. Easily rotate the capsules from a tight XY pattern to a wide AB pattern to enhance the stereo image of your recordings.
The VRH-8 is an Ambisonic mic capsule that utilizes four condenser microphones to deliver immersive 360 audio recordings. A built-in accelerometer helps ensure the capsule is always perfectly aligned, while the on-board Ambisonic decoder automatically handles the necessary conversions, saving you time in post-production.
The EXH-8 capsule provides 4 additional XLR inputs, giving you a total of 10. Each additional input has a dedicated gain knob and pad switch. You can even use your favorite condenser microphones—just connect a power source to the EXH-8 capsule to supply phantom power.
You can monitor level meters and hit REC,PLAY, and STOP in each H8 application mode. Just insert the BTA-1 to your H8 and connect to your iOS device.
*BTA-1 sold separately.
Inputs and Outputs

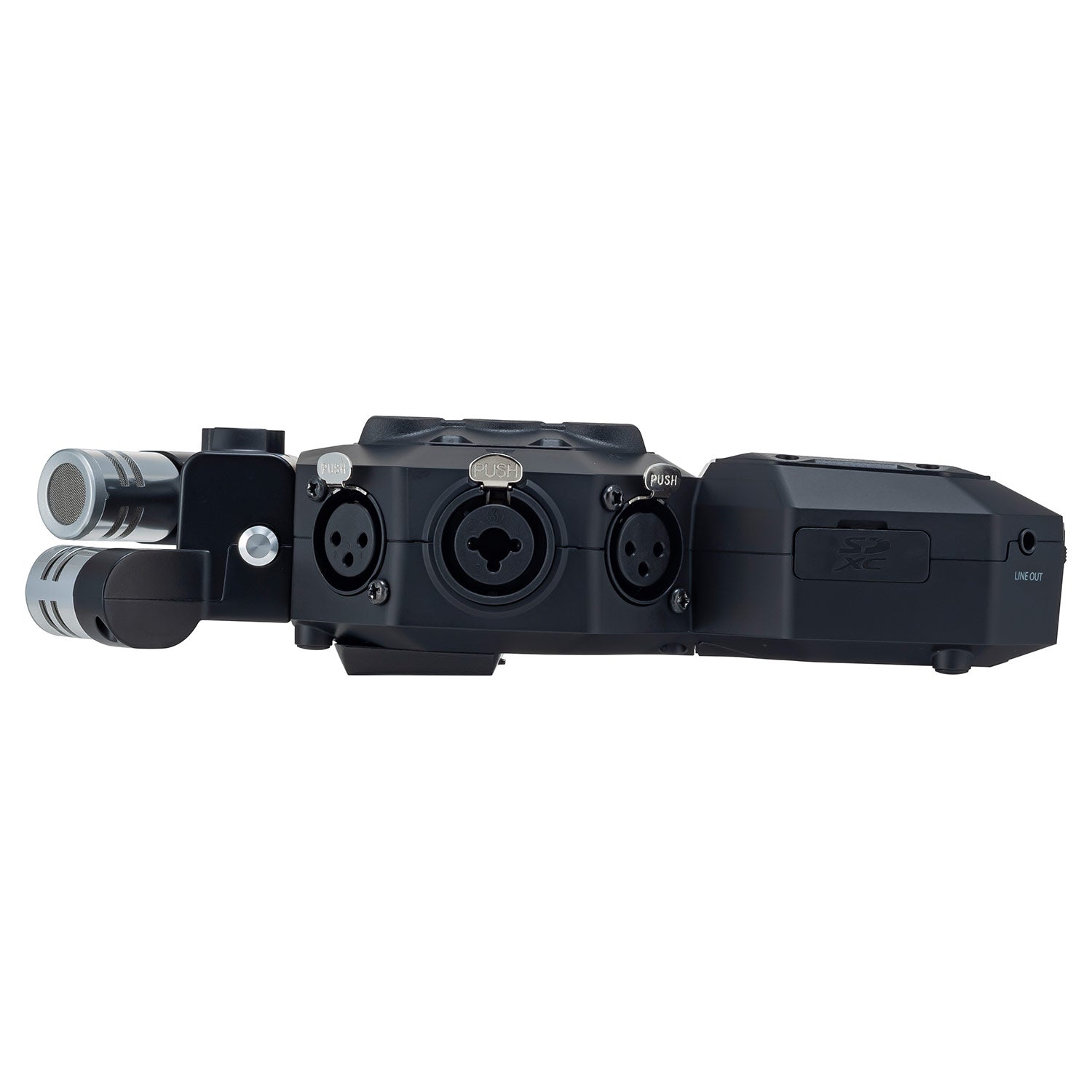

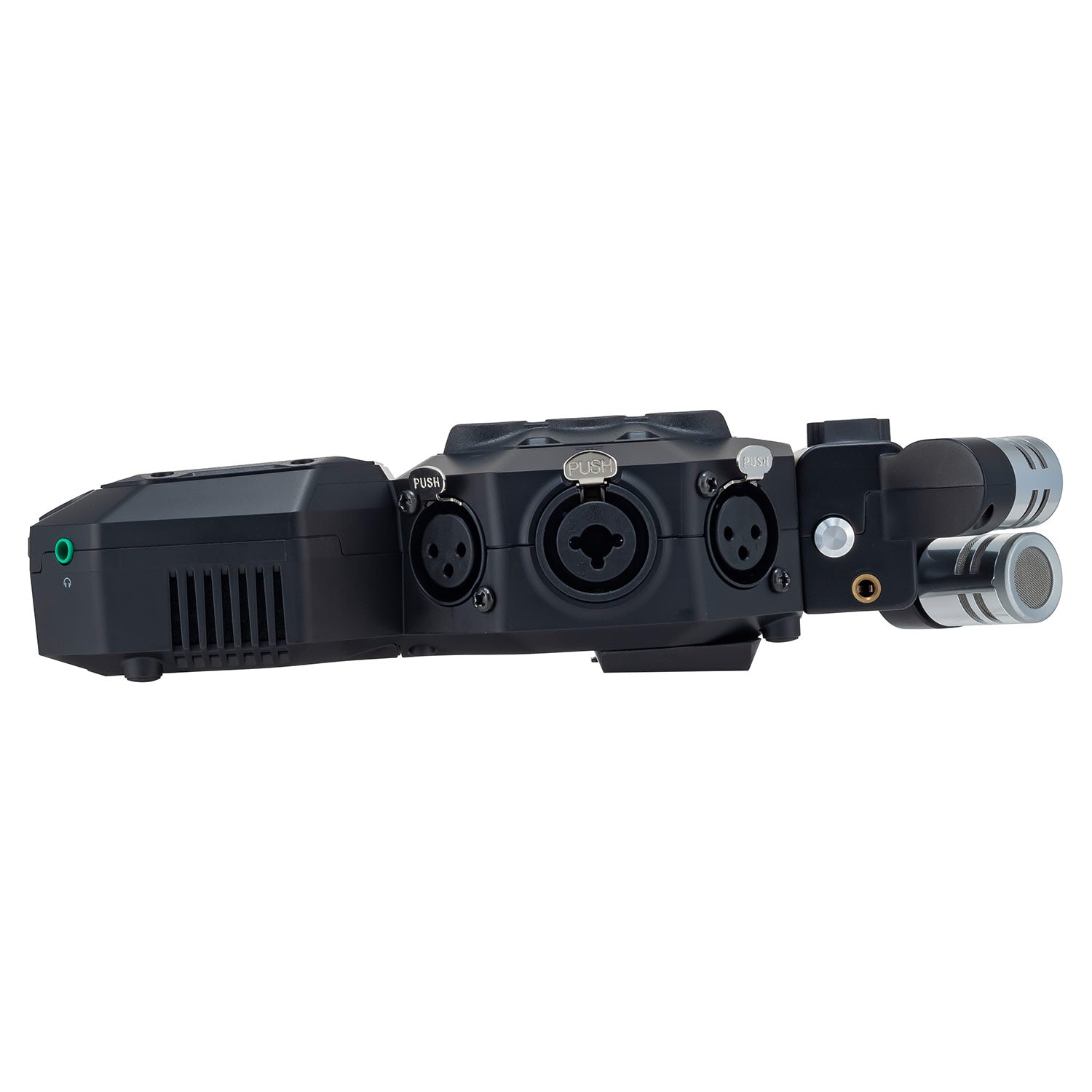

H8 offers 4 XLR inputs with dedicated pad switches and gain control. 2 additional XLR/TRS combo jacks with Hi-Z switches allow you to capture line level signals, microphones, or directly record electric guitars and basses.

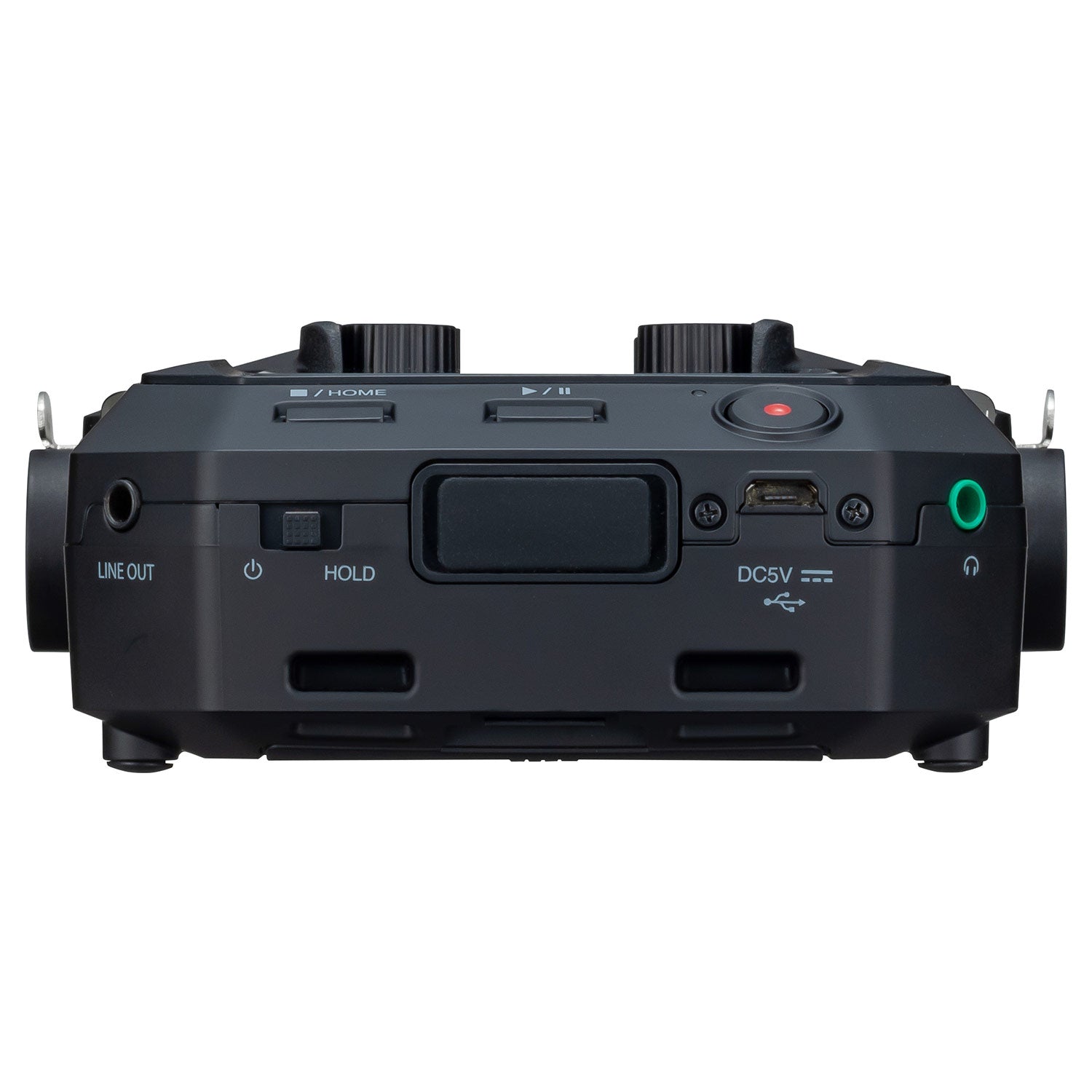

Monitor tracks using the built-in 1/8” headphone output or connect directly to your camera using the dedicated stereo line output.
Multi-Channel Audio Interface
The H8 is a powerful USB audio interface. Connect via USB to your PC, Mac, iPad or tablet for up to 12 channels of simultaneous recording.
Recording Time and File Formats

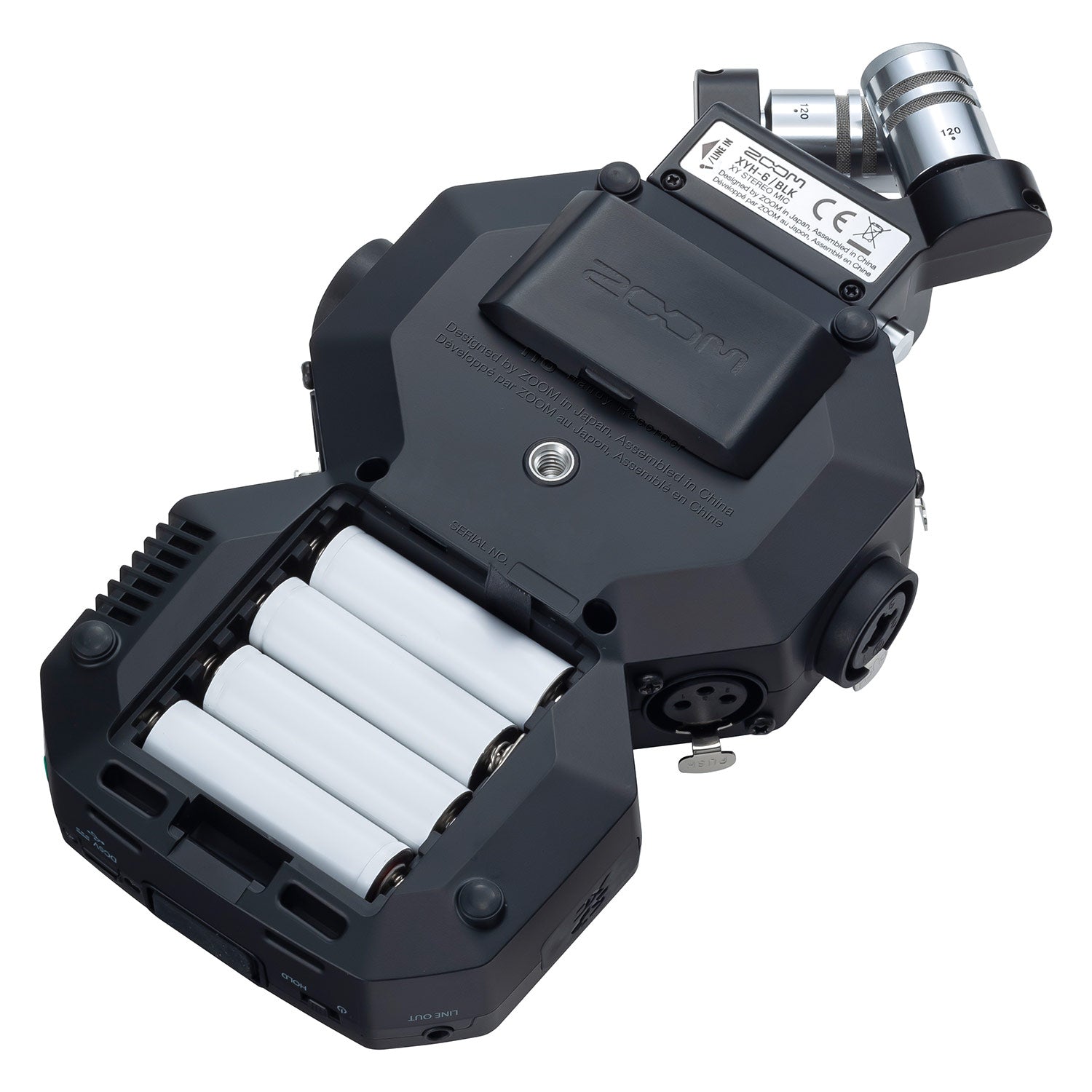

Get more than 20 hours of recording time from just 4 AA batteries. Or record forever with the optional AD-17 adapter.
What's In The Box:
- H8 Handy Recorder
- XYH-6 X/Y Mic Capsule
- Quick Guide
