Comrex LiveShot


Comrex LiveShot delivers live video over a range of IP networks. LiveShot is used by TV stations and networks to deliver high quality, low latency video from anywhere Internet access is available. LiveShot leverages the success of Comrex ACCESS audio IP codecs and uses the same technology to smooth out the "bumps" on the public Internet to allow broadcast-quality live video streaming. LiveShot is especially optimized to perform well on challenging IP networks like 3G, 4G and satellite-based links.

LiveShot encodes and decodes video to the H.264 codec standard, which is the state-of-the art codec for high quality video using low network bandwidth. But not all H.264 encoders are alike. Within the standard, several lesser-quality profiles are available to conserve processing power. For optimal video quality, LiveShot encodes with H.264 HIGH profile. Several other options within the H.264 standard, many of which are not implemented by competing products due to complexity, are default in LiveShot. All H.264 options that maximize quality over poor networks and decrease latency are implemented.

Comrex has years of experience encoding live, low latency audio over IP networks for broadcast, and LiveShot shows it. In addition to standard AAC audio coding, LiveShot utilizes HE-AAC and AAC-ELD audio coding, both reducing network bandwidth and lowering delay.

LiveShot can encode and decode an audio/video stream with less than 200mS delay. Delay may be higher based on encoding mode and network factors. LiveShot uses an automatic decoder buffer manager to keep delay to an absolute minimum. This technology was perfected over years of experience with the BRIC series of audio codecs.

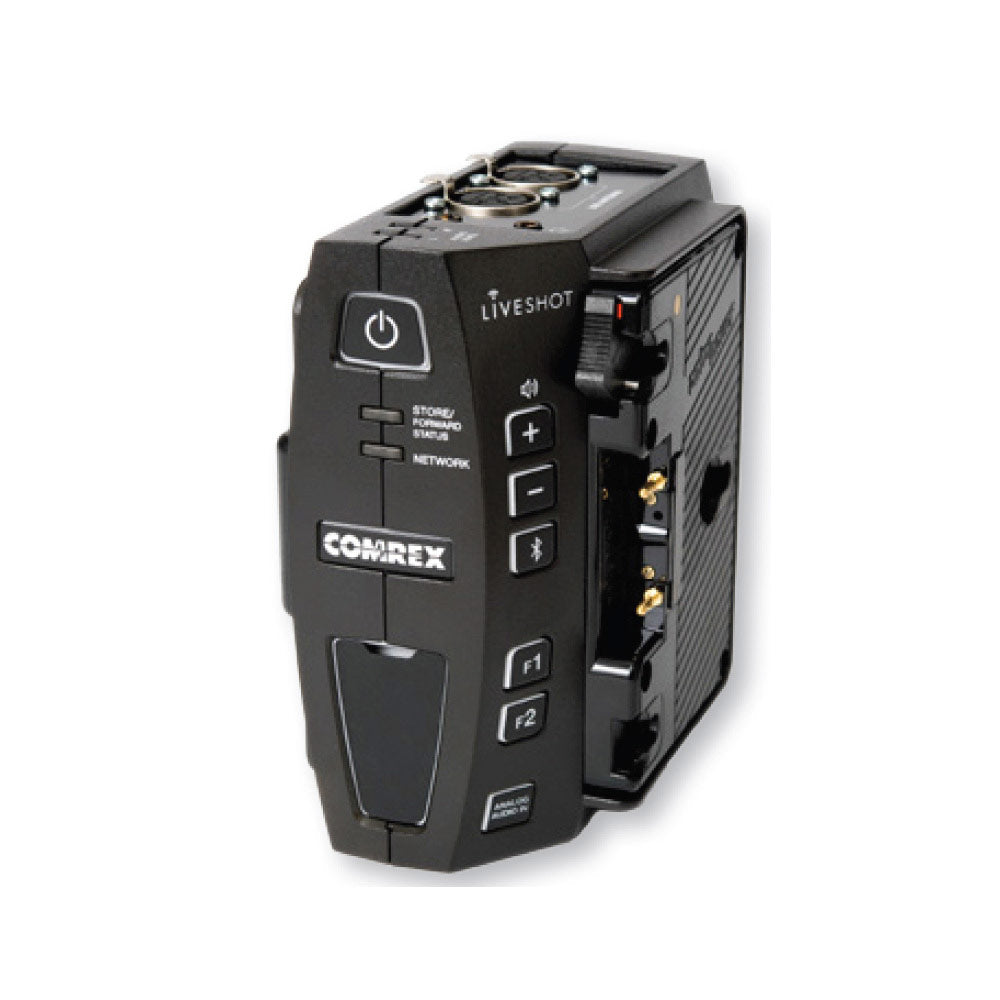

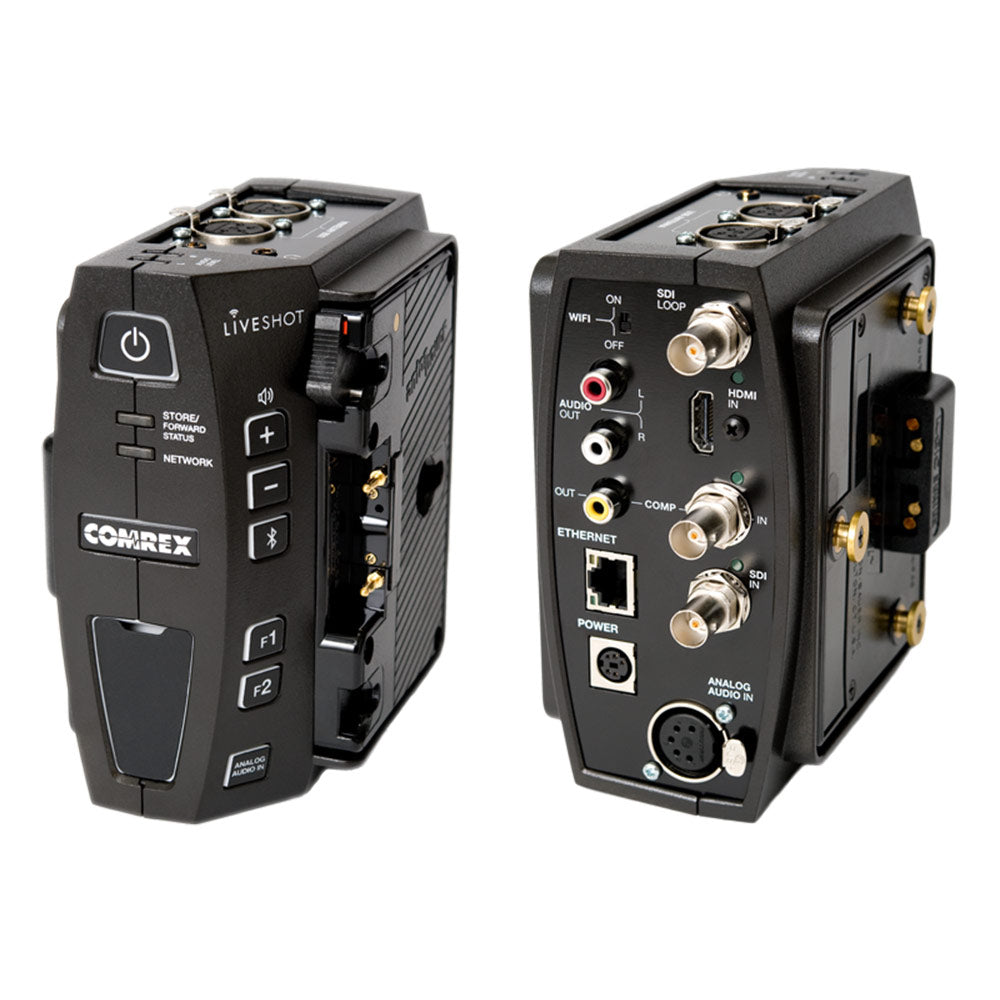

Comrex LiveShot PortableLiveShot Portable

  • Video Input: HD-SDI (BNC), Composite (BNC), HDMI
  • Video Output: Composite, HD-SDI Loop Through
  • Audio Input: HD-SDI embedded stereo (BNC), Stereo Analog (XLR-5F)
  • Audio Output: Stereo RCA
  • Audio Cue Channel: 4 position 3.5mm jack for wired headset or Bluetooth

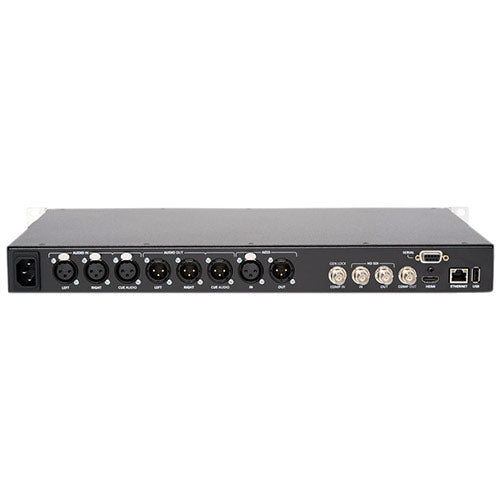

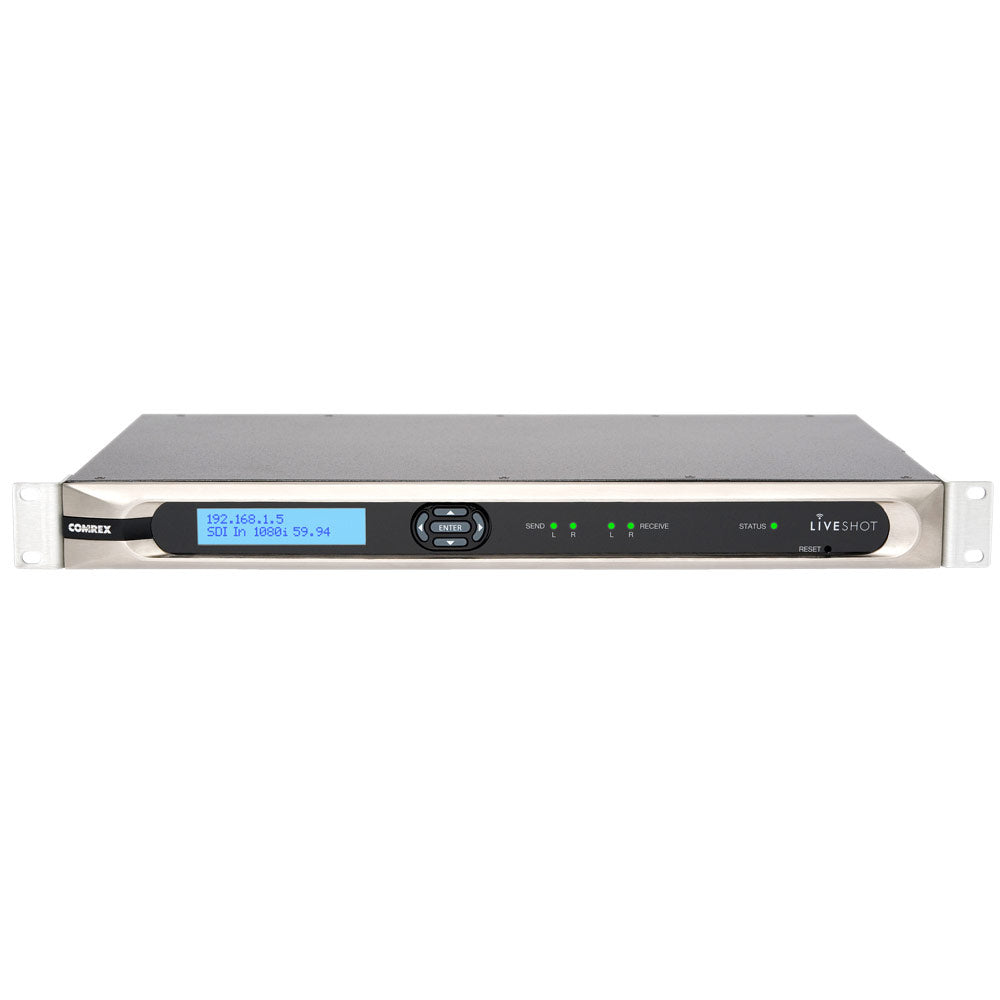

Comrex LiveShot RackmountLiveShot Rackmount

  • Video Input: HD-SDI (BNC), Composite (BNC)
  • Video Output: HD-SDI (BNC), Composite (BNC), HDMI
  • Audio Input: Stereo Analog (XLR-3F), Stereo AES (XLR-3F), HD-SDI embedded stereo (BNC)
  • Audio Output: Stereo Analog (XLR-3M), Stereo AES (XLR-3M), HD-SDI embedded stereo (BNC)
  • Audio Cue Channel: XLR-3F in, XLR-3M out
