Martin Audio TORUS

The Definitive Constant Curvature.

For applications that typically require a throw between 15-30m, a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL.

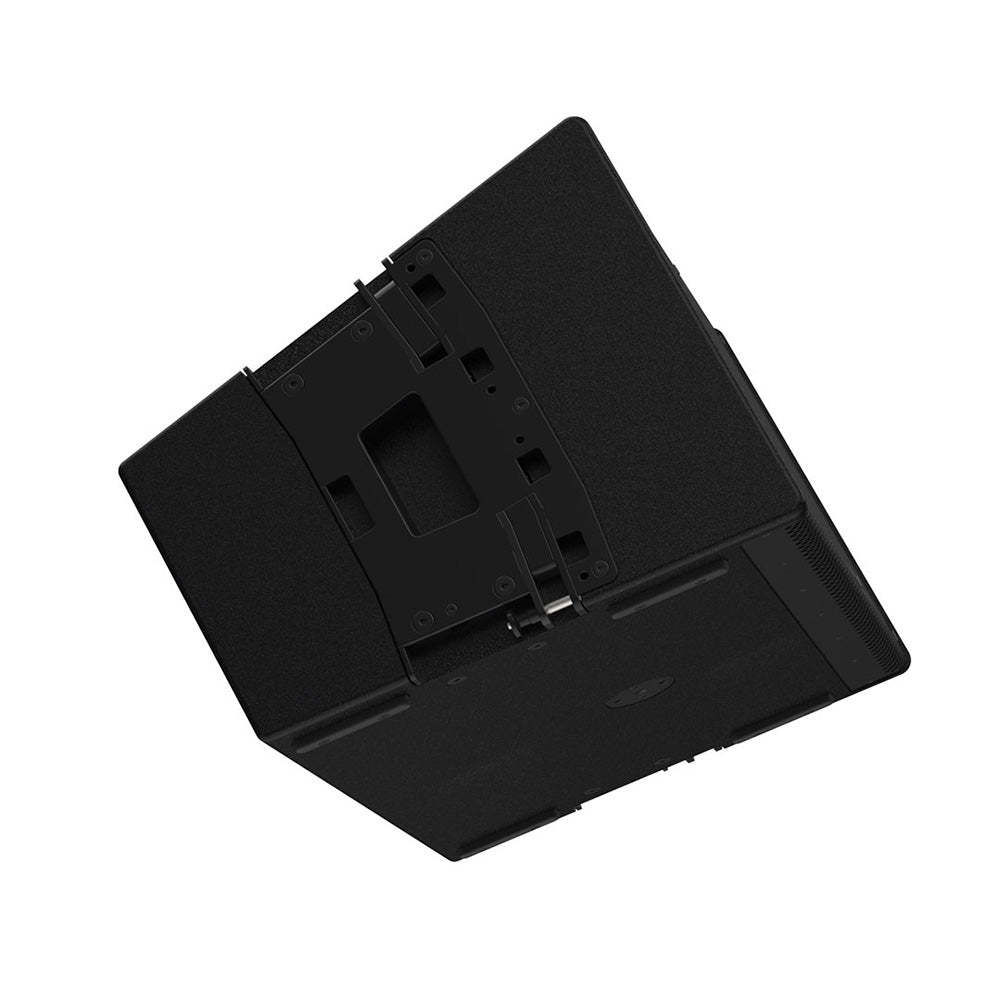

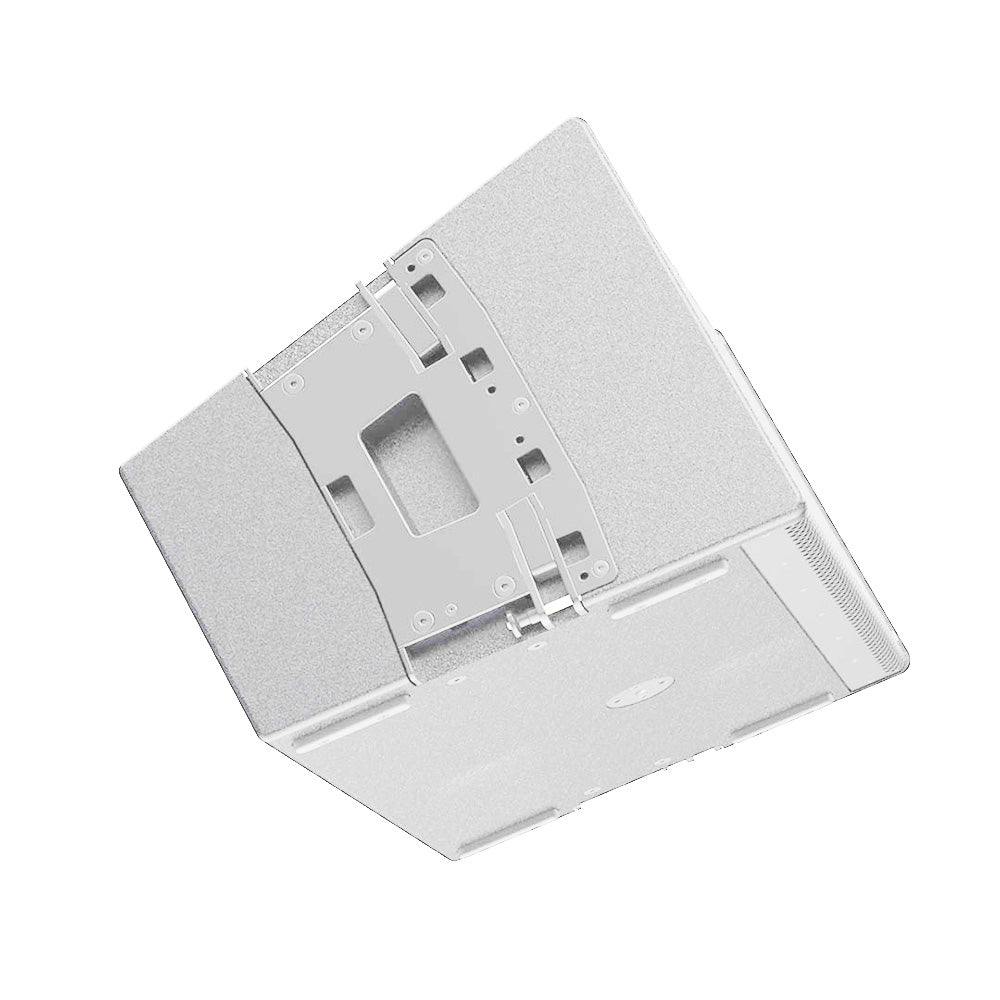

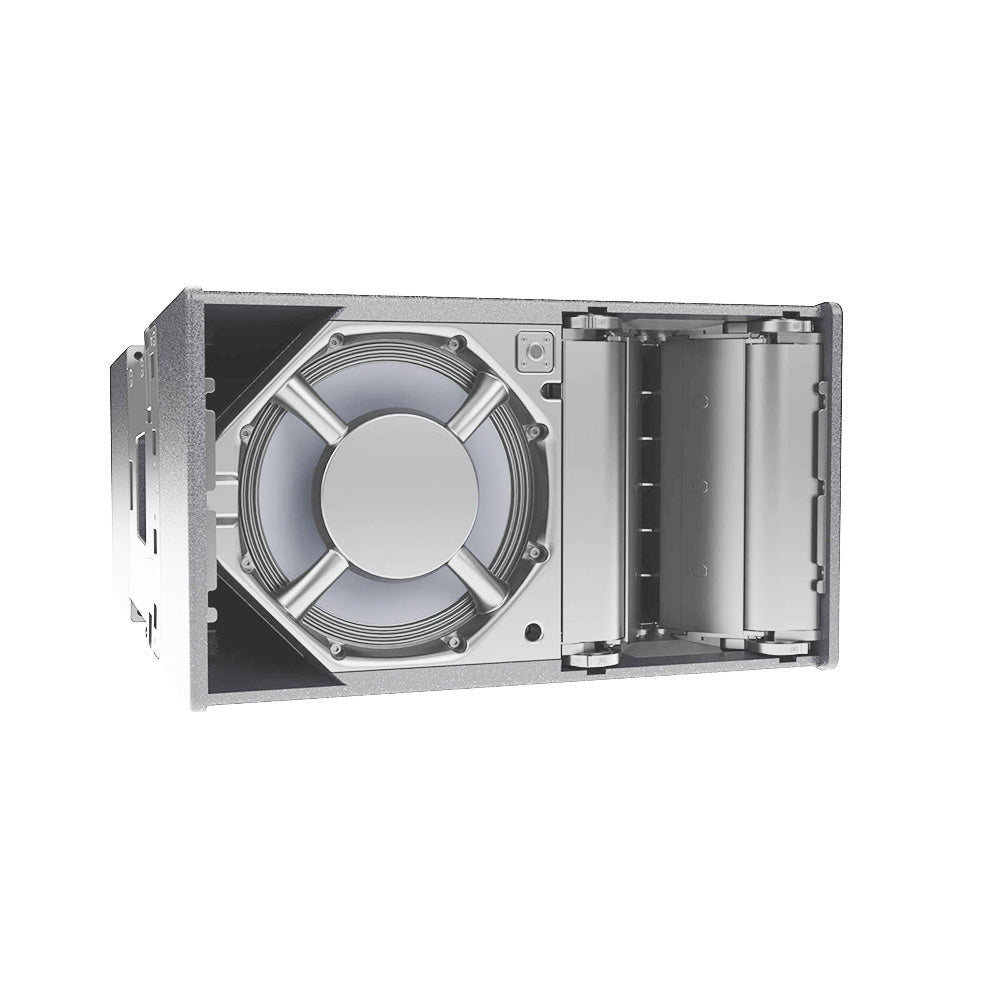

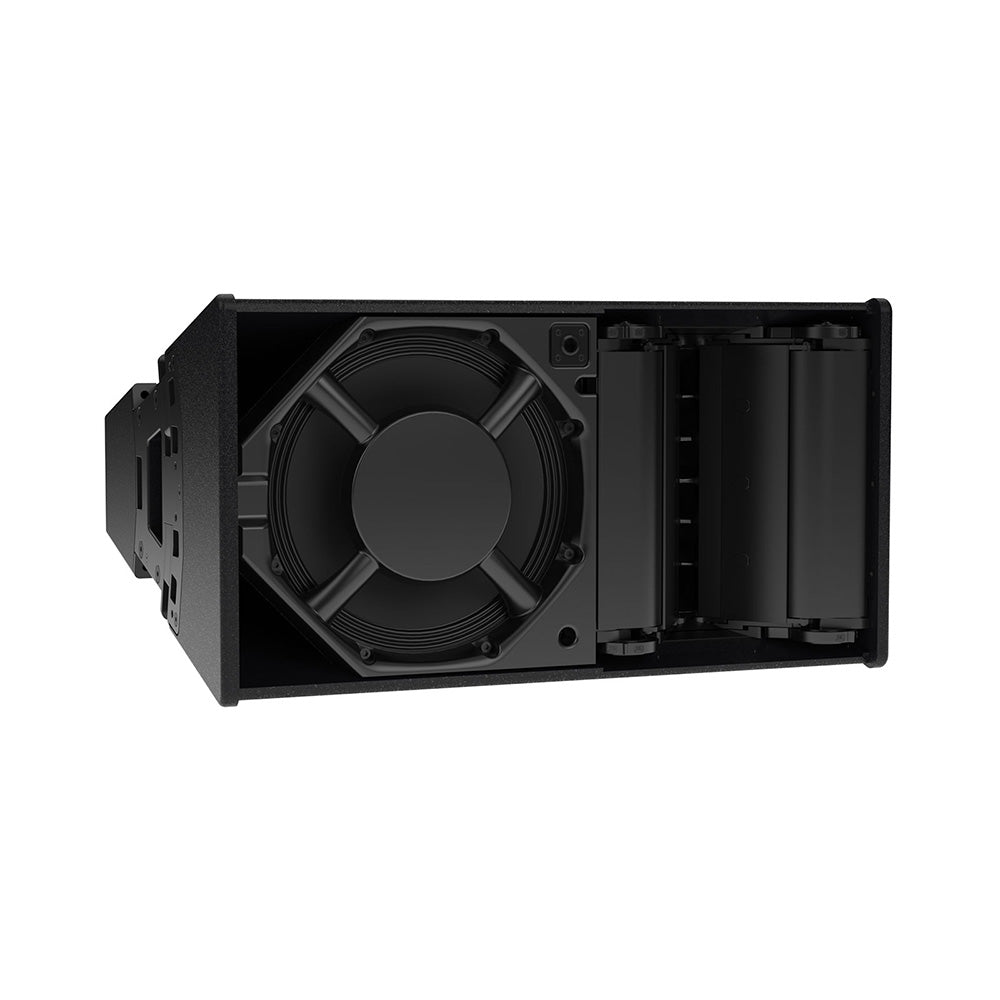

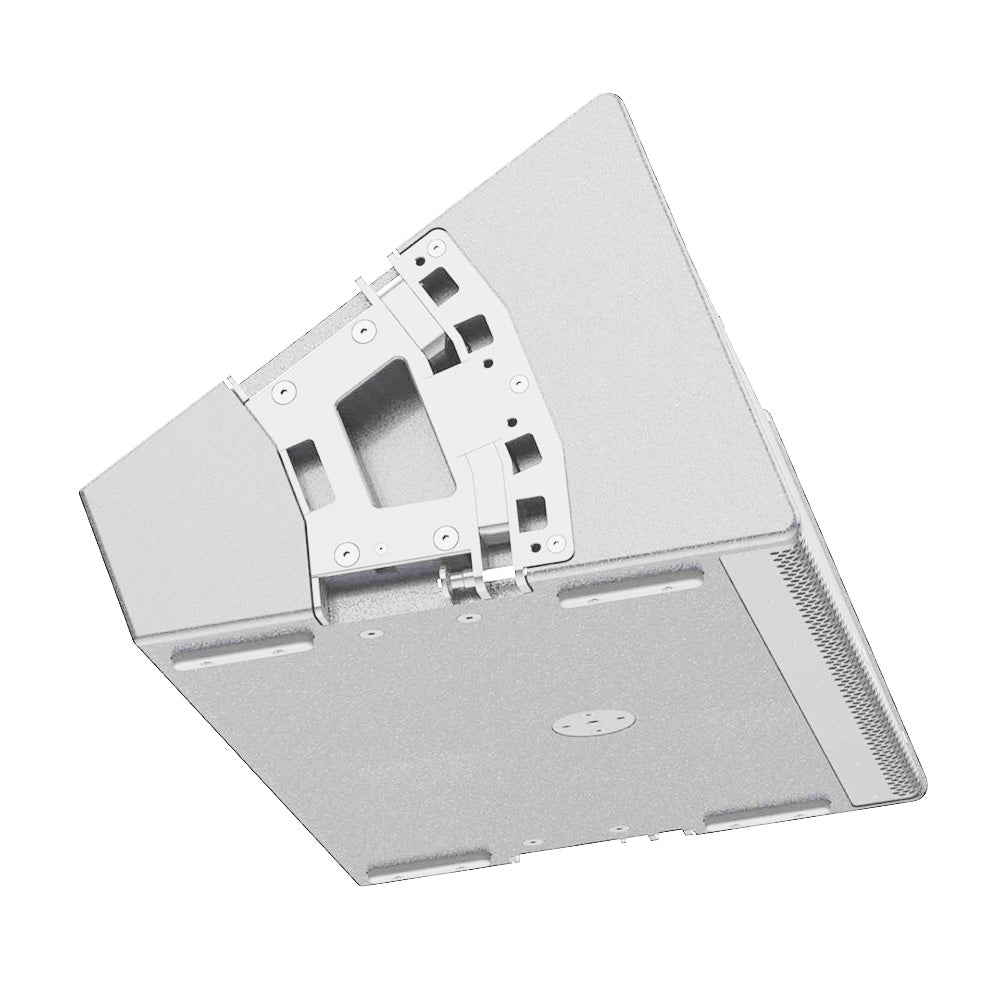

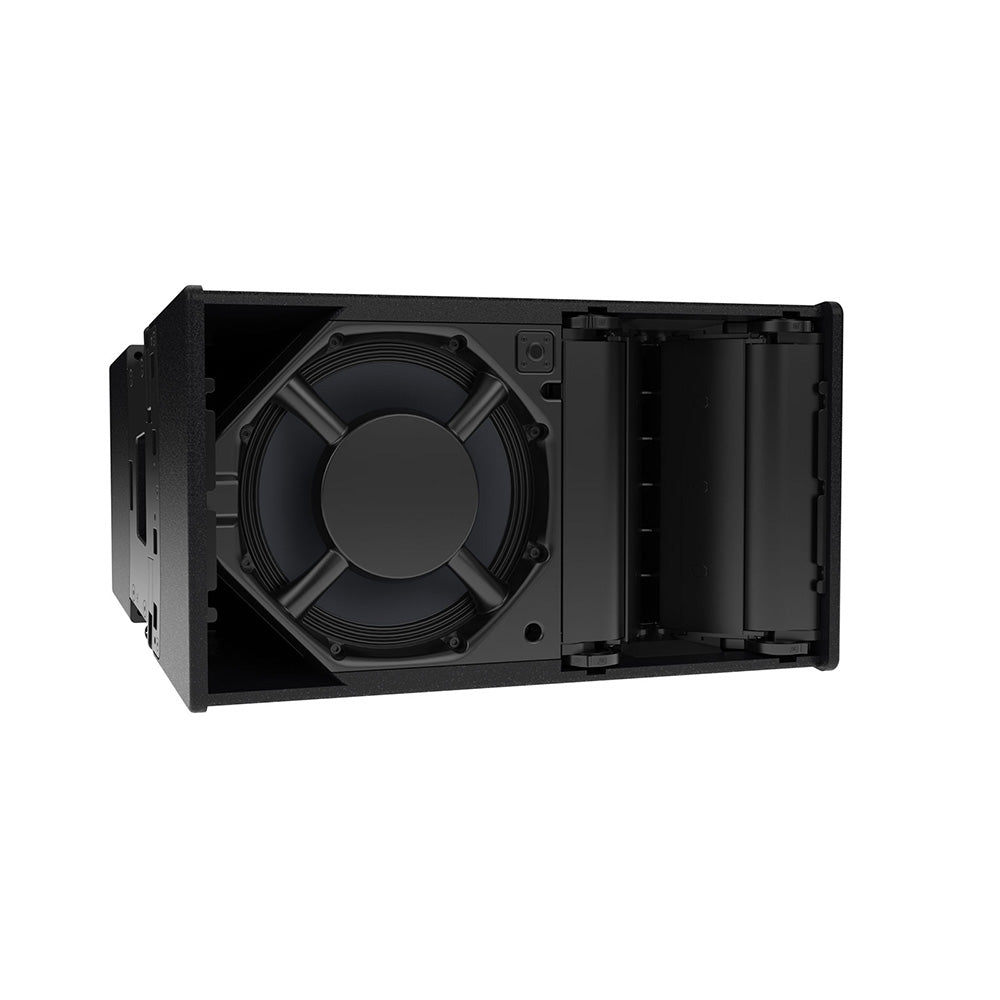

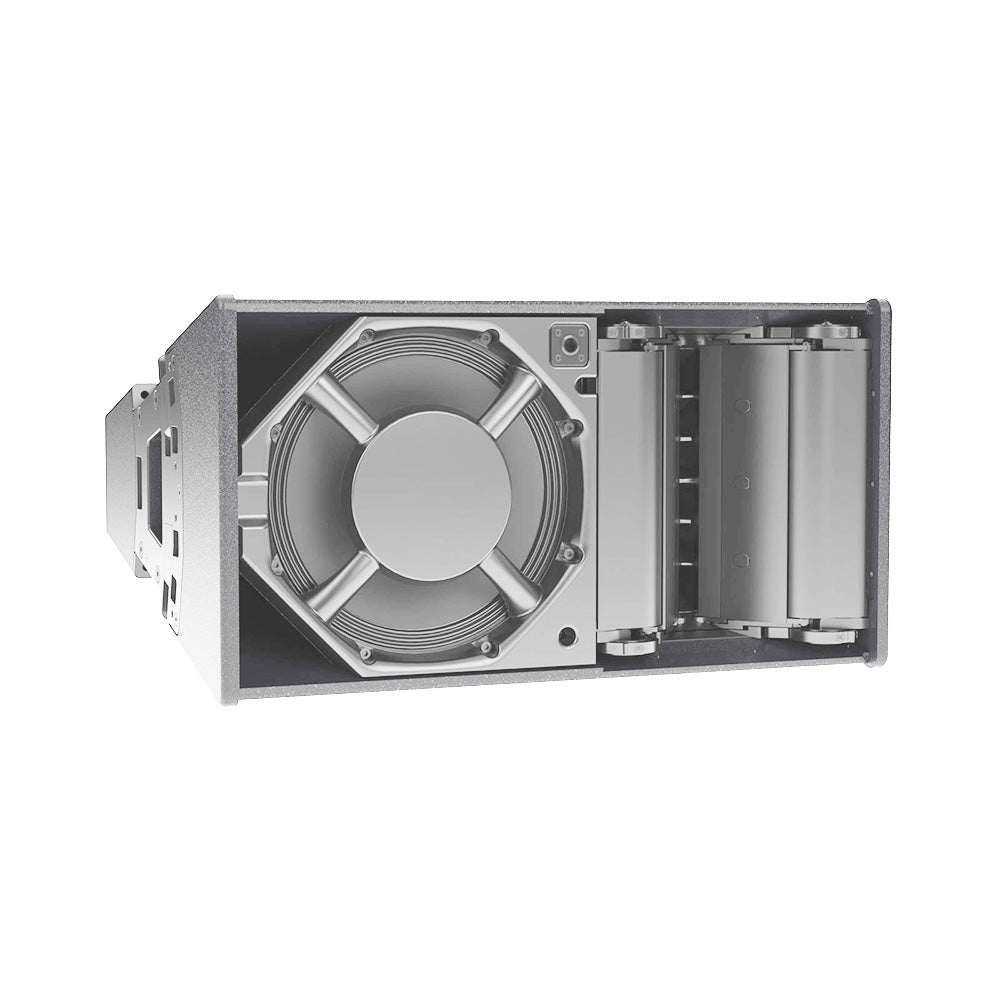

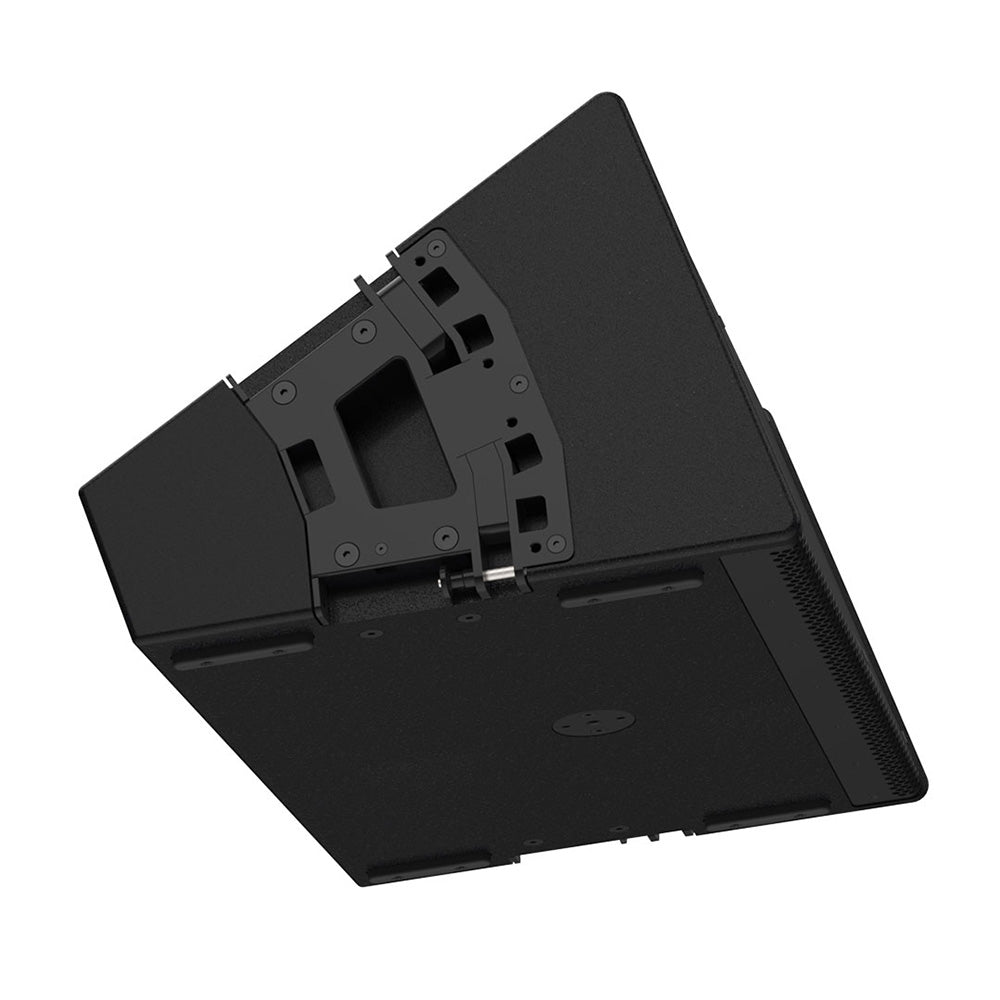

TORUS is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL profile and cost efficiency.

However, it is much more than just another constant curvature array. TORUS was in development for three years in an exhaustive bid to further the acoustic concept and performance achievable.

Typically, constant curvature arrays have adjustable horizontal dispersion but their performance can vary considerably in terms of tonality and effectiveness of coverage when different dispersions are selected.

Equally, many lack sufficient sensitivity in the mid-band frequency, critically important for voice projection and clarity. They also can suffer from comb filtering.

TORUS fundamentally addresses these areas and more.



Amplification and Subwoofer
These models have two NL4 connectors with passive configuration using pins 1+ 1- or 2+ 2- selected via rear-mounted switch. TORUS systems are powered by Martin Audio iKON amplifiers, which support VU-NET control software and Dante® integration

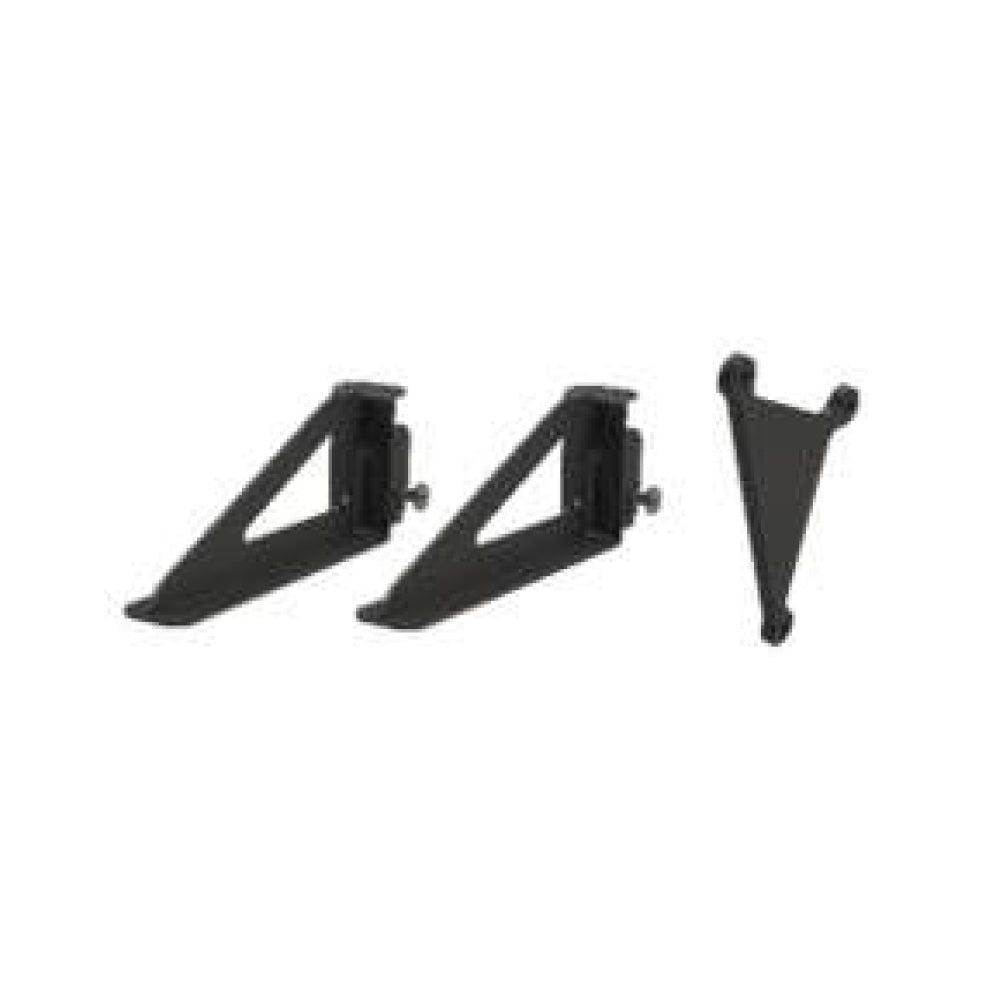

TORUS can be supplemented by SX subwoofers and is specifically designed to fully integrate with the cardioid subwoofer, SXCF118, for flown and ground-stack configurations.

The SXCF118 is a compact, high performance cardioid subwoofer, combining maximum low frequency output with pattern control. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.
