DALE SKU # MAAU-SXCF118B

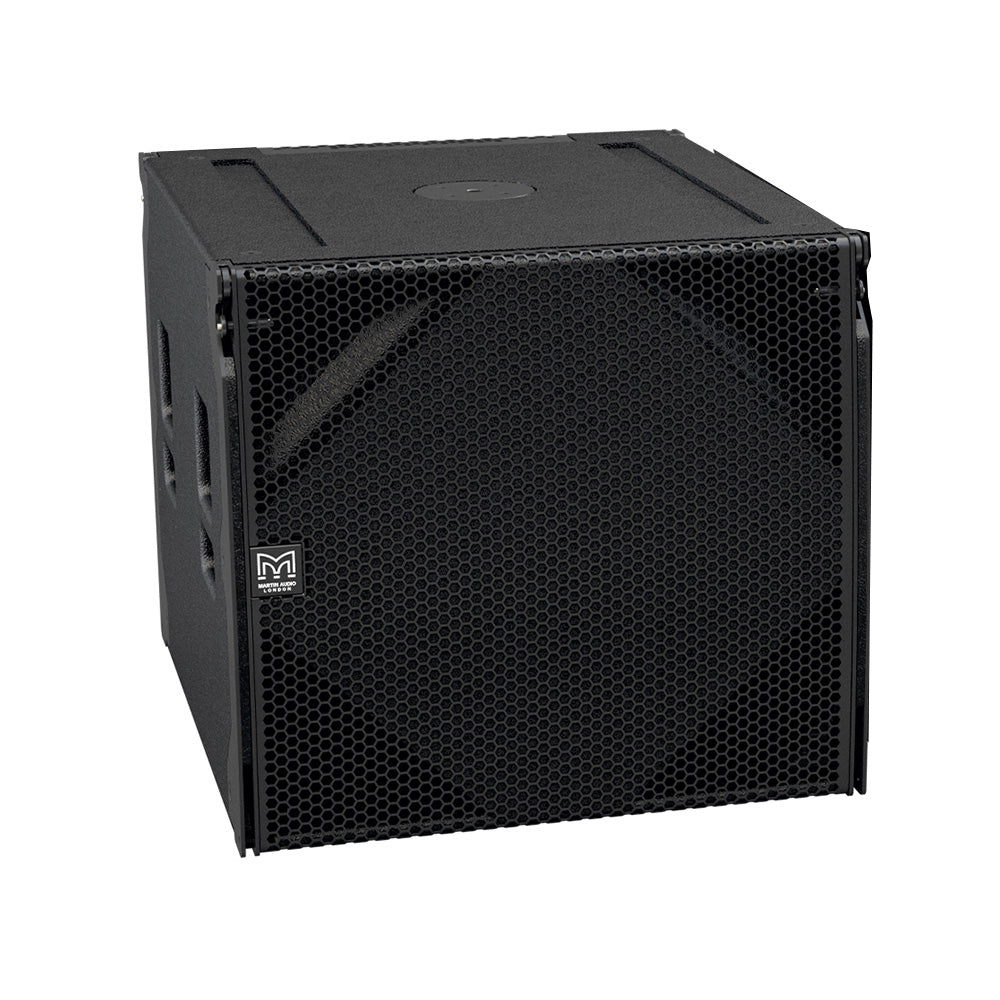

Martin Audio SXFC118 - Compact High-Performance 18-Inch Flyable Subwoofer (Black)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The SXCF118 is a compact, high performance cardioid subwoofer. The flown version of the SXC118, it is the ideal partner for flown WPS or TORUS arrays - combining maximum low frequency output with pattern control. It features an 18" (460mm) forward facing driver and a 14" (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting.

    Features:

    • Compact, cardioid flown subwoofer
    • Front facing 18" (460mm)/4" (100mm) voice coil driver
    • Rear facing 14" (356mm)/3.5" (88mm) voice coil driver
    • Cardioid dispersion pattern
    • 28dB rear rejection at 75Hz
    • High output capability
    • Tour-grade plywood enclosure


    Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.

    This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer. The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection - from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages and walls as well as reducing reverberant energy in the room - greatly improving low frequency response accuracy and impact.

    In front of the enclosure, the output from the two drivers is additive, giving an extra 2dB of output when compared with a conventional 1 x 18" subwoofer.

    The enclosure is constructed from tour-grade plywood and finished with a hard-wearing textured polyurea coating. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. Integral flying hardware, coupled with the WPSGRIDT, allows the SXCF118 to be incorporated at the top of a WPS array, or flown as a separate array alongside. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole-mounting of up to 4 WPM enclosures or a single point source enclosure.

    The addition of the input cover accessory makes the SXCF118 weather resistant and suitable for outdoor usage.

    Applications:

    • Live sound reinforcement
    • Fixed installations including live event venues and nightclubs
    • Theatre sound
    • Corporate AV events
    TYPE Compact, cardioid subwoofer
    FREQUENCY RESPONSE 43Hz Ð 150Hz ±3dB, -10dB @ 34Hz
    DRIVERS
    • 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    • 14" (356mm)/3.5" (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
    RATED POWER
    • 18": 1000W AES, 4000W peak
    • 14": 800W AES, 3200W peak
    SENSITIVITY 104dB
    MAXIMUM SPL 140dB peak
    NOMINAL IMPEDANCE
    • 18": 8½
    • 14": 8½
    DISPERSION (-6DB) Cardioid
    ENCLOSURE Multi-laminate birch ply
    FINISH Textured black polyurea
    PROTECTIVE GRILLE Black HEX perforated steel
    CONNECTORS 2 x NL4
    PIN CONNECTIONS (INPUT) 18": +1, -1; 14": +2, -2
    PINS CONNECTIONS (LINK) 18": +1, -1; 14": +2, -2
    FITTINGS
    • Two skids on base, with mating channels on top
    • M20 top-mounted thread plate for pole mounting
    • Two bar handles on each side
    • Four fittings for optional transit cover
    DIMENSIONS (INCL SKIDS)
    • (W) 650mm x (H) 611mm x (D) 812mm (940mm incl castors)
    • (W) 25.6in x (H) 24.1in x (D) 32.0in (37.0in incl castors)
    WEIGHT
    • 75kg (165lbs), 78kg (172 lbs) incl castors

    The SXCF118 is a compact, high performance cardioid subwoofer. The flown version of the SXC118, it is the ideal partner for flown WPS or TORUS arrays - combining maximum low frequency output with pattern control. It features an 18" (460mm) forward facing driver and a 14" (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting.

    Features:

    • Compact, cardioid flown subwoofer
    • Front facing 18" (460mm)/4" (100mm) voice coil driver
    • Rear facing 14" (356mm)/3.5" (88mm) voice coil driver
    • Cardioid dispersion pattern
    • 28dB rear rejection at 75Hz
    • High output capability
    • Tour-grade plywood enclosure


    Each driver has its own chamber with optimised bass reflex porting. This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer.

    This arrangement produces a cardioid dispersion pattern which maximises the front radiation and reduces unwanted radiation behind the subwoofer. The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection - from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages and walls as well as reducing reverberant energy in the room - greatly improving low frequency response accuracy and impact.

    In front of the enclosure, the output from the two drivers is additive, giving an extra 2dB of output when compared with a conventional 1 x 18" subwoofer.

    The enclosure is constructed from tour-grade plywood and finished with a hard-wearing textured polyurea coating. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. Integral flying hardware, coupled with the WPSGRIDT, allows the SXCF118 to be incorporated at the top of a WPS array, or flown as a separate array alongside. Interlocking skids prevent movement when stacked and a threaded plate in the top surface facilitates pole-mounting of up to 4 WPM enclosures or a single point source enclosure.

    The addition of the input cover accessory makes the SXCF118 weather resistant and suitable for outdoor usage.

    Applications:

    • Live sound reinforcement
    • Fixed installations including live event venues and nightclubs
    • Theatre sound
    • Corporate AV events
    TYPE Compact, cardioid subwoofer
    FREQUENCY RESPONSE 43Hz Ð 150Hz ±3dB, -10dB @ 34Hz
    DRIVERS
    • 18" (460mm)/4" (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
    • 14" (356mm)/3.5" (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
    RATED POWER
    • 18": 1000W AES, 4000W peak
    • 14": 800W AES, 3200W peak
    SENSITIVITY 104dB
    MAXIMUM SPL 140dB peak
    NOMINAL IMPEDANCE
    • 18": 8½
    • 14": 8½
    DISPERSION (-6DB) Cardioid
    ENCLOSURE Multi-laminate birch ply
    FINISH Textured black polyurea
    PROTECTIVE GRILLE Black HEX perforated steel
    CONNECTORS 2 x NL4
    PIN CONNECTIONS (INPUT) 18": +1, -1; 14": +2, -2
    PINS CONNECTIONS (LINK) 18": +1, -1; 14": +2, -2
    FITTINGS
    • Two skids on base, with mating channels on top
    • M20 top-mounted thread plate for pole mounting
    • Two bar handles on each side
    • Four fittings for optional transit cover
    DIMENSIONS (INCL SKIDS)
    • (W) 650mm x (H) 611mm x (D) 812mm (940mm incl castors)
    • (W) 25.6in x (H) 24.1in x (D) 32.0in (37.0in incl castors)
    WEIGHT
    • 75kg (165lbs), 78kg (172 lbs) incl castors
