Dale #:
ADAM-S2VAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

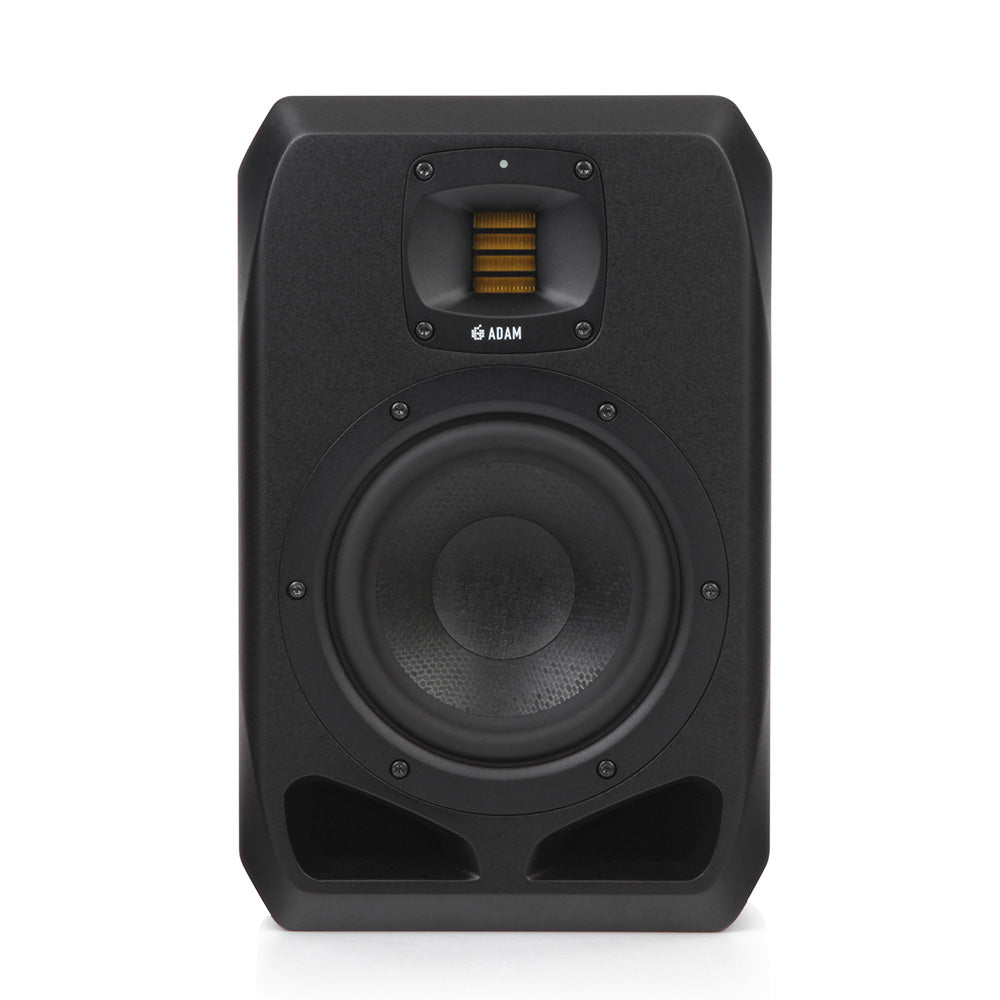

The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms. The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic ra... Read MoreOur Price: $1,399.99
Free Shipping (Continental US)
Suggested Accessories
Description
The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms. The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.
The S2V's compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.
The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.
With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
Features:
More +
Product Specs
WOOFER | |
Number | 1 |
Basket Ø | 7" (178 mm) |
Voice Coil Ø | 1.5" (39 mm) |
Cone Material | HexaCone |
TWEETER | |
Number | 1 |
Type | S-ART |
Diaphragm Area | 4 inch² (2420 mm²) |
Equiv. Diaphragm Ø | 2" (56 mm) |
Velocity Transform Ratio | 4:1 |
Diaphragm Weight | 0.17 g |
Waveguide | HPS |
BUILT-IN AMPLIFIERS | |
Number | 2 |
Woofer | 1 |
Type | PWM |
Amp. Power RMS | 300 W |
Tweeter | 1 |
Type | A/B |
Amp. Power RMS | 50 W |
CONTROL OPTIONS | |
Input Sensivity | Adjustable |
Parametric EQs | 6 |
Room Compensation High-Shelf EQ | 1 |
Room Compensation Low-Shelf EQ | 1 |
Preset Memories | 5 |
Delay | 0 ms to 5 ms |
INPUT CONNECTORS | |
Analog XLR | |
Input Impedance | 48 kOhm |
Max. Input Level | +24 dBu |
Digital AES3 | XLR |
GENERAL DATA | |
Frequency Response | 35 Hz - 50 kHz |
THD | > 100 Hz ≤0.4 % |
Max. SPL per pair at 1 m | ≥120 dB |
Crossover Frequencies | 3 kHz |
Weight | 24.2 lb (11.0 kg) |
Height x Width x Depth | 13,6" (346 mm) x 8,7" (222 mm) x 13,3“ (338 mm ) |
Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
Delivery Contents | Power cord, Manual |
